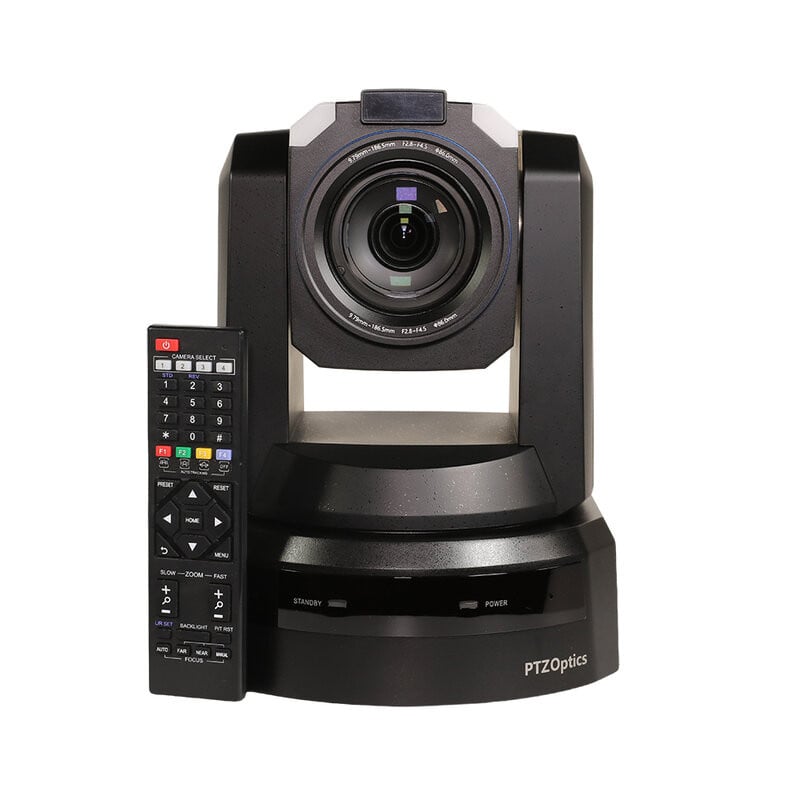

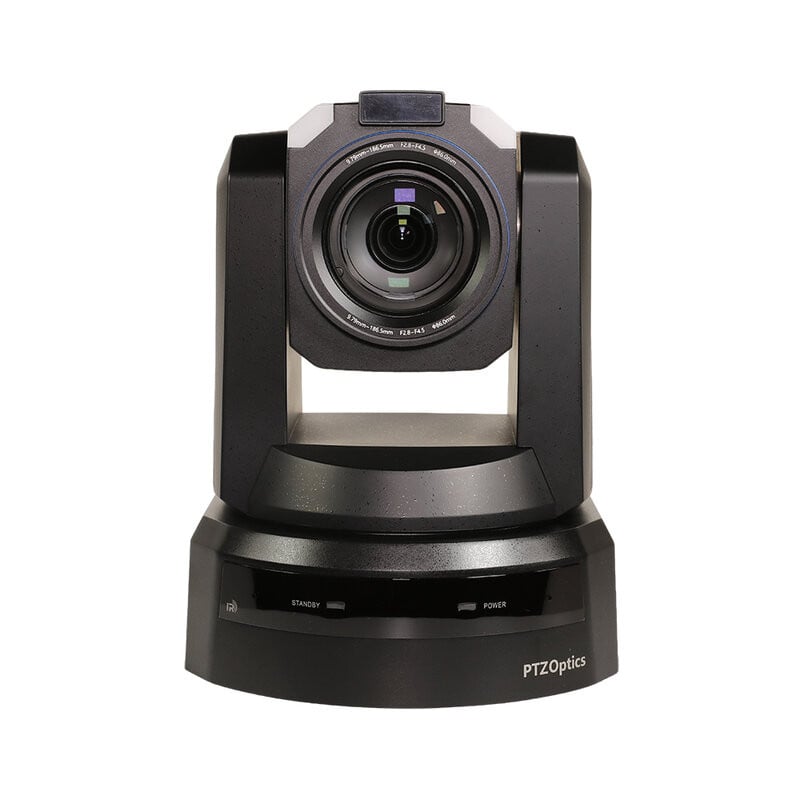

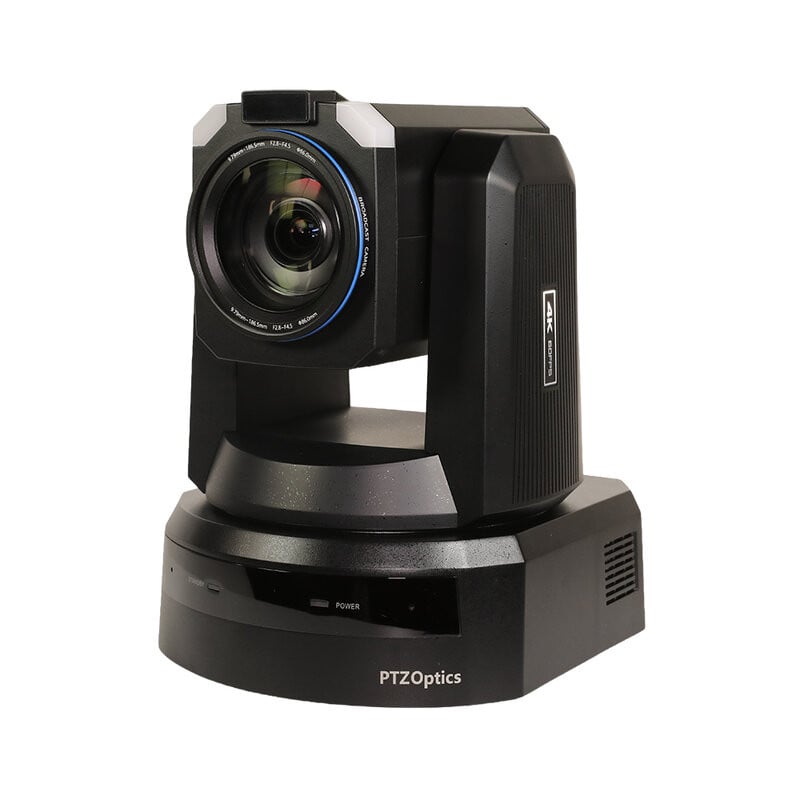

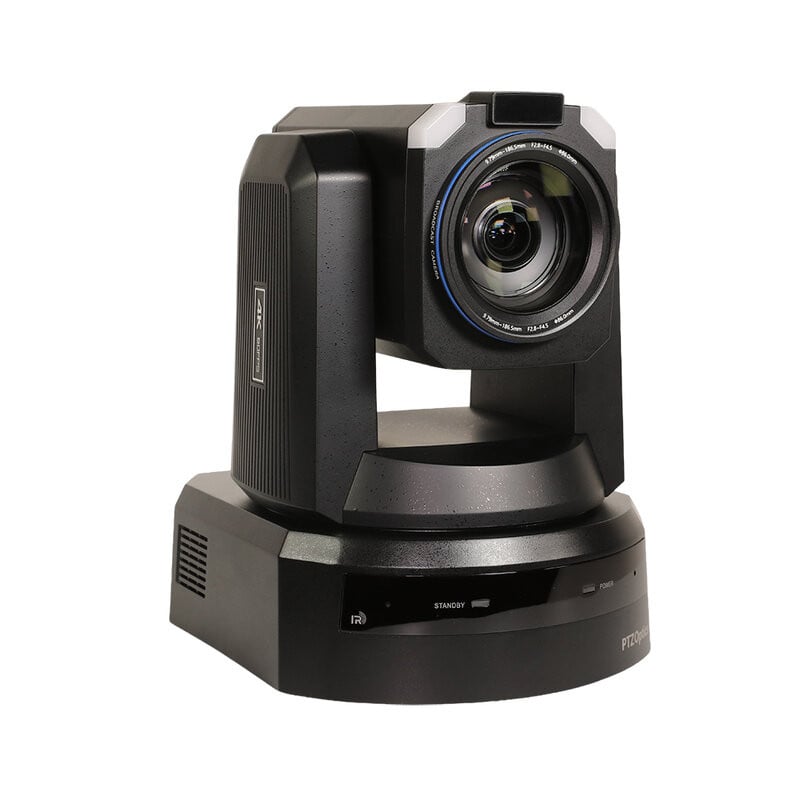

PTZOptics - PTZOptics Rise 4K

Rise 4K is the new high-end PTZ from the American manufacturer, designed to bring cinematic quality, broadcast connectivity and intelligent tools to productions of any size. At the heart of the camera is a 1" 50 Mpixel CMOS sensor, capable of capturing 4K Ultra HD video at up to 60 fps, with a 20× optical zoom and a horizontal field of view of approximately 70°, ideal for transitioning from wide shots to close-ups with maximum naturalness.

Phase detection focus, optical stabilization, brushless motors for pan and tilt movements, and a three-stage ND filter ensure stable, smooth, and perfectly controlled images in all lighting conditions.

Rise 4K is built for professional broadcast workflows: it includes 12G SDI, 3G SDI, HDMI, USB 3.0, NDI HX / RTMP / RTSP / SRT streaming, as well as 12G SFP+ connectivity compatible with fiber. It supports Time Code, Genlock, and FreeD, allowing integration into synchronized multi-camera systems, augmented reality, and virtual production.

The camera integrates balanced XLR audio inputs with 48 V Phantom power, recording, and on TF card, front and rear Tally, and comes with Horizon Web, the intelligent interface that offers advanced PTZ control, color adjustments, auto tracking, auto framing, intelligent presets, automations and professional tools such as waveform, vectorscope and RGB parade.

User benefits

• Cinematic quality thanks to the 1" 50 MP sensor
• 4K shooting at 60 fps with 20× optical zoom
• Phase-detection autofocus and optical stabilization
• Smooth and precise PTZ movements
• ND filter
• Full broadcast connectivity
• Advanced IP streaming
• Time code, genlock, and FreeD for professional workflows
• XLR audio inputs with 48 V phantom power
• Dual Tally (front and rear)
• Horizon Web with AI auto-tracking, auto-framing, and intelligent presets
• Waveform, vectorscope, RGB parade

Application areas

• Broadcast, television studios
• Live events and multi-camera
• Sports and arena coverage
• Corporate AV
• Universities and campuses
• Houses of worship
• Independent productions, virtual production, and AR

Technical characteristics

• Resolutions & frame rates HDMI / 12G-SDI: 4Kp 60, 4Kp 59.94, 4Kp 50, 4Kp 30, 4Kp 29.97, 4Kp 25, 4Kp 24, 4Kp 23.98, 1080p 60, 1080p 59.94, 1080p 50, 1080p 30, 1080p 29.97, 1080p 25, 1080p 24, 1080p 23.98, 1080i 60, 1080i 50, 1080i 59.94, 720p 60, 720p 59.94
• Resolutions & frame rates 3G-SDI: 1080p 60, 1080p 59.94, 1080p 50, 1080p 30, 1080p 29.97, 1080p 25, 1080p 24, 1080p 23.98, 1080i 60, 1080i 50, 1080i 59.94, 720p 60, 720p 59.94

• Sensor: 1", CMOS, progressive scan, effective pixels: 50 million
• Lens: 20×, f 9.79 mm to 186.5 mm, F2.8/4.5
• Digital zoom: 16×
• Horizontal FoV: 70° to 4.1°
• Vertical FoV: 41.9° to 2.3°
• Min. illumination: 0.5 lux @ (F2.8, AGC ON)
• Shutter: 1/30 s to 1/10000 s
• ND (Neutral Density) filter: built-in (OFF, 1/4, 1/16, 1/64)
• Image stabilization: OIS (Optical Image Stabilization)
• OIS (Optical Image Stabilization) operating range: 3 to 8 Hz
• White balance: auto, manual, indoor, outdoor, one push, VAR
• Digital noise reduction: 3D digital noise reduction
• SNR: ≥ 55 dB
• Supported features: backlight compensation, horizontal flip & vertical flip, image freeze

• Pan range: ±172°
• Tilt range: -30° to +120°
• Pan speed: 0.004°/s to 180°/s
• Tilt speed: 0.004°/s to 180°/s
• Preset positions number: 255
• Preset position accuracy: 0.1°

• Support operating system: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
• Color space/compression: YUY2/H.264/MJPEG/H.265
• Video format: YUY2: max 1080p @ 30 fps, H.264 AVC: max 2160p @ 60 fps, H.265 HEVC: max. 2160p @ 60 fps, MJPEG: max. 2160p @ 60 fps
• UVC (USB Video Communication Protocol): UVC 1.1, supports USB embedded audio

• Video compression: H.265/H.264/MJPEG
• Video stream: first stream, second stream
• First stream resolution: 3840 × 2160, 1920 × 1080, 1280 × 720, 1024 × 576 etc.
• Second stream resolution: 720 × 576, 720 × 480, 320 × 240 etc
• Bit rate: 32 kbps to 102400 kbps
• Bit rate control: variable bit rate, fixed bit rate
• Frequency: P50: 1 to 50 fps, P60: 1 to 60 fps
• Audio compression: AAC
• Audio bit rate: 96 kbps, 128 kbps

• Control protocols: HTTP(S), ONVIF, VISCA/Pelco-D/Pelco-P
• Video protocols: NDI HX3, SRT, RTSP, RTMP(S)
• Other: freeD

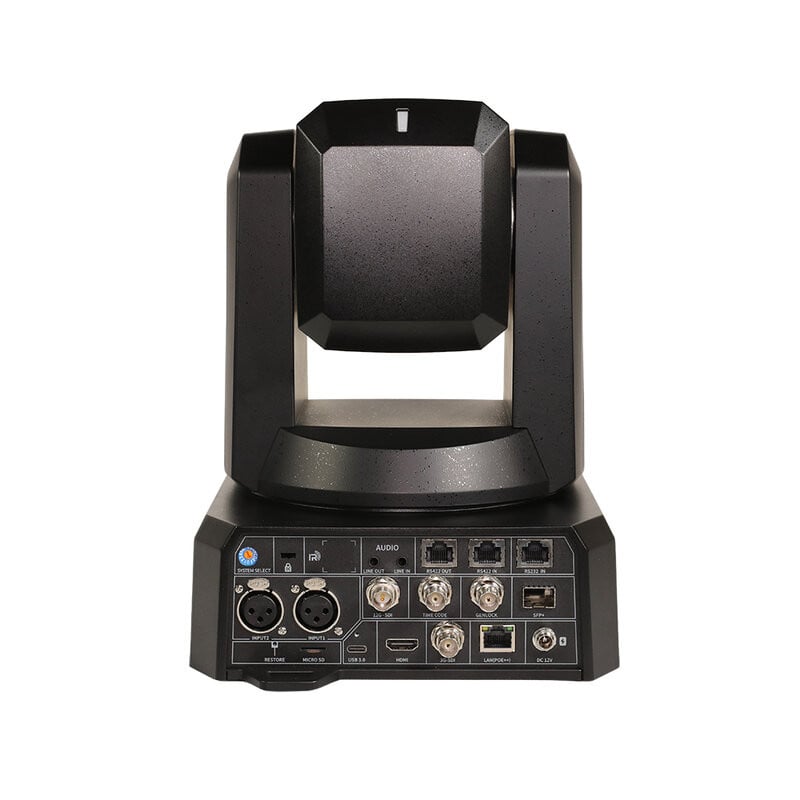

• Video outputs: 1 × HDMI 2.0
• Video outputs: 1 × 12G-SDI, BNC type, 800 mVp-p, 75 ohm, comply with SMPTE2082 standard
• Video outputs: 1 × 3G-SDI, BNC type, 800 mVp-p, 75 ohm, comply with SMPTE 424M standard
• Genlock: 1 × BNC type, 1.0 Vp-p, 75 ohm, input only
• Timecode: 1 × BNC type, 75 ohm, input only

• Network: 1 × RJ45, 10M/100M/1000M adaptive ethernet
• USB: 1 × USB 3.0, Type-C
• SD card: 1 channel microSD

• Audio: 1 × line in, 3.5 mm audio interface
• Audio: 1 × line out, 3.5 mm audio interface
• Audio: 2 × XLR inputs (optional 48 V Phantom power)

• Control options: 1 × RS232 in, RJ45, VISCA/Pelco-D/Pelco-P protocol
• Control options: 1 × RS485/422, RJ45, VISCA/Pelco-D/Pelco-P protocol
• Control options: 1 × RS422 out, RJ45, VISCA/Pelco-D/Pelco-P protocol

• Power: JEITA type (12 V_DC IN)
• Power over ethernet: PoE++ (IEEE 802.3bt)
• Input current: 5A (max.)

• Power-ON (initial boot): power LED (Blue) ON, standby LED (Green) ON
• Normal operation (idle, no control): power LED (Blue) steady ON, standby LED (Green) OFF
• Receiving IR remote signal: power LED (Blue) steady ON, standby LED (Green) flashes once
• Standby mode: power LED (Blue) ON, standby LED (Green) ON
• Privacy mode: power LED (Blue) ON, standby LED (Green) flashes continuously

• Installation: normal and inverted
• Tally light: 3 × (bi-color, red and green)

• CE-EMC
• CE-LVD
• FCC
• REACH
• RoHS
• UKCA
• NDI HX3 (pending certification)

• NDAA compliant

• Working temperature: 0 to 40 °C
• Storage temperature: -40 to 60 °C
• Dimensions: 20.5 × 23.7 × 27.2 cm
• Weight: 4.8 kg
