Rondson - AES-DR2

This 24 V safety power supply system, in a 19" 2U rack format, features an EN 54-4/A2 certified unit designed to ensure operational continuity for emergency evacuation and sound systems. The device manages and recharges the connected batteries, which automatically intervene in the event of a power failure to ensure system operation during evacuation procedures.

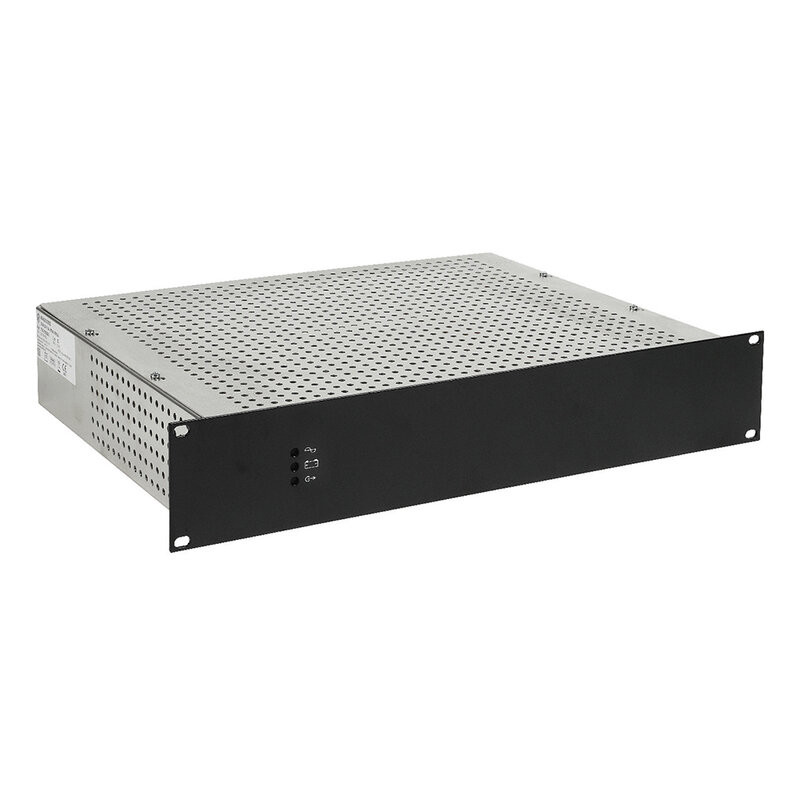

Status is communicated via front LEDs, while dry contacts allow alarms to be relayed to external systems. The unit monitors battery presence and impedance (i.e., internal resistance, current supply capacity, and any anomalies in the battery circuit), protects against temperature variations and deep discharges, and integrates comprehensive protection on all rear connections. The SONaes range also offers up to six amplifier outputs and three independent, fused auxiliary outputs, with fully removable connectors and surge protection.

User benefits

• EN 54-4/A2 certified, compliant with the requirements for evacuation and fire alarm systems
• Intelligent battery management with presence, impedance, and charge status monitoring
• Advanced protection against temperature, overvoltage, and deep discharge
• Alarm signals via front LEDs and dry contacts for integration with external systems
• Up to 6 amplifier outputs and 3 independent auxiliary outputs

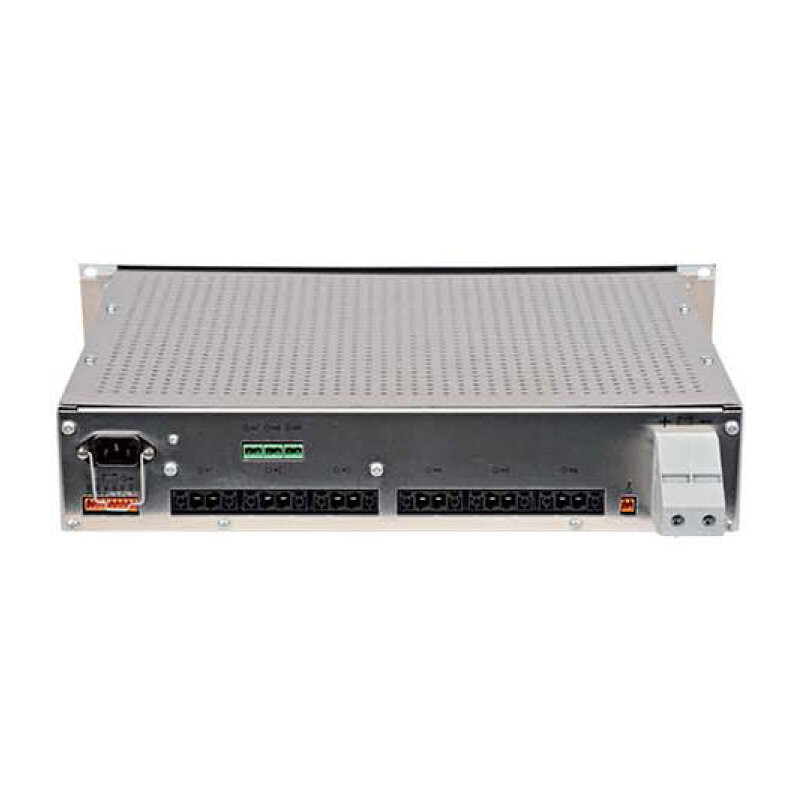

• Fully removable rear connectors for quick and safe maintenance
• Integrated lightning protection for increased operational reliability

Areas of use

• EN 54-compliant voice evacuation and fire alarm systems
• Security sound systems in public and commercial buildings
• Shopping centers, schools, hospitals, offices, and hospitality facilities
• Installations requiring operational continuity even in the absence of mains power
• Professional rack bays for EVA-2000 series PA / VA systems
