Rondson - AM-40D

AM-40D is a 40 W multimedia amplifier / mixer designed for commercial audio systems.

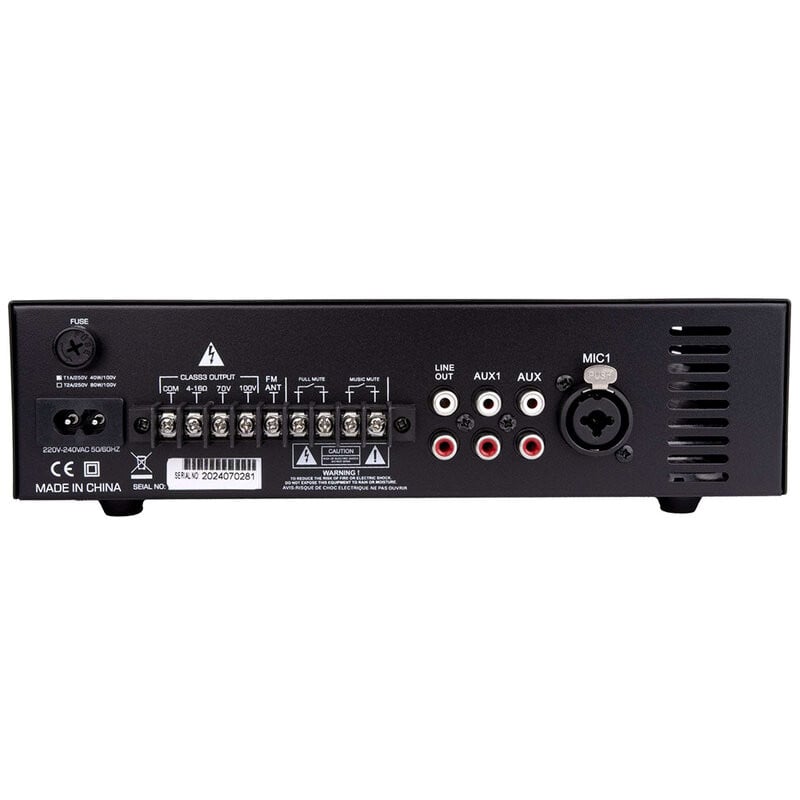

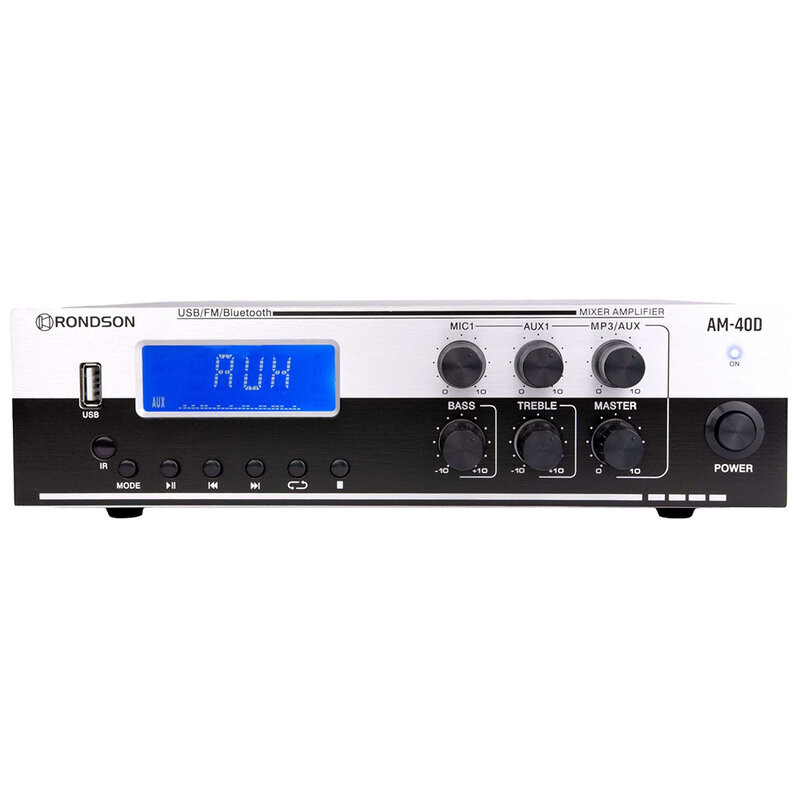

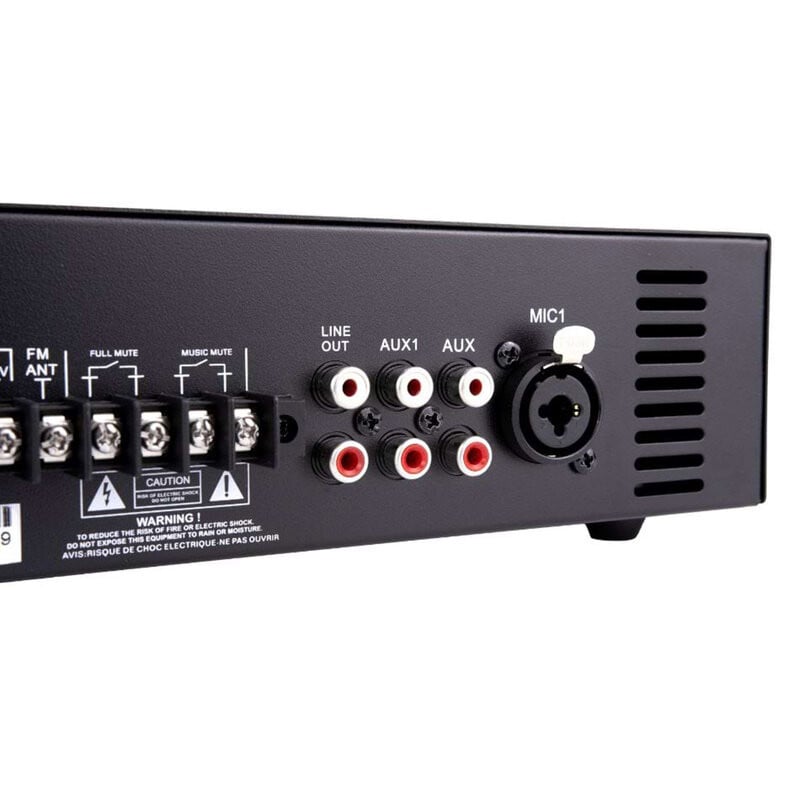

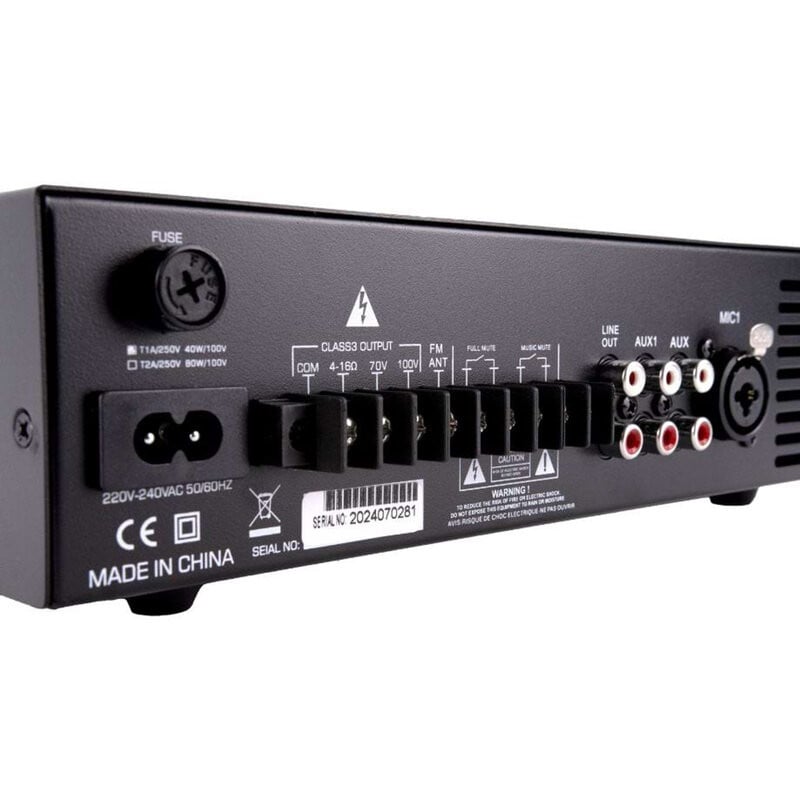

It features a built-in media player with LCD display, USB port and Bluetooth interface, as well as an FM tuner. It has a Combo XLR / 6.35 mm jack input for microphone, two RCA AUX L / R inputs and a line output on stereo RCA connectors, as well as offering low impedance speaker outputs (4 - 16 ohms) and 70 / 100 V line. It has tone controls for bass and treble, master volume, and independent levels for MIC1, AUX1 and MP3 / AUX.

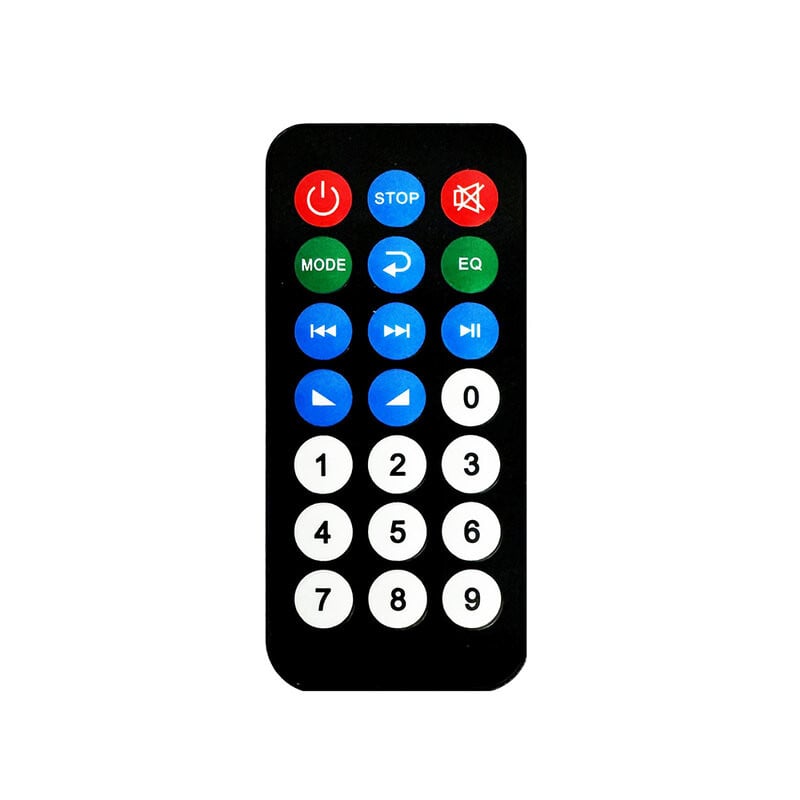

Includes protections against overheating, overload and short circuits. Supplied with a remote control for remote control of all the main functions.

User benefits

• The ability to support multiple audio sources makes it perfect for environments where background music is required
• Independent volume control for different sources
• Ability to connect 70 / 100 V or low impedance speakers
• Compact size for installation in small spaces
• Remote control included

Areas of use

• Shops, showrooms and supermarkets
• Schools
• Libraries and museums
• Gyms
• Hotels

Technical characteristics

• Output power: 40 W_RMS
• Loudspeaker outputs: 4 - 16 ohm / 100 V
• Output / sensitivity: 0 dBV / 600 ohm
• Inputs / sensitivity:
  • MIC 1: 4 mV
  • AUX 1: 400 mV
  • AUX 2: 550 mV
• Tone settings:
  • Bass: ±10 dB at 100 Hz
  • Treble: ±10 dB at 10 kHz
• Frequency response: 80 Hz – 20 kHz (± 3 dB)
• SNR: ≥ 75 dB
• THD: < 0.5%
• Displays: power indicator, output level meters
• Power supply: 240 V_AC 50 Hz
• Dimensions (W x D x H): 22 x 23 x 8.8 cm – 2U
• Weight: 4 kg
