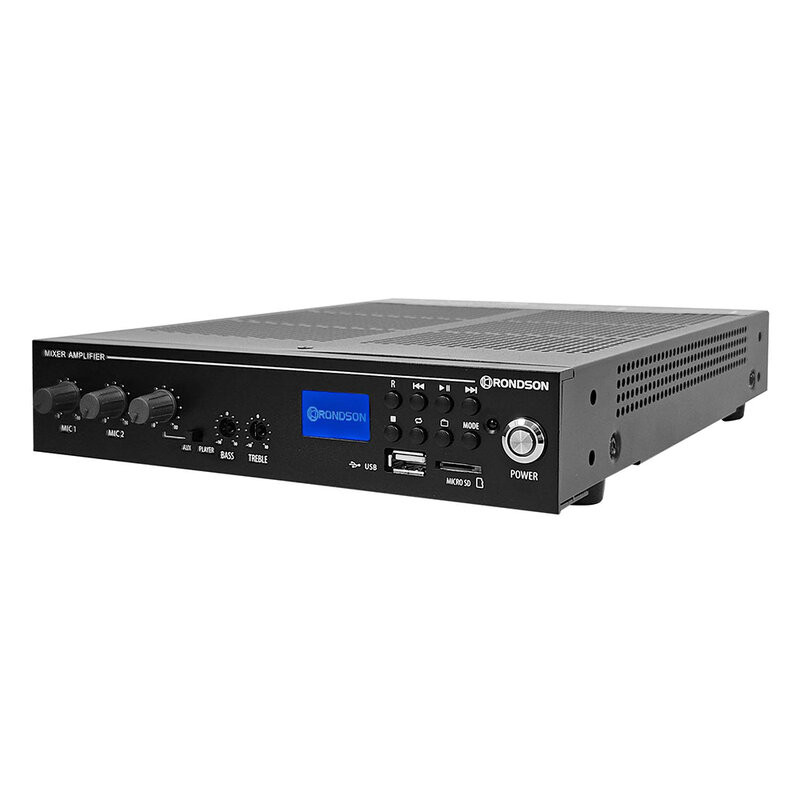

Rondson - AM240UB-2

Rondson AM240UB-2 is a compact 240 W installation amplifier / mixer, ideal for sound reinforcement of environments thanks to its Bluetooth, USB, micro SD interfaces and integrated AM / FM tuner.

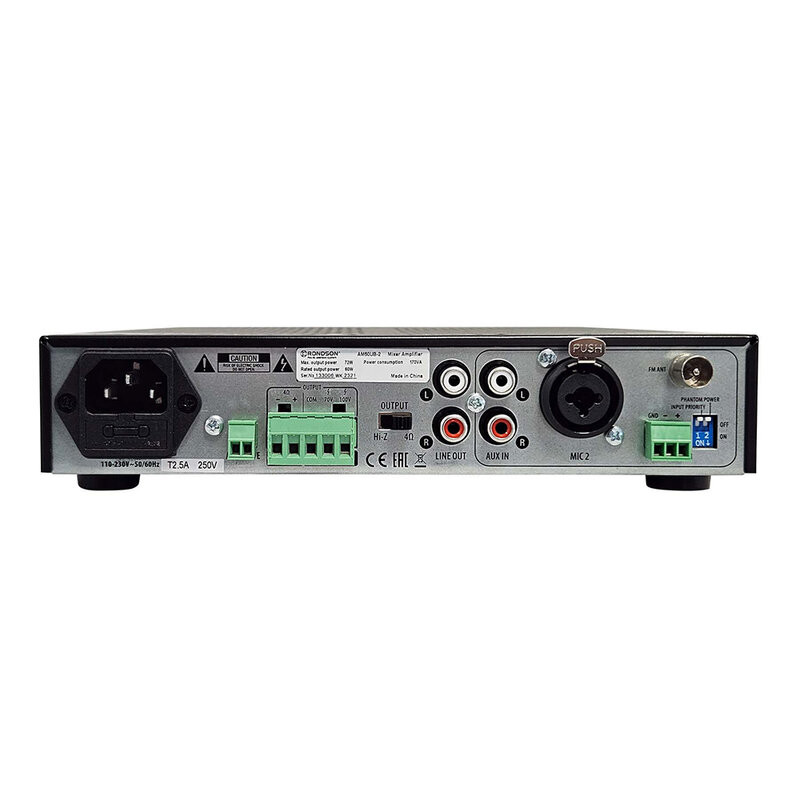

It supports both 70 / 100 V and 4 ohm operation (the selector is located on the rear panel) for greater versatility and operates with mains power or 24 V_DC. It has two MIC inputs, one on a Euroblock connector and one Combo with selectable 24 V Phantom power, a stereo RCA AUX input, a stereo RCA line output and individual volume, bass and treble adjustment on the front. The MIC 1 input can also have priority over other sources (when activated, it deactivates the other sounds coming from MIC2 / AUX1 / AUX2). Also present, on the front, an LED display.

There are protection systems against overheating, overload and short circuit. Cooling is by fan.

The dimensions are half rack, 1U high, and the weight is 3 kg. It can be rack mounted with optional accessories.

User benefits

• Possibility to play music from different sources
• Compatible with 100 V and low impedance (4 ohm) audio systems
• Protection against overheating, overload and short circuit
• Automatic sound cut-off (priority function on MIC 1)

Areas of use

• Music diffusion and announcements in restaurants and bars
• Conference rooms
• Gyms and wellness centers
• Lounge spaces
• Professional PA installations

Technical characteristics

• Integrated sources: tuner / Bluetooth / USB / SD / MP3 player
• Power supply: 110 - 240 V_AC 50 Hz - 24 V_DC
• Loudspeaker output: 70 / 100 V - 4 ohm (low impedance)
• Output power: 240 W_RMS
• Frequency response: 80 Hz - 18 kHz (±3 dB)
• Signal to noise ratio:
  • MIC: > 60 dB
  • Line: > 70 dB
  • Media player: > 60 dB
• Consumption: 400 W
• Total harmonic distortion: < 1%
• Protection and cooling: fan, thermal protection, overload, and short-circuit
• Dimensions (W x D x H): 21.5 x 31.5 x 4.4 cm (half-rack 19")
• Weight: 3 kg
