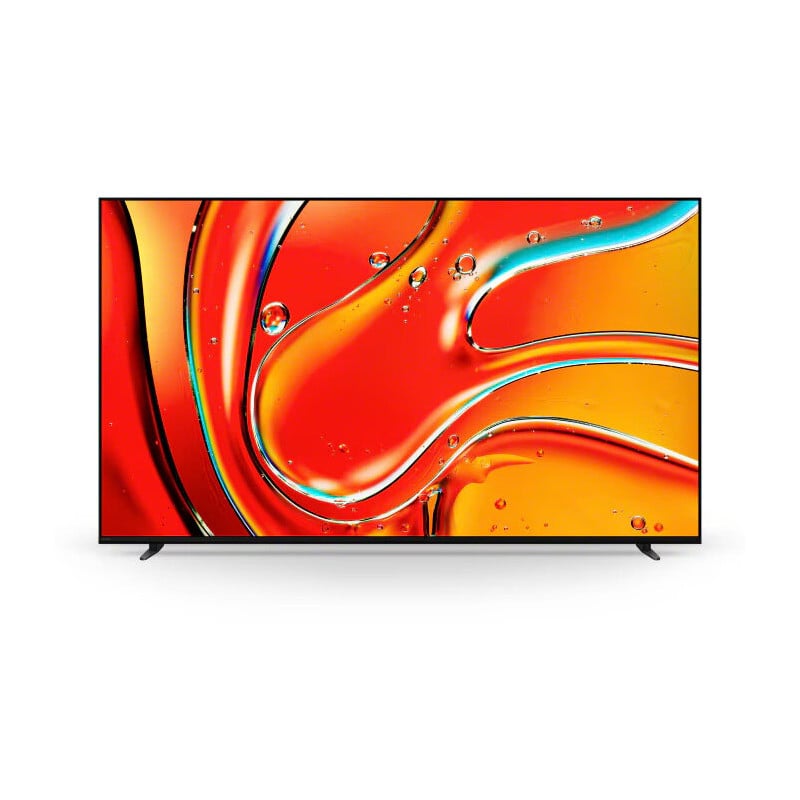

Sony - FWD-85XR70

The FWD-85XR70 is an 85” 4K display from the BRAVIA 7 series, designed to deliver stunningly realistic images and an immersive experience, both visually and audio-wise.

This model uses Mini LED technology with local backlight control (XR Backlight Master Drive), which achieves deep black and high dynamic contrast, similar to that of professional monitors used in film post-production studios. The XR processor with scene recognition precisely analyzes and optimizes each frame, delivering natural colors and vivid details thanks to the XR Triluminos Pro system. Even fast-moving images are smooth and sharp thanks to XR Motion Clarity technology.

The audio department includes the Acoustic Multi Audio system with side speakers, and 3D Surround Upscaling creates a virtual surround effect from above and from the sides, using only the TV's speakers. 2-channel and 5.1-channel audio is also converted to immersive 5.1.2-channel sound. Furthermore, Dolby Atmos support and DTS:X deliver unique spatial sound.

The elegant and minimalist One Slate design blends seamlessly into any environment, and the four-position stand allows for flexible installation, even with a soundbar. Designed with energy efficiency in mind, the FWD-85XR70 includes an Eco Remote made from recycled plastic and a dedicated dashboard to monitor and optimize consumption. The integrated Google TV platform offers access to over 400,000 titles, organized by genre and personal preferences. The display is compatible with IMAX Enhanced and Dolby Vision, and includes advanced features such as 4K at 120Hz, VRR, and ALLM support via HDMI 2.1.

User benefits

• Superior visual quality thanks to Mini LED technology and XR Backlight Master Drive
• Natural colors and vivid details optimized by the XR processor with cognitive intelligence
• Smooth, sharp images with XR Motion Clarity
• Immersive audio experience with Acoustic Multi Audio and 3D Surround upscaling
• Support for Dolby Atmos, DTS:X, Dolby Vision, and IMAX Enhanced
• Elegant design with four-position stand, also ideal with a soundbar
• Access to over 400,000 content sources via Google TV
• Compatible with Apple AirPlay, HomeKit, and Chromecast built-in

Areas of use

• Corporate environments and meeting rooms
• Showrooms, public spaces, retail environments (windows and points of sale)
• Education and training environments
• High-end hospitality sector
• Home Theater

Technical characteristics

TV system

• TV system (analog): B/G, D/K
• Tuner channel coverage (analog): 45.25 - 863.25 MHz
• TV system (digital terrestrial): DVB-T/T2
• Tuner channel coverage (digital terrestrial): VHF / UHF
• TV system (digital cable): DVB-C
• Tuner channel coverage (digital cable): VHF / UHF / cable
• TV system (digital sat): DVB-S/S2
• Tuner channel coverage (digital sat): Intermediate frequency 950 - 2150 MHz
• Number of tuners (terrestrial / cable): 2 digital / 1 analog
• Number of tuners (sat): 2
• Color system: PAL / SECAM
• CI+: Yes
• Color space: sRGB, BT709, BT2020, AdobeRGB, DCI
• Operating system: Android 12
• On-board storage: 32 GB

Display features

• Display type: LCD
• Backlight dimming type: local dimming

Display specs

• Screen size: 85" (84.6")
• Screen size for web: 215 cm
• Backlight type: direct (Full array Mini LED)
• Display resolution: 3840 x 2160
• Viewing angle (right / left): 178° (89° / 89°)
• Viewing angle (up / down): 178° (89° / 89°)
• Display resolution: QFHD
• Aspect ratio: 16:9

Video features

• XR Backlight Master Drive: yes
• Peak luminance: XR Contrast Booster 20
• TRILUMINOS: XR Triluminos Pro
• Features for PlayStation 5 auto HDR tone mapping: yes
• Features for PlayStation 5 auto genre picture mode: yes
• XR Clear Image: yes
• Picture modes: vivid, standard, cinema, professional, calm, photo, IMAX Enhanced, Dolby Vision (Vivid / Bright / Dark / Game), FPS game, RTS game
• Auto wide: yes
• Wide mode: full, vertical fit, horizontal fit, original
• Motion enhancer: XR Motion Clarity, auto mode
• Blinking type: line blinking
• 24p True Cinema: yes
• Live Colour technology: yes
• CineMotion / Film mode / Cinema drive: yes
• 4K processor: XR Processor
• HDR compatibility: yes (HDR10, HLG, Dolby Vision)
• Panel refresh rate: 120 Hz
• Dynamic contrast enhancer: yes

Audio specs

• Channel: 2 ch
• Audio power output: 4 x 10 W
• Speaker position: down firing + side back
• Bass / Treble / Balance: balance
• Speaker type: Acoustic Multi-Audio
• Speaker configuration: full range (bass reflex) x 2, tweeter x 2
• Digital audio out format: two channel linear PCM: 48 kHz 16 bit, Dolby Audio, DTS

Audio features

• Acoustic Center Sync: yes (S-CENTER SPEAKER IN)
• Ready for 360 Spatial Sound Personalizer: yes (via Bluetooth)
• Simultaneous sound output with TV speaker: Bluetooth A2DP device
• Vertical Surround Engine
• Acoustic auto calibration: room & user position compensation
• Speaker type-2: sound positioning tweeter
• Clear Phase: yes
• S-Master: S-Master digital amplifier
• Auto surround: yes
• DTS audio format support: DTS Digital Surround, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
• Simulated surround sound: S-Force Front Surround
• Dolby audio format support: Dolby Audio, Dolby Atmos
• Voice Zoom 3
• HDMI audio return channel: yes (eARC / ARC)
• Advanced auto volume: yes
• Auto mute (on no signal): yes
• HDMI input audio format: 7.1 channel linear PCM: 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz 16 / 20 / 24 bit, Dolby Audio, Dolby Atmos, DTS, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
• ARC output format: two channel linear PCM: 48 kHz 16 bit, Dolby Audio, Dolby Atmos, DTS

Network features

• Control menu: yes
• ECO dashboard: yes
• Apple AirPlay: yes
• Apple HomeKit: yes
• Home network feature: home network client, home network renderer
• Wi-Fi certified: yes
• Wi-Fi standard: a / b / g / n / ac / ax
• Wi-Fi frequency: 2.4 / 5 / 6 GHz
• Internet browser: yes
• Codec for home network: MPEG1, MPEG2, AVC, MPEG4, HEVC, Xvid, MotionJPEG, VC1, VP8, VP9, MP3, WMA, LPCM, WAV, AAC, FLAC, JPEG, WEBM, AC4, OGG, ARW
• Wireless LAN: integrated

Convenience features

• Optimization of HDMI input: prioritize HDMI content type information
• Source-based tone mapping (SBTM): yes (for HDMI 3 / 4)
• UVC / UAC support: yes
• Variable refresh rate (VRR): yes (for HDMI3 / 4)
• Auto low latency mode (ALLM): yes (for HDMI1 / 2 / 3 / 4)
• Features specified in HDMI 2.1: 4K120, eARC, VRR, ALLM, SBTM
• Built-in mic switch: yes (center)
• X-Protection PRO: yes (lightning, surge, humidity protection)
• Electronic program guide (EPG): yes
• USB playback codecs: MPEG1, MPEG2, AVC, MPEG4, HEVC, Xvid, MotionJPEG, VC1, VP8, VP9, MP3, WMA, LPCM, WAV, AAC, FLAC, JPEG, HEIF, WEBM, AC4, OGG, ARW
• Built-in microphone: yes
• Text input language: ARA, BUL, CAT, HRV, CES, DAN, DUT, ENG, EST, FIN, FRA, GER, GRK, HEB, IND, ITA, JPN, NOR, FAS, POL, POR, RON, RUS, SLK, SLV, SPA
• Chromecast built-in: yes
• Application store: yes (Google Play Store)
• BRAVIA Sync (including HDMI-CEC): yes
• i-Manual: yes
• Parental control: yes
• Channel block (with password): digital
• On screen clock: yes
• Sleep timer: yes
• On/off timer: yes
• USB drive format support: yes (FAT16, FAT32, exFAT, NTFS)
• USB drive format support: yes (FAT16, FAT32, exFAT, NTFS)

Sensing features

• Sensor: light

Energy saving & efficiency

• SORPLAS: yes
• EEA SDR rank: C
• On mode power 1000 h SDR: 83 kWh / 1000 h
• Mercury content: 0.0 mg
• Lead content: yes
• Dynamic backlight control: yes
• Power saving mode / backlight off mode: yes

General features

• Smart TV: Google TV
• SONY PICTURES CORE calibrated mode: yes
• Prime Video calibrated mode: yes
• Auto calibration with CalMAN: yes
• Netflix calibrated mode: yes
• IMAX certified model: yes
• SONY PICTURES CORE: 10 credits / 24 months
• Demo mode: yes (e-POP only)

Accessibility features

• Color inversion: yes
• Screen reader: yes
• Audio description: yes
• Closed captions (digital): subtitle
• Text magnification: yes
• Accessibility shortcut: yes
• Voice search: yes
• Menu timeout settings: yes
• Power-on volume settings: yes
• TalkBack: yes
• Switch access: yes

Broadcast features

• Teletext: yes
• Teletext number of pages: 1000 pages

Design features

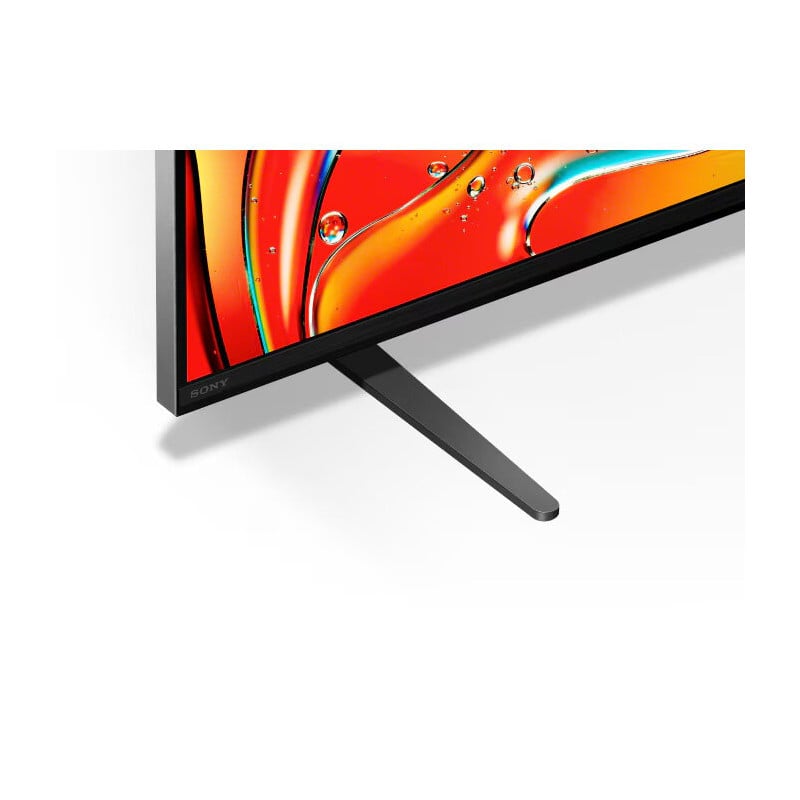

• Stand position: 4-way position (outside / inside / outside for soundbar / inside for soundbar)
• Stand color: dark silver

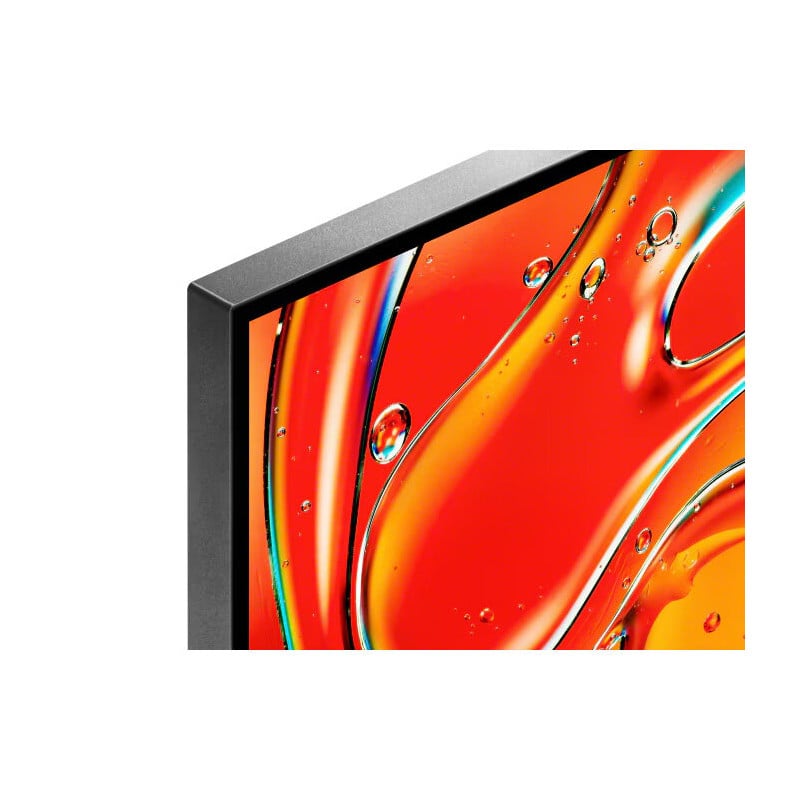

• Bezel design: Seamless edge
• Frame color: dark silver / vibration finish
• Stand design: underlay stand

Input and outputs

• HDMI signal: 4096 x 2160p 24/50/60, 3840 x 2160p 24/25/30/50/60/100/120, 1080p 24/30/50/60/100/120, 1080i 50/60, 720p 24/30/50/60, 576p, 480p
• HDCP: HDCP2.3 (for HDMI1 / 2 / 3 / 4)
• Bluetooth profile support: HID, HOGP, SPP, A2DP, AVRCP
• Bluetooth version: 5.3
• 4K 60P high-quality formats: HDMI IN1, IN2 (up to 18 Gbps), HDMI IN3, IN4 (up to 48 Gbps
