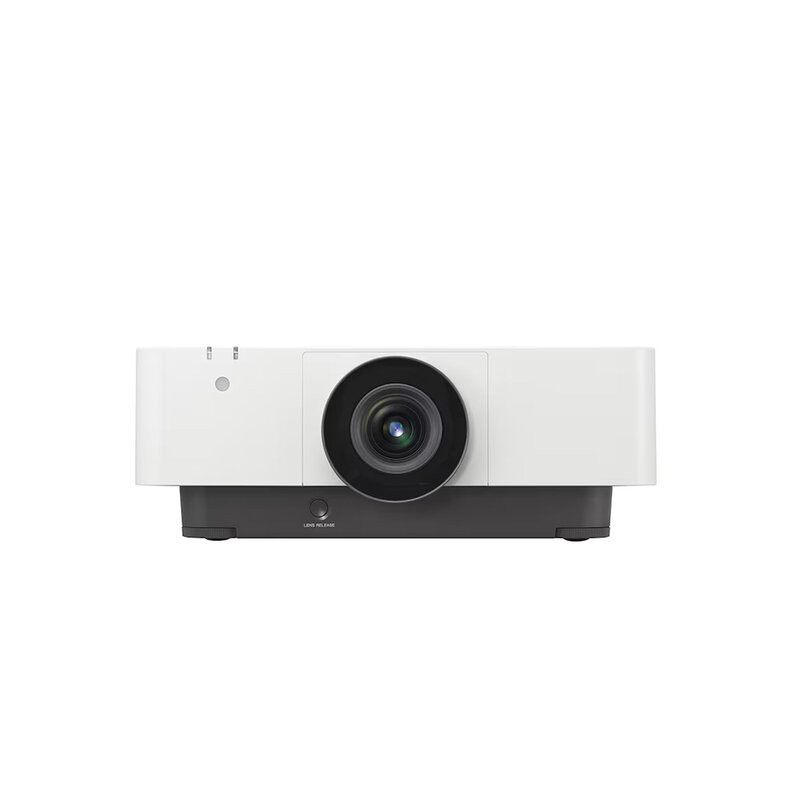

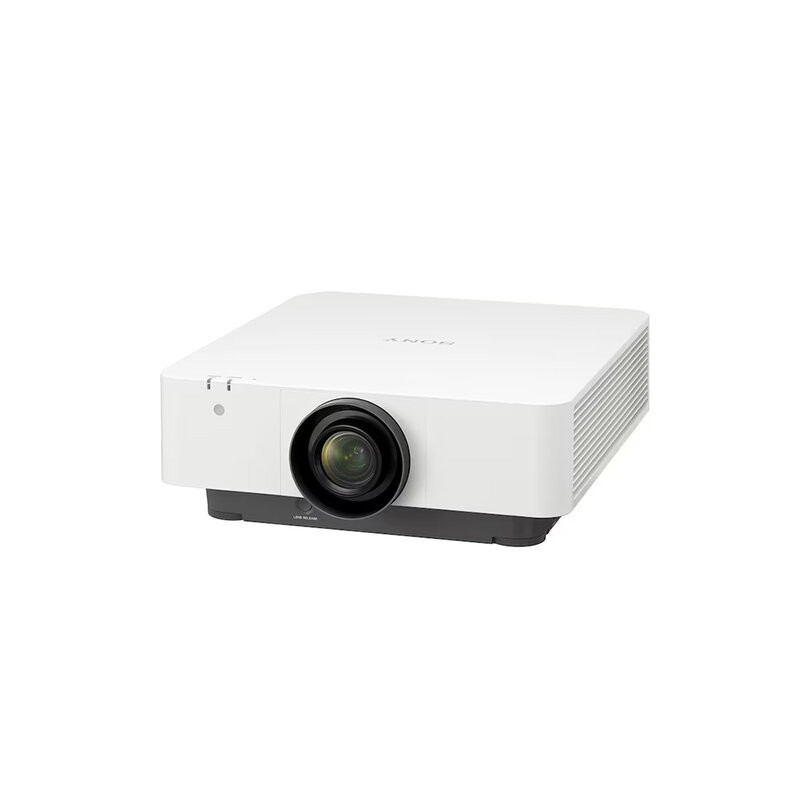

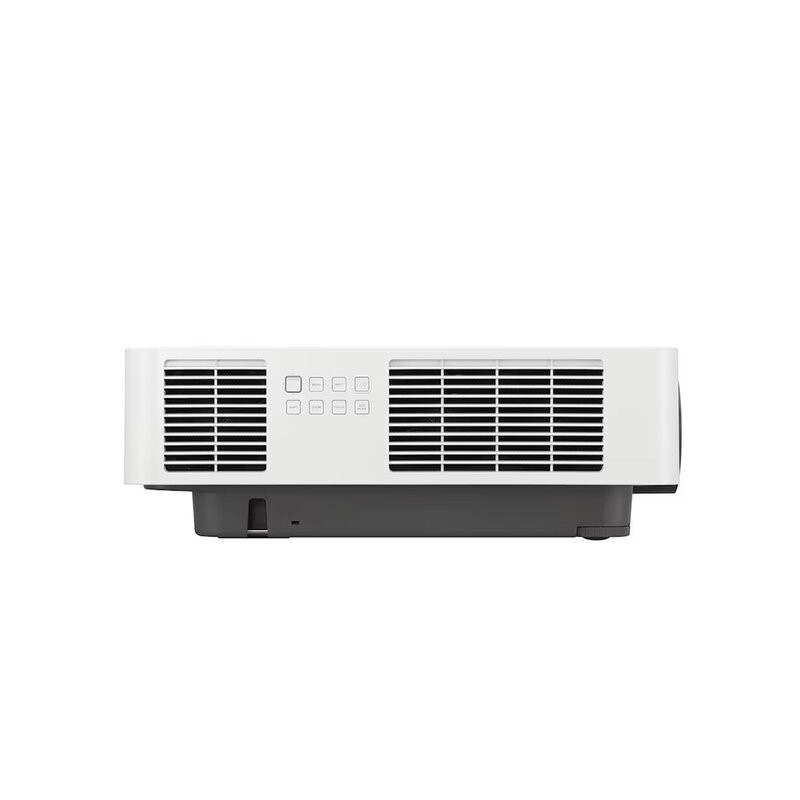

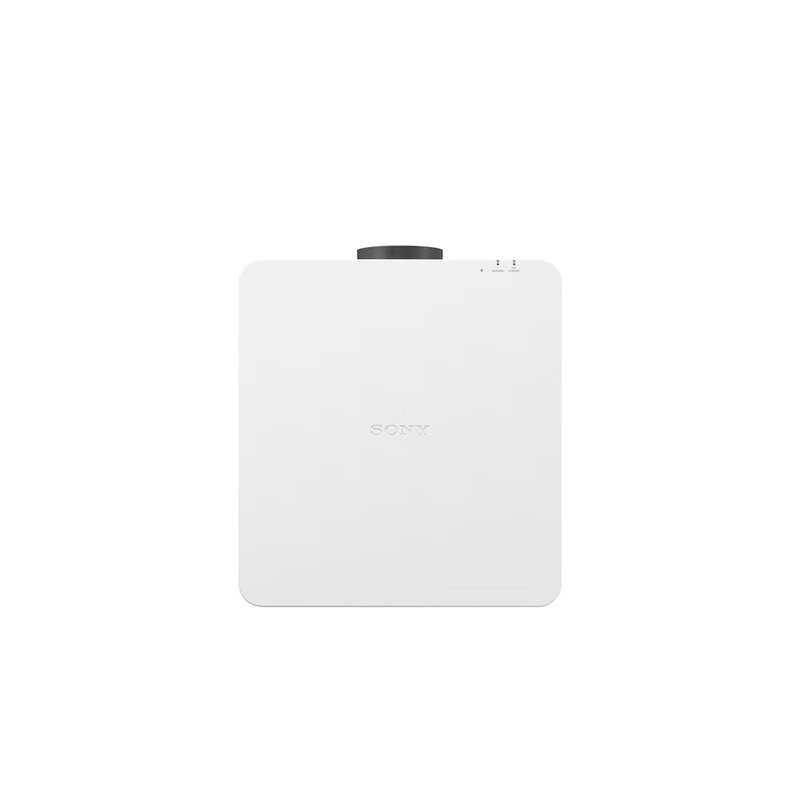

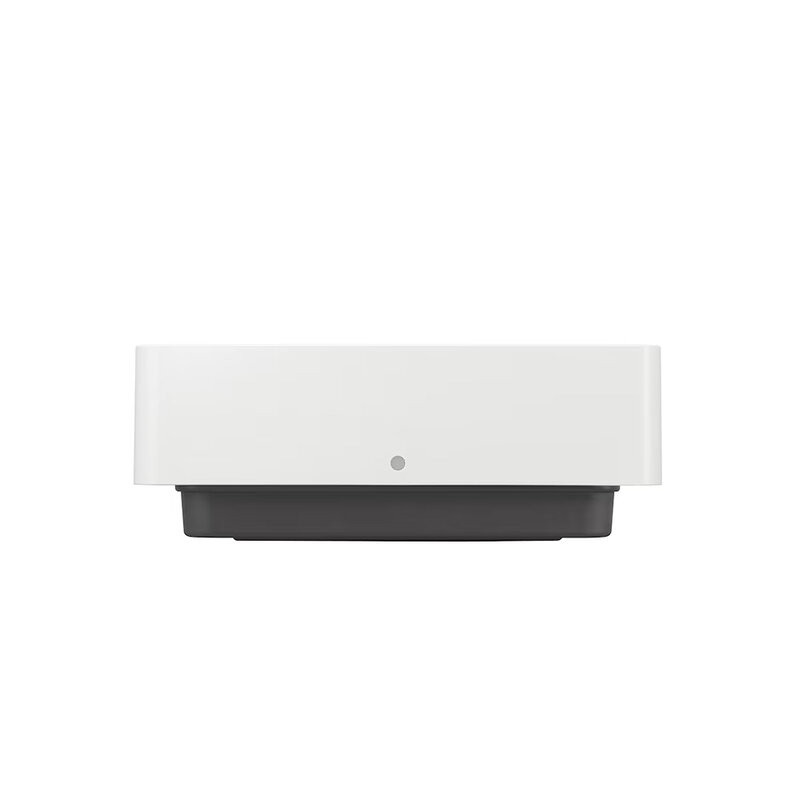

Sony - VPL-FHZ85/1

The VPL-FHZ85 is a compact and lightweight 3LCD laser projector designed to deliver bright, colorful images even in brightly lit environments.

With a brightness of 7300 lumens (8000 at the center) and WUXGA resolution, it offers high-level performance across a variety of applications. Bright View technology ensures vivid colors without sacrificing brightness, while the Reality Creation system improves the sharpness of text and images, bringing output closer to 4K quality. Thanks to intelligent settings with an ambient light sensor, the projector automatically adapts brightness, contrast and color rendering to room conditions, optimizing the viewing experience. It supports 16:10, 16:9, and 21:9 aspect ratios, making it ideal for hybrid meetings on ultra-wide screens. The 4K 60p input allows for fluid high-resolution content, while the range of optional lenses and wide vertical and horizontal lens shift ensure installation flexibility.

The understated, slim design easily integrates into any environment, and maintenance is reduced thanks to the automatic filter cleaning system and the dust-sealed laser source, which ensures up to 20,000 hours of operation.

In short, the VPL-FHZ85 combines visual power, reliability, and versatility, offering a professional solution for those seeking quality and practicality in a next-generation projector.

User benefits

• Bright, colorful images even in brightly lit rooms thanks to exclusive Bright View technology
• Reality Creation function for near-4K clarity and detail
• Ambient light sensor adjusts brightness, contrast, and color rendering in real time
• Support for ultra-wide (21:9) formats
• Accepts 4K signals at 60p
• One of the smallest and lightest 3LCD laser projectors in its class
• Installation flexibility with wide vertical and horizontal lens shift
• 20,000 hours of stable, maintenance-free operation

Areas of use

• Conference rooms
• Educational environments
• Public spaces

Technical characteristics

Display

• Display system: 3 LCD system
• Size of effective display area: new LCD panel 0.76" (19 mm) x 3 BrightEra LCD panel, aspect ratio: 16:10
• Number of pixels: 6,912,000 (1920 x 1200 x 3) pixels

Projection lens

• Focus: powered
• Zoom - powered / manual: powered
• Zoom ratio: approx. 1.6X
• Throw ratio: 1.39:1 to 2.23:1
• Lens shift - powered / manual: powered
• Lens shift - vertical range: -5%, +70%
• Lens shift - horizontal range: ±32%

Light source

• Light source: laser diode

Screen size

• 40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)

Light output

• Mode standard: 7300 lm / 8000 lm (center)
• Mode middle: 5840 lm

Color light output

• ​Mode standard: 7300 lm
• ​Mode middle: 5840 lm

Time until light output declines to 50%

• Mode standard: 20,000 hours
• Mode middle: 30,000 hours

Contrast ratio (full white / full black)

• Contrast ratio (full white / full black): ∞:1

Displayable scanning frequency

• Horizontal: 15 to 93 kHz
• Vertical: 23 to 63 Hz

Keystone correction (max.)

• Keystone correction (max.): horizontal: ±30°, vertical ±30°

Accepted signal resolution

• Computer signal input: max. signal resolution 1920 x 1200
• Video signal input: NTSC, PAL, SECAM, 480i 60, 576i 50, 480p 60, 576p 50, 720p 60, 720p 50, 1080i 60, 1080i 50, 1080p 60, 1080p 50, 3840p 60, 3840p 30, 3840p 25, 3840p 24, 4096p 60, 4096p 30, 4096p 25, 4096p 24

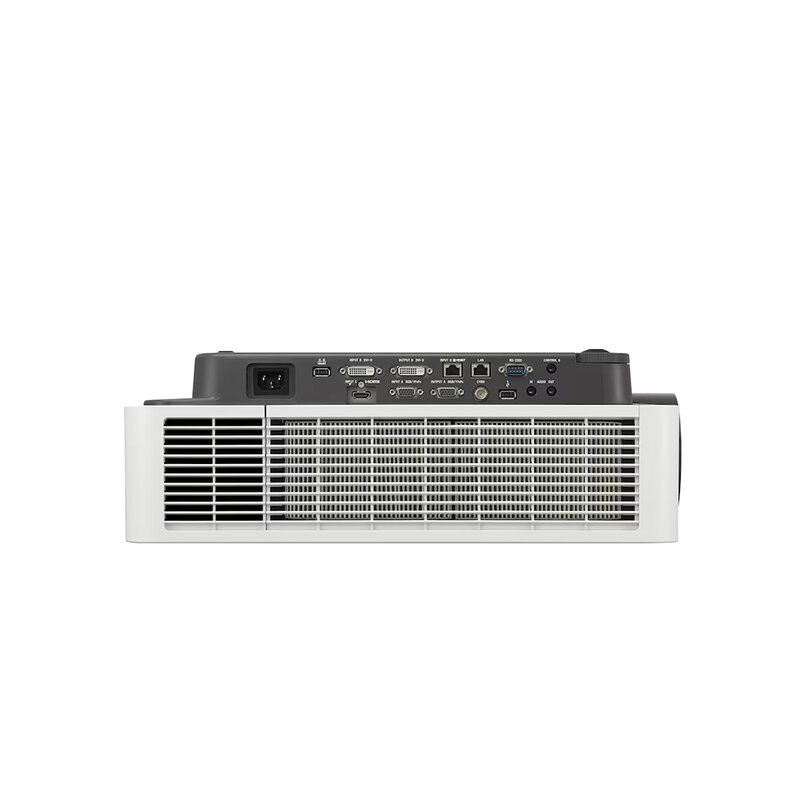

​​Input / output

• INPUT A: RGB / Y PB PR input connector: mini D-sub 15 pin (F.), audio input connector: stereo mini-jack
• INPUT B: DVI input connector: DVI-D 24-pin (single link), HDCP support, audio input connector: stereo mini-jack
• INPUT C: HDMI input connector: HDMI 19-pin, HDCP support, audio input connector: HDMI audio support
• INPUT D: HDBaseT interface connector: RJ45, 4 play (video, audio, LAN, control)
• VIDEO IN: video input connector: BNC, audio input connector: shared with input A
• OUTPUT A: monitor output for input A connector: mini D-sub 15-pin (F.), audio output connector: stereo mini-jack
• OUTPUT B: monitor output for input B connector: DVI-D 24-pin (single link), HDCP not supported, audio output, monitor out connector: stereo mini-jack
• REMOTE: D-sub 9-pin (M.) / RS232C
• USB: Type-A (for F/W update) , Type-A (for power supply)
• LAN: RJ45, 10/100/1000BASE-T
• IR (Control S): stereo mini-jack, plug in power 5 V_DC

Acoustic noise

• Mode standard / middle: 38 / 36 dB

Operating temperature / humidity

• Operating temperature: 0 to 45 °C
• Operating humidity: 20 to 80% (no condensation)

Storage temperature / humidity

• Storage temperature: -10 to 60 °C
• Storage humidity: 20 to 80% (no condensation)

Power requirements

• 100 - 240 V_AC 5.1 A to 2.2 A, 50/60 Hz

Power consumption

• 220 to 240 V_AC: 474 W

Power consumption (standby mode)

• 220 to 240 V_AC: 0.5 W (when “Standby mode” is set to “Low”)

Power consumption (networked standby mode)

• 220 to 240 V_AC: 10.9 W (LAN), 11.6 W (HDBT), 11.6 W (all terminals and networks connected, when "Standby Mode" is set to "Standard")

Standby mode / networked standby mode activated

• Approx. 10 minutes

Heat dissipation

• 220 to 240 V_AC: 1727 BTU/h

Optional lenses

• VPLL-3003 / 3007 / Z3009 / Z3010 / Z3024 / Z3032

Dimensions & weight

• Dimensions (W x H x D, without protrusions): 46 x 16.9 x 49.4 cm
• Weight: 13 kg
