SWIFF AUDIO - WX-520

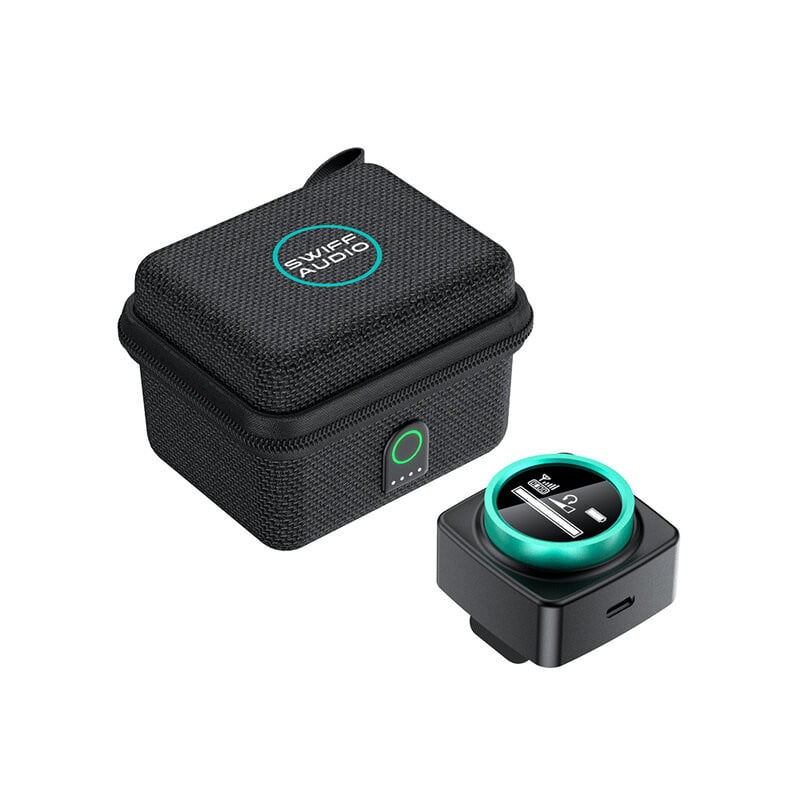

WX520 In-Ear Monitor Wireless System is a wireless monitoring system designed to provide clear and stable audio during live performances. It consists of 1 transmitter and 1 receiver. A transmitter can be connected to N receivers, purchasing the additional WX520R receivers separately if necessary.

It uses 5.8 GHz digital transmission technology, which guarantees an interference-free signal and a reliable connection even in environments with many active radio frequencies. With a latency of less than 5 ms, you can have clear sound feedback in real time even in noisy environments.

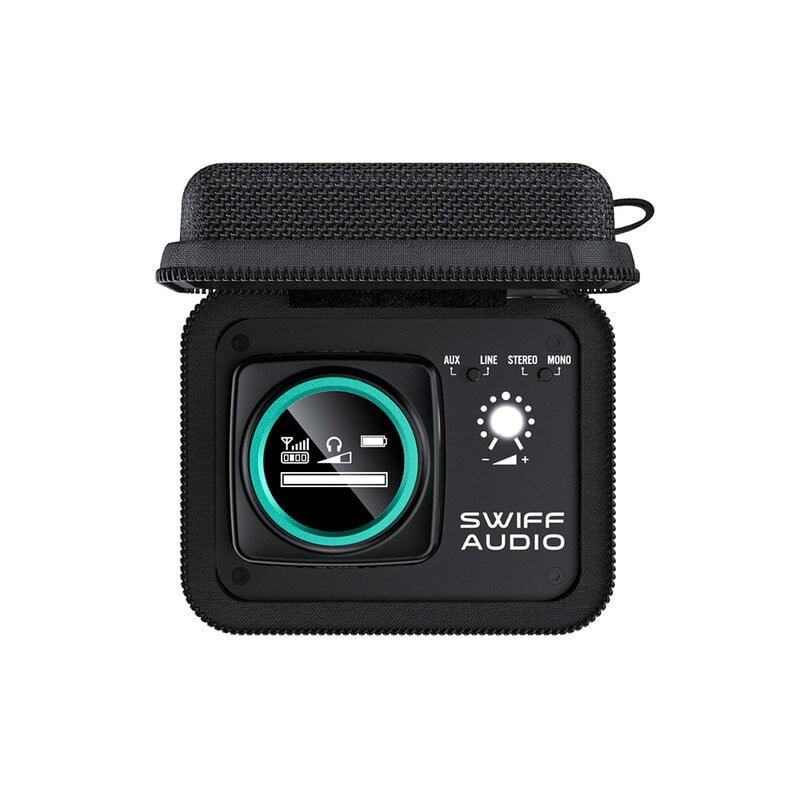

A status display on the receiver provides key information during use: battery charge status, reception quality, volume, etc.

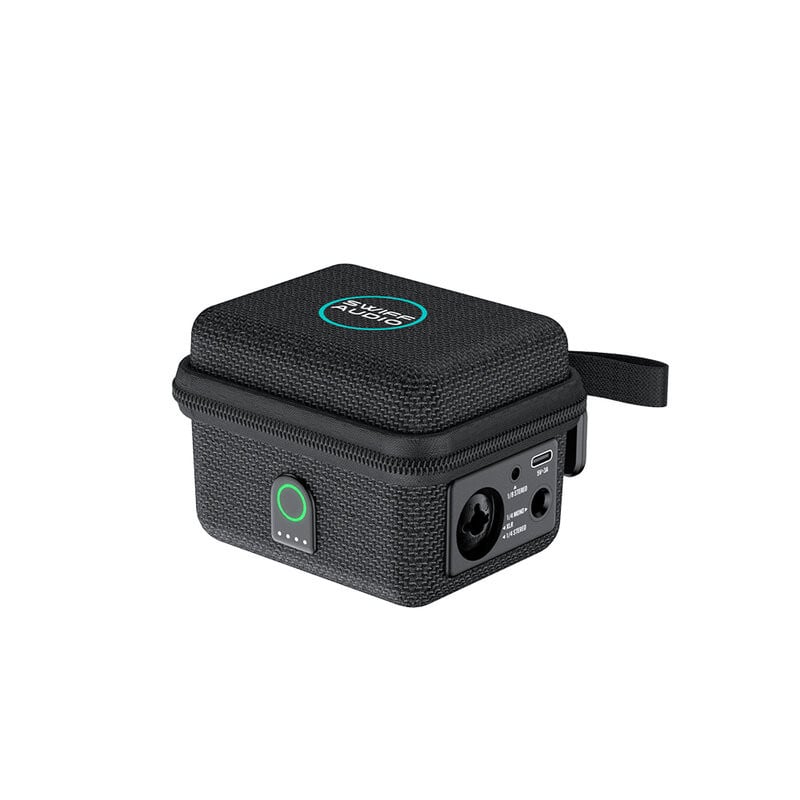

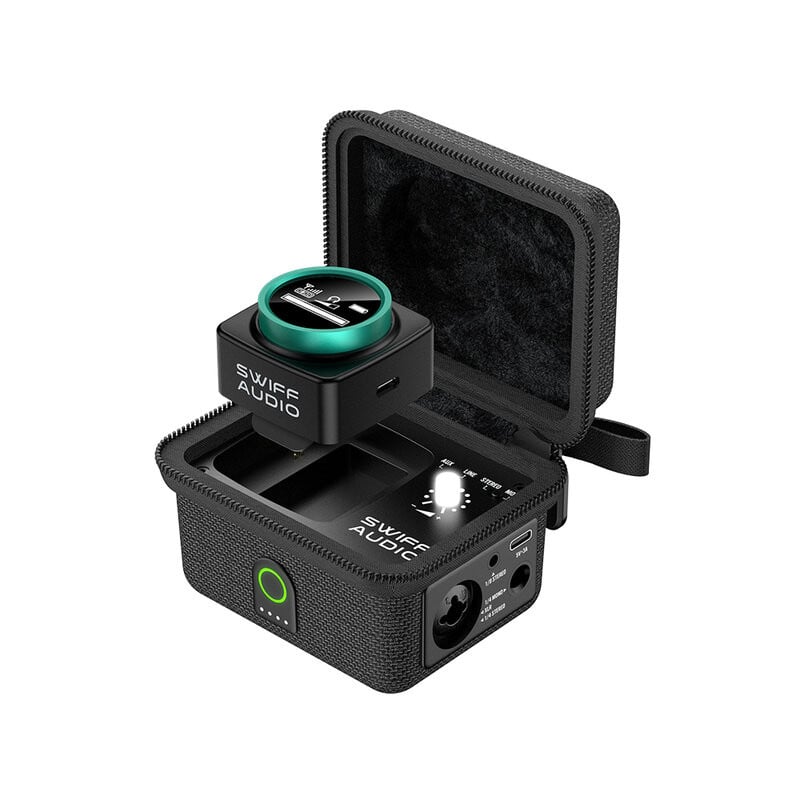

The transmitter, contained in a zip-up case that also integrates a charging base, has a 3000 mAh rechargeable lithium battery, for a duration of 8 - 10 hours. It allows you to recharge one receiver. It has a Combo input for a balanced line signal and a microphone input on a 6.3 mm female jack with CUE function.

The range of the WX520 allows you to maintain a stable connection even at a distance.

Users benefits

• A receiver takes up half the palm of your hand!
• 5.8 GHz digital transmission
• Latency less than 5 ms
• Transmitter with built-in lithium battery for 8 - 10 hours of autonomy
• Possibility to connect multiple receivers to a single transmitter

Areas of use

• Live shows
• Recording rooms
• Rehearsal rooms
• Teaching
• Conferences
• Recordings with cameras

Technical characteristics

• 4 channels
• Reception sensitivity: < -110 dBm @ 20 dBsinad
• SNR: > 90 dB
• Frequency response: 20 Hz - 20 kHz
• Latency:< 5 ms
• Battery: 3.7 V lithium polymer, 3000 mAh,
• Transmission distance: > 30 m
• Working time: 8 - 10 h
• What's in the box:
  • 1 x WX520 TX (charging case) + 1 x WX520 RX
  • 1 x charging cable
  • 1 x user manual
