SKU: B00279

EAN: 5420025602792

Synq

Synq - SDI-1

Passive Stereo DI Box, groundloop isolator
star_border star_border star_border star_border star_border
(0)
71.50 €
- 37%

45.00 €

Pay in 4 interest-free payments of 11.25 € with Discover More

items in stock in our European supplier's warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
45.00 €
Condition: New

Available

delivery is available for this product.

This item is currently in stock and will be shipped from our supplier's warehouse in Europe.

Free shipping for orders over € 199 (within Europe)

Variants of this product

EN NL DE ES FR Instruction Manua (1.51MB)

Documentation

Product Details

Humming noises, interferences, ground loop are your worst enemies if you are jamming with your friends, mixing a huge show or recording live instruments. With this little box you can solve every problem that comes out from the speakers. SDI-1 converts unbalanced audio signal, like keyboards, PC, acoustic guitar, to balanced, allowing you to transport the signal as far as you need. The combo connector (XLR and TRS) and RCA are the perfect solutions, so you can plug every kind of audio source to the DI. For both channels you can switch the ground lift to avoid these interferences.

  • This stereo DI-box is the perfect problem-solver for many applications!

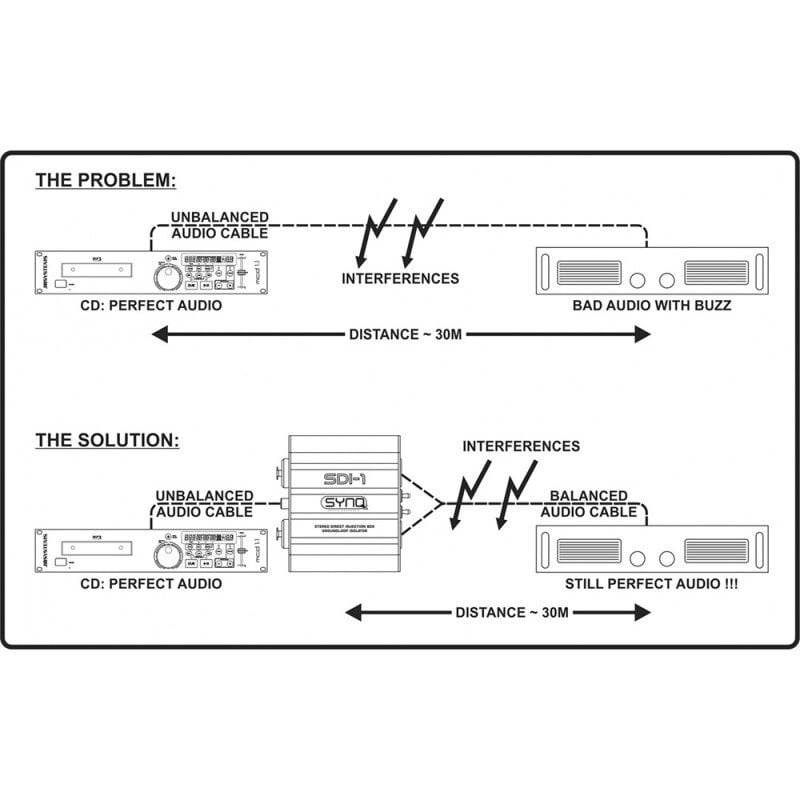

    • Converts unbalanced audio signals to balanced so they can be transported over long symmetric cables with maximal protection against interferences of all kinds.

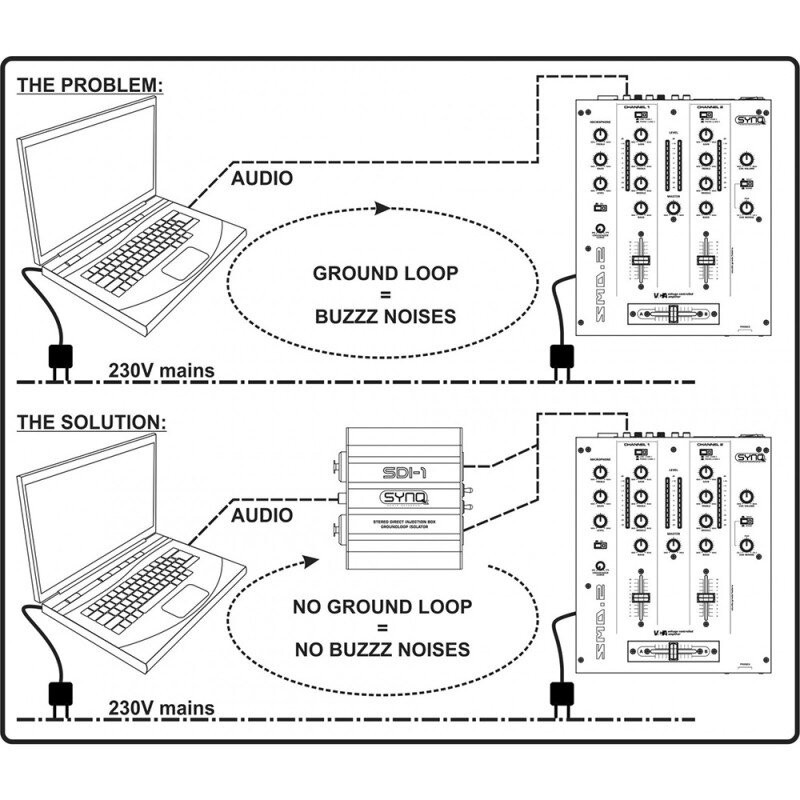

    • Humming noises coming from laptops, PCs and many others can be easily solved: the ground li ft switches separate the in/outputs to avoid any ground loops.
  • No active components inside: no noisy op-amps and no empty batteries when you need them …

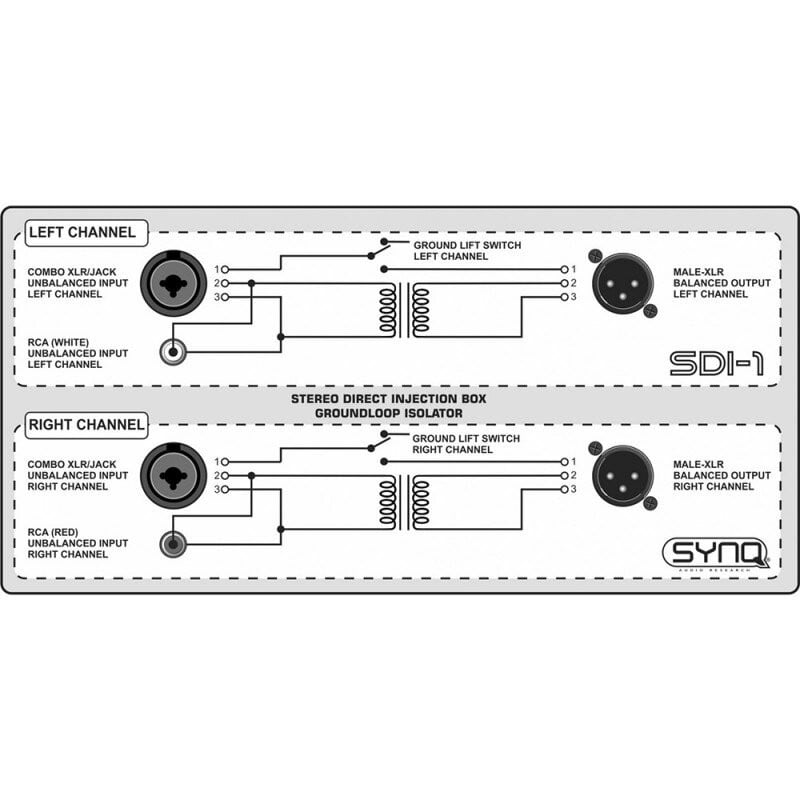

  • Separate ground li ft switches for both channels
  • Very high grade audio transformers for excellent audio characteristics:
    • Very low distortion:
    • Supports very high audio levels
    • Excellent CMRR: >80 dB @ 60 Hz
    • Excellent freq. response: 20 Hz – 20 kHz (+/-0.5dB)
  • Versatile connections:

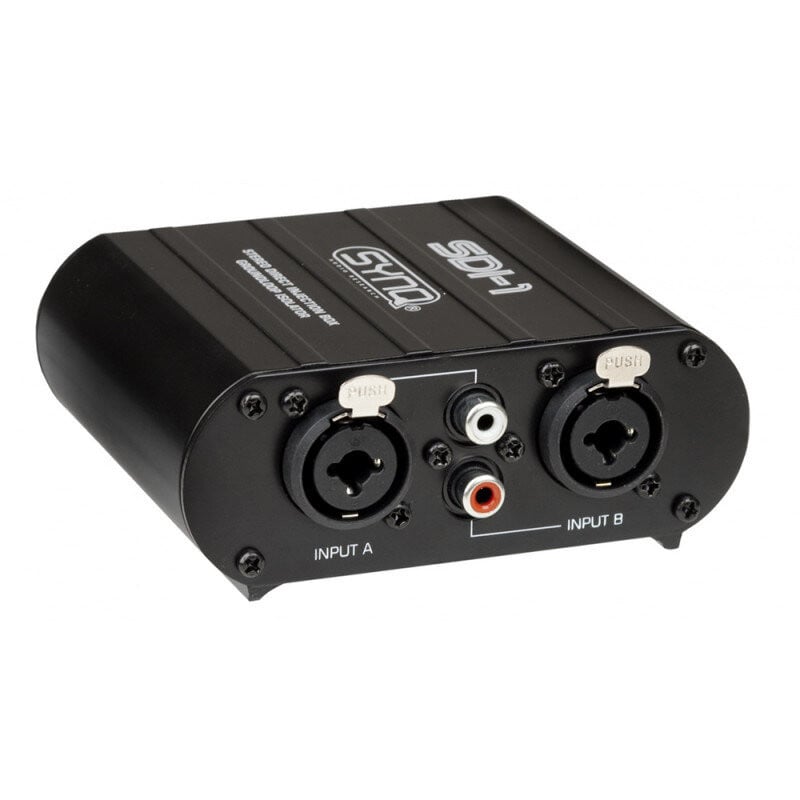

    • Inputs: RCA + COMBO (Jack/XLR) on both channels

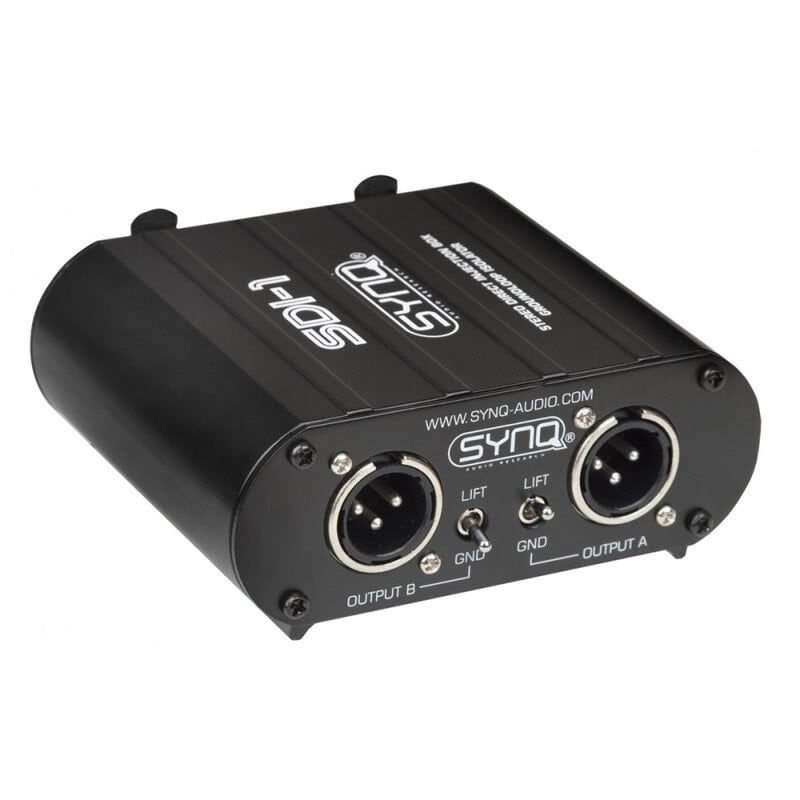

    • Outputs: XLR-M. on both channels
  • Rugged black anodized ALU housing
General: Application DJ & Club, Stage & Rental
General: Dimensions (cm) 10.5 x 11 x 4.42 cm
General: Weight ( kg) 0.45
General: Color black
General: Energy Label No
General: Display none
General: RU No
General: IP rating indoor
Audio: min. frequency ( Hz) 20
Audio: max. frequency ( Hz) 20000
Audio: max. output channels 2
Connections: input 3-pin XLR, rca, jack
Connections: output 3-pin XLR
