SKU: P3.9MG14O21

Yes Tech - P3.9 MG14

Small triangle display outdoor, IC ICN2065, SMD1515, black shell LEDs, 5500 - 6000 nit, ≤ 7680 Hz, 250 × 500 mm, 2.3 kg
820.00 €
- 40%

492.00 €

Pay in 4 interest-free payments of 123.00 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



Product Details

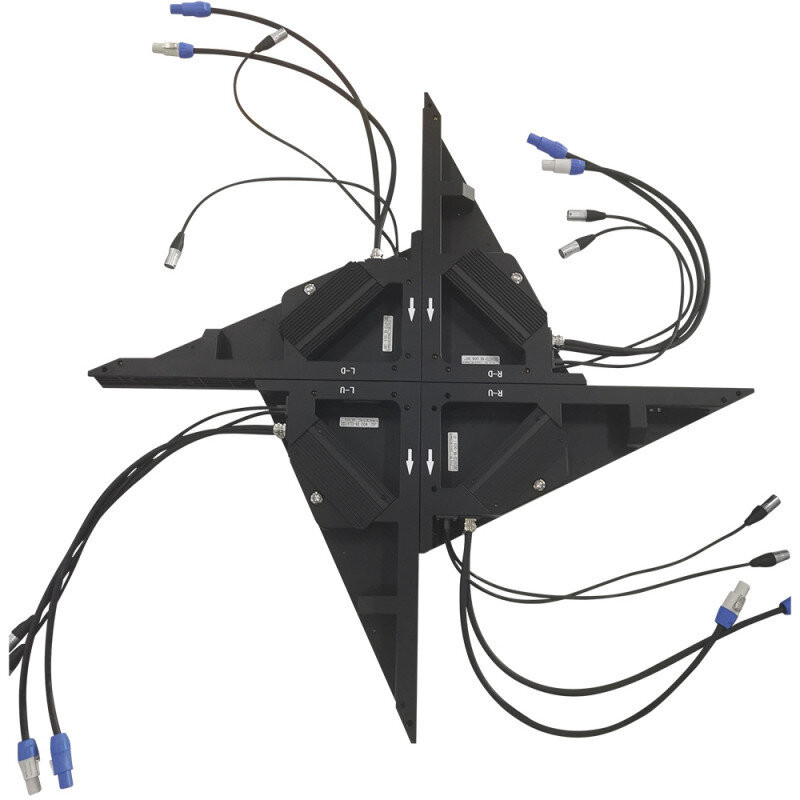

Scalene triangle-shaped outdoor display (P3.9 MG14), 250 × 500 mm, SMD1515 black shell LEDs.

It is part of the MG Creative Extension series which includes triangle, rectangle, circular sector etc. This newly updated series will allow you to think and design the stage even more creatively, not only with the arc layout and presentation, but also polygon, sector, etc.

By combining the Magic Stage LED wall modules with the MG Creative Extension, which includes right angle (MG11), triangle (MG12), circular sector (MG13) etc. LED displays, you can realize a variety of creative displays of the desired shape, such as numbers, letters, columns, Christmas tree, diamond, windmill, flower, heart, etc.

User benefits

  • Allows you to create LED walls of different shapes by combining the cabinets of the Magic Stage series

Areas of use

  • All those in which the Yes Tech LED displays of the Rental & Staging series are used

Technical characteristics

 Module
 LED encapsulation  SMD1515 black shell LEDs
 Pixel Pitch  3.9 mm
 Cabinet
 Cabinet size  250 × 500 × 73 mm
 Cabinet area  0.0625 m2
 Weight  2.4 kg/cabinet
 Pixel density  65,536 dot/m2
 IP grade  IP65
 White balance brightness before calibration  5500 - 6000 nit
 Color temperature  6500 - 10,000 K adjustable
 Horizontal viewing angle  160°
 Vertical viewing angle  120°
 Electrical parameters
 Power consumption  600 / 200 W/m2
 Working voltage  100 - 264 VAC 50/60 Hz
 Processing performance
 Driving method  constant drive
 Scanning method  1/8 s
 Driving IC  ICN2065
 Control system  Nova Star
 Receiving card  Nova A8S-N
 Usage parameters
 Life span  80,000 h
 Working / storage temperature  -20 to 45 / -30 to 60 ℃
 Working / storage humidity  10 - 90 / 10 - 90% RH (no condensation)
 Communication mode  CAT5
 Certification  CE FCC ETL
