Yes Tech - P6.67 Msign

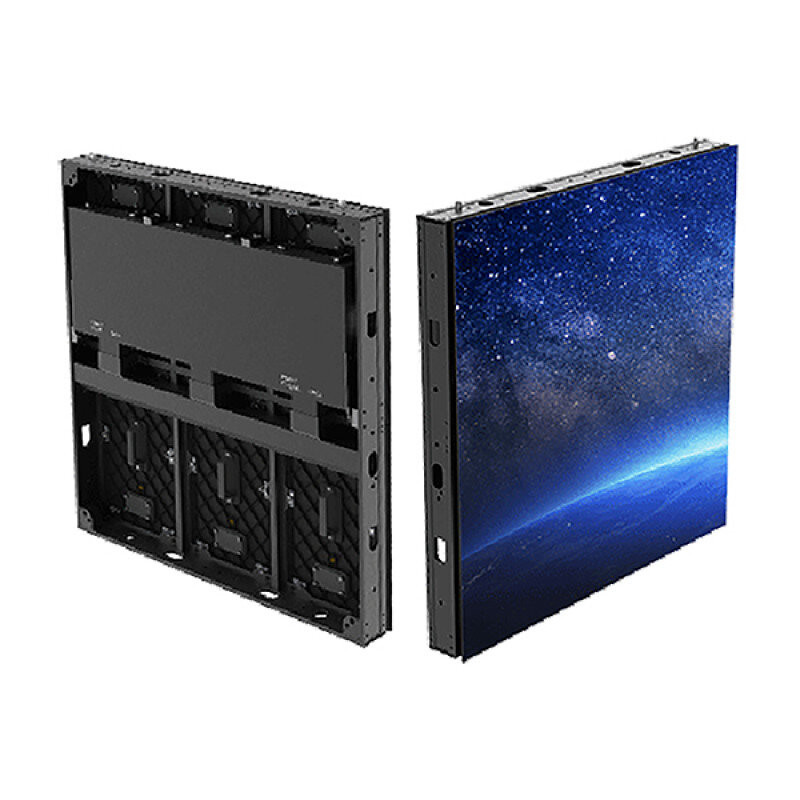

P6.67MSO51 960 x 960 mm LED Display, SMD2727, automatically adjustable brightness, high refresh rate and high contrast. For fixed outdoor installation, even in strong lighting conditions.

It adopts all the technologies that make Yes Tech LED displays a benchmark, such as front / rear maintenance and quick installation with confirmation “click”, high compatibility, operation in harsh environments, Smart Module etc. The connection cables are hidden in the structure, which effectively prevents the aging of the cables themselves and makes the design clean, with a large handle for a more comfortable grip.

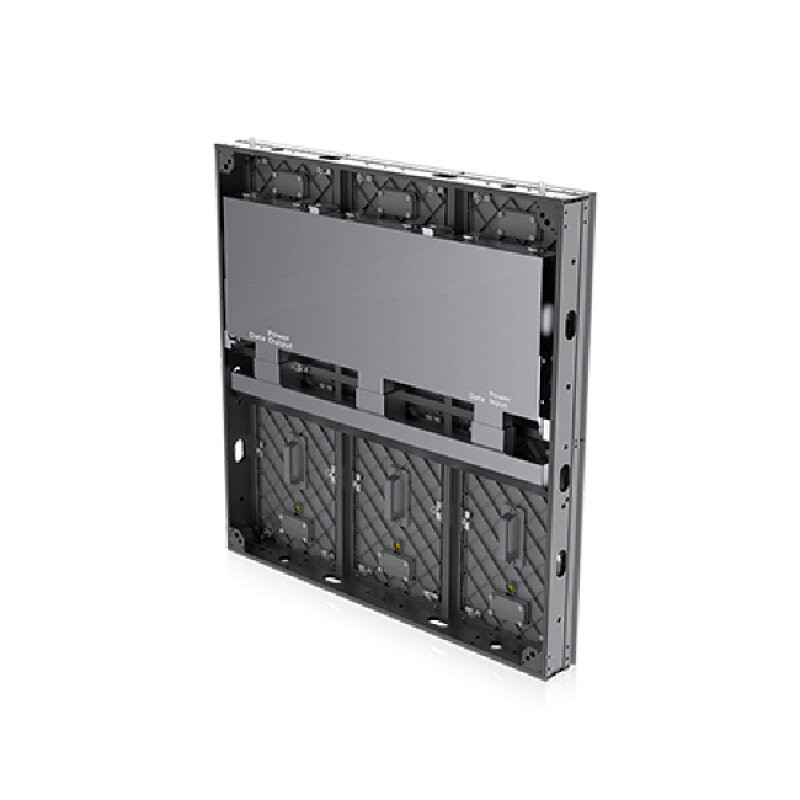

The 8-hole connection plate supports front and rear installation; compatible with 5050 and 4040 steel frame. The control box and cable box are independent of each other, even with independent opening / closing. The ingenious design of the power supply position makes the power supply in the middle of the back cover and LED module to prevent external heat conduction to the power supply when the sunlight directly hits the screen. The effective heat dissipation system is made possible by the aluminum material of the chassis + ventilation structure design of the cabinet + heat conduction balance system of the module.

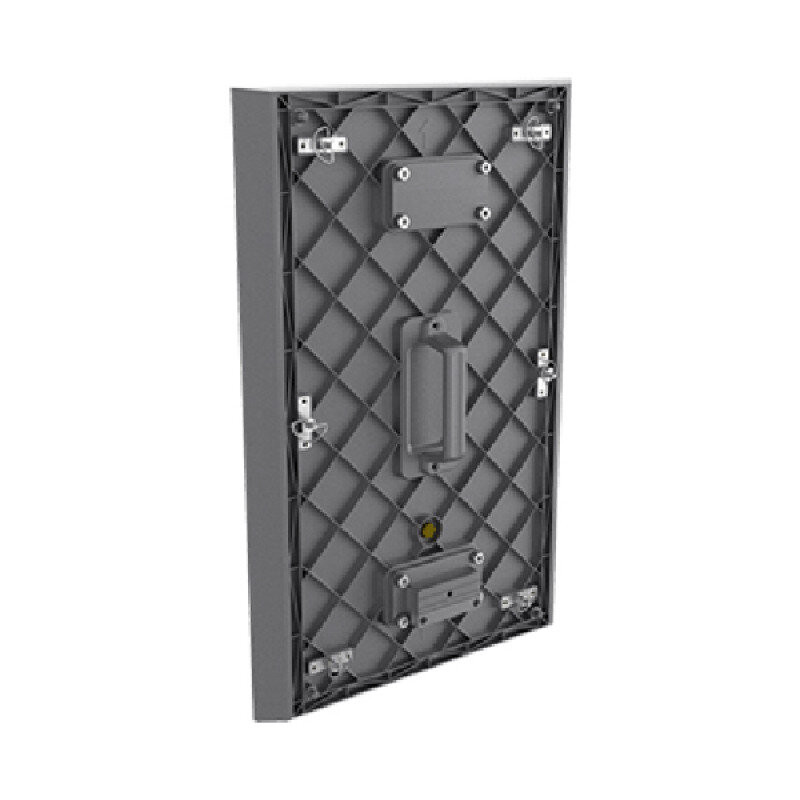

The waterproof module is certified IP65 in the front / back, the cabinet reaches IP65 in the front and IP54 in the back (IP65 optional), the module and control box are both waterproof and independent, can work in any weather, no limits for installation and maintenance in a rainy day, at temperatures ranging from -40 °C to 55 °C. Power and signal backup makes the display provide multiple guarantees during use, for stable and reliable operation.

Finally, the intelligent monitoring system Smart Module enables the detection of temperature, voltage, fault, lamps, etc.

User benefits

• Easy installation and maintenance
• High brightness
• Ability to operate in harsh environmental conditions (IP65 front and optional rear)
• Front and rear maintenance
• Six different cabinet sizes selectable
• Compatible with 5050 and 4040 steel structures
• Dual heat dissipation system

Areas of use

• Shopping malls and exhibition centers
• Railway stations and airports
• Bus stations and subways
• Pedestrian areas
• Stadiums

Technical characteristics
