Avolites - D3-010 CONSOLE

The D3-010 is a compact and powerful lighting console designed to offer maximum control in live environments without the need for a laptop.

Based on Titan software, this standalone unit natively supports eight DMX universes, equivalent to 4096 channels, and allows for the management of an unlimited number of fixtures. Its rugged and portable design makes it ideal for transport and immediate use, ready to go right out of the box.

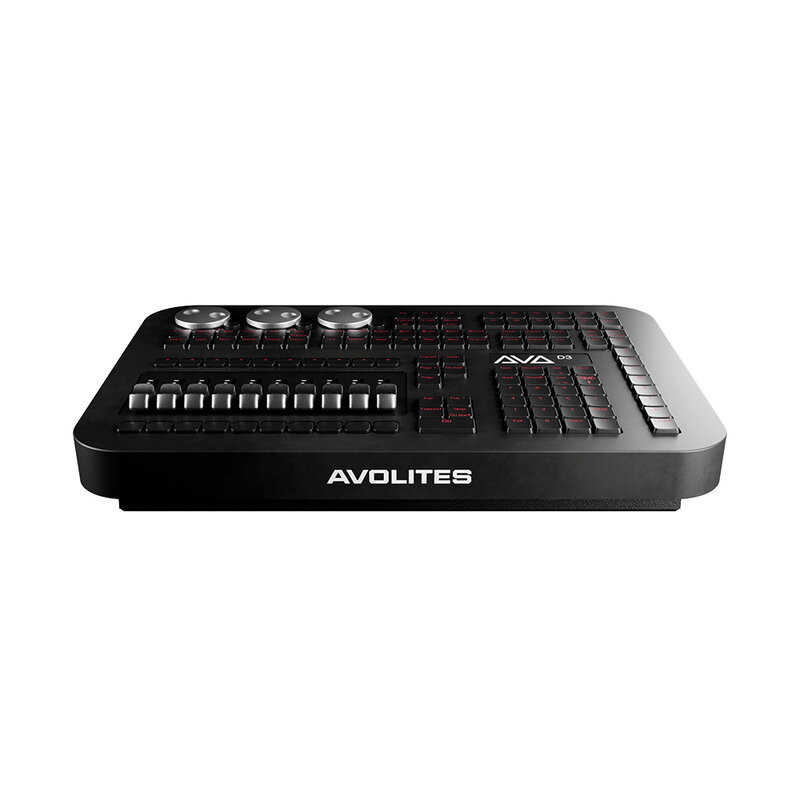

The console features ten playback faders, three high-resolution metal encoders with selection buttons, twelve backlit macro keys, and a compact key layout derived from the D7 and D9 models. It is compatible with USB-C or DisplayPort touchscreens up to 4K resolution, and includes a keyboard with seventy-six backlit Cherry MX Low Profile keys for programming and configuration, as well as dedicated keys for playback control and page management.

The D3-010 supports advanced protocols such as Art-Net, Art-RDM, Streaming ACN, CITP, and SMPTE LTC, and can be integrated into multi-console sessions via TitanNet. The "Titan Remote" mobile app is also available. Designed for lighting professionals, this fixture is a versatile and reliable solution for live performances, events, and complex installations.

User benefits

• Complete control without a laptop
• Ready to use
• Integrated Titan software
• Compact and rugged design
• 4K touchscreen compatibility
• Backlit buttons and dedicated faders
• Multi-console integration

Areas of use

• Concerts and music festivals
• Theatre performances
• Corporate events
• Conferences
• Permanent installations

Technical characteristics

Control surface

• External screen: 1 x up to 4K (UHD)
• Surface layout: compact layout (reduced version of D7 & D9 layouts)
• Playback faders: 10 x 60 mm faders
• Flash buttons: 20 x C&K buttons with custom cap
• Programming / setup keys: 76 x backlit Cherry MX low profile keys
• Playback paging keys: 3 x backlit Cherry MX low profile keys
• Playback control keys: 5 x backlit Cherry MX low profile keys, incl. double-width Go key
• Macro / executor keys: 12 x backlit Cherry MX low profile keys
• Attribute control wheels: 3 x high resolution, metal Avo encoders with select buttons
• USB wing support: 1 x D3 Wing, T3 Wing, or Titan Mobile Wing
• D3 touch support: yes (unlimited)
• Mobile App: yes – iOS & Android ("Titan Remote")

Software

• Software platform: Avolites Titan
• Built-in 3D visualisation: capture engine
• DMX universes per device: 8 universes (4096 channels)
• DMX universes per system: 8 universes (4096 channels)
• Max fixtures: unlimited
• Supported protocols: DMX512 (E1.11), Streaming ACN (E1.31), Art-Net & Art-RDM, CITP, GDTF (through Capture), SMPTE LTC, MIDI over USB (MIDI notes & MTC), Web API

TitanNet

• Expand processing: no
• Multi-console session: yes
• Offload processing: yes

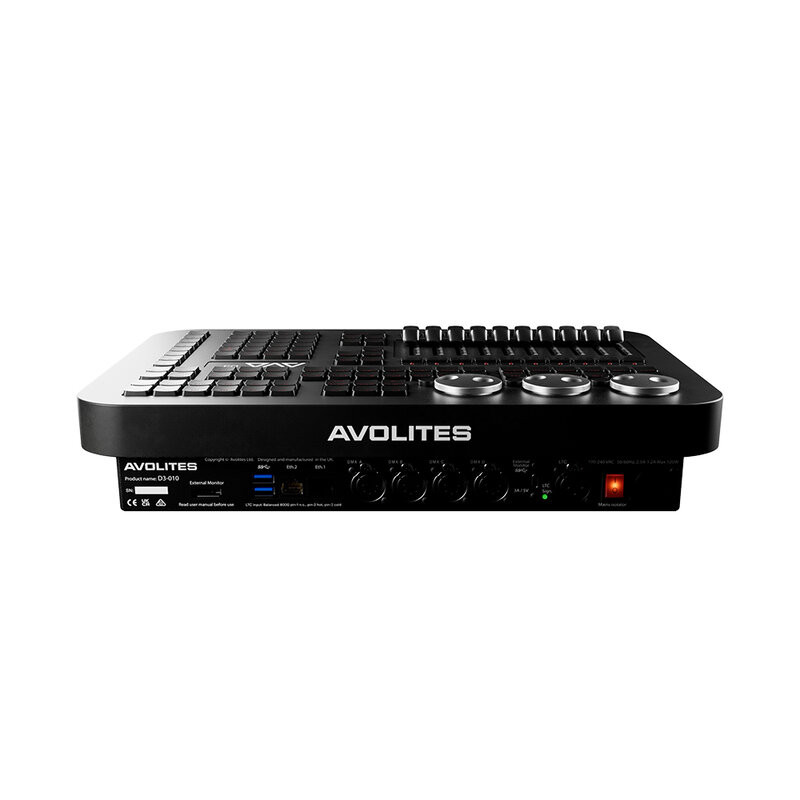

Connectivity

• External monitor: 1 x USB-C or DisplayPort
• Gigabit Ethernet: 2 x RJ45
• DMX (in & out): 4 x Neutrik 5-pin XLR
• USB 3.2 Gen1 (DP Alt Mode): 1 x USB-C (rear)
• USB 3.2 Gen1: 3 x USB-A (1 x side, 2 x rear)
• SMPTE LTC input (balanced): 1 x Neutrik 3-pin XLR (incl. signal indicator)

Hardware

• Operating voltage: 100 - 240 V_AC 50/60 Hz
• Power consumption: 130 W max.
• Current: 1.1 A – 2.4 A
• Power connector: Neutrik powerCON TRUE1
• IP rating: IP20 (indoor use only)
• Power switch: yes
• Soft power button: yes
• Operating temperature: 0 - 40 °C
• Humidity: 95% non-condensing

Certification and safety

• Conformity: CE, WEEE, RoHS

Physical

• Dimensions (W x D x H): 39.8 × 27.5 × 7.8 cm
• Packaged dimensions: 57.5 × 34.3 × 14.9 cm
• Weight: 4.6 kg
• Packaging: cardboard
