Avolites - D3 WING

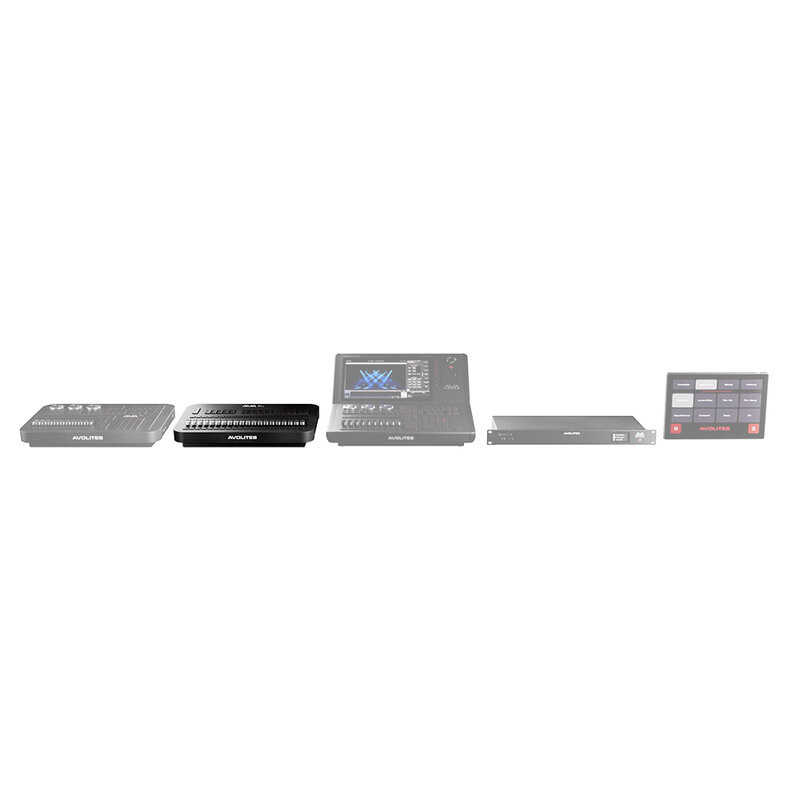

The D3 Wing is a hardware expansion for increased physical control within a D3 system. It integrates seamlessly with the D3-010 and D3-110 consoles, replicating their design, layout, and finish, including the red LED visual style.

This additional control unit is designed to offer greater flexibility during live playback, cue management, and rapid programming, keeping the operator fully hands-on during the show.

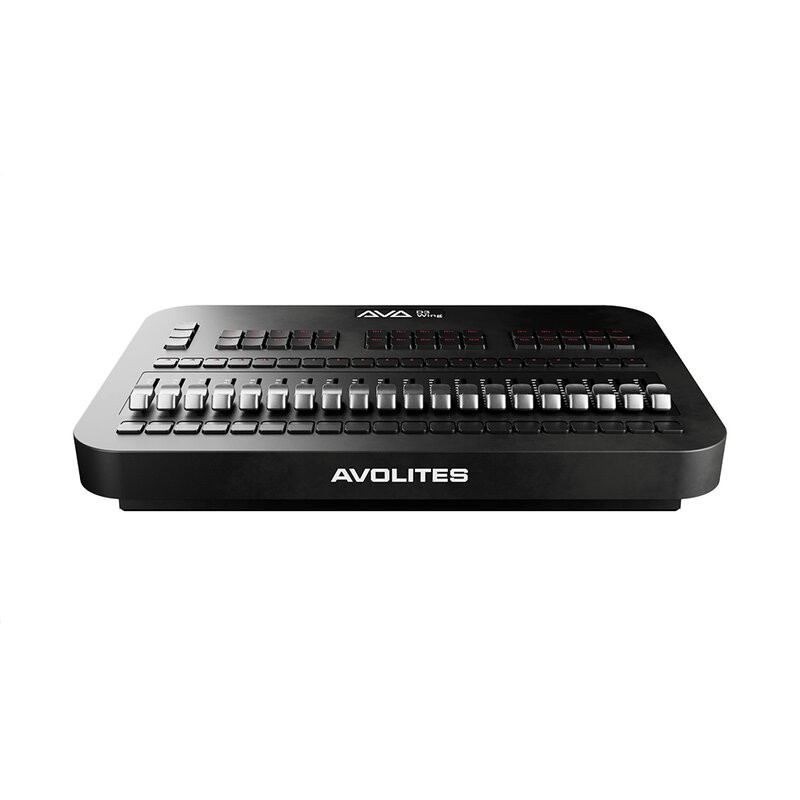

The D3 Wing includes twenty 60 mm playback faders, expanding the number of controls accessible in real time. It features three backlit Cherry MX Low Profile buttons for playback paging and thirty backlit Cherry MX Low Profile buttons for macros / executors, offering a precise and reliable tactile response.

The device connects directly to the D3 system, without the need for complex configuration, and is an ideal solution for those seeking extensive and immediate control.

User benefits

• Extensive control with 20 playback faders
• Cherry MX Low Profile backlit keys
• Same design as the D3-010 and D3-110 consoles
• Plug & Play connection to the D3 system

Areas of use

• Same as the D3-010 and D3-110 consoles: live environments and fixed installations

Technical characteristics

Control surface

• Playback faders: 20 x 60mm faders
• Flash buttons: 40 x C&K buttons with custom cap
• Playback paging keys: 3 x backlit Cherry MX Low Profile keys
• Macro / executor keys: 30 x backlit Cherry MX Low Profile keys

Connectivity

• USB 2.0: 1 x USB-C (rear)

Hardware

• Operating voltage: 5 V_DC
• IP rating: IP20 (indoor use only)
• Power connector: USB-C (screw lockable)
• Operating temperature: 0 - 40 °C
• Humidity: 95% non-condensing

Certification and safety

• Conformity: CE, WEEE, ROHS

Physical

• Dimensions (W x D x H): 39.8 x 27.5 × 7.8 cm
• Packaged dimensions: 57.5 × 34.3 × 14.9 cm
• Weight: 3.9 kg
• Packaging: cardboard
