Avolites - D3-110 CONSOLE

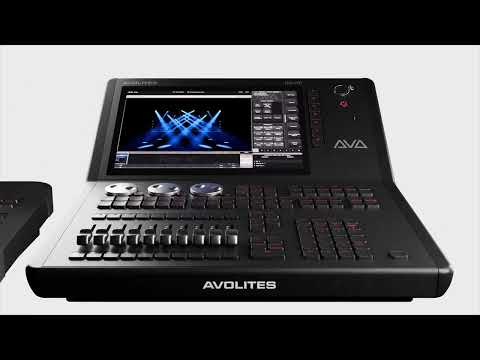

The D3-110 is Avolites new compact lighting console from the D3 series. Completely stand-alone and featuring a touch interface, it's designed to deliver professional performance in a compact form factor. It's powered by the Titan processor, which allows for native management of up to 24 DMX universes, equivalent to 12,288 channels. This makes it suitable for complex shows, while maintaining a lightweight and easily transportable structure.

The console's visual heart is an integrated 12.1" multi-touch display with WXGA resolution and 800-nit brightness, adjustable for different lighting conditions. An external display with up to 4K resolution can also be connected via DisplayPort to expand the user interface and improve visualization during programming.

The control layout has been optimized for maximum efficiency: the console includes 10 x 60 mm playback faders, 3 high-resolution Avo metal rotary encoders with select buttons, 12 backlit macro/executor keys, and a compact keyboard with 76 backlit Cherry MX low profile keys for programming and setup. There are also 3 paging keys and 5 playback control keys, including a double-width "Go" key for cueing.

In terms of connectivity, the D3-110 offers a combination of USB-C and USB-A ports, allowing for peripheral connection, file transfer, and integration with other systems. It features four DMX ports on 5-pin Neutrik connectors and two Gigabit Ethernet network ports (etherCON connectors), plus audio inputs and outputs. It supports network protocols such as Art-Net, sACN, Art-RDM, and CITP, and is compatible with SMPTE LTC Time Code for precise event synchronization.

The integrated Titan software allows unlimited fixture control and supports multi-console sessions via TitanNet, making the D3-110 a scalable solution for productions of any size. The console is constructed of rugged materials and designed to withstand the rigors of touring and live environments, offering reliability and consistent performance.

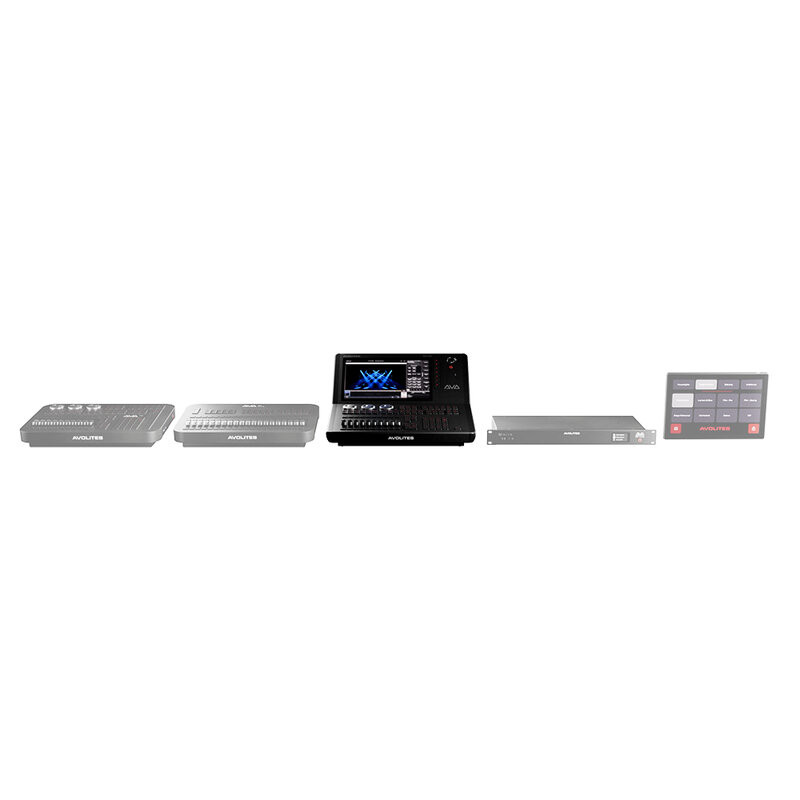

In short, the Avolites D3-110, which can be considered a more compact version of the D7 and D9, is a console that combines power, compactness, and flexibility, designed for those seeking professional lighting control in a streamlined yet comprehensive package.

User benefits

• Stand-alone power: manages up to 24 native DMX universes without the need for external computers, thanks to the integrated Titan processor
• Integrated Titan software, constantly updated
• Compactness and portability
• Intuitive interface thanks to the 12.1" touchscreen
• Lightweight and robust construction to withstand intense work conditions and frequent transport
• Ergonomics and operating speed, echoed by top-of-the-line consoles
• Versatile connections
• Unlimited fixture control

Areas of use

• Tours (concerts, festivals)
• FOH with limited space
• Theatres
• Installations
• Rentals

Technical characteristics

Control surface

• Internal screen: 1 x 12.1", 800 nit, WXGA capacitive multi-touch screen with adjustable brightness
• External screen: 1 x optional up to 4K (UHD)
• Surface layout: compact layout (reduced version of D7 & D9 layouts)
• Playback faders: 10 x 60 mm faders
• Flash buttons: 20 x C&K buttons with custom cap
• Programming / setup keys: 76 x backlit Cherry MX low profile keys
• Playback paging keys: 3 x backlit Cherry MX low profile keys
• Playback control keys: 5 x backlit Cherry MX low profile keys, including double-width Go key
• Macro / executor keys: 12 x backlit Cherry MX low profile keys
• Attribute control wheels: 3 x high resolution, metal Avo encoders with select buttons
• USB wing support: 1x D3 Wing, T3 Wing, or Titan Mobile Wing
• D3 touch support: yes (unlimited),
• Mobile App: yes - iOS & Android ("Titan Remote")

Software

• Software platform: Avolites Titan
• Built-in 3D visualisation: capture engine
• DMX universes per device: 24 universes (12,288)
• DMX universes per system: 24 universes (12,288)
• Max fixtures: unlimited
• Control protocols: DMX512 (E1.11), streaming ACN (E1.31), Art-Net & Art-RDM, CITP, GDTF (through Capture), SMPTE LTC, MIDI over USB (MIDI notes & MTC), Web API

TitanNet

• Expand processing: no
• Multi-console session: yes
• Offload processing: yes

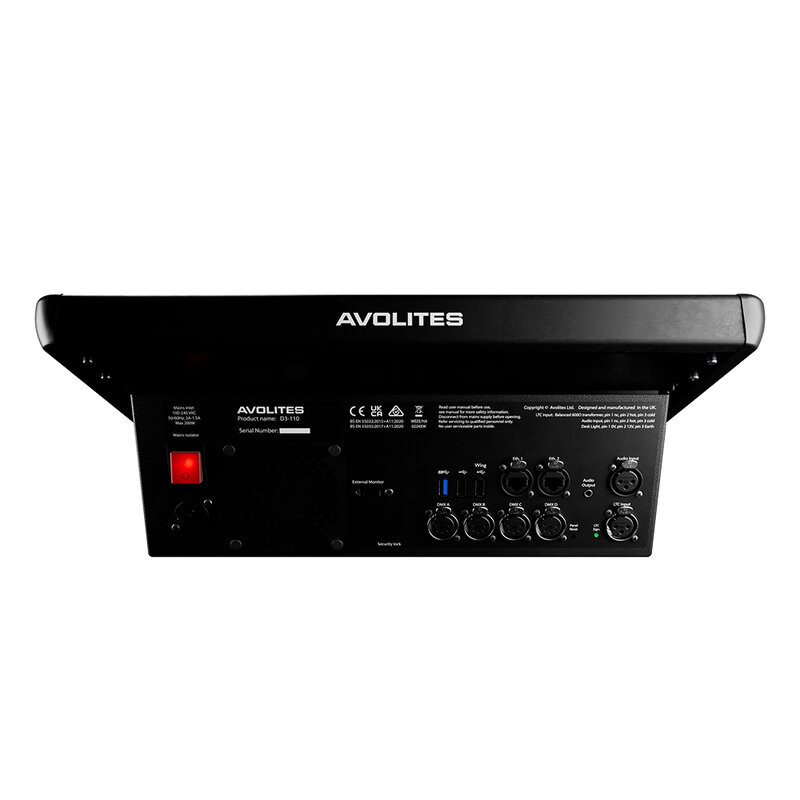

Connectivity

• External monitor: 1 x DisplayPort
• Gigabit ethernet: 2 x Neutrik etherCON
• USB 3.2 Gen1: 1 x USB-C (front)
• USB 2.0: 2x USB-A (rear)
• DMX (IN/OUT): 4 x Neutrik 5-pin XLR
• Audio input: 1 x Neutrik 3-pin XLR
• Audio output: 1 x 6.35 mm (1/4") jack
• SMPTE LTC input (balanced): 1 x Neutrik 3-pin XLR (including signal indicator)
• 12 V output (gooseneck): 1 x Neutrik 3-pin XLR
• Kensington lock: yes

Hardware

• Operating voltage: 100 - 240 V_AC 50/60 Hz
• Current: 1.5 - 3 A
• Power connector: Neutrik powerCON TRUE1
• Power switch: yes
• Soft power button: yes
• Power consumption: 200 W max.
• IP rating: IP20 (indoor use only)
• Operating temperature: 0 to 40 °C
• Humidity: 95% non-condensing

Certification and safety

• Conformity: CE, WEEE, ROHS

Physical

• Dimensions (W x D x H): 42.3 × 46.8 × 20.2 cm
• Weight: 8.7 kg
