Avolites - D3 TOUCH

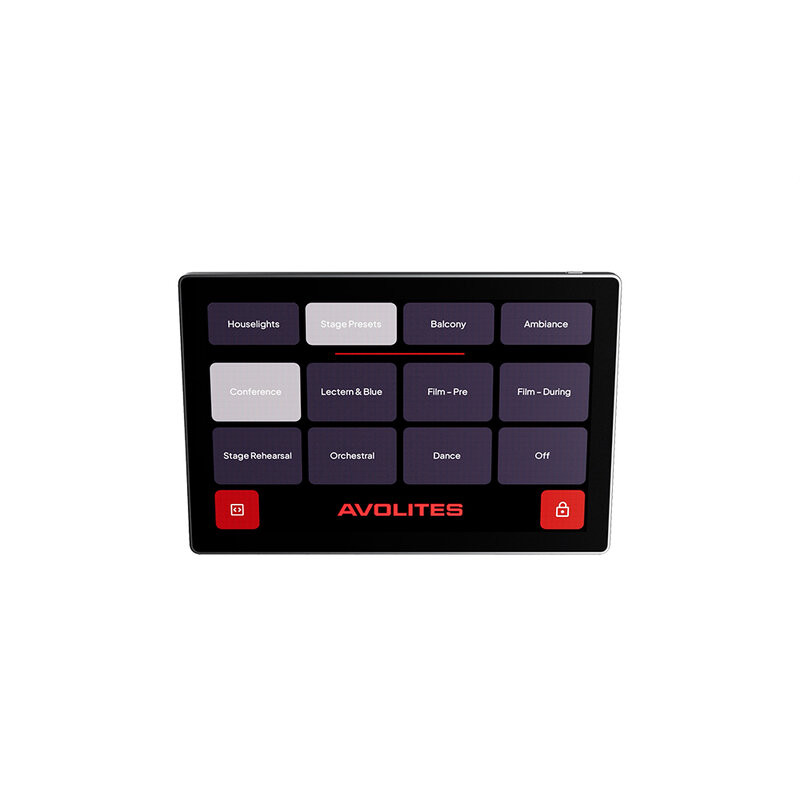

D3 Touch is a preconfigured touchscreen interface designed for easy control of Titan systems.

It was specifically designed for environments where operators – even non-technical ones – need quick access to essential functions, such as show playback or room lighting presets.

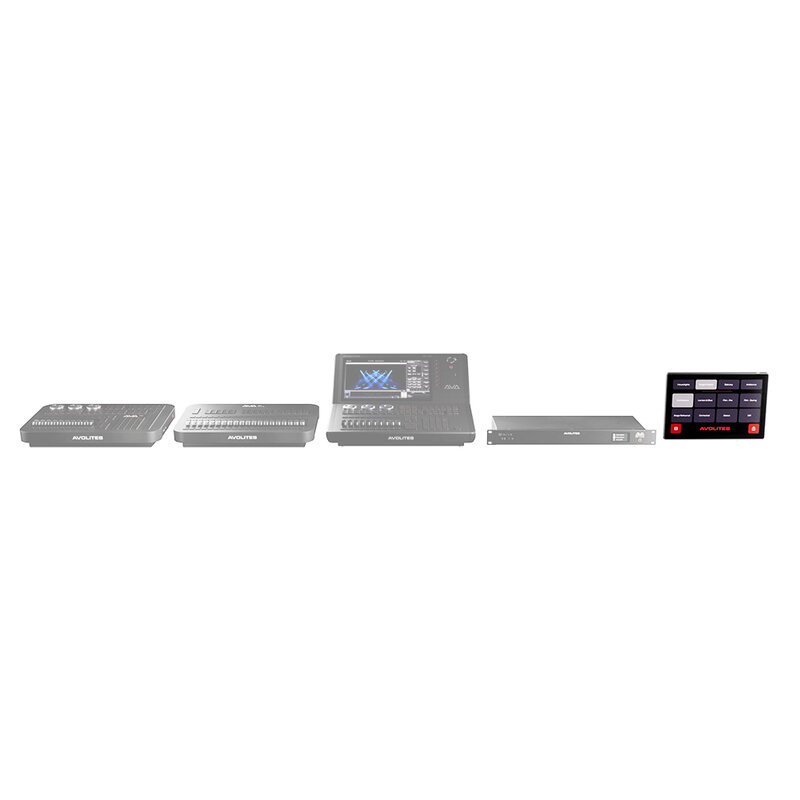

Integration with Titan is complete: D3 Touch is Plug & Play, responsive and intuitive, making the user experience seamless and immediate. It can be paired with a D3 Core or other Titan consoles, offering direct touch access to playback and macros, without the need for complex configuration.

User benefits

• Immediate and simplified access to the Titan system's main functions
• Intuitive touch interface
• Plug & Play
• Supports all Titan consoles except the T1

Areas of use

• Theaters
• Event halls
• Fixed installations

Technical characteristics

Control surface

• Internal screen: 1 x 10", WXGA capacitive touchscreen

Software

• Supports: all Titan consoles (excluding T1)
• Zones: 4 x Titan playback groups - user numbers 1001 - 1004 (more can be added using macros to change user numbers)
• Scenes per zone: 8 x Titan playbacks within each playback group (more can be added using macros to change contents of playback groups)
• Macros: 8 x Titan macros - user numbers 1001 - 1008
• Lock screens: yes, via Titan
• Unlock code: yes, via Titan (numeric only, requires Titan v19 or above)

Connectivity

• Gigabit ethernet: 1 x RJ45

Hardware

• Power connector (PoE): RJ45 (IEEE 802.3AF-2003, negotiates CLASS 2)
• Soft power button: yes
• IP rating: IP20 (indoor use only)
• Power consumption: 6 W max.
• Operating temperature: 0 to 40 °C
• Humidity: 90% non-condensing

Certification and safety

• Conformity: CE, WEEE, ROHS

Physical

• Dimensions (W x D x H): 24.6 x 2.7 × 16.4 cm
• Weight: 0.9 kg
• Packaging: cardboard

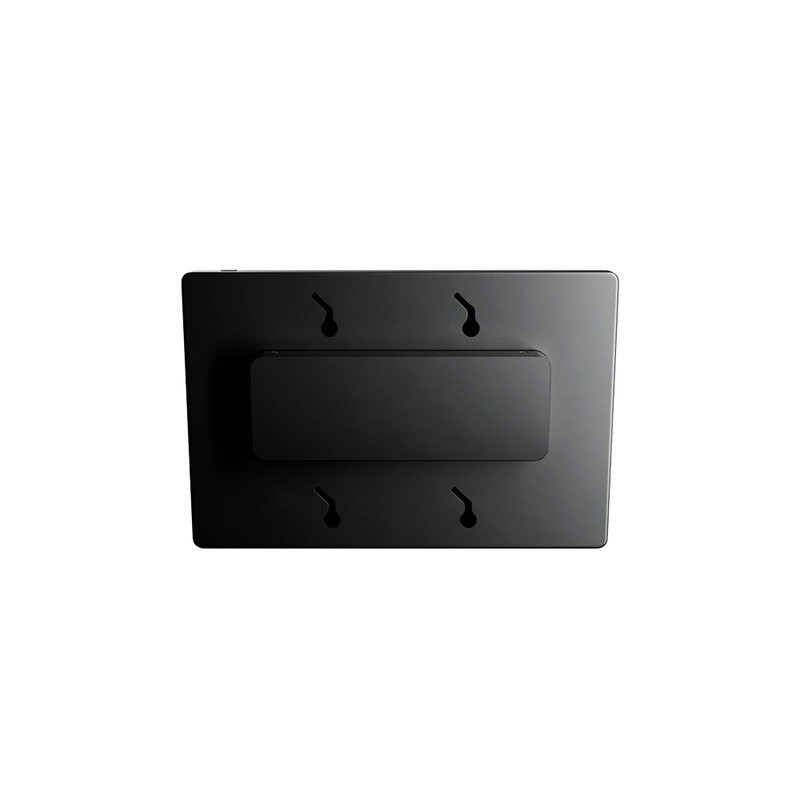

• Mounting depth: 20 mm (no backbox), 47 mm (with backbox)
