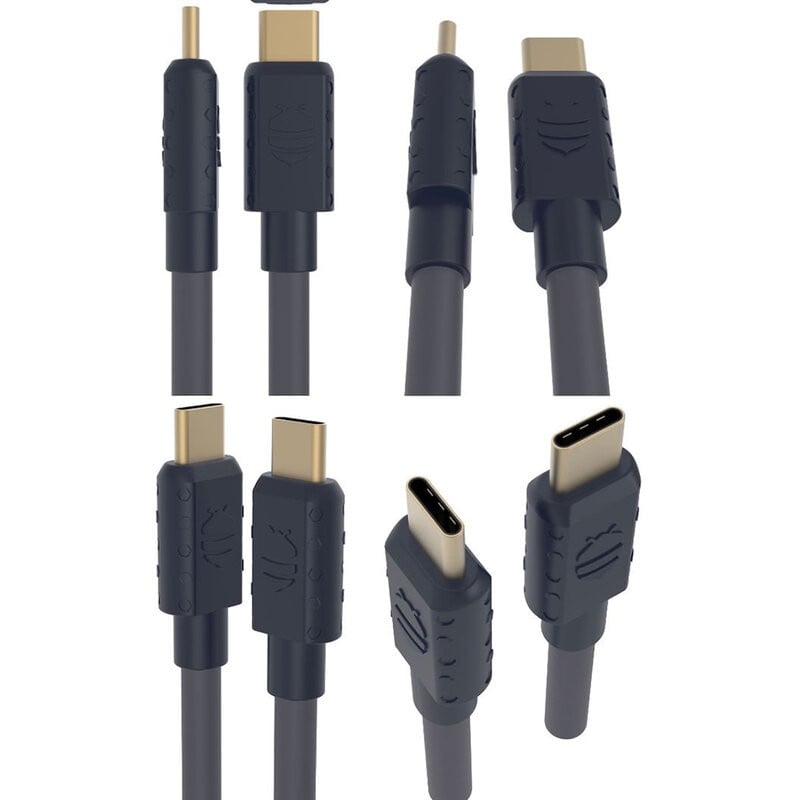

Beetek - C10S-2M

2 m USB-C cable featuring excellent flexibility thanks to the silicone coating, which makes it easy to use even in tight spaces.

It supports USB data transfer speeds of up to 10 Gbps, while for power it is compatible with USB Power Delivery up to 100 W, allowing you to quickly charge compatible devices. In addition, it supports DisplayPort Alt Mode outputs up to 4K at 60 Hz, ensuring excellent video performance.

It features reversible USB-C connectors, which simplify insertion, and gold-plated contacts, which improve the quality of the connection and durability. This cable is also very compact and features chamfered connectors to adapt to the ports of devices such as smartphones with a case.

Technical characteristics

• Signal: USB 3.2 Gen 2x2 (compatible with USB 3.1 / USB 3.0 / USB 2.0)
• Connector Type: USB Type-C to USB Type-C
• Environmental info: REACH, RoHS compliant
• Flame retardant grade: FT2
• Charging power: 100 W PD
• Connector dize: 40 × 12.2 × 6.5 mm
• Connector dtructure (Type-C): plug plate + inner mold + copper foil + shell
• Internal mold (Type-C): transparent PE material
• Copper foil (Type-C): double-sided conductive copper foil
• Components: conductor + insulation + drain + AL.Mylar + Mylar + braid + jacket
• Conductor material: tinned copper
• Conductor gauge: 24 AWG
• Braid material: tinned copper
• Braid size: 16 × 11 / 0.08 ± 0.008 mm
• Jacket material: silicone
• Cable diameter: 5.6 mm
• Cable color: black
• E-marker: yes
• EDID: yes
• 3D Support: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• AUX channel: yes
• High-speed Ethernet: yes
• Extended audio: yes
• BT.2020 color space: yes
• ESD protection: yes
• Maximum resolution: 3840 × 2160 @ 60 Hz
• Transmission rate: 20 Gbps
• Plug & Play: yes
• Signal delay: zero
• Deep color: yes
• Color sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Impedance: 90 ±15% ohm
• Power supply: 48 V / 5 A
• Tensile strength: ≤ 200 N
• Maximum bending angle: 135°
• Temperature rating: 80 °C
• Available lengths: 2 m, 3 m
