Beetek - GDH03-20M

Armored HDMI 2.0 active optical cable designed for long-distance transmission of HDMI video and audio signals for rental and staging, live events, residential and video surveillance applications. Enables 4K resolutions at 60 Hz 4:4:4 at 18 Gbps. Complies with HDMI 2.0 protocol and supports HDCP 2.2.

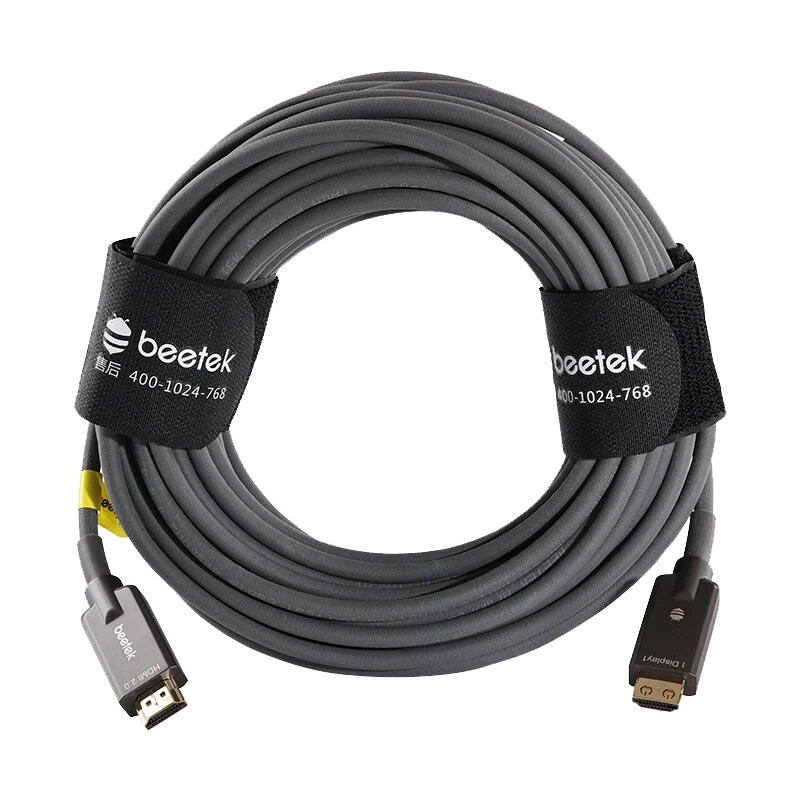

The cable is equipped with high-strength adhesive rip ties for easy storage.

Main features

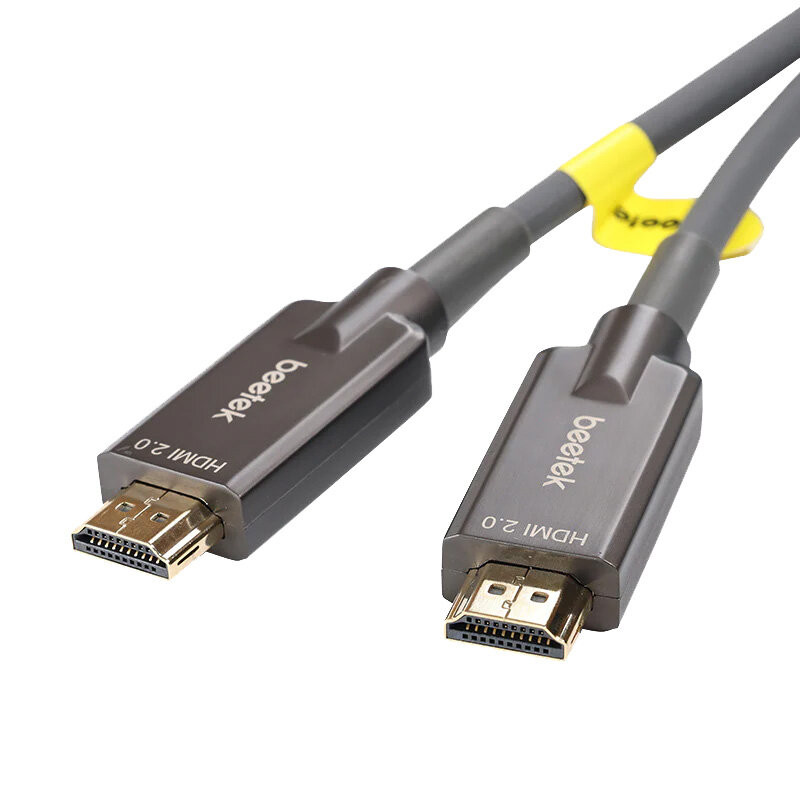

• The patented HDMI 2.0 connector transmits the signal without delay or compression
• Supports resolutions up to 4K @ 60 Hz (4:4:4)
• The double protection of the TPU outer jacket and the steel spiral structure doubles the product's durability
• Add the label with your company information using the transparent heat-shrink sleeves provided

Technical characteristics

• Lenght: 20 m
• Signal type: HDMI 2.0
• Input connector type: HDMI Type A M.
• Output connector type: HDMI Type A M.
• Connector fastening type: "C-LOCK" type HDMI connector provide
• Connector gold plating: gold-plated copper shell
• Connector structure: zinc alloy mold
• Power from connector (TX): not supported
• Cable power supply (RX): not supported
• Power: 250 mW
• Connector dimensions: HDMI Type A M., 55.2 x 20 x 12 mm
• Plug & Play: yes
• In-wall installation: not supported
• Fiber type: multi-mode OM3-300 x 4
• Fiber wavelength: 850 - 1300 nm
• Copper wire material: 7 multi-strand tinned copper wires
• Copper wire specification: 24AWG1, 26AWG1, 28AWG3, 30AWG2
• Cable structure: optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + armored tube + outer jacket
• Cable diameter: 5.8 mm
• Jacket color: black
• Jacket material: matt frosted TPU
• Spiral tube diameter: 2.88 mm ± 0.1 mm
• Spiral tube color: silver
• Spiral tube material: stainless steel
• Packing dimensions: 240 x 230 x 75 mm
• EDID: pass-through
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: HDCP 2.3
• HDR: yes
• XvYCC color space: yes
• Optical module: 4 x 10G multi-mode optical
• Technical characteristics: photoelectric conversion technology
• Optical module lifetime: 100,000 hours
• Resolution: 3840 x 2160 @ 60 Hz
• Clock bandwidth: 600 MHz x 3
• Transmission rate: 18 Gbps
• Reclocking chip: support above 30 m
• Pixel reclocking: yes
• ESD protection: yes
• Hot swap: yes
• Delay: zero frame delay
• Compression: none
• Sampling rate: 8 - 16 bit within the bandwidth range
• Sampling ratio: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Anti-jamming: yes
• Tensile strength: ≤ 700N
• Compressive strength: 2000 N/10 cm
• Minimum bending radius: dynamic > 10D; Static > 20D (*D is the outer diameter of the cable)
• Operating temperature: -30 to 80 ℃
