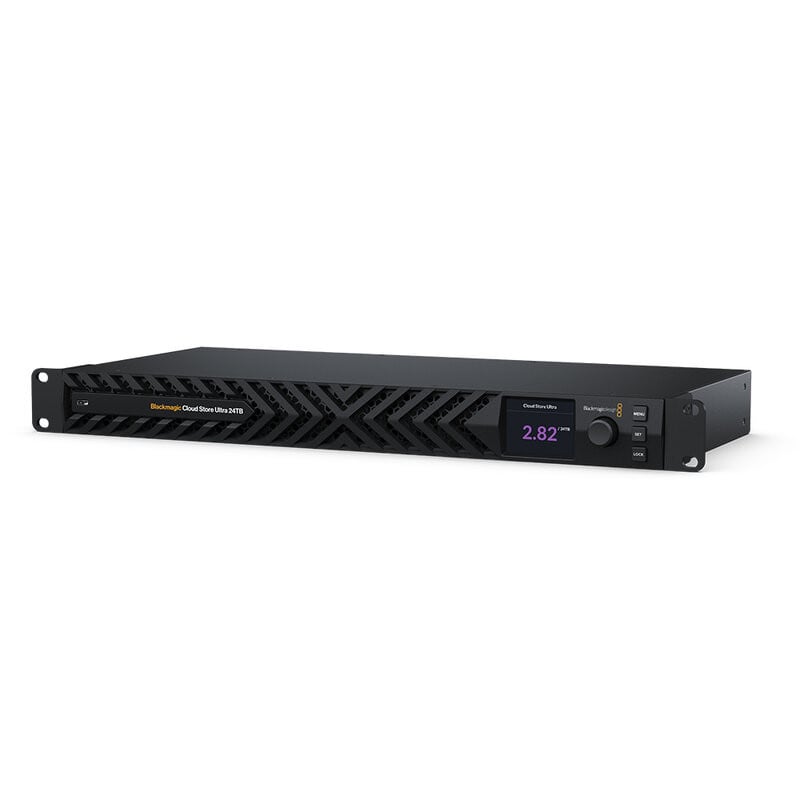

Blackmagic Design - Blackmagic Cloud Store Ultra 24TB

Blackmagic Cloud Store Ultra 24TB is a high performance network storage system designed for video workflows with multiple users accessing it simultaneously. Featuring 12 internal M.2 NVMe SSD drives in a RAID 0 configuration, it offers incredibly fast speeds and virtually zero latency, making it ideal for multi-camera editing, color grading and managing large RAW files.

The system features two completely independent 100G Ethernet ports for incredible throughput and supports extremely high bandwidth workflows, such as multi-camera ISO recording with HyperDeck Extreme ISO and instant file sharing over a local network.

Blackmagic Cloud synchronization lets you automatically distribute files worldwide, keeping local copies always up to date in multiple locations and enabling global collaboration without the need for manual file transfers.

The 1RU rack-mount design with front-to-back cooling ensures quiet and reliable operation even under heavy load. The built-in HDMI output lets you monitor activity, transfer speed, connected users and core memory status in real time.

Designed for mission-critical environments, Cloud Store Ultra includes redundant power supplies, RAID 5 support for data protection, and advanced management via a dedicated utility, with no subscription or licensing fees.

User benefits

• Instant collaboration between multiple users thanks to the high performance of dual 100G Ethernet ports
• Near-zero latency file access
• Global content synchronization via Blackmagic Cloud so you can work from multiple locations without having to manually transfer files
• Data protection with RAID 5 support
• Redundant power supplies for continuous operation
• Real-time monitoring via HDMI output with activity, speed and memory status graphs
• Consistent performance even under heavy loads
• Reliability in professional environments thanks to the 1RU design with front-to-back cooling
• Complete control of your data without subscriptions or recurring costs

Areas of use

• Post-production with local and remote teams requiring simultaneous access to files
• High-bandwidth multi-camera editing with HyperDeck and DaVinci Resolve
• Film and television production
• Broadcast infrastructure with 100G networks and mission-critical workflows
• Archiving and distribution of large multimedia libraries with immediate access from multiple locations

Technical characteristics

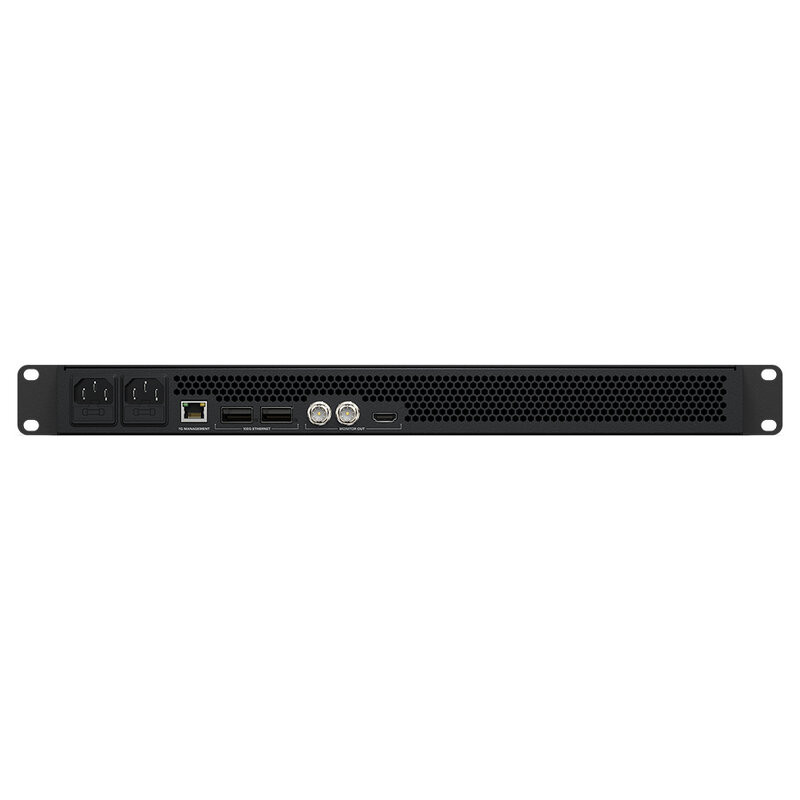

Connections

• 100G ethernet networks: 2 × 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch
• 1G management: 1 × RJ45 Ethernet supports 10/100/1000 BASE-T for Cloud Store Setup utility and software updates
• SDI monitor outputs: 2
• HDMI monitor outputs: 1
• SDI rates: 1.5G, 3G
• Computer interface: 1 × USB-C for Cloud Store Setup utility and software updates
• Power: 2 × IEC C14 power inputs

File sharing protocol

• Protocol: NFS, SMB
• Computer connections: 200 max.

Cloud synchronization

• Blackmagic Cloud

Storage

• Storage type: M.2 NVMe SSD
• Total capacity: 24 TB

Displays

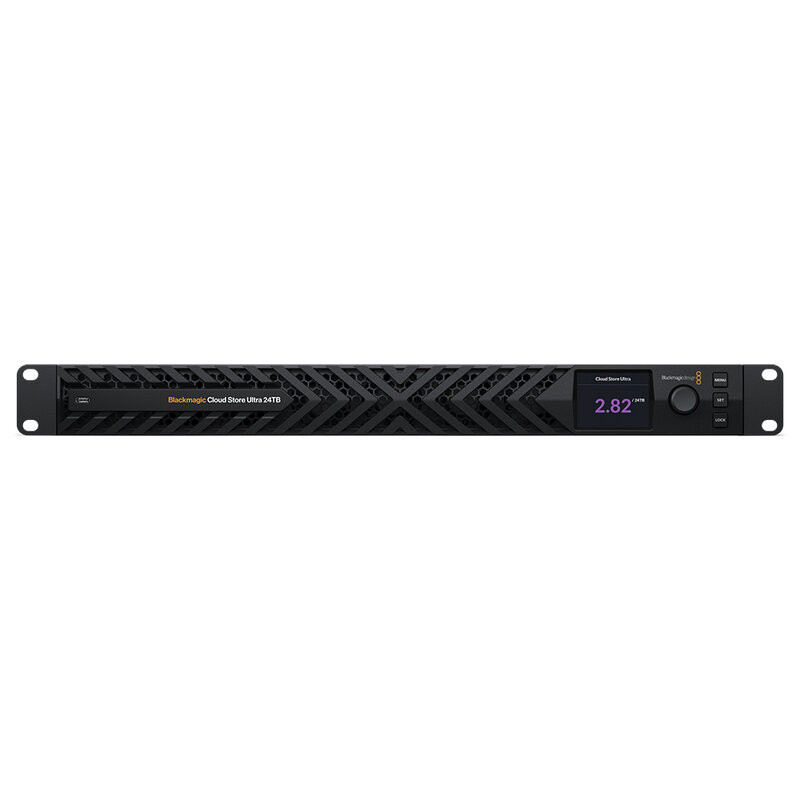

• Front panel display: built in 2.2" LCD for settings plus storage name, capacity and use
• Monitor out displays: device name, storage capacity and use, Cloud Sync status, user activity, hardware status, storage map, network data rate graph
• SDI monitor out standards: 1080p 50, 1080p 59.94, 1080p 60
• HDMI monitor out standards: 1080p 50, 1080p 59.94, 1080p 60

Control

• Built in control panel: 3 buttons, 2.2" color display and spin knob for menu settings
• External control: USB-C or Ethernet for configuration and software updates

Software

• Software included: Blackmagic Cloud Setup Utility
• Blackmagic Proxy Generator Lite: internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port

  Operating systems

• Mac os support: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
• Windows support: Windows 11

Power requirements

• Power supply: 2 × 100 – 240 V_AC 50/60 Hz internal power supplies
• Power inputs: 2 × IEC C14 sockets
• Power usage: TBC

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0% to 90% non-condensing

Physical specifications

• Dimensions: 48.2 × 4.42 × 23 cm

What’s in the box

• Blackmagic Cloud Store Ultra 24TB
• Welcome wallet with QR code for software download
