Blackmagic Design - Blackmagic Videohub 10x10 12G

Blackmagic Videohub 10x10 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 10 12G-SDI inputs and 10 12G-SDI outputs plus reference connections in a one rack unit size.

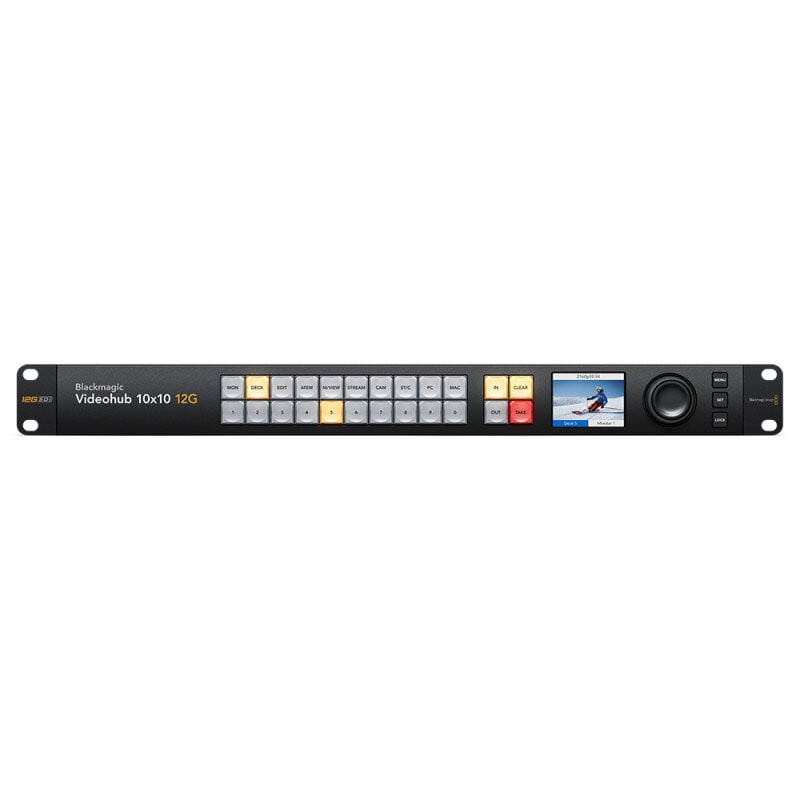

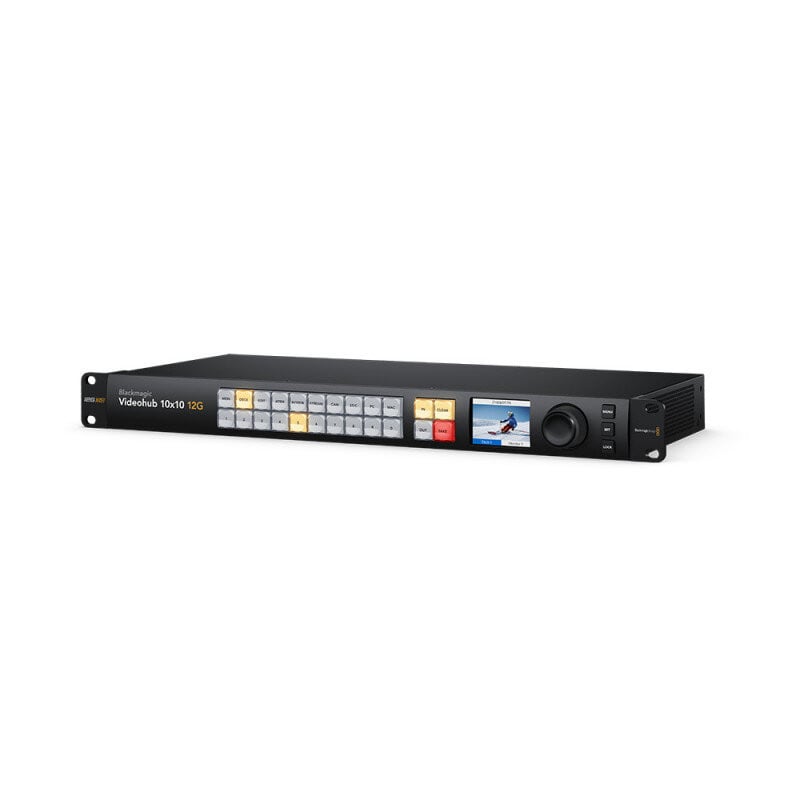

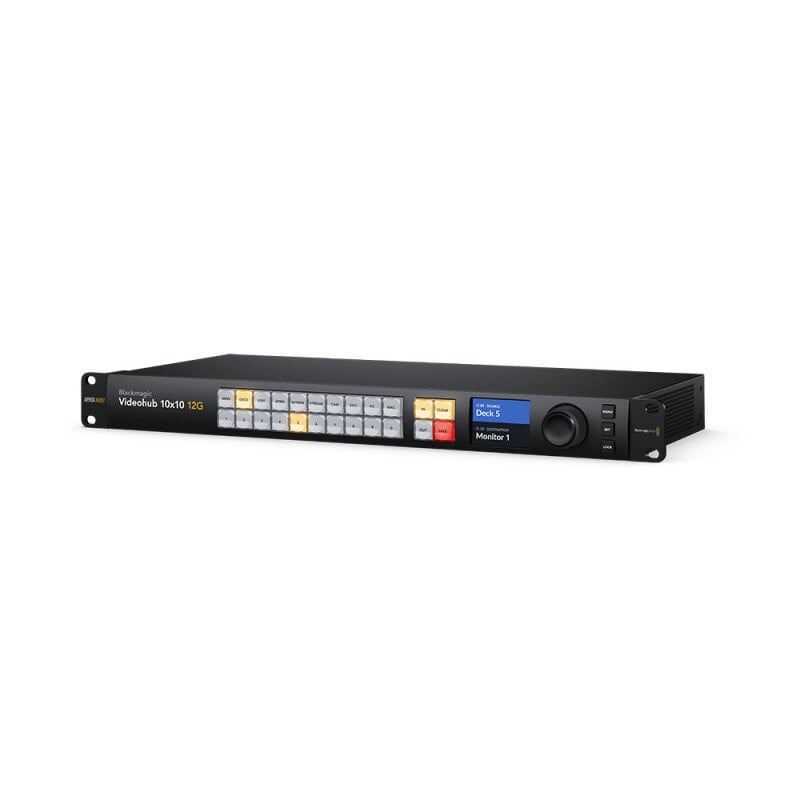

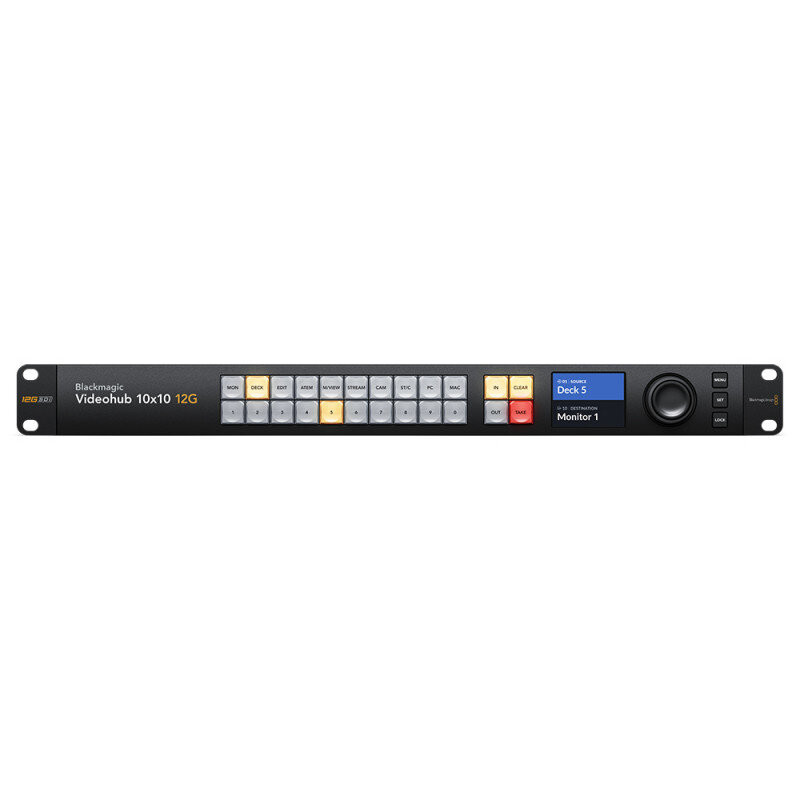

The front panel LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch.

It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p 60.

Technical characteristics

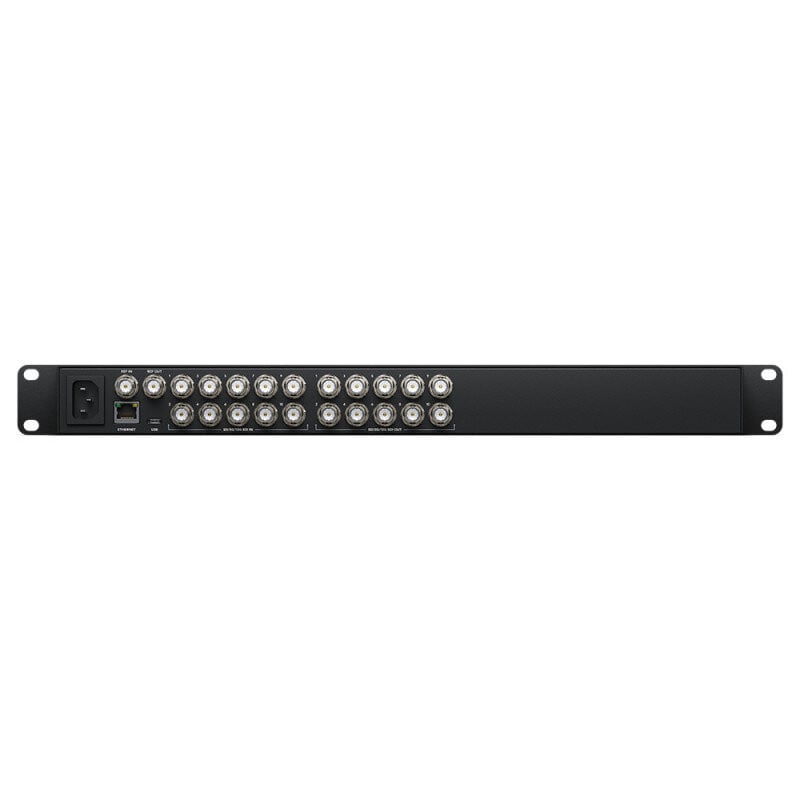

Connections

• SDI video inputs: 10
• SDI video outputs: 10
• SDI rates: DVB-ASI, 270 Mb, 1.5G, 3G, 6G, 12G
• Video input re-sync: none
• SDI reclocking: on all SDI outputs
• Reference inputs: tri-sync or black burst
• Reference outputs: reference terminating loop output
• Ethernet: supports 10/100/1000 BASE-T
• Computer interface: USB-C

Standards

• SD video standards: 525i 59.94 NTSC, 625i 50 PAL
• HD video standards: 720p 50, 720p 59.94, 720p 60 – 1080i 50, 1080i 59.94, 1080i 60 – 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60 – 1080PsF 23.98, 1080PsF 24, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
• 2K video standards: 2Kp 23.98 DCI, 2Kp 24 DCI, 2Kp 25 DCI, 2Kp 29.97 DCI, 2Kp 30 DCI, 2Kp 47.95 DCI, 2Kp 48 DCI, 2Kp 50 DCI, 2Kp 59.94 DCI, 2Kp 60 DCI, 2KPsF 23.98 DCI, 2KPsF 24 DCI, 2KPsF 25 DCI, 2KPsF 29.97 DCI, 2KPsF 30 DCI
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60
• 4K video standards: 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI, 4Kp 60 DCI
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B – SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
• SDI audio sampling: television standard sample rate of 48 kHz and 24-bit
• SDI video sampling: YUV 4:2:2 and RGB 4:4:4
• SDI color precision: 10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p 30 and 4K modes up to 4Kp 30 DCI. 10-bit YUV 4:2:2 in all modes
• SDI color space: REC 601, REC 709, REC 2020
• SDI auto switching: automatically selects between 270 Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard
• SDI metadata support: video payload identification ancillary data as per SMPTE 352M

Control

• Built in control panel: 24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 2.2 inch color display
• External control panel: includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
• Control panel connection: Ethernet

Software

• Software control: router control included free for Windows and Mac
• Internal software upgrade: via included updater application

Display

• Displays: built in 2.2" LCD for video and menu settings

Power requirements

• Power supply: 1 x internal 100 – 240 V_AC 50/60 Hz. IEC power cable required
• Power fail protection: crosspoint connections preserved and restored instantly at power on
• Power usage: 20.8 W max

Physical installation

• 1 rack unit height

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: –20 to 60 °C
• Relative humidity: 0 to 90% non-condensing

Physical specifications

• Dimensions: 48.2 x 4.4 x 17 cm
• Weight: 1.5 kg

What's in the box

• Blackmagic Videohub 10x10 12G
• Welcome wallet with QR code for software download
