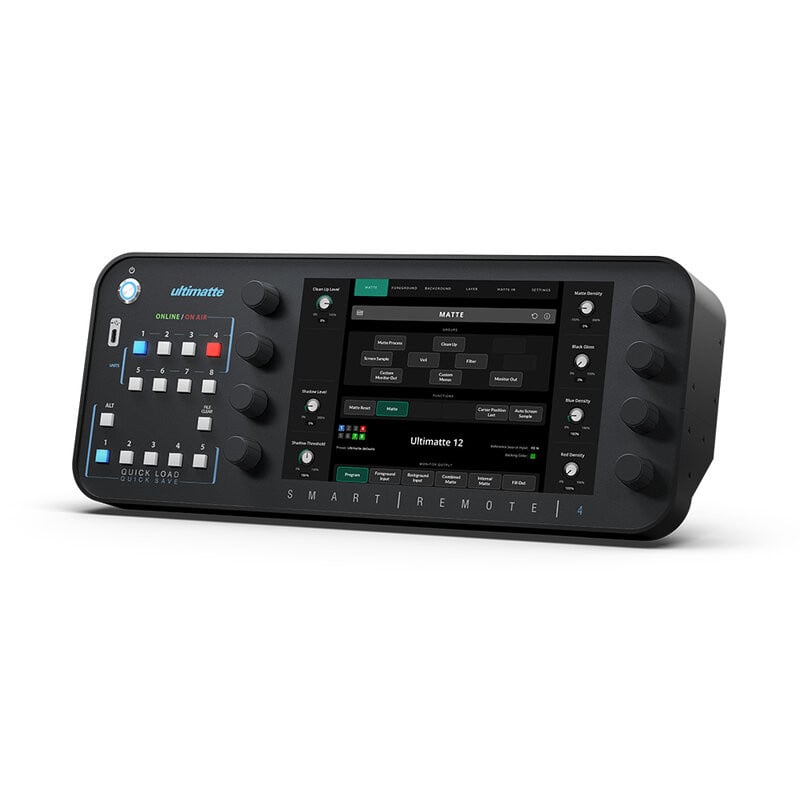

Blackmagic Design - Ultimatte Smart Remote 4 G2

The Ultimatte Smart Remote 4 G2 is a controller designed to manage up to eight Ultimatte 12 units in parallel via Ethernet, offering a fast, clear, and intuitive work interface. This new version has been redesigned to simplify production, maintaining the same operating philosophy as the previous model but with a more modern and optimized architecture.

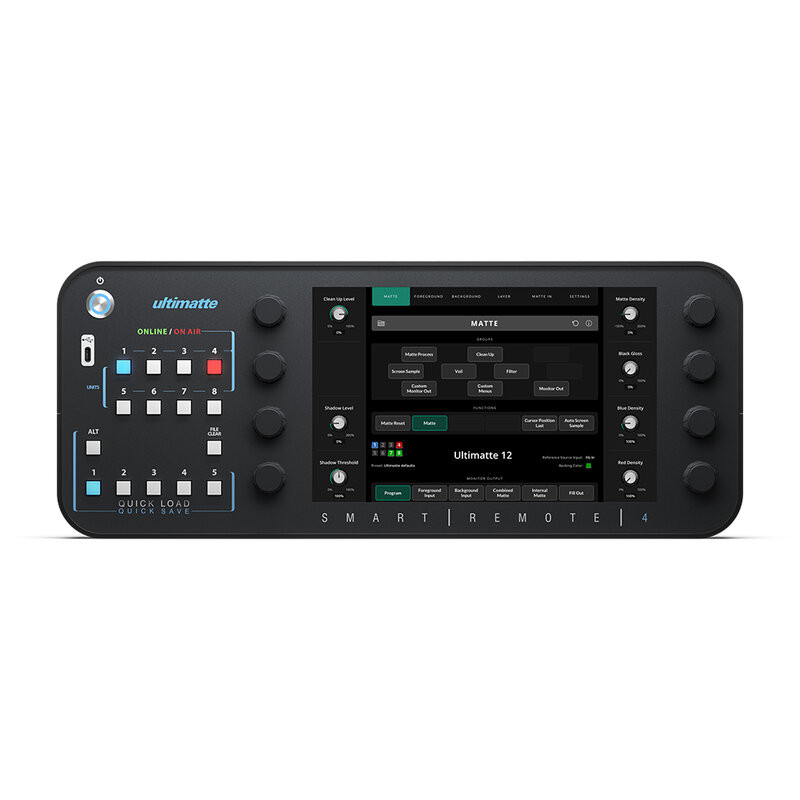

At the heart of the device is a large 10.1" touchscreen display with 1280 x 800 resolution, allowing you to navigate menus and adjust settings as smoothly as a software panel, but with the reliability of dedicated hardware. Next to the screen, the control surface features physical buttons and knobs for precise adjustments to key parameters, while LED indicators intuitively indicate the status of connected devices, clearly distinguishing between Online and On Air modes.

The unit offers a complete set of updated connections:

• 2 rear USB-C 5 Gbps ports, for connecting a mouse, keyboard, or storage devices, useful for loading still images and saving or recalling presets

• 1 front USB-C port, which replicates the same functions and also allows connection to a Mac or Windows for updates and configuration via the Ultimatte Setup utility

• 1 HDMI output, ideal for connecting external monitors and providing flexible interface viewing.

Compared to previous models, the new Smart Remote 4 G2 no longer includes RS‑422 and VGA ports, adopting a completely modern connectivity. The system now runs Blackmagic OS, ensuring instant power on and more efficient management. It also supports the same Ultimatte Admin Utility used for Ultimatte units, eliminating the need for a separate installer.

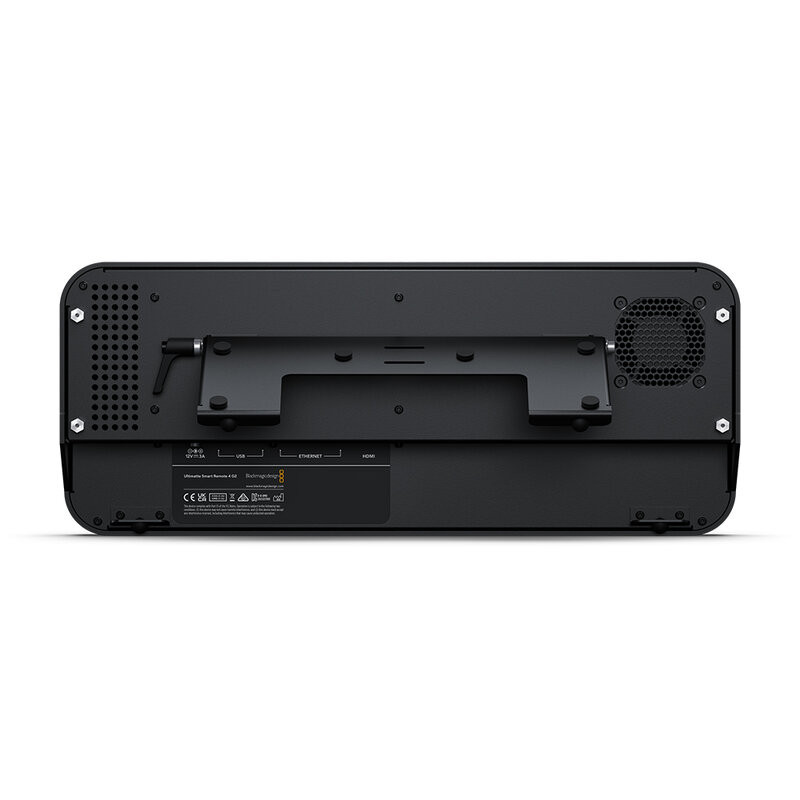

The device is designed for easy integration into any production environment: it can be placed on an adjustable stand or rack mounted using the included mounting brackets. Power is supplied via a locking connector, the same one used on Video Assist, ensuring stability even in mobile environments.

The Smart Remote 4 G2 is compatible with current Ultimatte 12 models — Ultimatte 12 8K, 12 4K, 12 HD, and 12 HD Mini — without requiring additional firmware updates. The new SR4 units can coexist on the same network with previous models, simplifying integration into existing systems.

The rugged construction is suitable for professional use.

User benefits

• Immediate, centralized control up to to 8 Ultimatte 12 units via Ethernet
• Connectivity with three USB-C ports and HDMI output
• 10.1" touchscreen for quick navigation
• Instant start-up with Blackmagic OS
• Quick preset recall and saving with Quick Load / Quick Save
• Compatible with Ultimatte Admin Utility without the need for a separate installer
• Flexible installation: desktop stand or rack mount
• Coexists with previous Smart Remote 4s on the same network

Areas of use

• TV control rooms and broadcast studios managing multiple keyers in parallel
• Virtual studios and XR sets
• Multi-camera live production
• Mobile control rooms and OB vans
• Corporate events, education, and streaming with virtual sets or live graphics

Technical characteristics

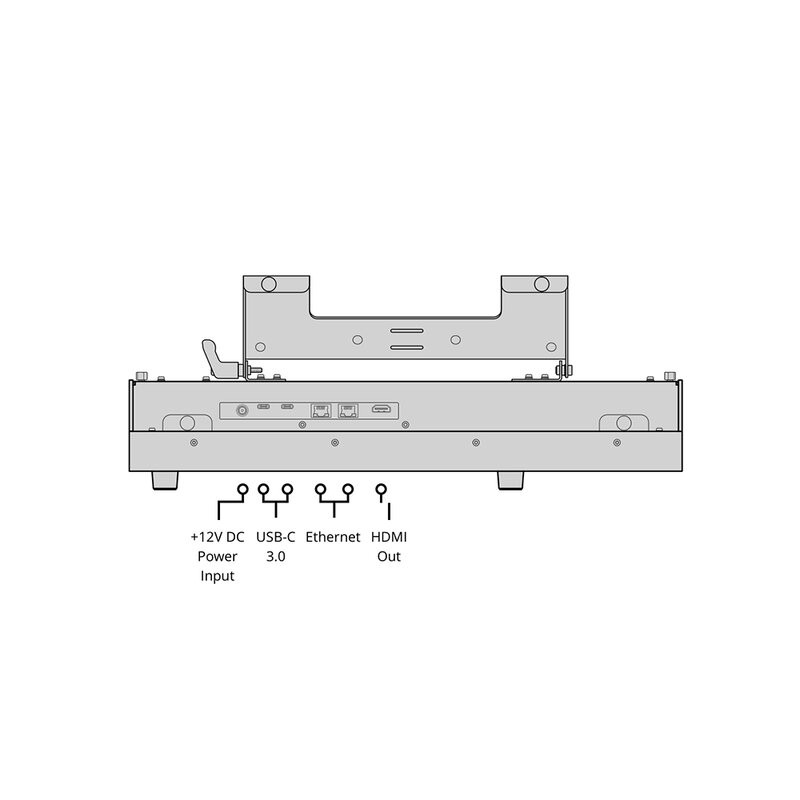

Connections

• 1 x HDMI output 1080p 60
• Computer interface: 2 rear USB-C 3.0 ports for external mouse and keyboard and for USB-C storage devices to load still images, save or load presets and save or load archives
• Front computer interface: 1 front USB-C 3.0 port with same functions as rear USB-C ports plus MAC or PC connection for software updates and configuration using the Ultimatte Setup utility
• USB-C power delivery: all USB-C ports support power delivery to connected devices
• Ethernet: 2 10/100/1000 MBPS ETHERNET ports for LAN connection to control the Ultimatte 12 and perform software updates using the Ultimatte Setup utility

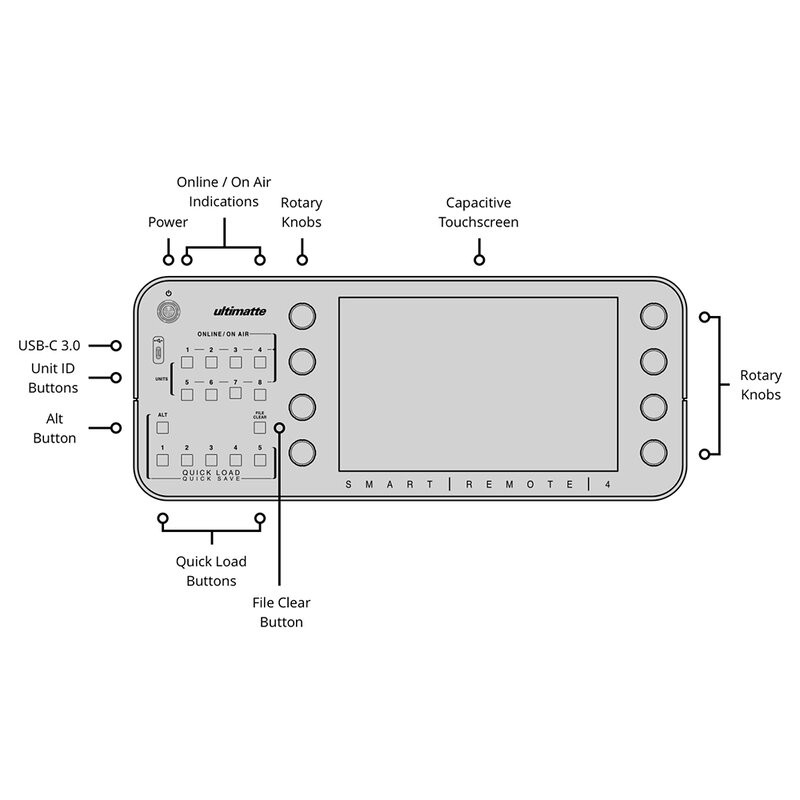

Product specifics

• Rotary knobs: 8 rotary knobs for adjusting parameters
• Unit ID buttons: 8 buttons illuminated blue for active
• Unit ID LED indicators: indicators illuminated green for online and red for on air status
• ALT plus quick load or save buttons: ALT button plus 5 buttons for saving presets
• Quick load or save buttons: 5 buttons for loading presets
• File clear button: 1 button for auto key
• ALT plus file clear: ALT button plus file clear button for auto key using user defined presets
• Customizable menus: 4 menus for building custom menus with most used controls
• LED control: user adjustable brightness control for LEDS

Software

• Software updates: software updates via USB or Ethernet connection using Ultimatte Setup utility

Control

• Touchscreen: 10.1" 1280 x 800 colour display panel with integrated capacitive touchscreen and onscreen controls

Operating systems

• Mac: MAC 15.0 Sequoia, MAC 26.0 Tahoe or later
• Windows: Windows 11

Power requirements

• Power supply: 1 locking 5.5 mm barrel 12 V_DC power input for external power supply or battery use
• Power usage: 24 W max

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C
• Relative humidity: 0 to 90% non-condensing

Physical installation

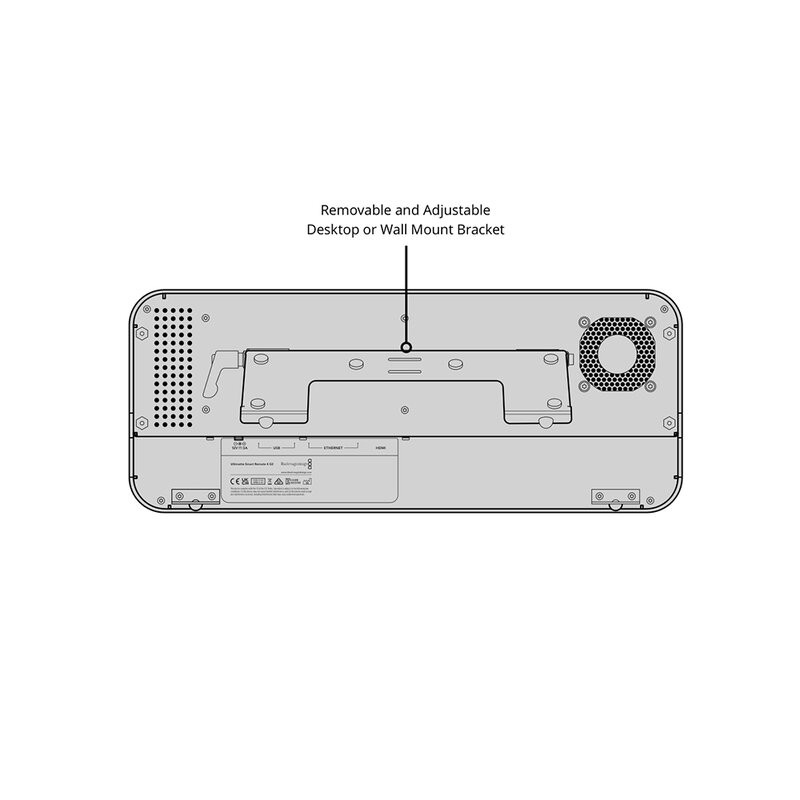

• Installation: adjustable desk mounting option and rack mount ears included for 19 inch rack installation

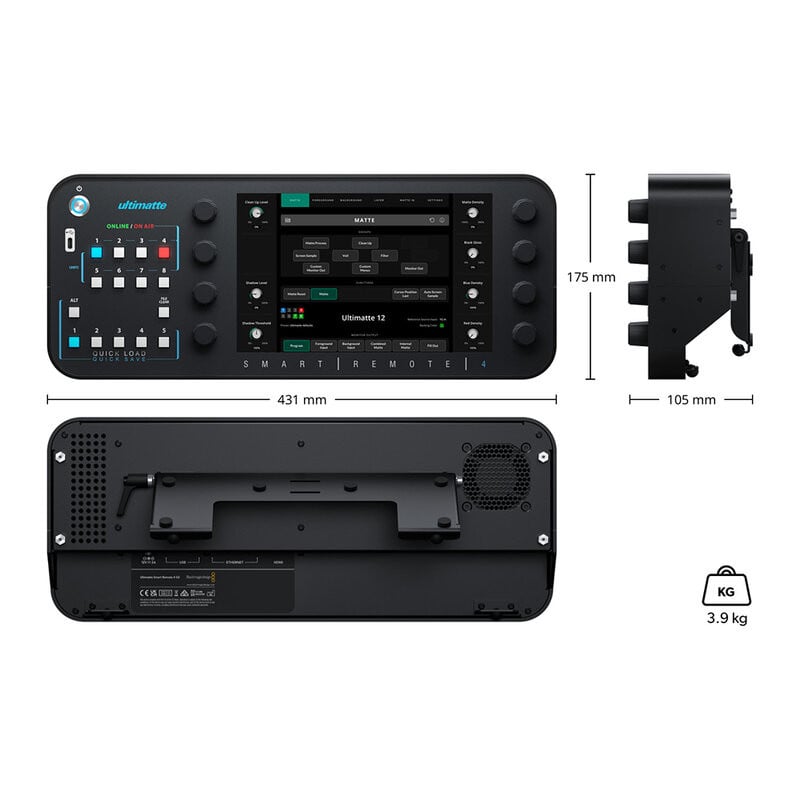

Physical specifications

• Dimensions: 43.1 x 10.5 x 17.5 mm
• Weight: 4.2 kg

What’s in the box

• Ultimatte Smart Remote 4 G2
• Welcome wallet with QR code for software download
