Briteq - BT-NODE 283

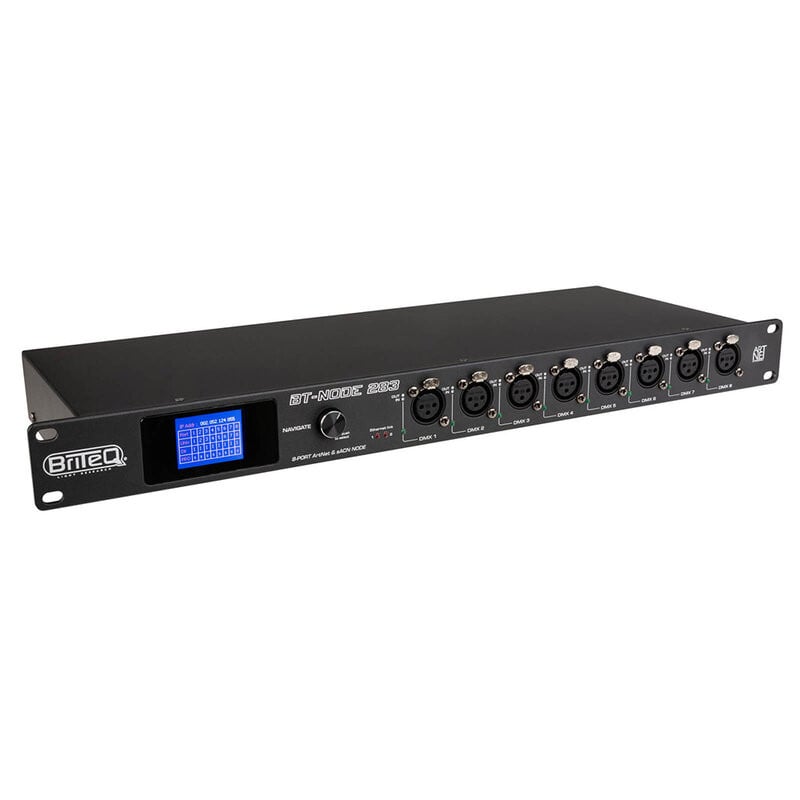

The BT-NODE 283 is an Ethernet node designed to convert ArtNet and sACN protocols into DMX512 signals, enabling multi-universe distribution on complex lighting systems. It features 8 fully configurable DMX ports as inputs or outputs, offering maximum flexibility for advanced architectures: multi-zone distribution, console merging, automatic backup, and RDM integration.

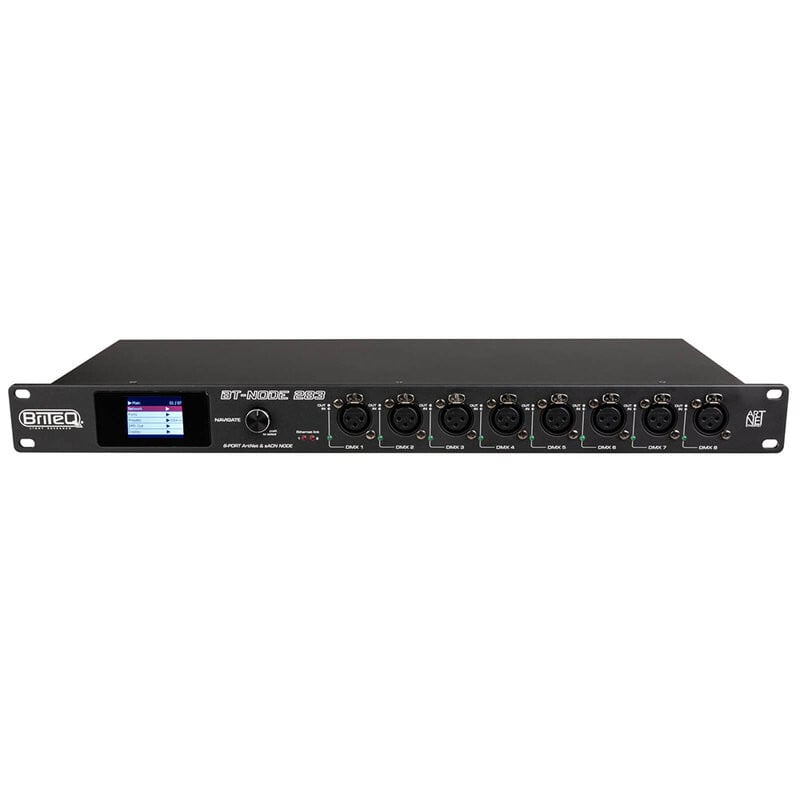

Configuration can be performed via a web interface or directly on the device thanks to the graphic LCD display with rotary encoder. DHCP support, predefined and customizable presets, and IP merging functions allow for intuitive combination of multiple universes.

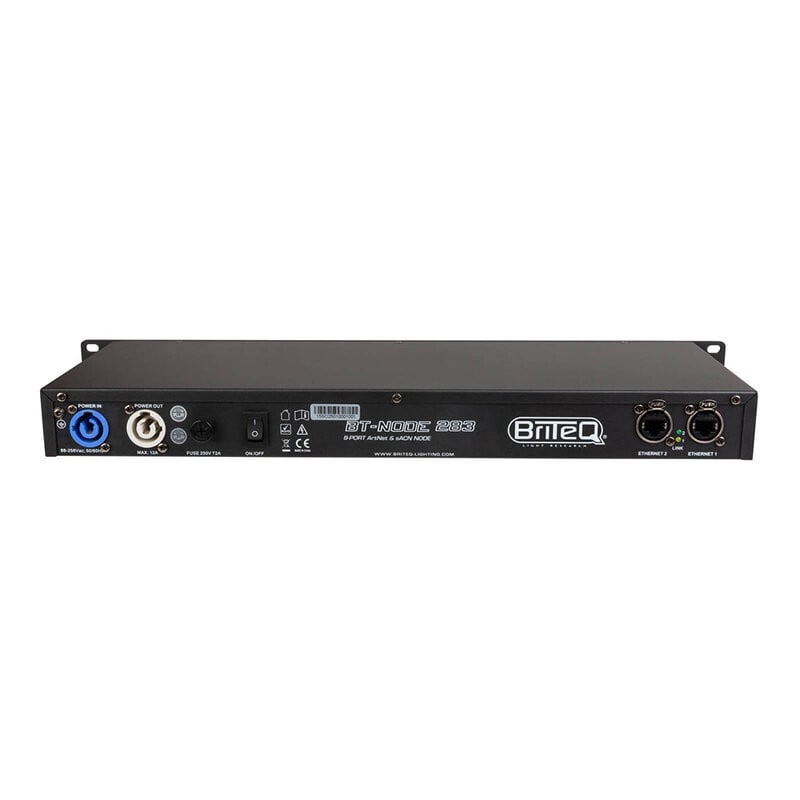

The BT-NODE 283 features a rugged 19″ 1U chassis with 3-pin XLR connectors, a 100 – 240 V_AC power supply with input/output for daisy-chaining, and an automatic Ethernet bypass that maintains network continuity even in the event of a power failure or unit shutdown.

User benefits

• Advanced management of multi-universe DMX systems via ArtNet and sACN
• Eight DMX ports individually configurable as input or output
• Intuitive configuration via web interface or graphic LCD display
• IP merge, LTP/HTP, and RDM support
• Network continuity ensured by automatic Ethernet bypass

Areas of use

• Theaters and performance halls
• Live venues and event centers
• Television and broadcast studios
• Museum installations and exhibition spaces
• Convention centers and conference rooms
• Corporate event facilities and professional rental

Technical characteristics

• Supported protocols: ArtNet, sACN (ACN streaming)
• DMX ports: 8 configurable ports (input or output)
• DMX connectors: XLR 3-pin
• DMX modes: normal input, single output, LTP output, HTP output
• IP merge: yes (DMX universes combination)
• RDM: compatible via ArtNet
• Presets: predefined + customized
• Configuration: web interface + graphic LCD display + rotary encoder
• Network: DHCP support, automatic Ethernet bypass
• Power supply: powerCON 100 – 240 V_AC 50/60 Hz (IN/OUT chaining)
• Format: 19″ 1U rack
