Contestage - PLTL-1x1

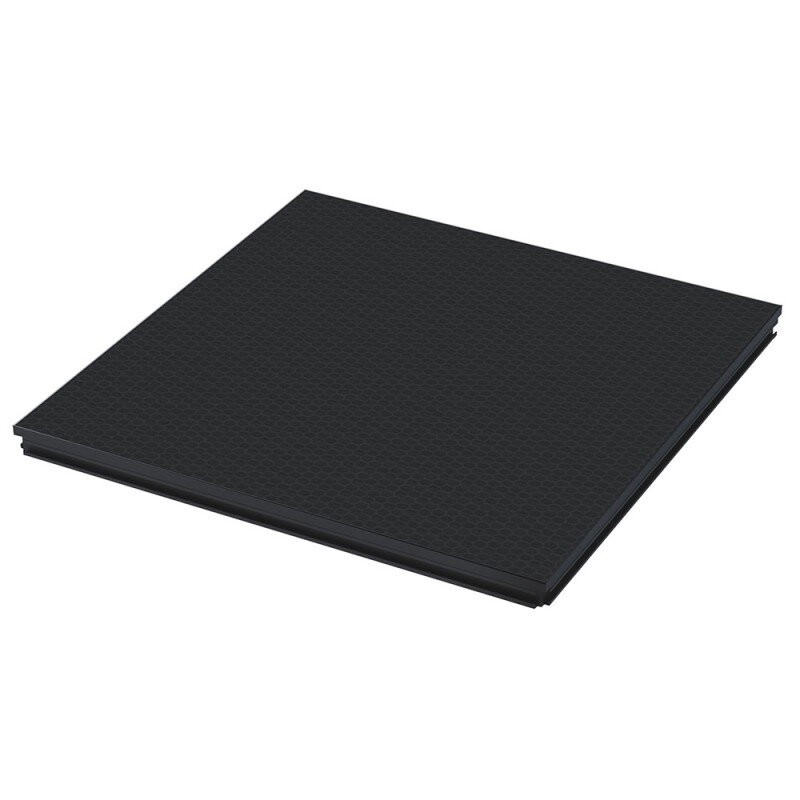

Mobile 1 m x 1 m stage platform 500 kg/m². black color. Delivered without feet. In accordance with the standard NFE85-015. Maximum height of 100 cm is allowed with two stacked risers. A handrail should be instalLED if the height to climb is more than 50 cm. ATTENTION TO THE SOIL CAPACITY. A loose ground can harm the safety of the installation. Please distribute the weights uniformly over the entire surface of the platform. ABOUT HANDRAILS & STAIRS. A handrail must be instalLED as soon as the drop height is more than 50 cm. A stair lower or equal to 120 cm must have at least one handrail. FIRE RESISTANCE. Fire resistance class Bfl-S1. Complies with European standard EN13501-1 + A1: 2010.

Load distribution:

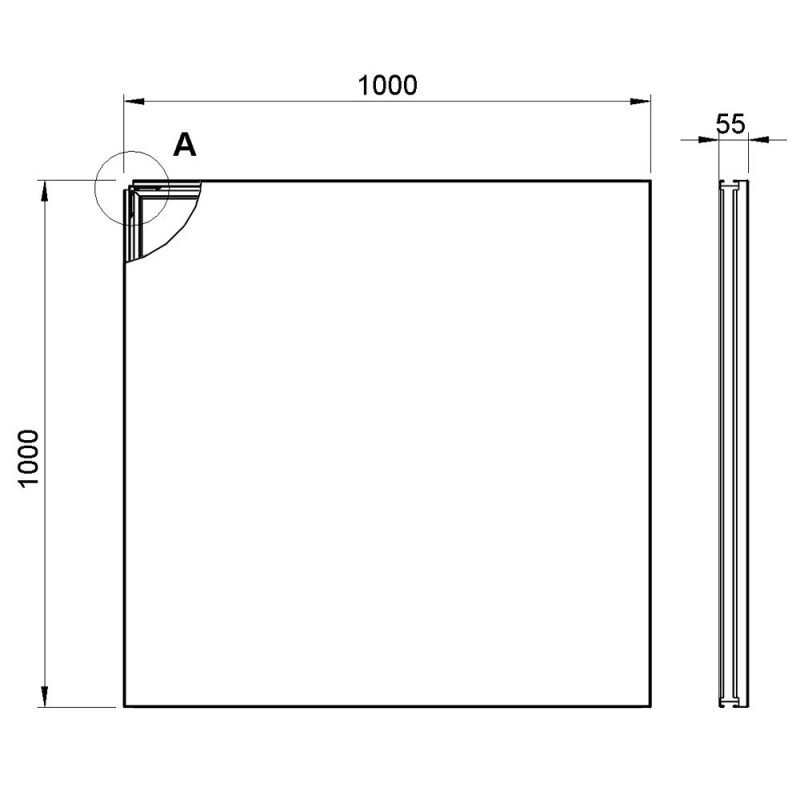

The pointlodad should be applied to a minimum area of 50 x 50 mm. Pointload to be placed as indicatet on drawing. 1 point load total allowed.
