Contestage - PLTS-1x1

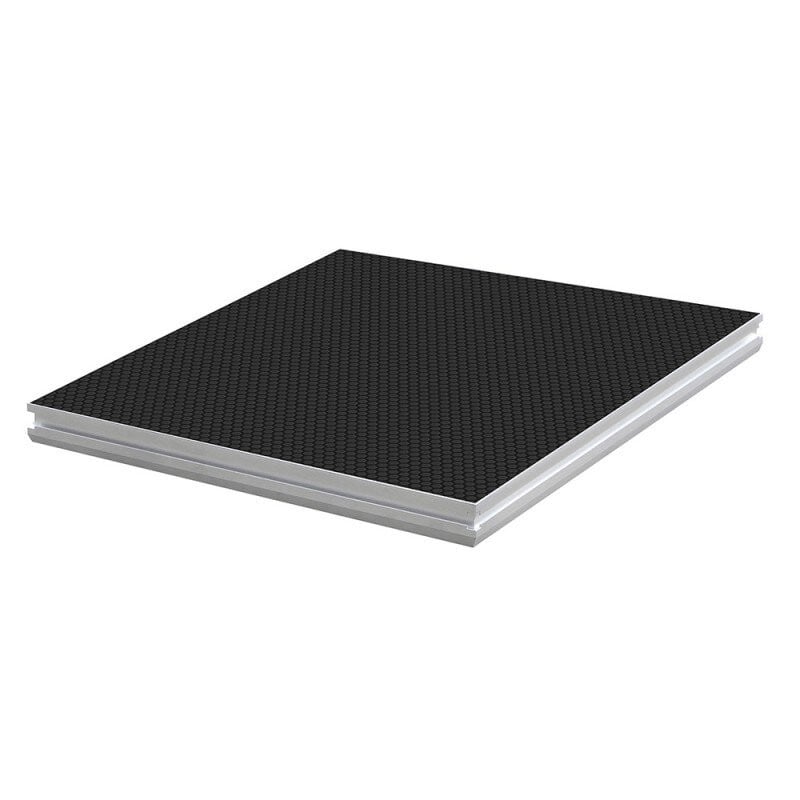

1 m x 1 m antiskip stage platform 750 kg/m² - black color. Delivered without feet. In accordance with the standard NFE85-015. Maximum height of 100 cm is allowed with two stacked risers. A handrail should be instalLED if the height to climb is more than 50 cm. ATTENTION TO THE SOIL CAPACITY. A loose ground can harm the safety of the installation. Please distribute the weights uniformly over the entire surface of the platform. ABOUT HANDRAILS & STAIRS. A handrail must be instalLED as soon as the drop height is more than 50 cm. A stair lower or equal to 120 cm must have at least one handrail. FIRE RESISTANCE. Fire resistance class Bfl-S1. Complies with European standard EN13501-1 + A1: 2010.

Load distribution:

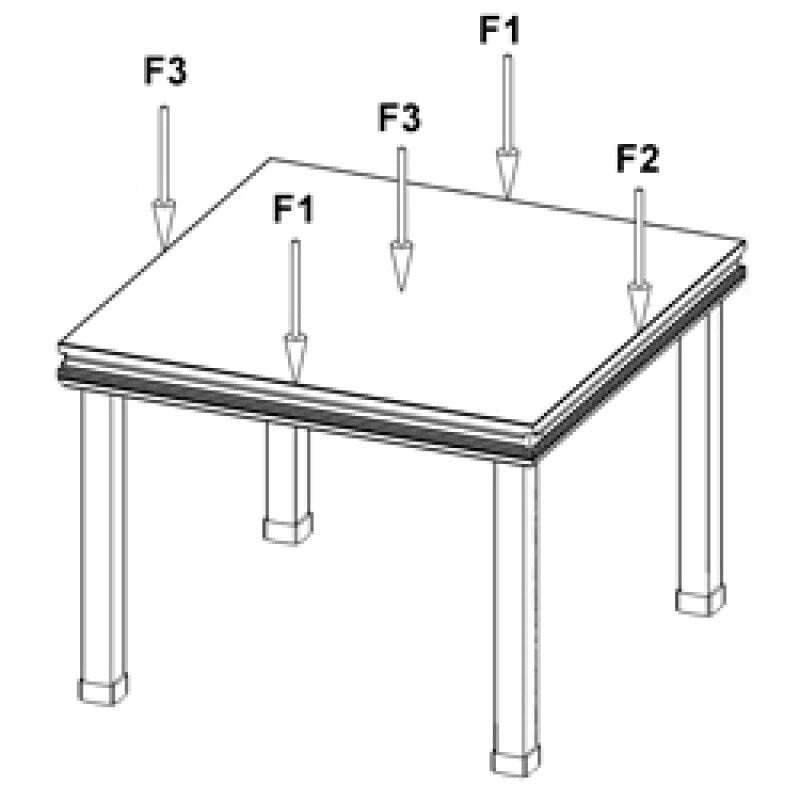

The pointlodad should be applied to a minimum area of 50 x 50 mm. Pointload to be placed as indicatet on drawing. 1 point load total allowed.

Material:

• Frame: aluminium
• Platform: 12 mm plywood
• Size: 1 x 1 m

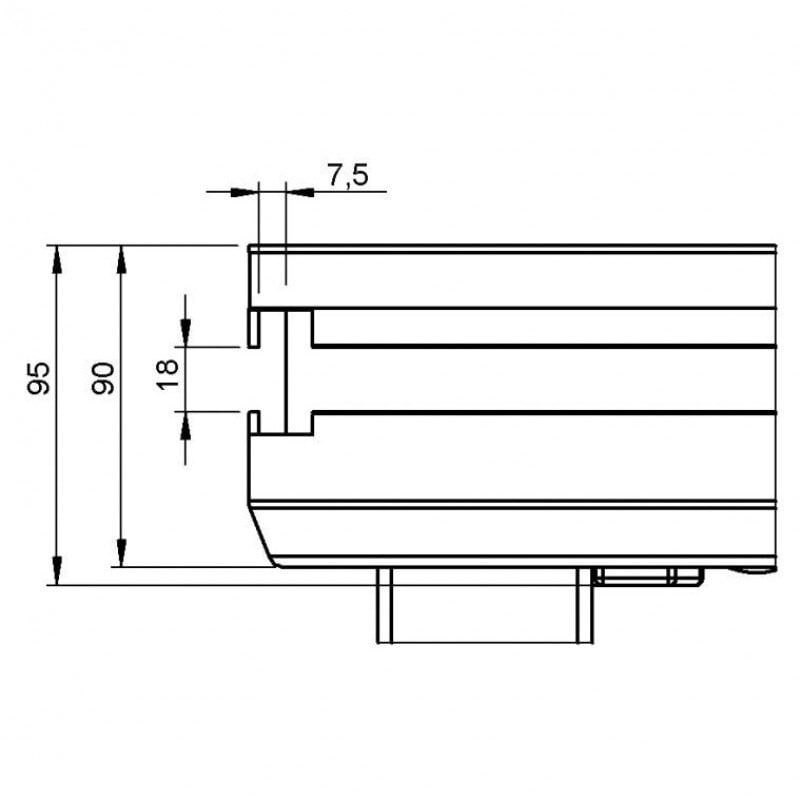

• Thickness: 90 mm
• Load bearing capacity: 750 kg/m²
• Finishing: black
• Weight: 16 kg
