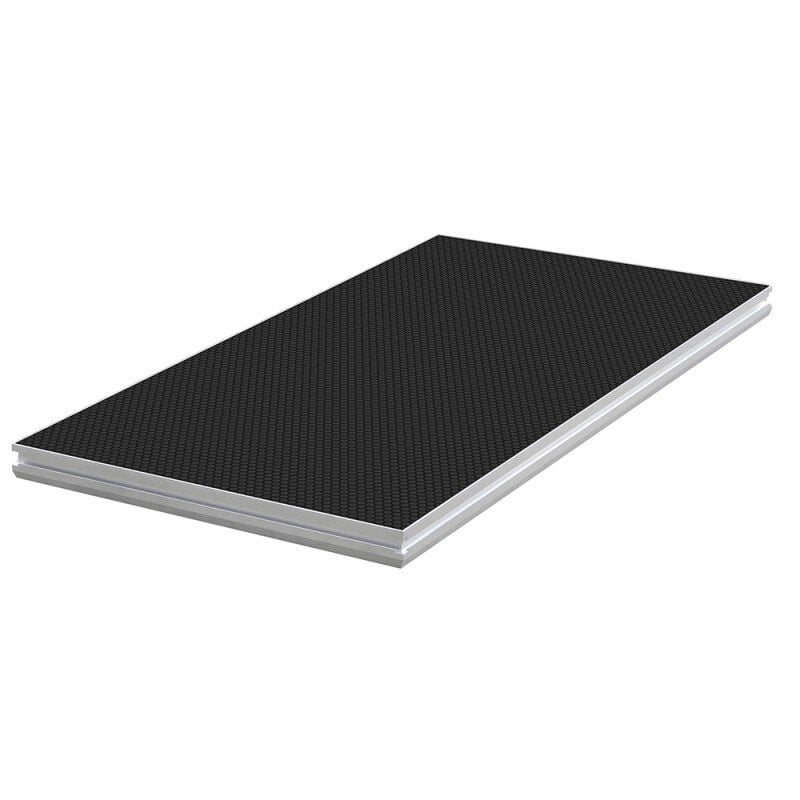

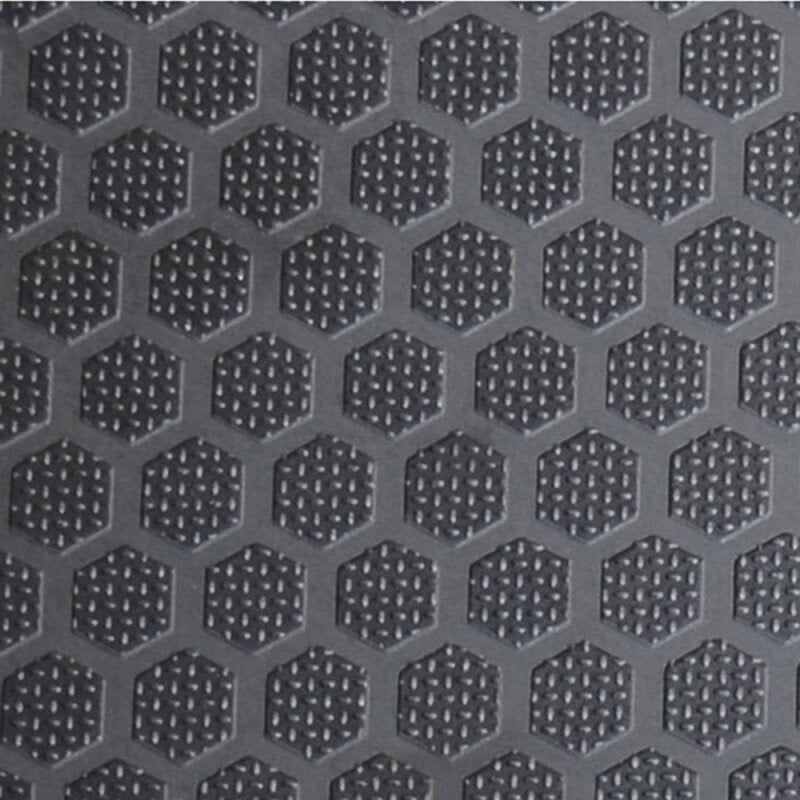

2x1m antiskip stage platform 750 kg/m2 - Black color. Delivered without feet. In accordance with the standard NFE85-015. Maximum height of 100cm is allowed with two stacked risers. A handrail should be instalLED if the height to climb is more than 50cm. ATTENTION TO THE SOIL CAPACITY. A loose ground can harm the safety of the installation. Please distribute the weights uniformly over the entire surface of the platform. ABOUT HANDRAILS & STAIRS. A handrail must be instalLED as soon as the drop height is more than 50cm. A stair lower or equal to 120 cm must have at least one handrail. FIRE RESISTANCE. Fire resistance class Bfl-S1. Complies with European standard EN13501-1 + A1: 2010.

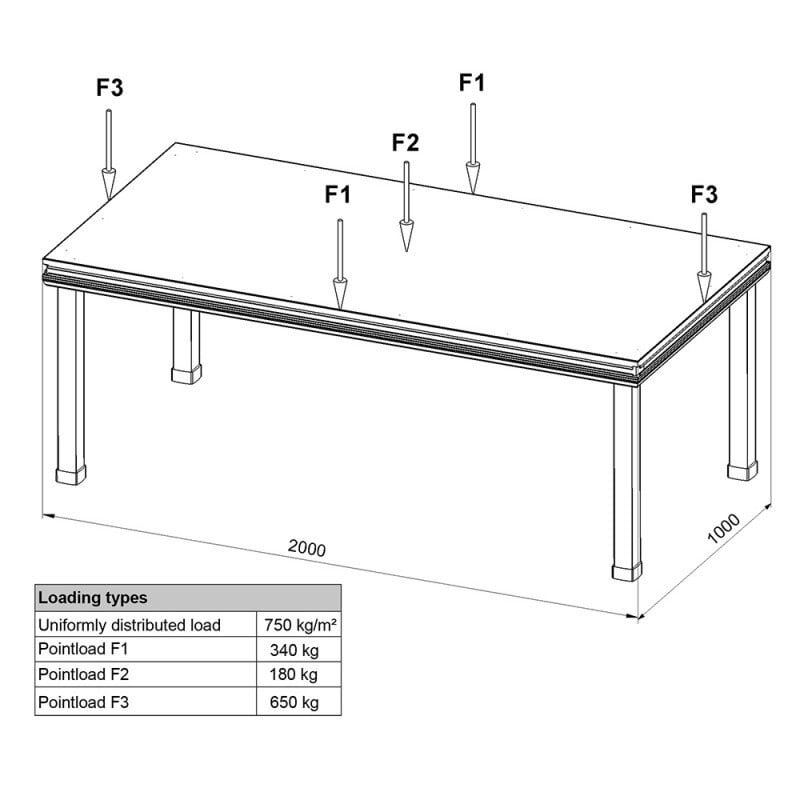

Load distribution

The pointlodad should be applied to a minimum area of 50x50mm. Pointload to be placed as indicatet on drawing. 1 point load total allowed.

Material :

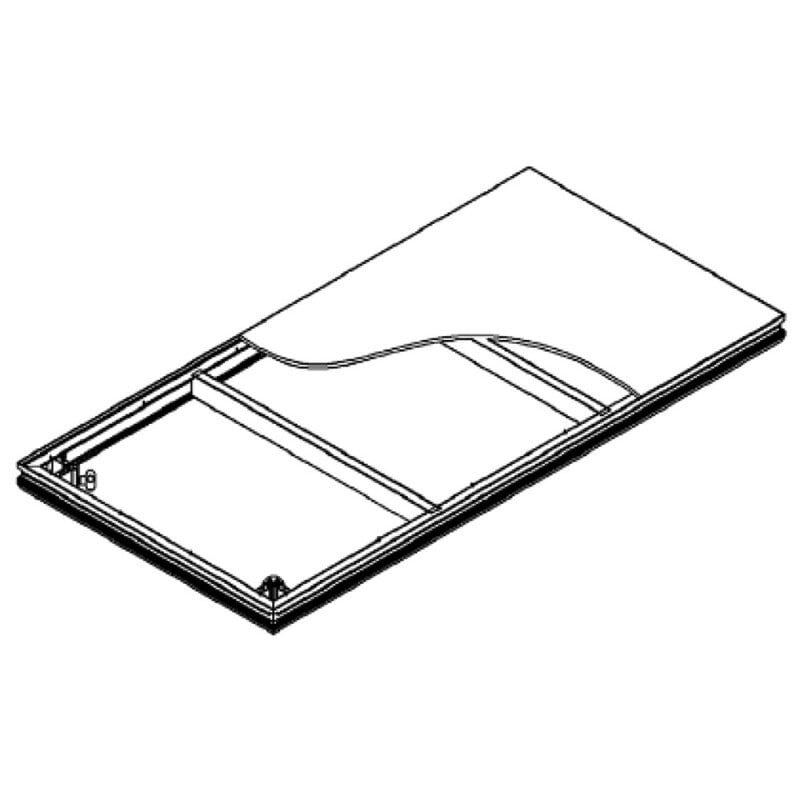

• Frame: Aluminium
• Platform : 12mm plywood

• Size : 2 m x 1 m

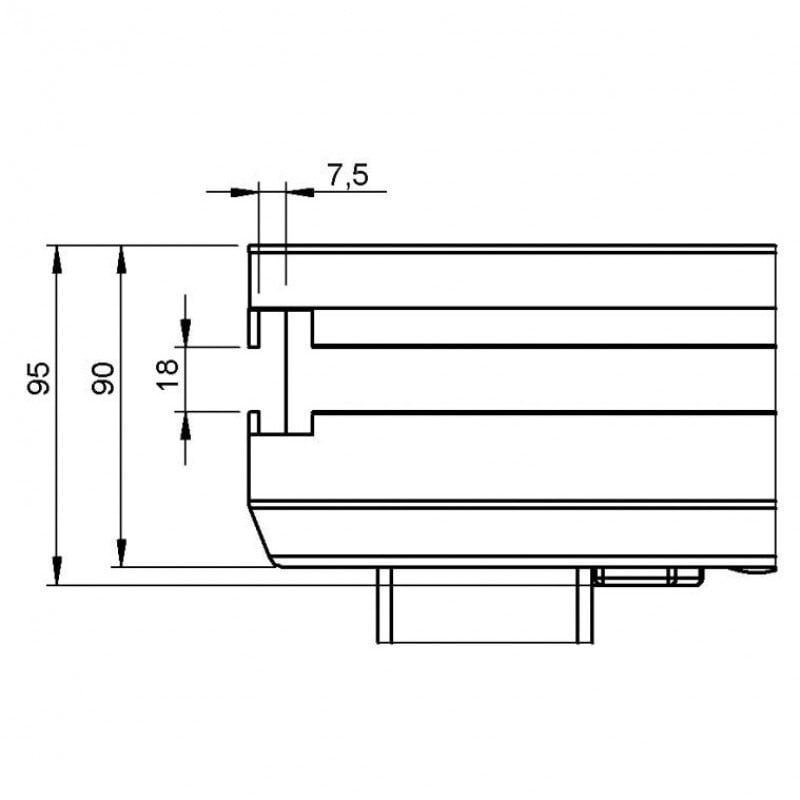

• Thickness : 90 mm
• Load bearing capacity : 750 Kg/m²
• Finishing : Black
• Weight : 32 Kg
