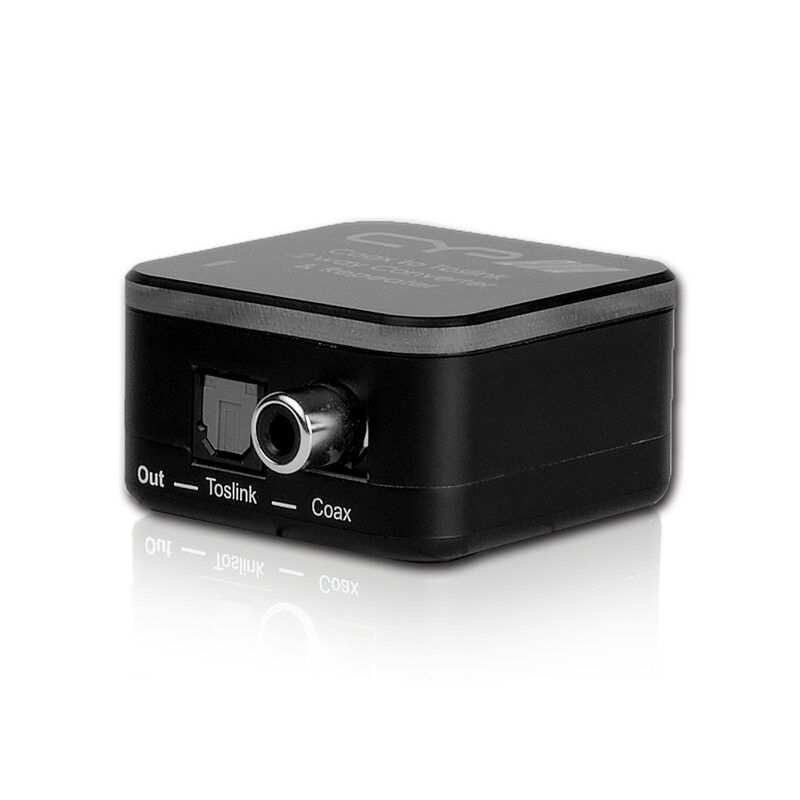

CYP - AU-D2

The AU-D2 is a bidirectional digital audio converter that converts between coaxial and optical signals, with simultaneous distribution to both outputs.

Thanks to its re-clocking function, it ensures signal stability even with longer cables and supports audio formats from PCM 2.0 to Dolby Digital and DTS.

Main features

• Bidirectional coaxial/optical digital audio converter
• Two-way conversion: coaxial to optical or optical to coaxial
• Re-clocking function allows for the use of long cables
• Inputs accept audio signals from 2 channel PCM up to 5.1
• Output signal follows input signal

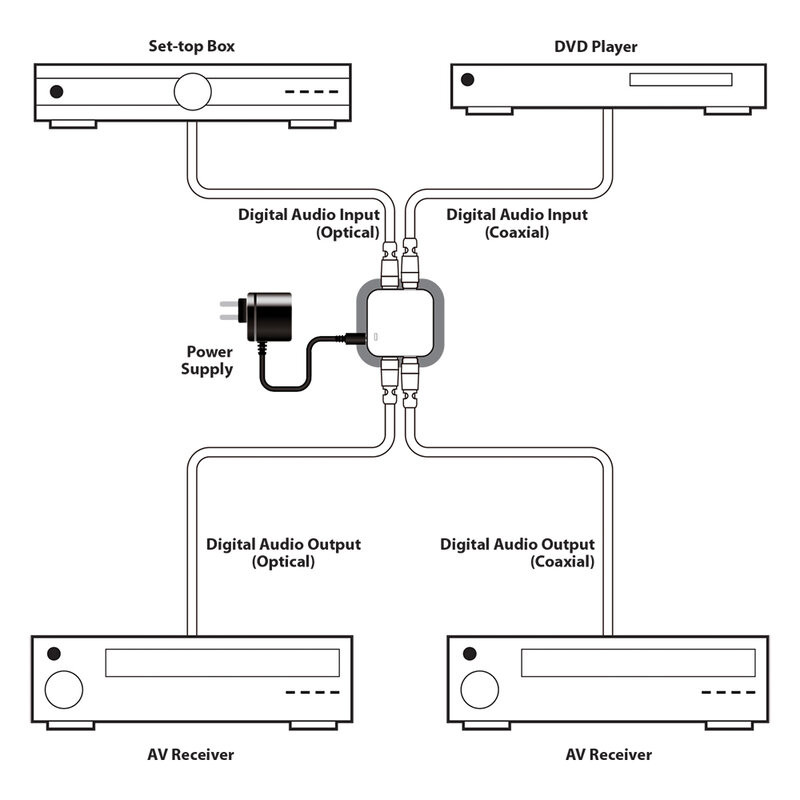

• Selects between input ports and distributes the audio signal to both coaxial and optical output ports simultaneously

User benefits

• Instant conversion between coaxial and optical digital formats
• Simultaneous signal distribution to both outputs
• Greater signal stability thanks to the re-clocking function
• Compatible with PCM 2.0, Dolby Digital, and DTS audio
• Easy installation in any digital AV system

Areas of use

• Home Theater installations
• Meeting rooms and corporate environments with mixed optical/coaxial sources
• AV integration in hotels and hospitality facilities
• Shops and showrooms requiring digital conversion
• Residential AV systems with soundbars, TVs and decoders that are not compatible with each other

Technical characteristics

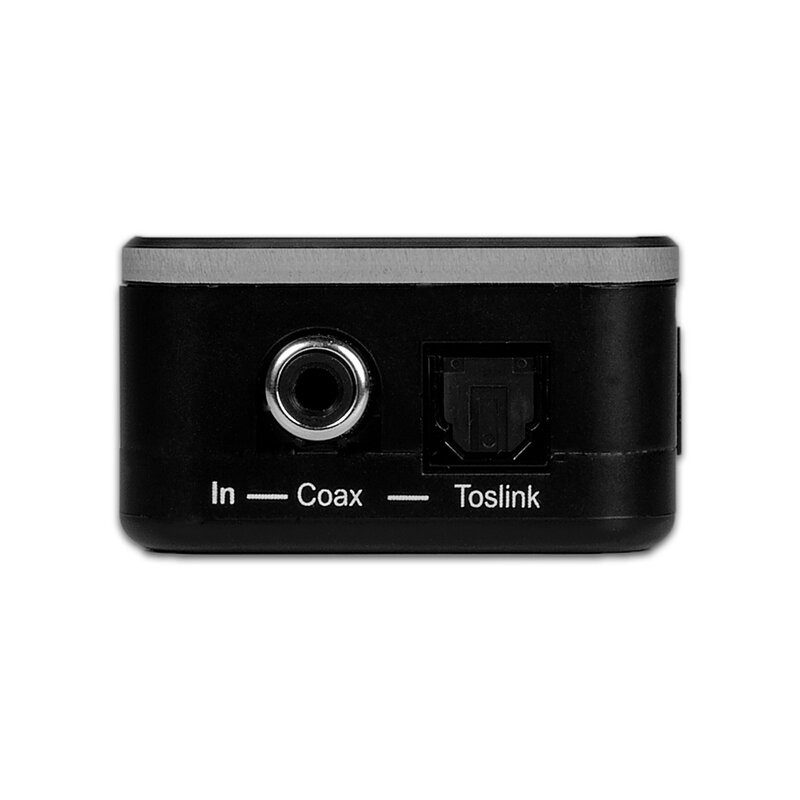

• Inputs:
  • 1 × RCA (1 × coaxial DTS / Dolby Digital / 2 channel LPCM)
  • 1 × Toslink (1 × optical DTS / Dolby Digital / 2 channel LPCM)

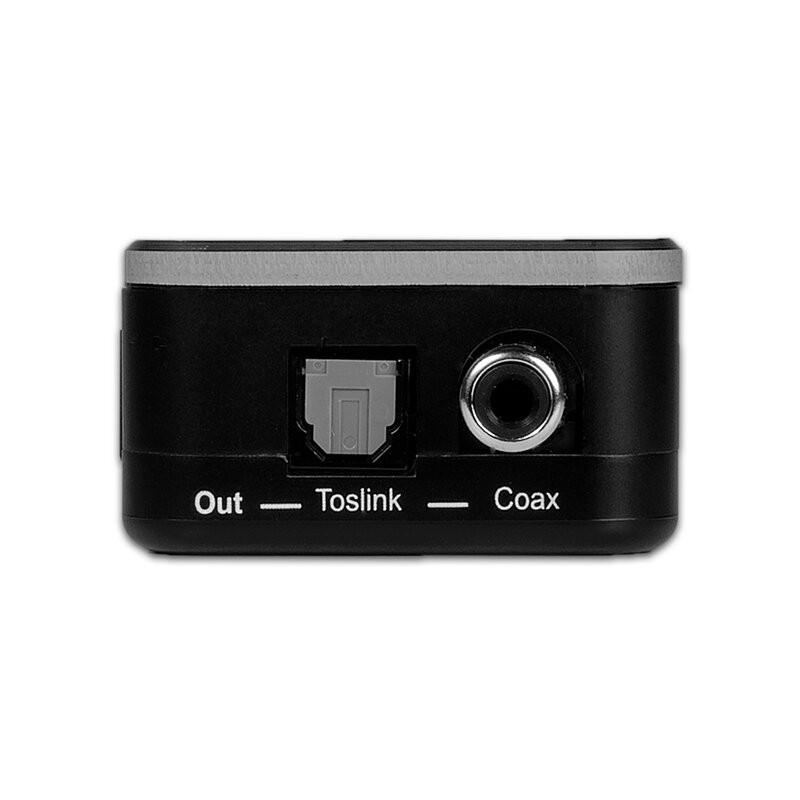

• Outputs:
  • 1 × RCA (1 × coaxial DTS / Dolby Digital / 2 channel LPCM)
  • 1 × Toslink [1 × optical DTS / Dolby Digital / 2 channel LPCM]
• PSU: 5 V_DC 1.2 A
• Dimensions (W × H × D): 58 × 24 × 46 mm
• Weight: 20 g
