CYP - AU-D3-192

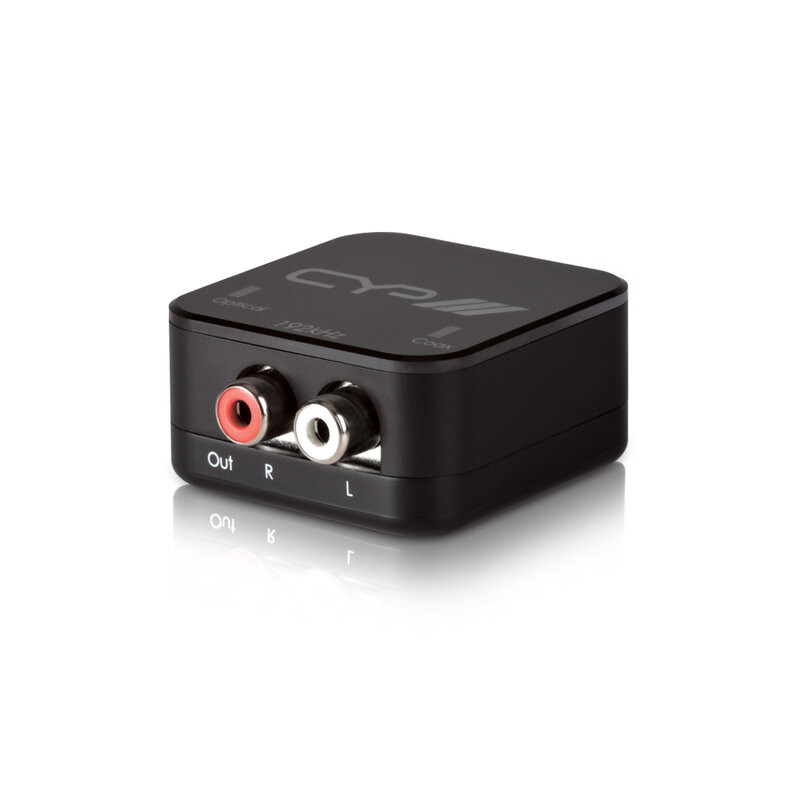

The AU‑D3‑192 is a 24-bit, 192 kHz digital-to-analog (D/A) audio converter that accepts both electrical and optical S/PDIF digital input signals and converts them to analog stereo L/R audio on RCA connectors. It supports uncompressed stereo digital signals and a wide range of sampling rates with 16 or 24-bit resolution, ensuring compatibility and high performance in both home and professional installations.

Main features

• 16- or 24-bit resolution with sampling rates of 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz
• Built-in digital interpolator
• Digital audio input (Coaxial / Toslink) and analog audio output (L/R)
• Accepts uncompressed digital stereo audio signals

User benefits

• Supports sampling rates up to 192 kHz for superior audio quality
• Compatible with a wide range of consumer digital devices, including TVs, set-top boxes, and media players
• Plug & Play, no configuration required
• Very compact dimensions

Areas of use

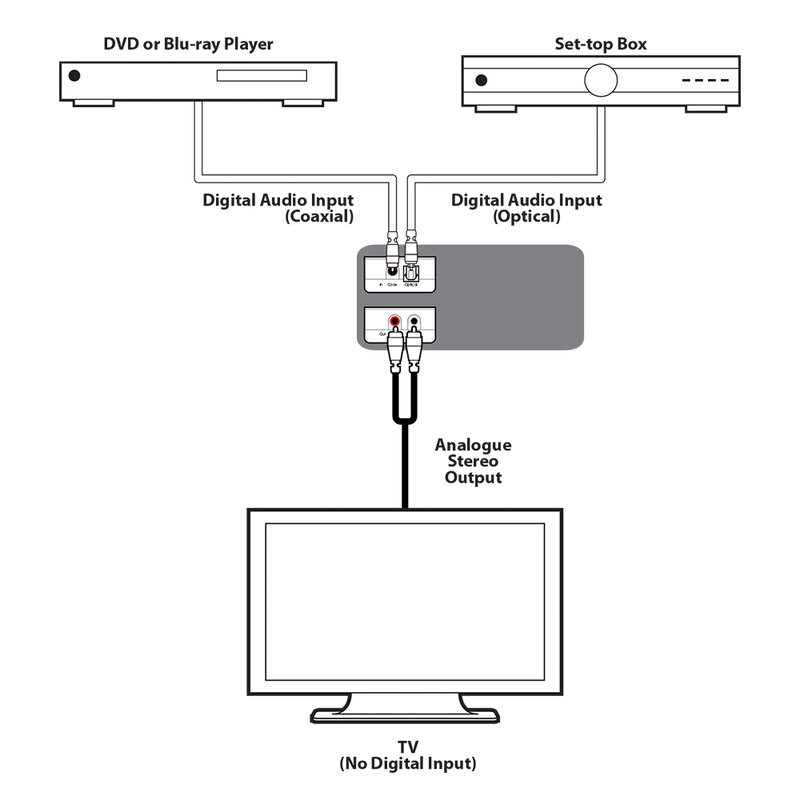

• Audio conversion from TVs, decoders, or media players to analog amplifiers or Hi-Fi systems
• Integration into home or semi-professional AV systems requiring digital-to-analog conversion
• Installations in meeting rooms, multimedia classrooms
• Installations in the hospitality sector

Technical characteristics

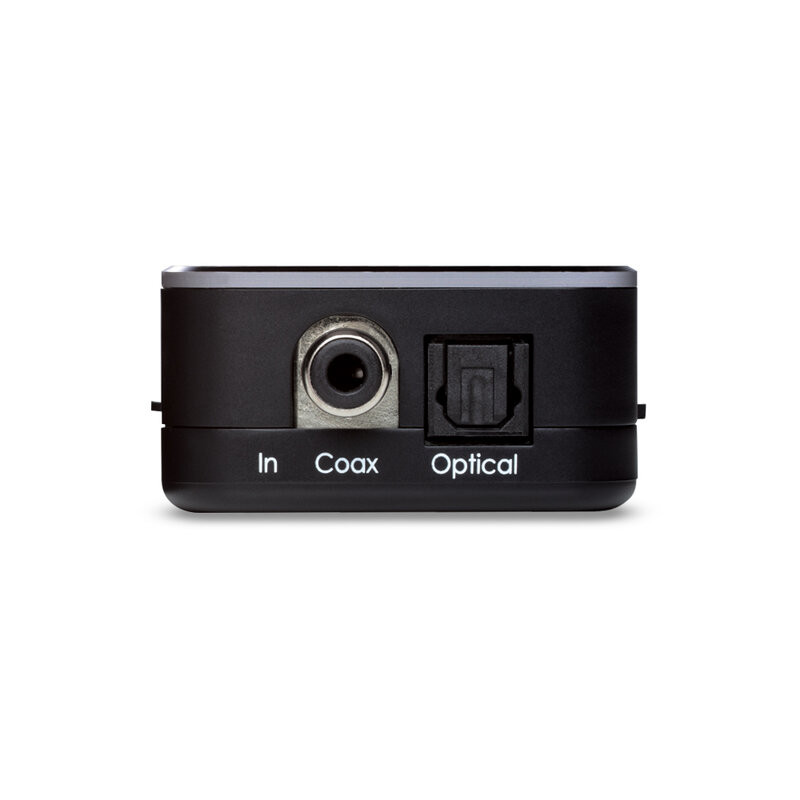

• Input ports: 1 × Toslink (S/PDIF audio), 1 × RCA (S/PDIF audio)

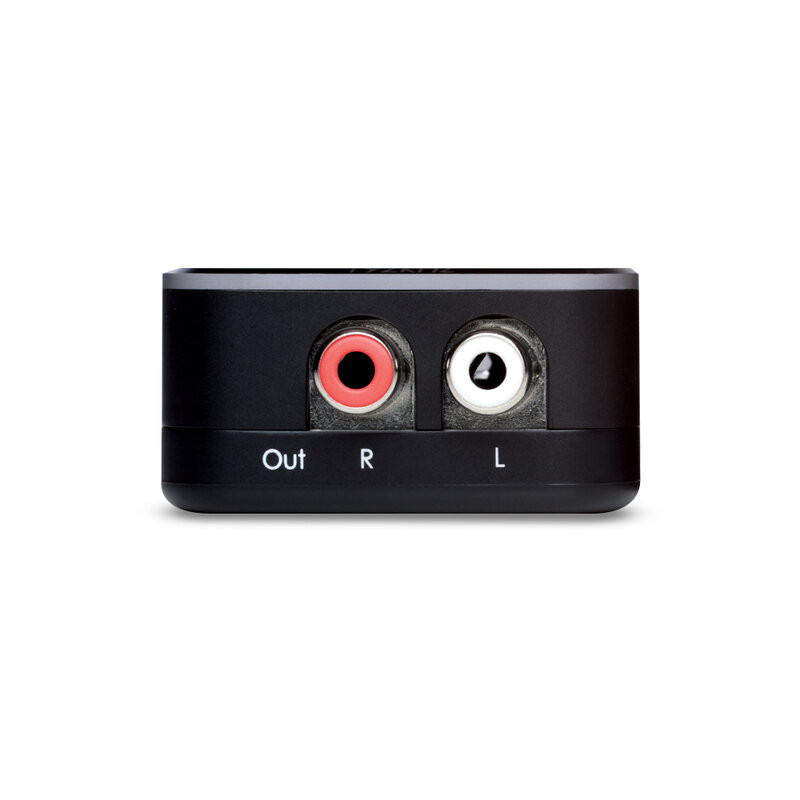

• Output ports: 2 × RCA (stereo audio)
• Power supply: 5 V_DC 1.2 A
• Power consumption: 0.74 W
• Chassis material: plastic
• Chassis colour: black
• Dimensions (case only): 46 × 22.5 × 45.5 mm
• Dimensions (all inclusive): 56 × 22.5 × 46 mm
• Weight: 30 g
