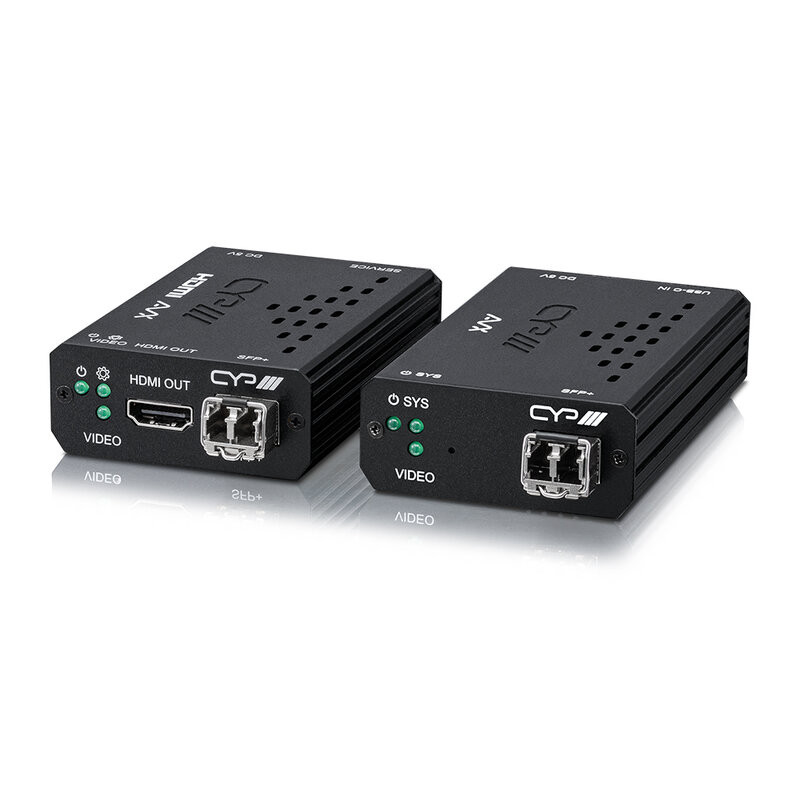

CYP - AVX-105F-KIT

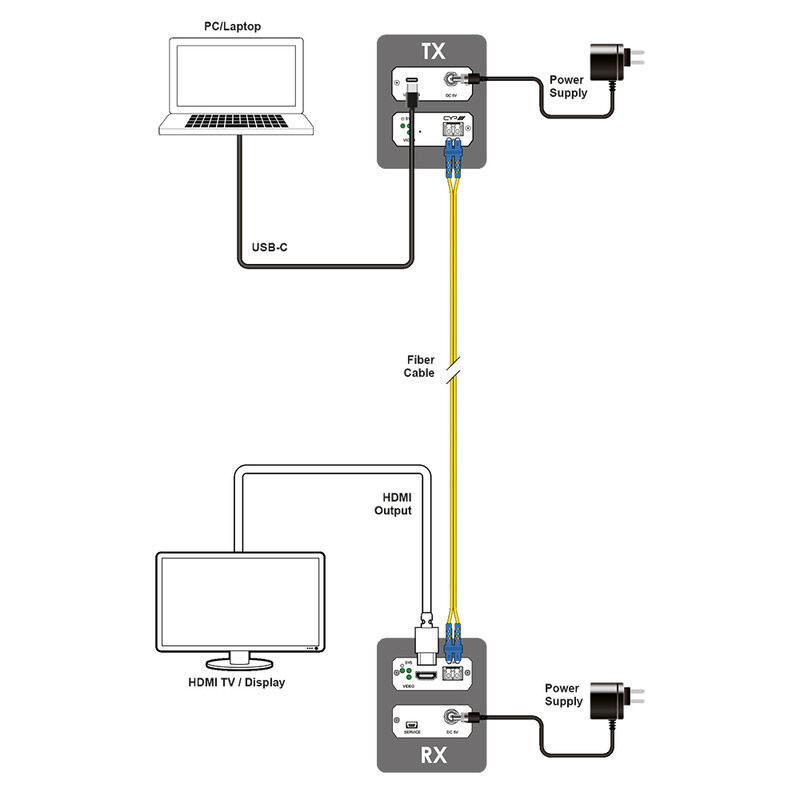

The AVX‑105F‑KIT is a fiber AV extender that transports an AV signal from USB-C (e.g., from a PC) — including video, audio, and data — using low-latency AVX technology.

The transmitter converts the USB-C signal into an AVX stream that travels over fiber via an SFP+ module, while the receiver reconstructs the output signal as HDMI (for sending, for example, to an HDMI TV or display) up to 4K @ 60Hz 4:4:4 with HDR support and HD audio. Ultra-light compression ensures high-quality and stable transmission even over long distances.

Interchangeable SFP+ modules allow extensions of up to 30 km, while the included modules support links up to 300 m with OM3 fiber. The compact size makes the KIT ideal for professional installations, mobile applications, and limited spaces.

Main features

• HDMI 2.0 compatible (via USB-C)
• HDCP 2.2 and HDCP 1.x compliant

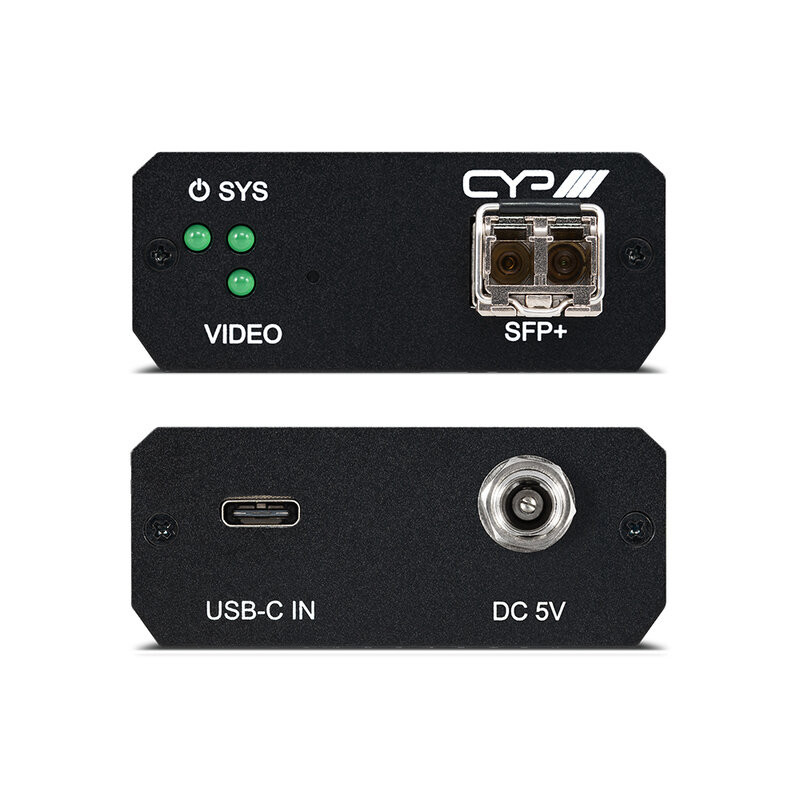

• TX: 1 USB-C input and 1 fiber output (SFP+)

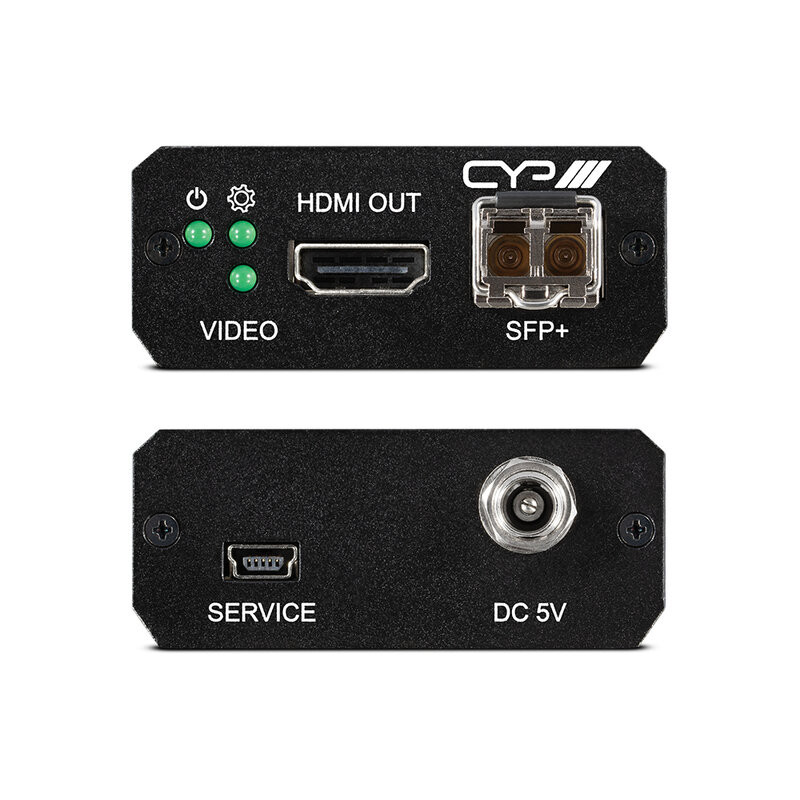

• RX: 1 fiber input (SFP+) and 1 HDMI output
• Ultra-light, lossless compression for most content
• Extension up to 30 km (maximum distance depends on the SFP+ module and fiber type used)
• Supports video up to 4K UHD+ (18 Gbps, 4K @ 50/60 Hz 4:4:4, 8-bit) input and output
• Supports pass-through of 10/12-bit HDR sources
• Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream
• Simple and hassle-free point-to-point connection

User benefits

• High-quality 4K AV extension with minimal latency
• Full compatibility with HDR content and HD audio
• Easy installation thanks to the modules Interchangeable SFP+
• Compact design ideal for small spaces or mobile kits
• Stable and reliable operation over long distances

Areas of use

• Long-distance AV installations
• Conference rooms and meeting rooms with USB-C sources
• Broadcast and video production applications
• Live events and temporary installations
• Integration into racks or AV travel kits

Technical characteristics

• Inputs:
  • 1 × USB-C [1 × TX: USB-C / Thunderbolt]
  • 1 × LC-LC duplex multi-mode 62.5 - 125 fibre [1 × RX: SFP+ HDMI & propriety data]
• Outputs:
  • 1 × LC-LC duplex multi-mode 62.5 - 125 fibre [1 × TX: SFP+ HDMI & propriety data]
  • 1 × HDMI [1 × RX: HDMI uncompressed AV and data]
• PSU: 5 V 2.6 A
• Dimensions (W × H × D): 6 × 2.5 × 9.5 cm
• Net Weight: 340 g
