SKU: EL-41S-4K22

EAN: 5060067154516

CYP - EL-41S-4K22

Name: EL-41S-4K22
Brand: CYP
SKU: EL-41S-4K22
Price: 219.5 EUR
Availability: OutOfStock

4 × 1 HDMI switcher, HDMI 2.0 and HDCP 2.2 compliant, 4K 60 4:4:4 support, HDR and HD audio pass‑through, IR and RS‑232 control

(0)

305.00 €

- 28%

219.50 €

Pay in 4 interest-free payments of 54.88 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - PUV-44XPL-AVLC-KIT

2,029.50 €

(0)

4 × 4 HDMI/HDBaseT matrix with AVLC, HDR support, audio de‑embedding, PoH, scaling, full IP/RS‑232/IR control, 4 × PUV‑1710LRX‑AVLC receivers included

Blackmagic Design - Blackmagic Videohub 40x40 12G

3,579.00 €

(0)

Largest 40 x 40 zero latency 12G-SDI video router

CYP - EL-8400VA

2,579.50 €

(0)

Advanced multi-format 6 x 2 presentation seamless matrix with HDBaseT2 I/O, USB, audio, MIC & built in amplifier

CYP - EL-8300VA

1,049.50 €

(0)

Advanced 8 × 2 multi‑format presentation switch with 4K @ 60 4:4:4 support, HDMI and HDBaseT outputs, integrated scaler, audio DSP with MIC mixing, 2 × 20 W amplifier and flexible control options

CYP - OR-32USBC-4K22

559.00 €

(0)

3 × 2 full 4K matrix, HDMI and USB‑C inputs, USB 3.0 hub, 4K @ 60 4:4:4 support, HDR formats, auto‑switching, flexible control options

Product Details

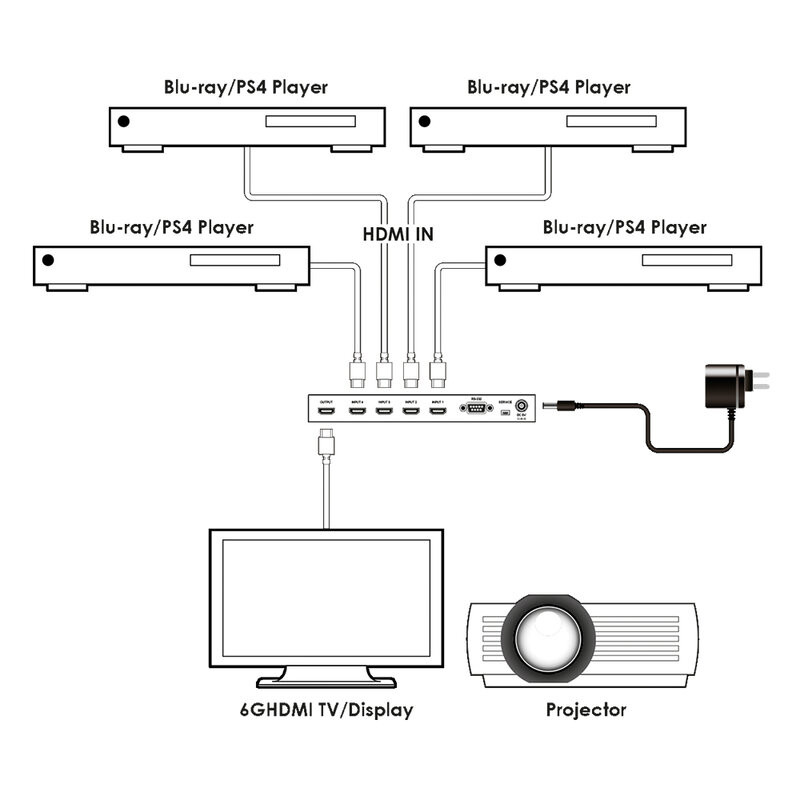

The EL‑41S‑4K22 is a 4×1 HDMI switcher designed to select one of four HDMI input sources and send audio and video to a single HDMI display.

It fully supports 4K resolutions, complies with HDMI 2.0 and HDCP 2.2 standards, and ensures compatibility with the latest UHD sources and displays. It includes advanced features such as HDR support, Deep Color, HD audio, auto-switching to the last active input, and IR or RS‑232 remote control.

Main features

4 HDMI inputs and 1 HDMI output
HDMI 2.0, HDCP 2.2, and DVI compatible
Supports HDTV resolutions up to 4K2K (3840 × 2160 @ 24/25/30/50/60 and 4096 × 2160 @ 24/25/30/50/60 Hz) including HDR
Pass-through for HD audio formats PCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby Digital Plus, Dolby
TrueHD, Dolby Atmos, and DTS-HD Master Audio
Control via IR remote control and RS-232
Auto-switching to send the signal from the last active HDMI input to the output port

User benefits

Full compatibility with UHD and HDR signals
Flexible control via IR or RS-232
Automatic management of the last active input
HD audio support for home theater or corporate installations

Areas of use

Meeting rooms and conference rooms
AV installations
UHD residential integrations
Multi-format presentation systems
Commercial applications with multiple HDMI sources

Technical characteristics

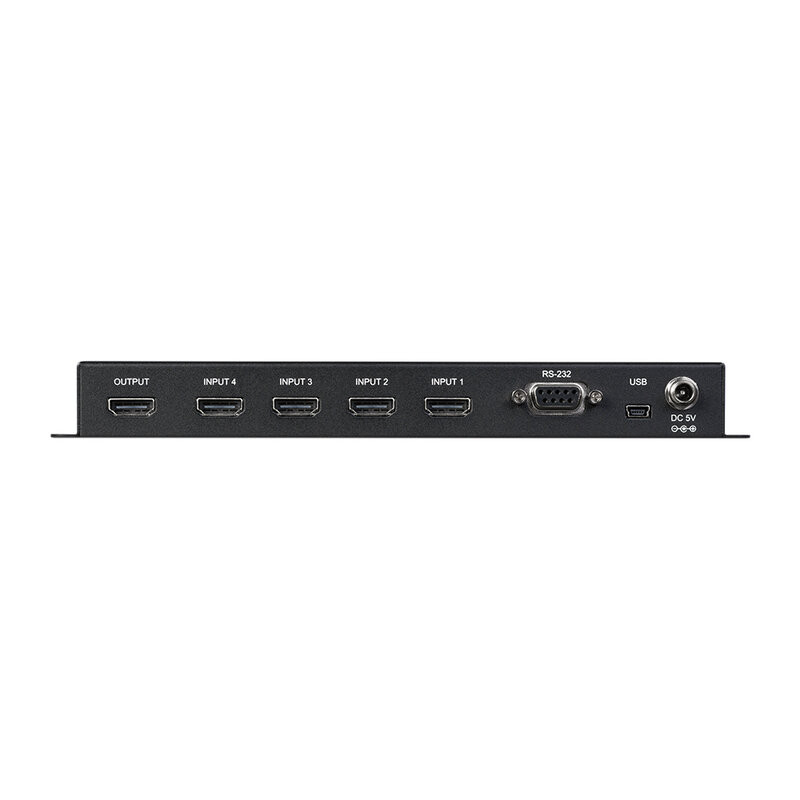

Inputs:
- 4 × HDMI (uncompressed AV and data)
- 1 × 3.5 mm stereo mini‑jack (infra red receiver)
- 1 × 9-pin dsub (RS‑232 data)
- 1 × USB type a (service port propriety data)
Outputs:
- 1 × HDMI (uncompressed AV and data)
PSU: 5 V_DC 2.6 A
Dimensions (W × H × D): 23.15 × 2.5 × 10.8 cm
Net weight: 620 g
