SKU: OR-44-4K22

EAN: 5060067154561

CYP - OR-44-4K22

Name: OR-44-4K22
Brand: CYP
SKU: OR-44-4K22
Price: 1045.5 EUR
Availability: InStock

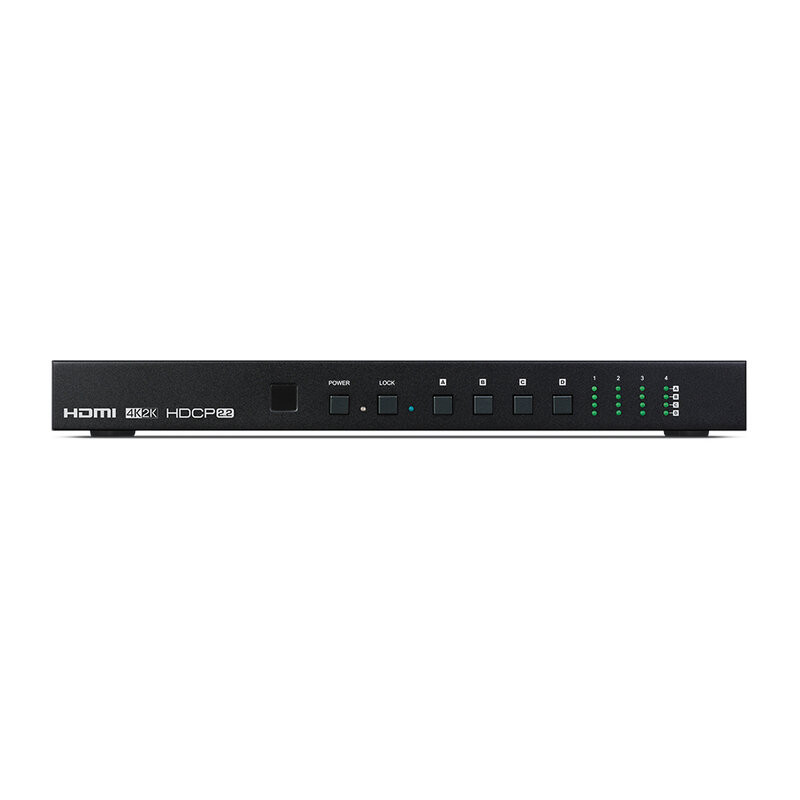

4 x 4 HDMI matrix switcher supporting full 4K 60 4:4:4, HDR and HDCP 2.2, flexible control via IR, RS‑232, Telnet and WebGUI

(0)

1,045.50 €

Pay in 4 interest-free payments of 261.38 € with Discover More

1 items available in our Italian warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

1,045.50 €

Condition: New

Prime

fast delivery is available for this product.

This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - OR-42CD-4K22

358.00 €

(0)

4 × 2 HDMI full 4K matrix with HDR support, audio de‑embedding, EDID management, auto‑switching and IR/RS‑232 control

CYP - PUV-1082-PRO

8,182.00 €

(0)

10 × 10 HDMI/HDBaseT matrix with AVLC, HDR, audio matrix, OAR, PoH, LAN, independent scaling, 4K 18 Gbps support

CYP - PUV-44XPL-AVLC-KIT

3,314.50 €

(0)

4 × 4 HDMI/HDBaseT matrix with AVLC, HDR support, audio de‑embedding, PoH, scaling, full IP/RS‑232/IR control, 4 × PUV‑1710LRX‑AVLC receivers included

RGBlink - FLEX 16S

1,039.50 €

(0)

16x16 Matrix & Videowall processor incl. 4 EXT4F-IM and 4 EXT4F-OS

Blackmagic Design - Blackmagic Videohub Mini 6x2 12G

695.00 €

(0)

Compact SDI video router, 6 x 12G-SDI inputs and 2 outputs, clean switch technology, front-panel controls, emergency input for quick connectivity

Product Details

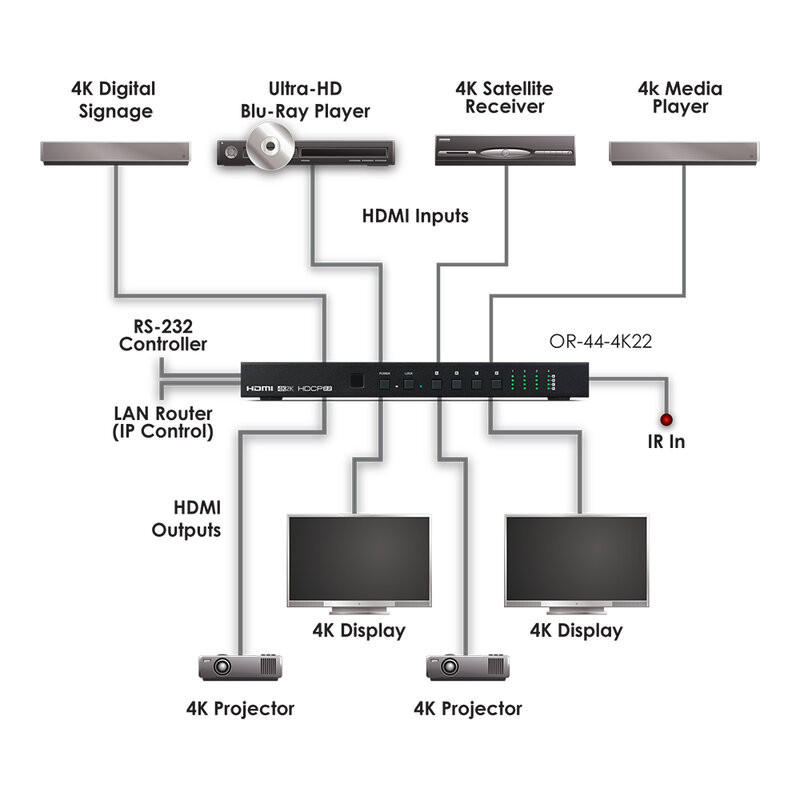

This 4 x 4 HDMI matrix switcher is designed to route four HDMI sources to four HDMI displays, ensuring full compatibility with the latest 4K UHD 60Hz 4:4:4 content, HDR, and high-definition audio. Compliant with HDMI 2.0 and HDCP 2.2 standards, it ensures maximum interoperability with 4K players, decoders, consoles, and professional monitors.

It supports all the advanced features of the HDMI 2.0 standard, including Deep Color, HDR, and audio formats such as LPCM 7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio. Management is extremely flexible: the matrix can be controlled via front buttons, IR remote control, RS-232, Telnet, or WebGUI, allowing for easy integration into professional AV systems.

Main features

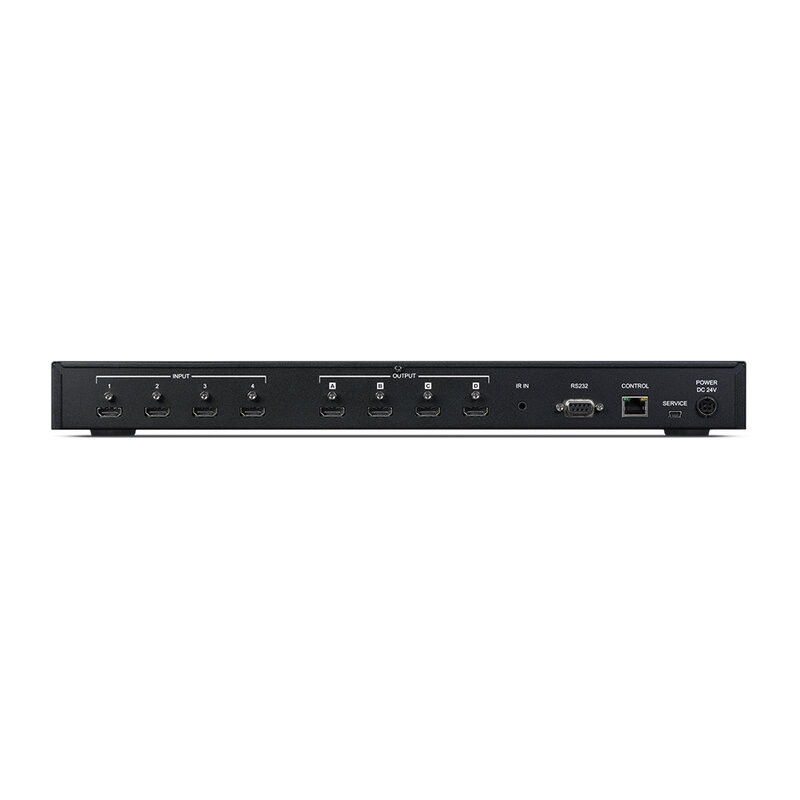

Inputs: 4 x HDMI, 1 x IR (3.5 mm), 1 x RS-232 (DB9), 1 x RJ45 (IP control)
Outputs: 4 x HDMI
HDMI 2.0 and HDCP 2.2 compliant
Routes four HDMI sources to four HDMI displays
Full support for 4K UHD 60 Hz (4:4:4)
HDR (High Dynamic Range) and Deep Color
HD audio format pass-through: LPCM 2 / 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos,
DTSHD Master Audio
Control via front buttons, IR, RS-232, Telnet, and WebGUI
24 V power supply included

User benefits

4K 60 Hz 4:4:4 video quality
Easy and instant management of multiple 4K sources
Full compatibility with the latest high-definition video and audio formats
Flexible control via Web GUI, Telnet, RS-232, or IR remote control

Areas of use

Boardrooms and meeting rooms with simultaneous management of multiple sources and displays
Corporate environments
Digital signage with UHD distribution across multiple screens
Retail, hospitality, and exhibition spaces
Classrooms and training centers

Technical characteristics

Inputs

4 x HDMI (uncompressed AV and data)
1 x 3.5 mm stereo mini‑jack (IR, Infrared Receiver)
1 x 9‑pin D‑sub (RS‑232 data)
1 x RJ45 (IP control)

Outputs

4 x HDMI (uncompressed AV and data)

Power

Power supply: 24 V / 2.7 A

Dimensions & weight

Dimensions (W x H x D): 43.6 x 4.4 x 16 cm
Weight: 2.06 kg

More.. Show less

EN Instruction manual (4.83MB)
