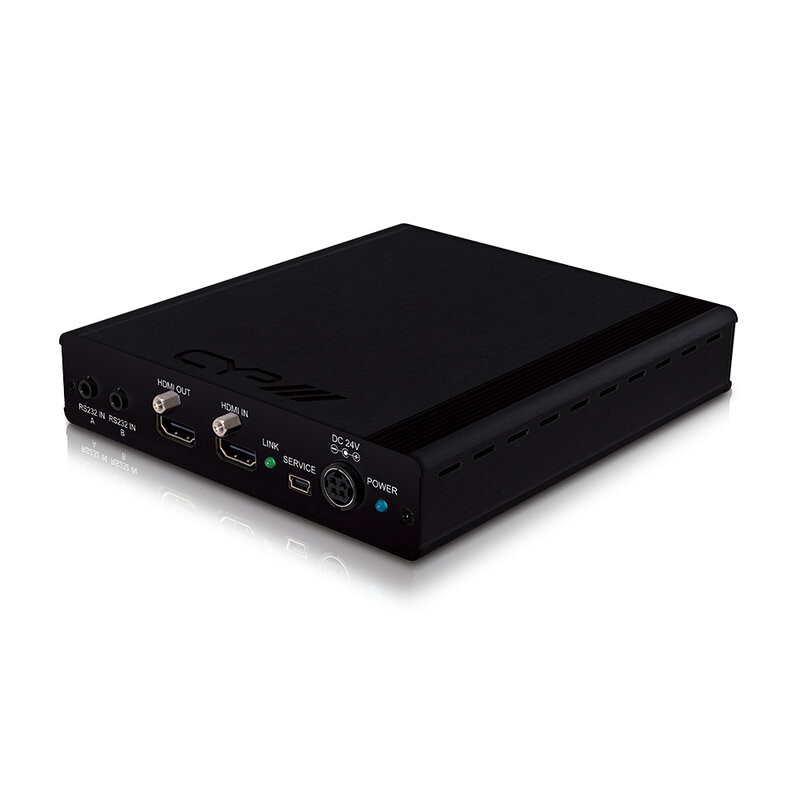

CYP - PU-1H2HBTE

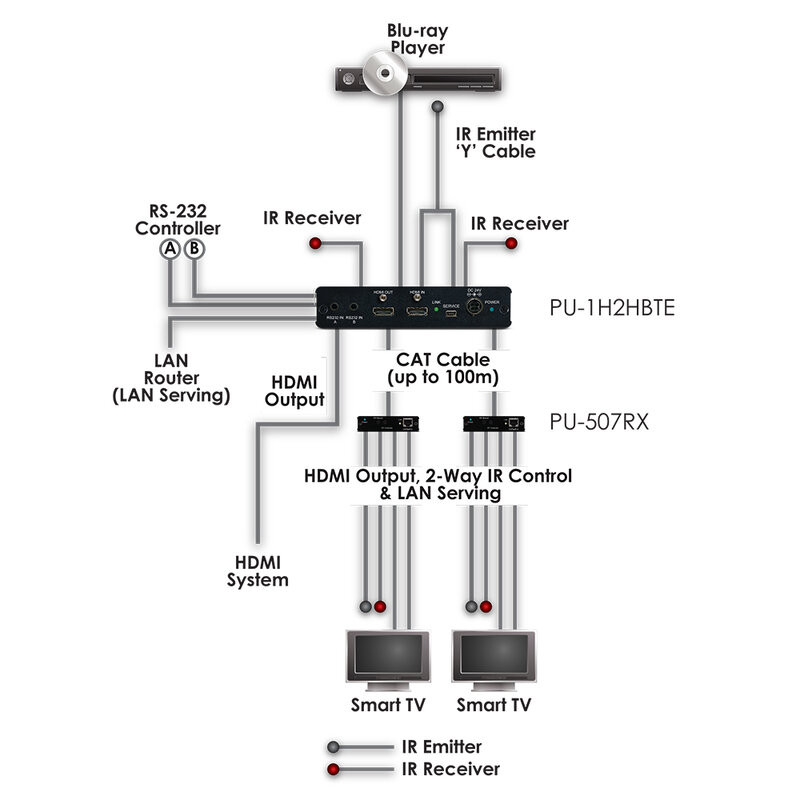

The PU‑1H2HBTE is a splitter that allows you to distribute a single HDMI signal to 2 HDBaseT outputs with PoC, LAN, and IR, as well as an additional local HDMI output.

It supports video signals up to 4K UHD, audio up to 7.1 channels and IR transmission, ensuring reliable, uncompressed AV distribution over a single Cat.5e/6/7 cable up to 100 m. We recommend using the PU‑507RX receivers to take full advantage of this device's HDBaseT capabilities.

It is ideal for AV installations requiring simultaneous distribution of a single source to multiple displays, with the option of cascading up to 5 levels.

Main features

• Supports all HDMI v1.4 resolutions, including 4K
• Compatible with HDMI, HDCP, and DVI
• Supports HDMI/LAN/PoC (Power over Cable)/IR
• Supports resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDID
• Supports uncompressed video/audio up to 10.2 Gbps
• Supports HDCP repeating and CEC
• Additional HDMI bypass output for greater flexibility
• Supports distances 1080p up to 100 m via Cat. 5e/6
• Audio up to 7.1 CH and Dolby TrueHD, DTS-HD
• Supports 3D signals
• 4K/2K and 4K UHD – Cat. 5e/6 = 70 m & Cat. 6a/7 = 100 m

User benefits

• Reduction in cabling thanks to HDBaseT transmission over a single Cat. 5 cable
• Receiver power supply via PoC without additional power supplies
• Flexibility thanks to local HDMI output and cascading capability up to 5 levels
• Compatible with 4K UHD signals and multi-channel audio
• Stable distribution up to 100 m with full HDBaseT

Areas of use

• Retail (showrooms, shops, etc.)
• Digital Signage
• Corporate installations
• Museums, exhibition spaces, and multimedia paths
• Advanced residential systems

Technical characteristics

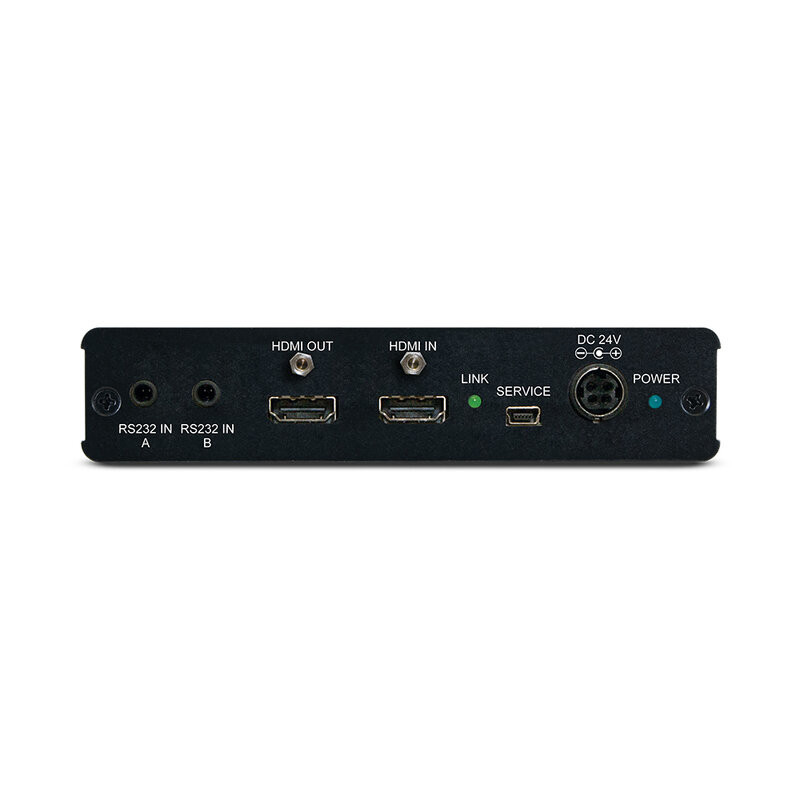

• Inputs:

  • 1 × HDMI (uncompressed AV and data)
  • 2 × 3.5 mm stereo mini-jack (RS-232)
  • 2 × 3.5 mm stereo mini-jack (infrared receiver)

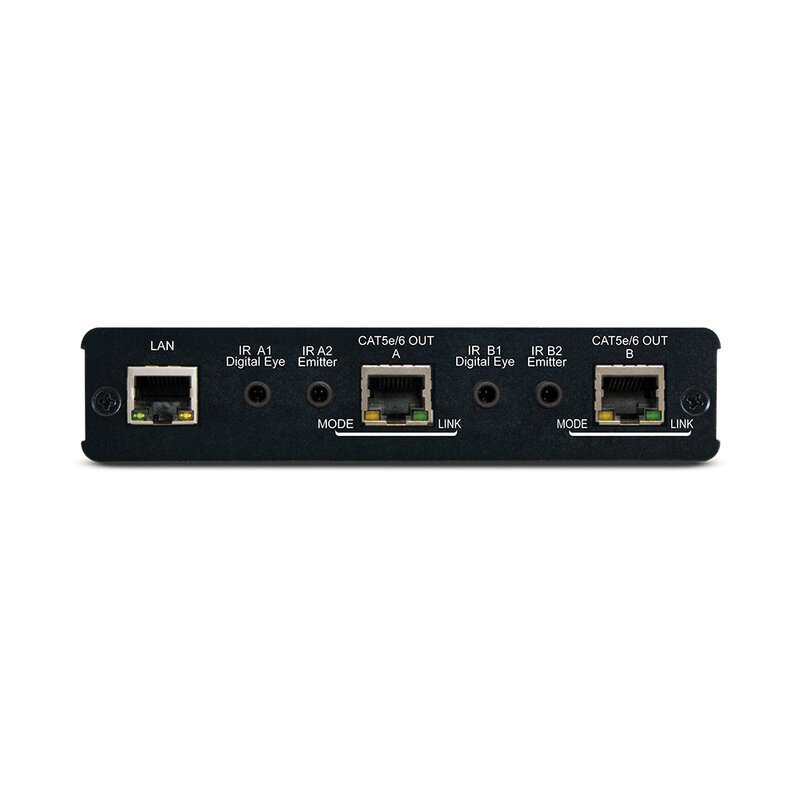

• Outputs:

  • 1 × HDMI (uncompressed AV and data)
  • 2 × RJ45 (2 × HDMI & propriety data)
  • 2 × 3.5 mm stereo mini-jack (infrared emitter)
  • 1 × RJ45 (ethernet I/O IP)
• PSU: 24 V_DC 2.7 A
• Dimensions (W × H × D): 14.5 × 3.0 × 17.8 cm
• Weight: 0.54 kg
