SKU: PU-507RX

EAN: 5060067151829

CYP - PU-507RX

Name: PU-507RX
Brand: CYP
SKU: PU-507RX
Price: 289.5 EUR
Availability: OutOfStock

HDBaseT1 receiver with 5‑Play (PoC, LAN, IR, RS 232), up to 100 m over Cat.5e/6/7, 4K UHD support, uncompressed HDMI reception, EDID‑based 4K formats, full control and LAN extension

(0)

378.50 €

- 24%

289.50 €

Pay in 4 interest-free payments of 72.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - PUV-1710LRX-AVLC

323.00 €

(0)

4K HDR HDBaseT1 LITE receiver with AVLC, PoH, LAN, IR/RS‑232 control, long‑distance transmission

CYP - PUV-2100TX-AVLC

469.50 €

(0)

HDBaseT2 Full 4K transmitter with AVLC, LAN, PoH, bi‑directional optical audio and ARC pathway, supporting 4K @ 60 Hz 4:4:4, HDR, high‑bitrate audio and full control extension over a single Cat.6a/7 cable up to 100 m

CYP - PUV-2100RX-AVLC

389.00 €

(0)

HDBaseT2 full 4K receiver with AVLC, LAN, PoH and Audio/ARC pathway, supporting 4K 60 4:4:4, HDR, long‑distance transmission, full control extension

CYP - PUV-1510RX

249.50 €

(0)

4K HDBaseT1 receiver with PoH, LAN, IR/RS‑232 control, long‑distance transmission

CYP - PU-101PL-KIT

232.00 €

(0)

HDBaseT Lite HDMI extender set, PoC, bi‑directional IR and RS‑232, supporting 4K transmission up to 40 m and 1080p up to 70 m over CAT5e/6

Product Details

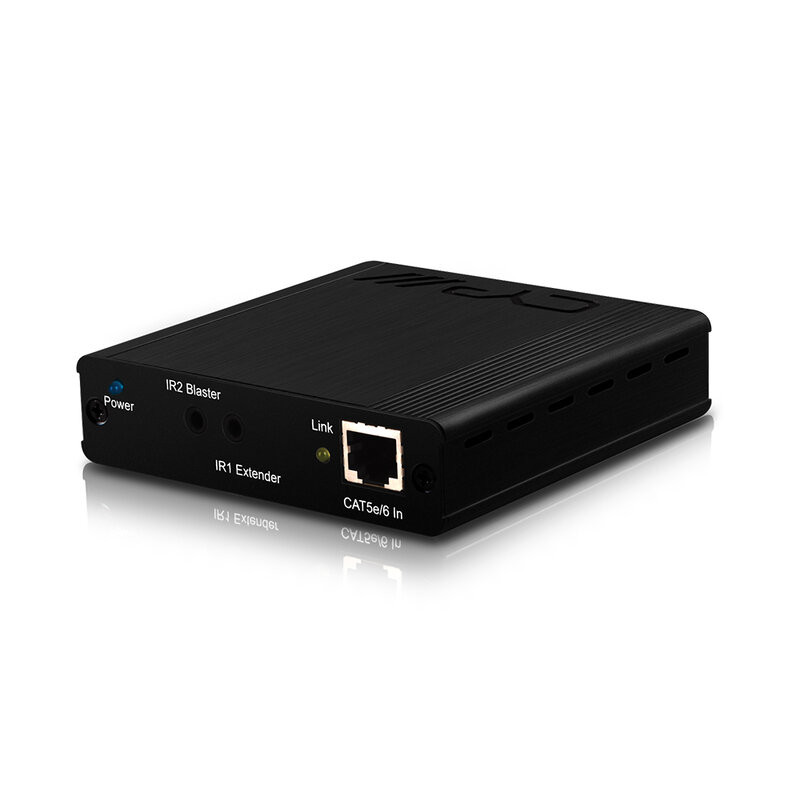

The PU-507RX is an HDBaseT1 receiver designed to receive uncompressed HDMI signals and IP data over a single Cat. 5e/6/7 cable. It works in conjunction with the PU-507TX.

The device integrates 5-Play technology, which enables the combined distribution of video, audio, LAN, PoC, RS-232, and bidirectional IR control over the same Cat.5e/6/7 cable. It supports resolutions up to 4K UHD, with variable distances depending on the cable type and display EDID.

It is suitable for professional AV installations requiring stable HDMI distribution, remote control, and in-line power.

Main features

HDCP 2.2 compliant
Supports all HDMI v1.4 resolutions plus 4K
Uncompressed video/audio up to 10.2 Gbps
VGA - WUXGA resolutions, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) according to the display's EDID
HDMI, HDCP, and DVI Compliant
HDCP Repeating and CEC functions
4K/2K and 4K UHD signals can be transmitted up to 70 m via Cat.5e/6 and up to 100 m via Cat.6a/7
Uncompressed video 1080p 60 Hz 48-bit
Audio up to 7.1 CH and Dolby TrueHD, DTS-HD

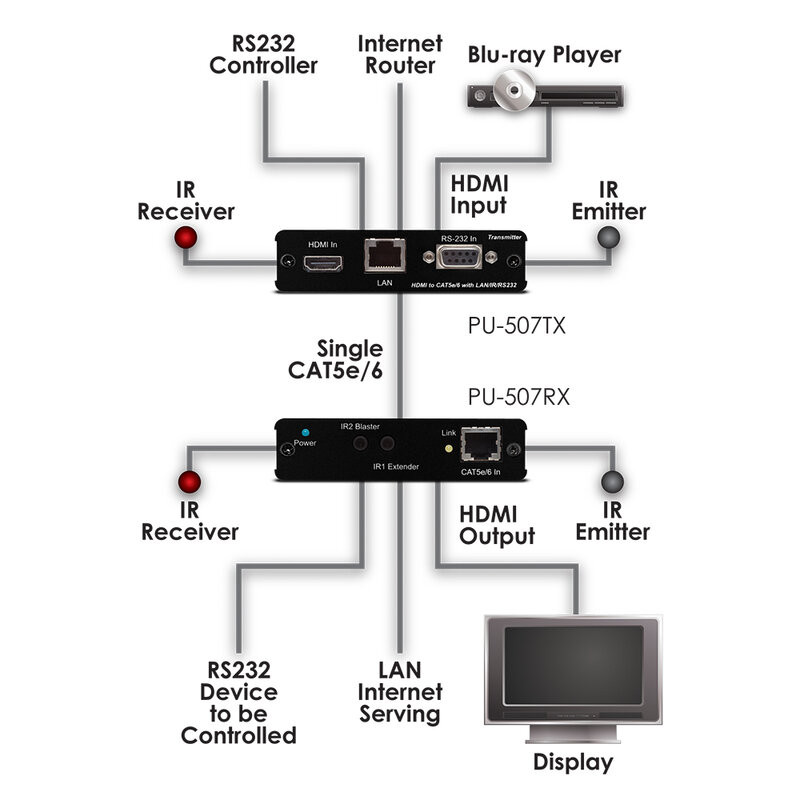

5-Play convergence: HDMI, LAN, PoC, and control (IR and RS-232)
Supports 3D signals

User benefits

Stable HDMI reception up to 100 m via a single Cat.5 cable
Combined distribution of AV, LAN, PoC, and control over a single connection
Compatibility with 4K UHD signals for modern AV installations
Multi-channel audio support for professional AV systems
Simplified integration thanks to 5-Play convergence

Areas of use

Corporate AV (meeting rooms, executive suites, training rooms, conference rooms)
Educational (classrooms, auditoriums, campus AV)
Hospitality (hotels, conference centers)
Rental & staging (live events, service, temporary installations)

Technical characteristics

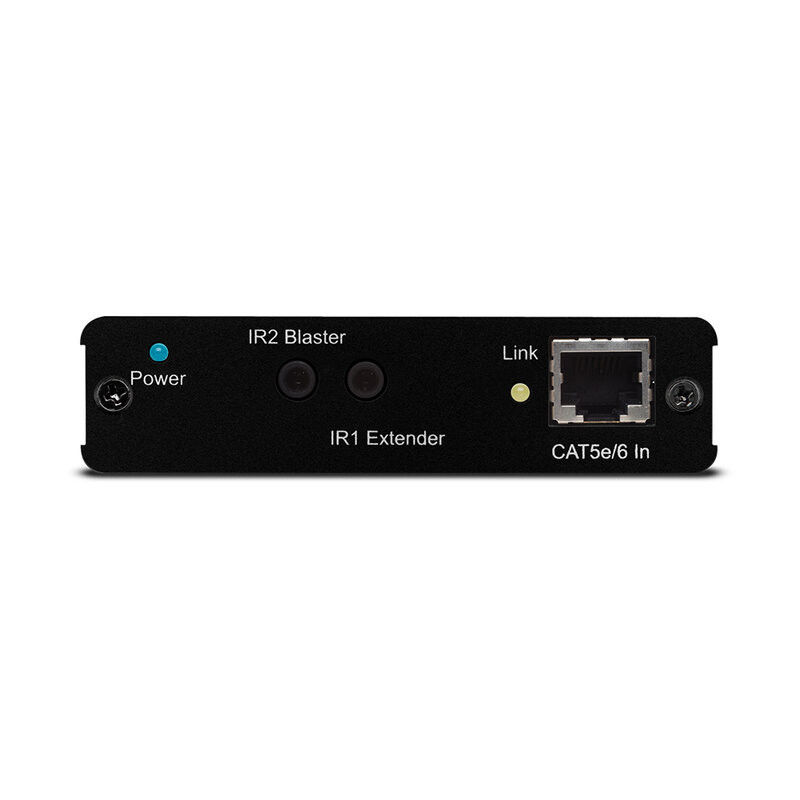

Inputs:
- 1 × RJ45 (HDMI and propriety data)
- 1 × 3.5 mm stereo mini-jack (infrared receiver)

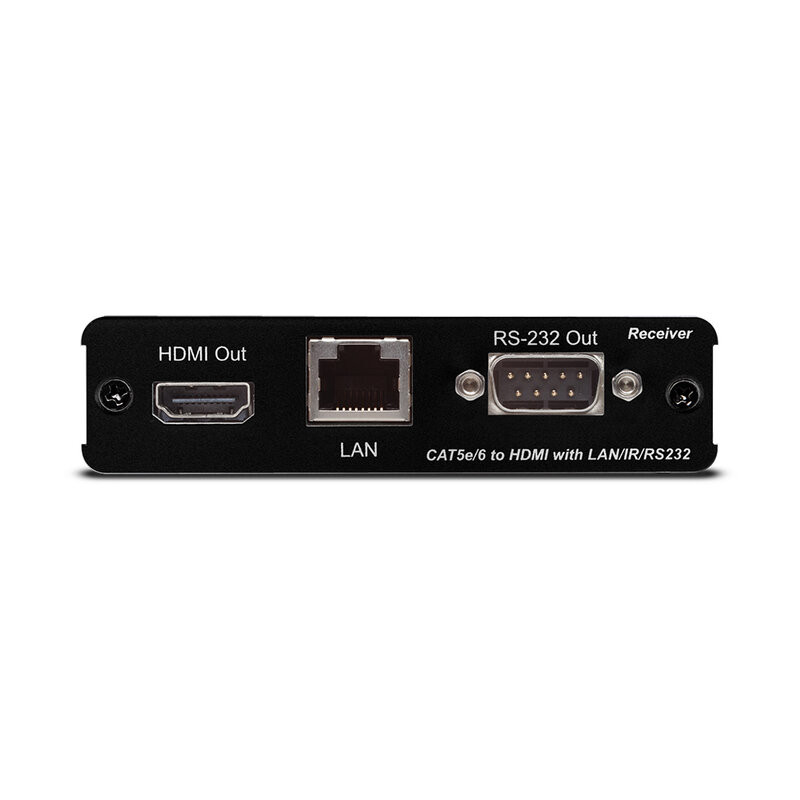

Outputs:
- 1 × HDMI (HDMI uncompressed AV and data)
- 1 × 9-pin Dsub (RS-232 data)
- 1 × 3.5 mm stereo mini-jack (infrared emitter)
- 1 × RJ45 [Ethernet (I/O) IP]
PSU: PoC
Dimensions (W × H × D): 10.2 × 2.5 × 10.2 cm
Net weight: 260 g
