SKU: PU-507TX

EAN: 5060067151812

CYP - PU-507TX

Name: PU-507TX
Brand: CYP
SKU: PU-507TX
Price: 279 EUR
Availability: OutOfStock

HDBaseT1 transmitter with 5‑Play (PoC, LAN, IR, RS 232), up to 100 m over Cat.5e/6/7, 4K UHD support, uncompressed HDMI transmission, EDID‑based 4K formats, full control and LAN extension

(0)

407.00 €

- 31%

279.00 €

Pay in 4 interest-free payments of 69.75 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - PUV-1610-KIT

784.50 €

(0)

4K HDBaseT1 transmitter & receiver kit with PoH reverse power, LAN, IR/RS‑232 control, long‑distance transmission

CYP - PU-1201-KIT

533.50 €

(0)

4K HDMI over CAT extender kit with HDMI bypass, PoC, EDID management, local HDMI input on the receiver

Pulse-Eight - neo:Lite HDMI Extender Set

139.50 €

(0)

HDMI extender set, transmitter + receiver, 4K up to 40 m and 1080p to 70 m over Cat5e/6/7, HDR with BT .709 colourspace, full HDMI audio support, PoH and bi-directional IR signals

CYP - SDV-C1H-TX

716.50 €

(0)

Compact SDVoE 10G Cat‑based transmitter for ultra‑low latency 4K @ 60 4:4:4 AV extension, HDR 10/12‑bit, multichannel audio passthrough, 10GBase‑T connectivity over Cat.6A up to 100 m, PoE power

CYP - PUV-1610RX

389.00 €

(0)

4K HDBaseT1 receiver with PoH reverse power, LAN, IR/RS‑232 control, long‑distance transmission

Product Details

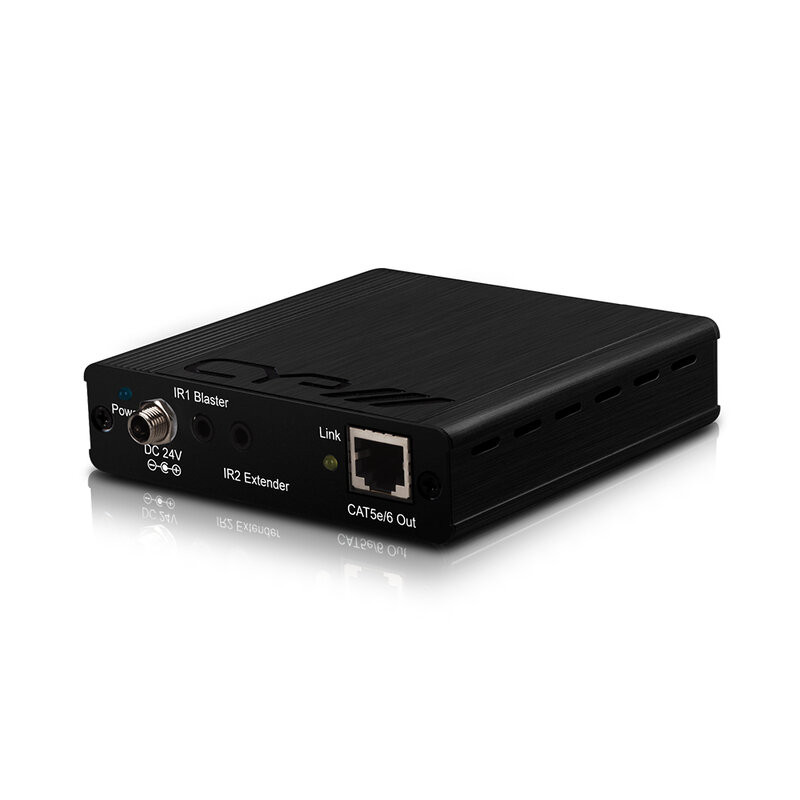

The PU-507TX is an HDBaseT1 transmitter designed to send uncompressed HDMI signals and IP data over a single Cat.5e/6/7 cable. It works in conjunction with the PU-507RX.

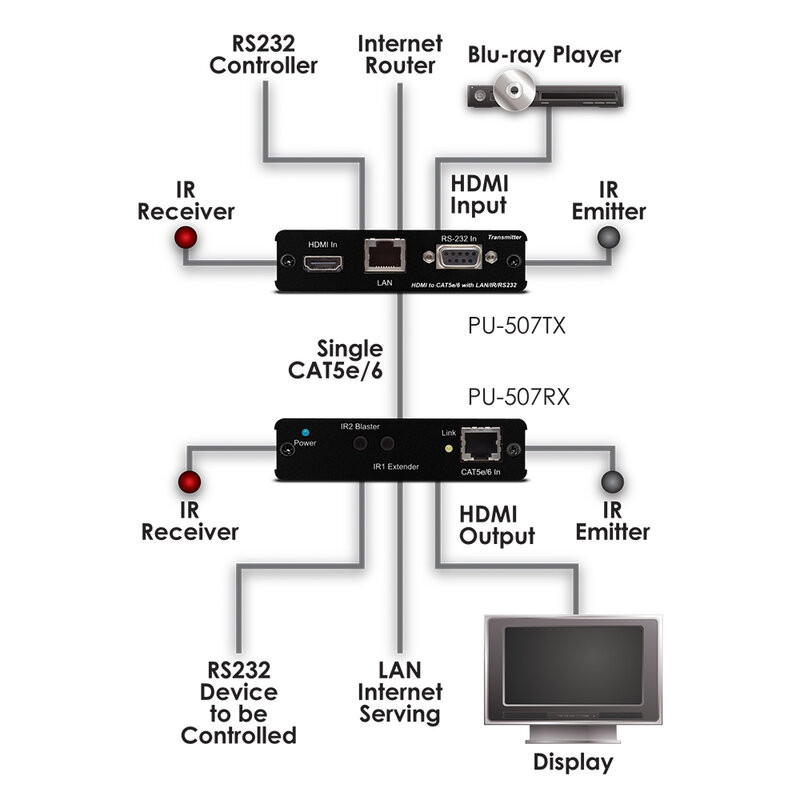

The device integrates 5-Play technology, enabling the combined distribution of video, audio, LAN, PoC, RS-232, and bidirectional IR control over the same Cat.5e/6/7 cable. It supports resolutions up to 4K UHD, with variable distances depending on the cable type and display EDID.

It is suitable for professional AV installations requiring stable HDMI distribution, LAN extension, and long-distance remote control.

Main features

HDCP 2.2 compliant
Supports all HDMI v1.4 resolutions plus 4K
Uncompressed video/audio up to 10.2 Gbps
VGA - WUXGA resolutions, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) according to the display's EDID
HDMI, HDCP, and DVI compliant
HDCP Repeating and CEC functions
4K/2K and 4K UHD signals can be transmitted up to 70 m via Cat.5e/6 and up to 100 m via Cat.6/7
Uncompressed video 1080p 60 Hz 48-bit
Audio up to 7.1 CH and Dolby TrueHD, DTS-HD
5-Play convergence: HDMI, LAN, PoC and control (IR and RS-232)
Supports 3D signals

User benefits

Stable HDMI transmission up to 100 m via a single CAT6 cable
Combined distribution of AV, LAN, PoC, and control over a single connection
Compatibility with 4K UHD signals for modern AV installations
Multi-channel audio support for professional AV systems
Simplified integration thanks to 5-Play convergence

Areas of use

Corporate AV (meeting rooms, executive suites, training rooms, conference rooms)
Educational (classrooms, auditoriums, campus AV)
Hospitality (hotels, conference centers)
Rental & staging (live events, service, temporary installations)

Technical characteristics

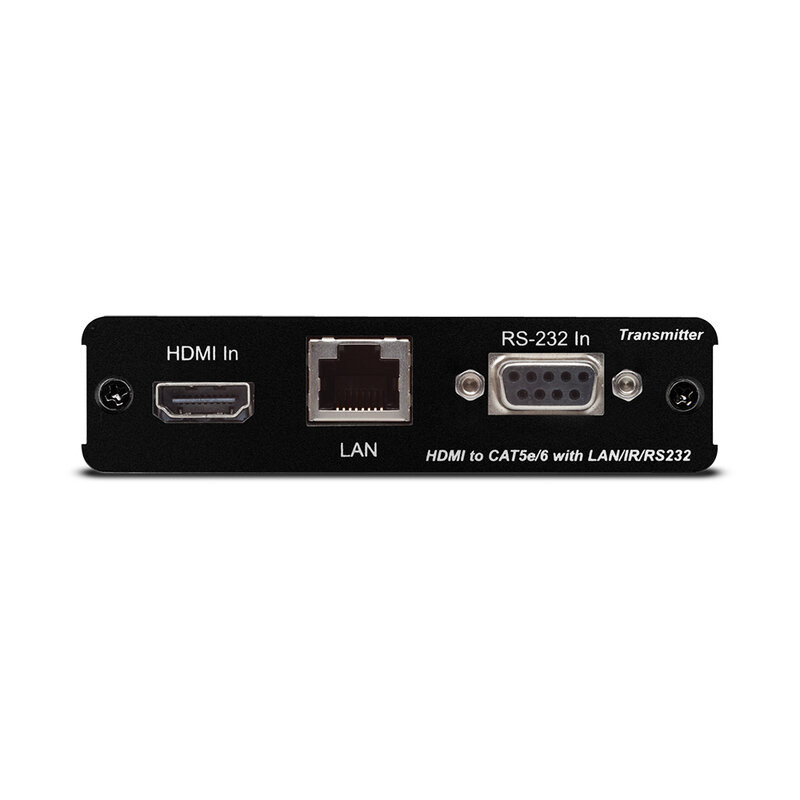

Inputs:
- 1 × HDMI (HDMI uncompressed AV and data)
- 1 × 9-pin Dsub (RS 232 data)
- 1 × 3.5 mm stereo mini-jack (infrared receiver)

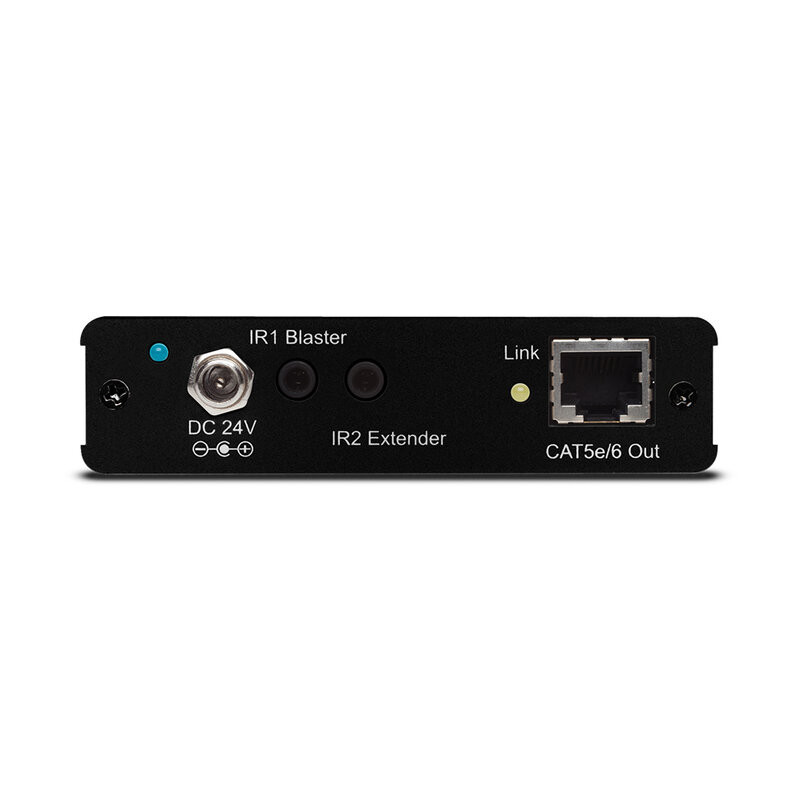

Outputs:
- 1 × RJ45 (HDMI and propriety data)
- 1 × 3.5 mm stereo mini-jack (infrared emitter)
- 1 × RJ45 [ethernet (I/O) IP]
PSU: 24 V 1.25 A
Dimensions (W × H × D): 10.2 × 2.5 × 10.2 cm
Net weight: 260 g
