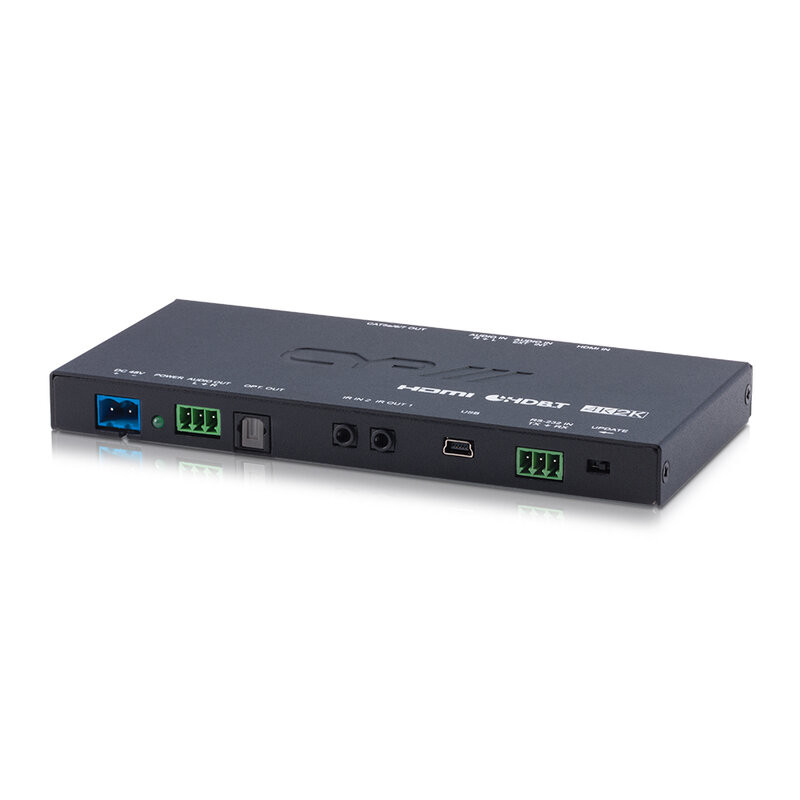

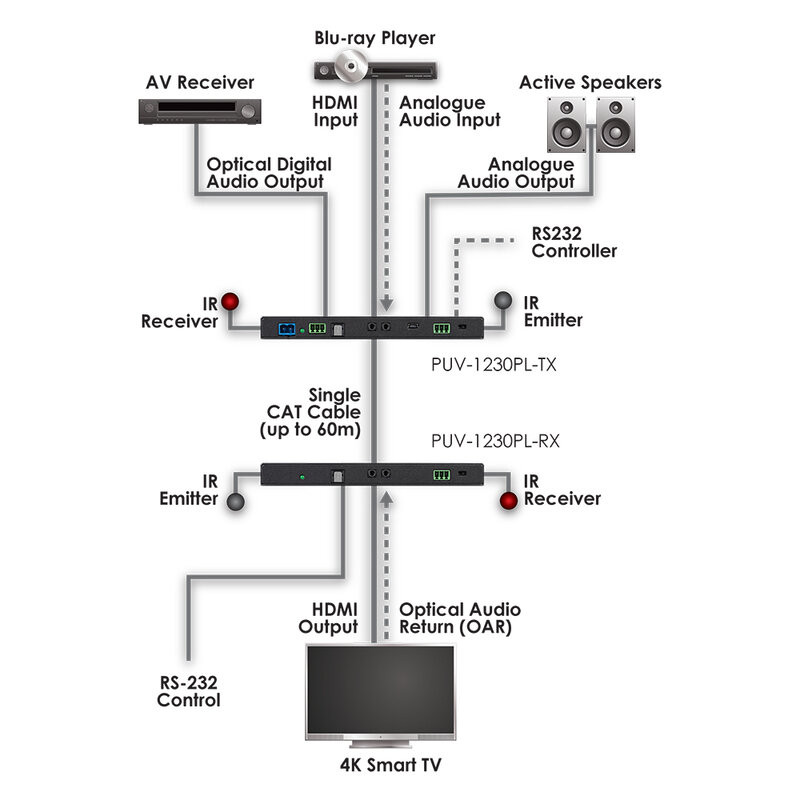

PUV-1230PL-TX is an HDBaseT LITE transmitter designed to extend HDMI signals up to 4K UHD, HD audio, bidirectional control (IR and RS-232), PoH, and OAR (Optical Audio Return) up to 60 meters over a single Cat.6a/7 cable.

It provides advanced signal management, ensuring stability and high performance even in the most complex installations. It supports all common professional audio formats, resolutions up to 4K @ 30 4:4:4 and 4K @ 60 4:2:0, as well as features such as HDCP 2.2, CEC, and 3D pass-through.

Main features

• HDCP 2.2 compliant
• HD video and audio support, PoH, and bidirectional IR and RS-232 control
• Resolutions from VGA to WUXGA, 480i ~ 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0)
• Supports 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDID
  4K/2K and 4K UHD transmission up to 35 m via CAT5e/6 and up to 60 m via CAT6a/7
• Format pass-through HD audio: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS HD Master Audio
• Supports OAR (Optical Audio Return), HDCP repeating and CEC functions, and 3D signals

User benefits

• Reduced cabling thanks to the simultaneous transmission of AV, control, power, and audio return over a single cable
• Greater signal stability thanks to HDBaseT LITE technology
• Compatibility with advanced audio formats for integration into home theater and professional AV systems
• Simplified installation thanks to PoH, eliminating the need for a power supply on the receiver
• Management of audio return via OAR without the need for additional cabling

Areas of use

• Conference rooms and meeting rooms
• Corporate environments
• AV installations
• All applications requiring reliable video extension up to 60 m with optical audio return

Technical characteristics

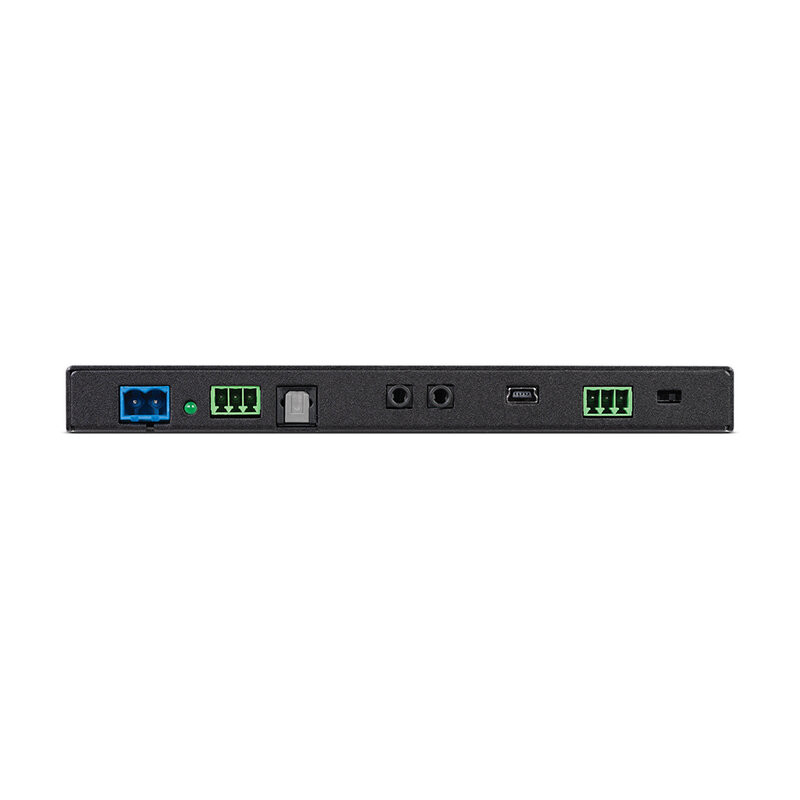

• Inputs:
  • 1 × HDMI (1 × HDMI uncompressed AV and data)
  • 1 × Phoenix (3-pin) [1 × analogue stereo (L/R) audio input]
  • 1 × 3.5 mm stereo mini-jack (1 × infra red receiver)
  • 1 × Phoenix (3-pin) (1 × RS-232)
  • 1 × USB 3 Type-B (1 × service port power & data)
• Outputs:

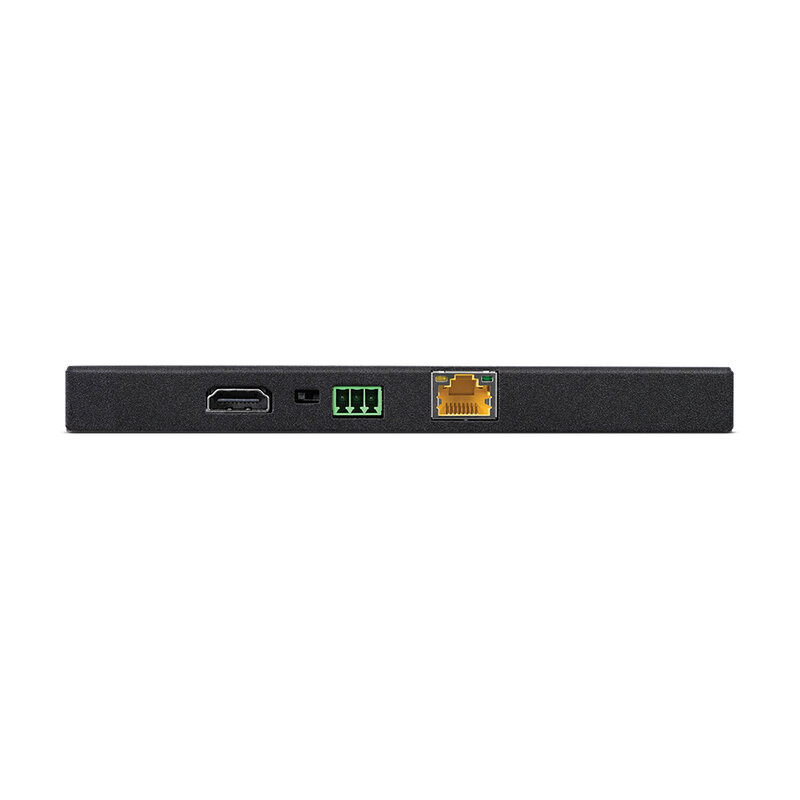

  • 1 × RJ45 (1 × HDBaseT HDMI & propriety data)
  • 1 × Phoenix (3-pin) [1 × analogue stereo (L/R) audio output]
  • 1 × Toslink (1 × optical DTS/Dolby Digital/2 Channel LPCM)
  • 1 × 3.5 mm stereo mini-jack (1 × infra red emitter)
• PSU: 48 V / 0.83 A
• Dimensions (W × H × D): 16.3 × 1.6 × 7.8 cm
• Weight: 0.2 kg
