SKU: PU-515PL-TX

CYP - PU-515PL-TX

Name: PU-515PL-TX
Brand: CYP
SKU: PU-515PL-TX
Price: 276 EUR
Availability: OutOfStock

HDBaseT LITE HDMI transmitter with PoC, 2‑way IR, RS 232, 60 m over Cat.5e/6/7, 4K UHD support, uncompressed HDMI transmission, EDID‑based 4K formats, IR and control extension over a single Cat. cable

(0)

347.50 €

- 21%

276.00 €

Pay in 4 interest-free payments of 69.00 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

PIXELHUE - HDMI-HBT-R

261.50 €

(0)

HDMI - HDBaseT video extender, 1 HDBaseT input and 1 HDMI output

CYP - PUV-1610TX

289.50 €

(0)

4K HDBaseT1 transmitter with PoH reverse power, LAN, IR/RS‑232 control, long‑distance transmission

CYP - PUV-1710LRX-AVLC

323.00 €

(0)

4K HDR HDBaseT1 LITE receiver with AVLC, PoH, LAN, IR/RS‑232 control, long‑distance transmission

CYP - PU-1201-KIT

533.50 €

(0)

4K HDMI over CAT extender kit with HDMI bypass, PoC, EDID management, local HDMI input on the receiver

CYP - PUV-2200PL-TX

449.00 €

(0)

HDBaseT 2.0 LITE transmitter for uncompressed HDMI, HD audio, USB, IR/RS‑232 and analogue audio over a single Cat.5e/6/7 cable up to 35 m, PoH support

Product Details

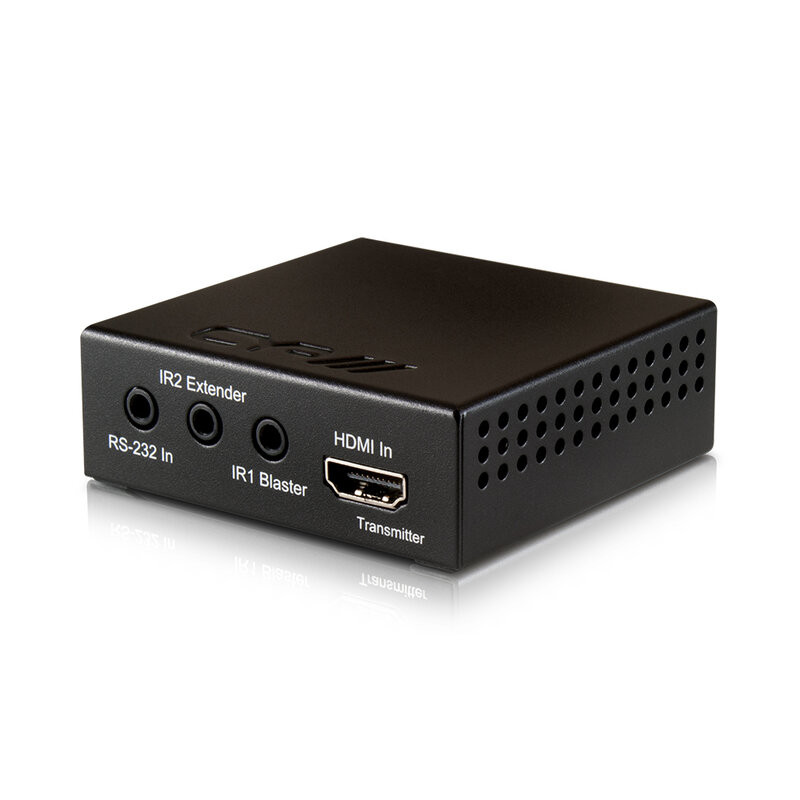

PU‑515PL‑TX is an HDBaseT LITE transmitter that allows you to send uncompressed HDMI signals over a single Cat.5e/6/7 cable.

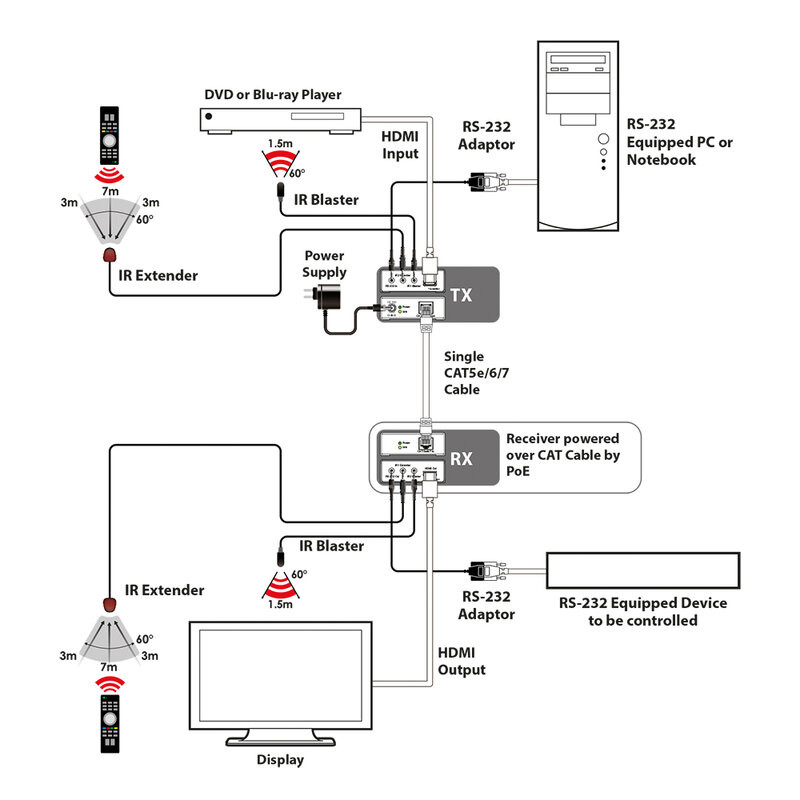

The device also integrates RS-232, bidirectional IR, and PoC power over the same Cat.5e cable, enabling the combined transmission of AV and control signals. The solution reaches distances of up to 60 meters and supports resolutions up to 4K UHD, with ranges varying depending on the cable type and display EDID. It is suitable for AV installations requiring stable HDMI transmission, remote control, and in-line power.

Main features

HDCP 2.2 compliant
HDMI 1.4 with 3D, 4K×2K, HDCP, and DVI
HDMI 1.4 over a single Cat.5e/6/7 cable up to 60 m
4K/2K and 4K UHD signals up to 35 m via Cat.5e/6 and 40 m via Cat.6a/7
Compliant with HDBaseT LITE specifications
Resolutions: VGA - WUXGA, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2) according to the display's EDID
HDMI input up to 15 m with 8-bit deep color or 10 m with 12-bit
HDMI output up to 15 m with 8/12-bit deep color
Bidirectional IR, RS-232, and Power over Cable (PoC)
LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio

User benefits

Stable HDMI transmission up to 60 m via a single Cat. cable
Complete remote control with bidirectional IR and RS-232
PoC eliminates the need for additional power supplies on the receiver
Compatible with 4K UHD signals
Simplified installation thanks to the combination of AV, control, and power

Areas of use

Corporate AV (meeting rooms, boardrooms, training rooms)
Educational (classrooms, auditoriums, campus AV)
Hospitality (hotels, conference rooms, convention centers)
Digital signage (information totems, signage paths, video walls)
Retail (showrooms, exhibitions, demonstration areas)
Rental & staging (live events, service, temporary installations)
Places of worship

Technical characteristics

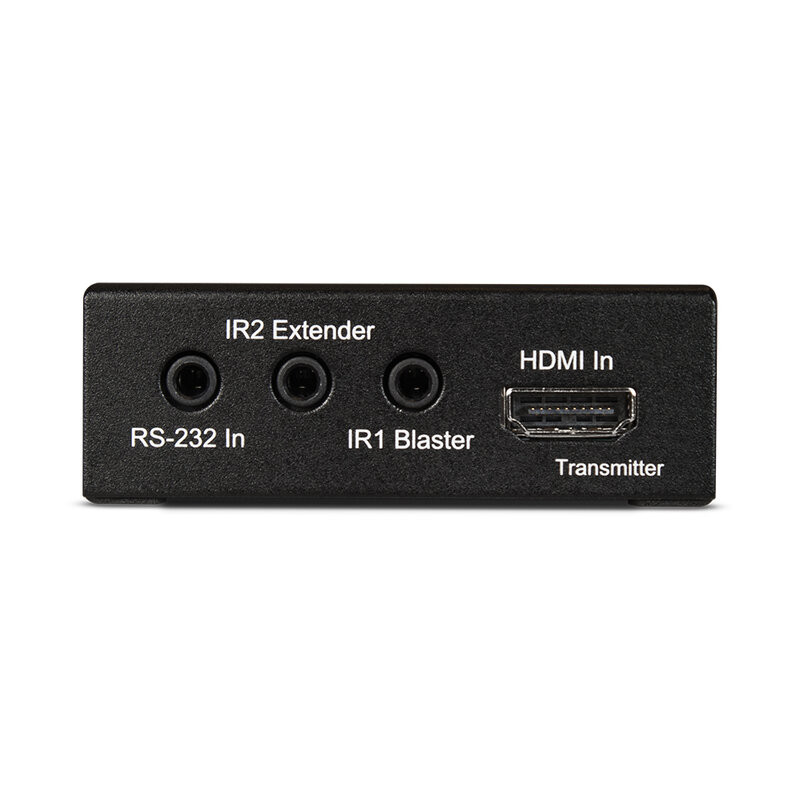

Inputs:
- 1 × HDMI (HDMI uncompressed AV and data)
- 1 × 3.5 mm stereo mini-jack (infrared receiver)
- 1 × 3.5 mm stereo mini-jack (RS 232)

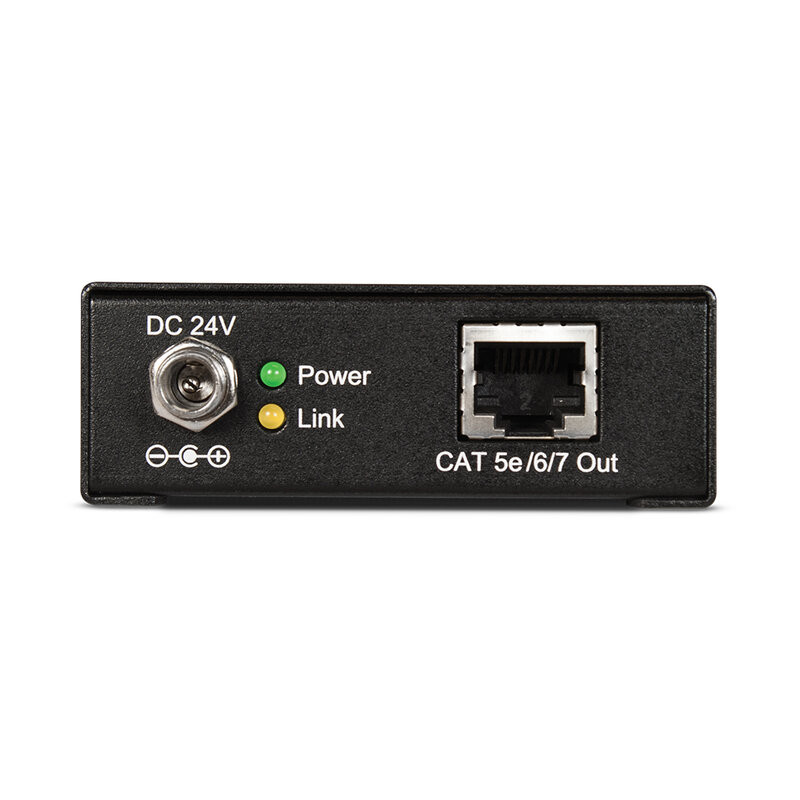

Outputs:
- 1 × RJ45 (HDBaseT lite HDMI and propriety data)
- 1 × 3.5 mm stereo mini-jack (infrared emitter)
PSU: 24 V_DC 1.25 A
Dimensions (W × H × D): 71 × 23 × 73.5 mm
Weight: 200 g
