CYP - SDV-C1H-RX

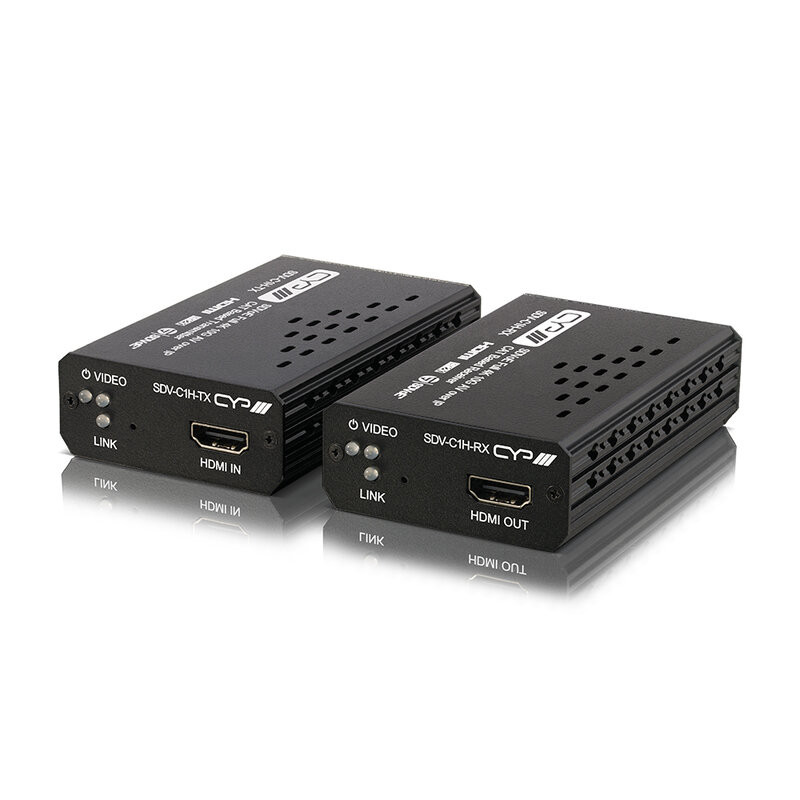

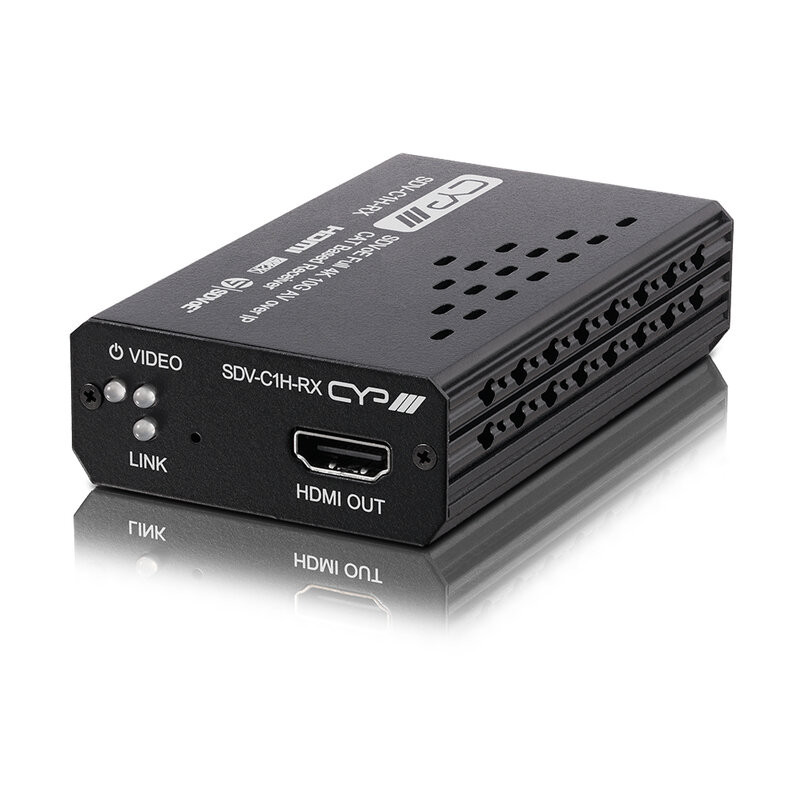

The SDV-C1H-RX is a 10G SDVoE receiver designed to distribute 4K AV signals with extremely low latency within AV-over-IP networks. SDVoE (Software Defined Video over Ethernet) is the most advanced 10 Gigabit AV-over-IP standard available today, a platform that enables the transport of 4K video, audio, control, and networking with virtually zero latency using standard 10G Ethernet switches.

Thanks to ultra-lightweight compression, virtually lossless for most content, the receiver supports HDMI signals up to 4K with HDR, 10-bit color, and multi-channel HD audio in pass-through mode, ensuring high quality even in critical applications.

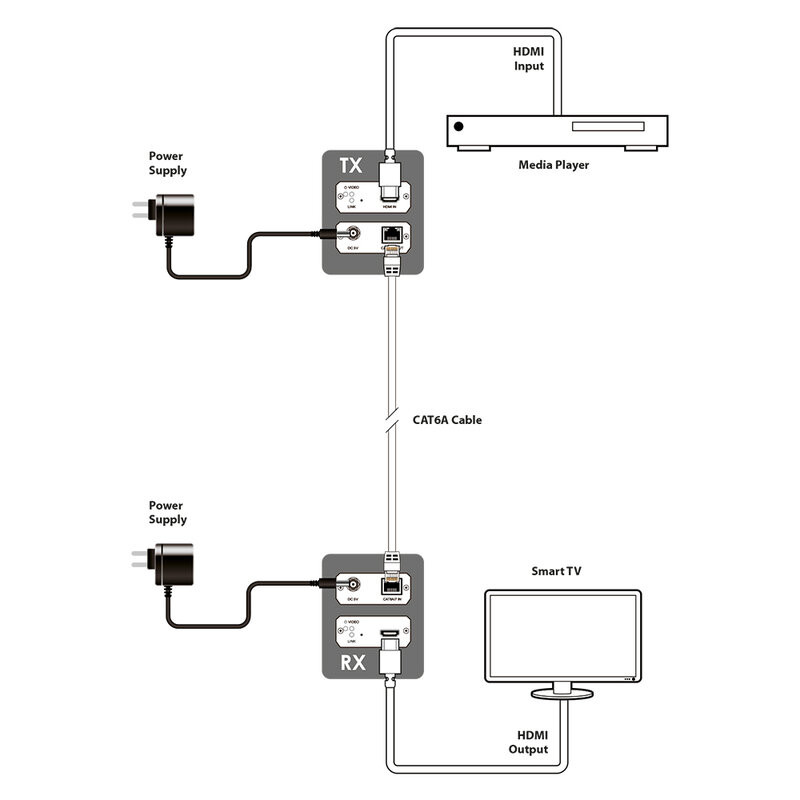

Reception occurs via a 10GBase-T interface over Cat.6A cable, enabling point-to-point connections up to 100 meters. The compact design and small footprint make the SDV-C1H-RX ideal for installations with limited space, mounting directly behind displays, or integrating into distributed AV systems. Additionally, the device supports video preview when used with the SDV-CS8 controller.

When combined with the SDV-CS8 IP Master Controller, required for advanced control, the receiver can be integrated into distributed AV matrix switchers, multiview configurations, and video walls without the need for dedicated processors. EDID and HDCP management ensure compatibility with any display. The device can be powered directly via PoE (802.3af), simplifying installation.

Main features

• HDMI 2.0 and DVI 2.0 compatible
• Compliant with HDCP 2.2 and HDCP 1.x
• 4K @ 60 extension up to 100 m (with Cat. 6A cable)
• Unit can be powered directly via PoE (802.3af)
• Video preview when used with SDV-CS8
• Supports the use of an external control center (SDV-CS8 Master Controller) or control software for extended functionality
• IP-routable with minimal latency (requires optional control center or control software)
• Supports independent A/V matrix switching with minimal latency, video wall generation, and multi-view compositing
• Pass-through of 10/12-bit HDR sources (in point-to-point and bypass modes only)
• Pass-through of LPCM (up to 8 channels), Bitstream, and HD Bitstream audio formats
• Ultra-light compression, lossless for most content

User benefits

• 4K @ 60 4:4:4 AV distribution over Cat.6A cable while maintaining minimal latency
• Simplified installation thanks to PoE power supply
• Video and audio quality equivalent to a direct HDMI connection thanks to ultra-light compression
• Video preview function for more efficient source management
• Compatibility with 10/12-bit HDR content and HD multi-channel audio pass-through
• AV system scalability via optional centralized control (CYP SDV-CS8 or dedicated software)

Areas of use

• AV over IP infrastructures based on 10G SDVoE over copper
• 4K @ 60 AV distribution to professional displays up to 100 m
• Corporate
• Industrial environments
• Live events, conference centers, and exhibition spaces with AV distribution over a 10GBase-T network
• Video wall and multiview systems created using 10G switches and controllers SDV‑CS8
• Installations where copper cabling is preferred (or already present)

Technical characteristics

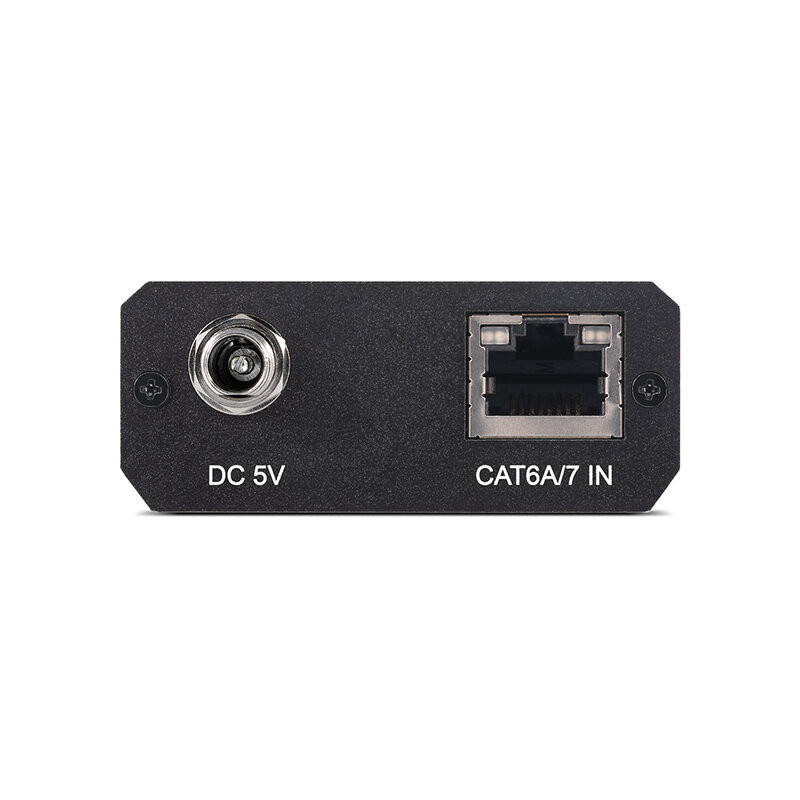

• Inputs:
  • 1 × RJ45 (1 × SDVoE HDMI & propriety data)

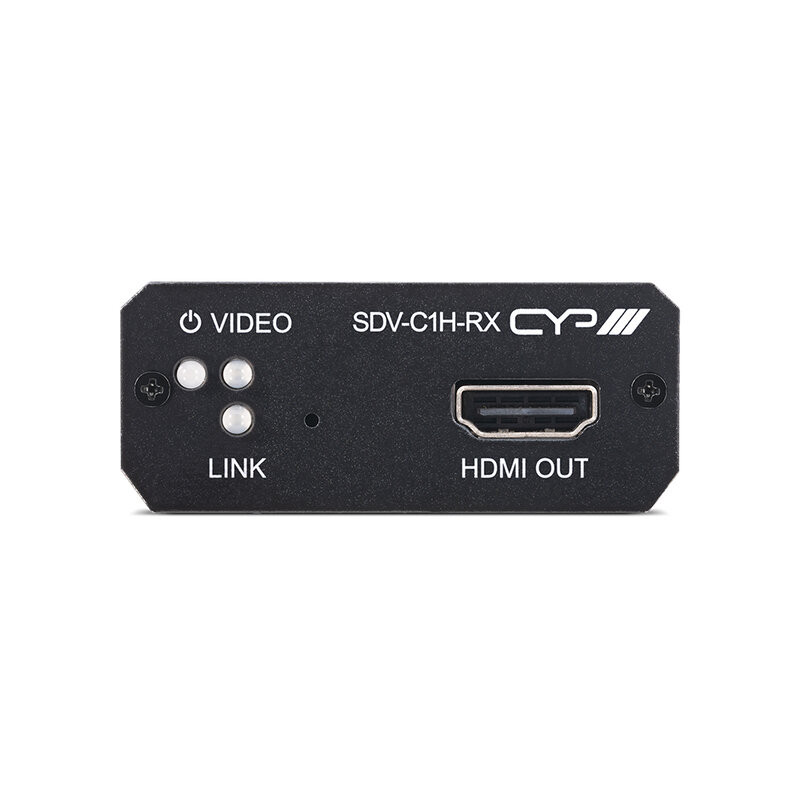

• Outputs:
  • 1 × HDMI (1 × HDMI uncompressed AV and data)
• PoE PSU: PoE
• PSU: 5 V / 2.6 A
• Dimensions (W × H × D): 6 × 2.5 × 9.5 cm
• Weight: 0.18 kg
