CYP - PU-IR01-KIT

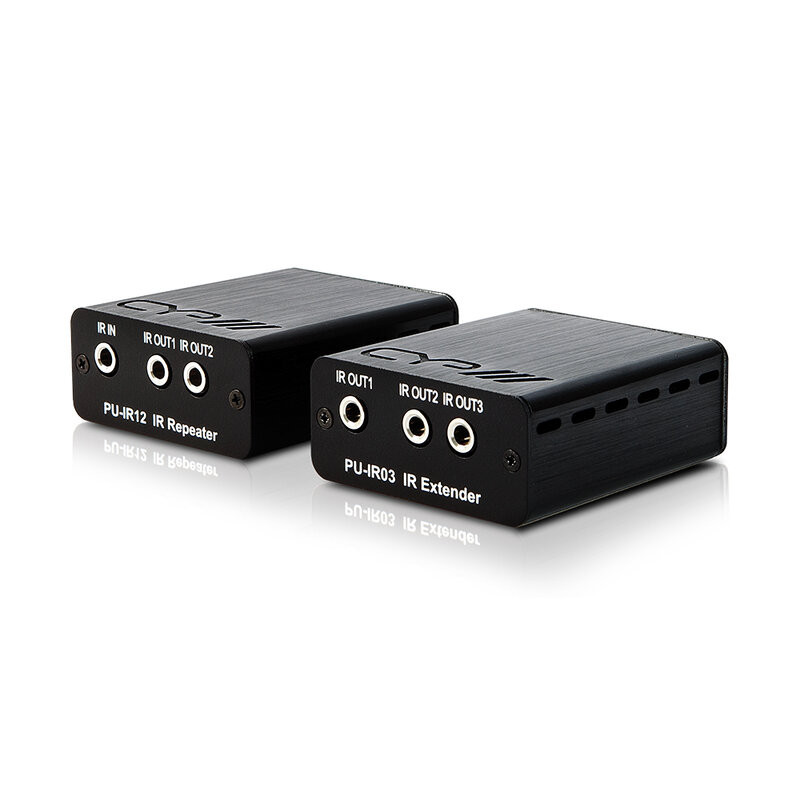

The PU‑IR01‑KIT extends infrared commands via Cat.5/6 cable, allowing you to control sources with their remote controls even when they're up to 250 meters away.

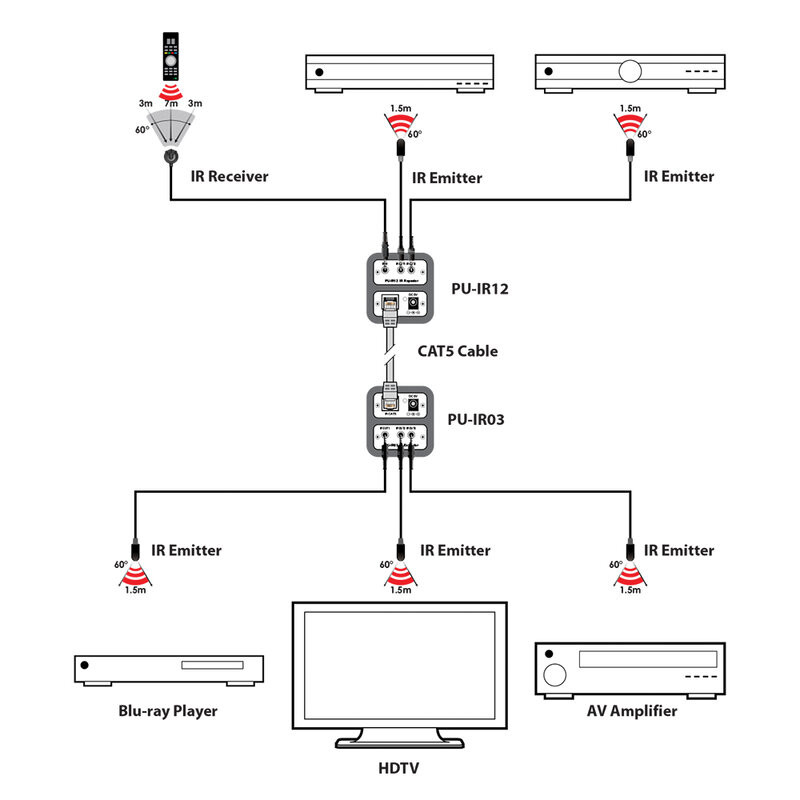

The kit allows control of up to five sources: two located at the repeater and three at the extender, which, as mentioned, can be positioned up to 250 meters away via Cat.5/6 cabling. The system allows you to use the source's original remote controls even from remote locations, maintaining complete control of the equipment.

An optional 5-emitter accessory is available for additional control of additional source devices. This product is suitable for AV installations requiring reliable IR signal extension over long distances.

Main features

• Supports five outputs (two from the repeater, three from the extender)
• Controls sources up to 250 meters away
• Transmits infrared signals exclusively
• The IR receiver frequency ranges from 20 to 60 kHz

User benefits

• Reliable remote control of IR sources up to 250 meters
• Manages up to five source devices
• Compatible with original remote controls without additional configuration
• Stable operation thanks to dedicated infrared signal management
• Easy installation via Cat. 5/6 cabling

Areas of use

• AV installations
• Multi-zone systems with centralized sources
• Conference rooms and meeting rooms
• Residential applications with remote source control
• Racks with non-directly accessible devices

Technical characteristics

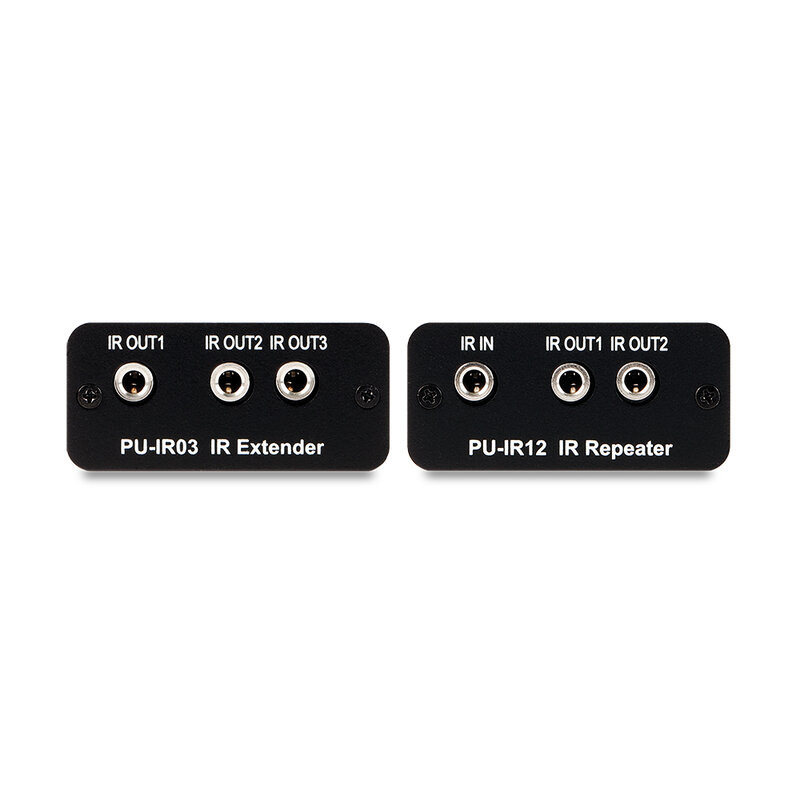

• Inputs:
  • (PU-IR12) 1 × 3.5 mm stereo mini-jack (1 × infrared receiver)
  • (PU-IR03) 1 × RJ45 [1 × IR propriety data]
• Outputs:
  • (PU-IR12) 2 × 3.5 mm stereo mini-jack (2 × infrared emitter)

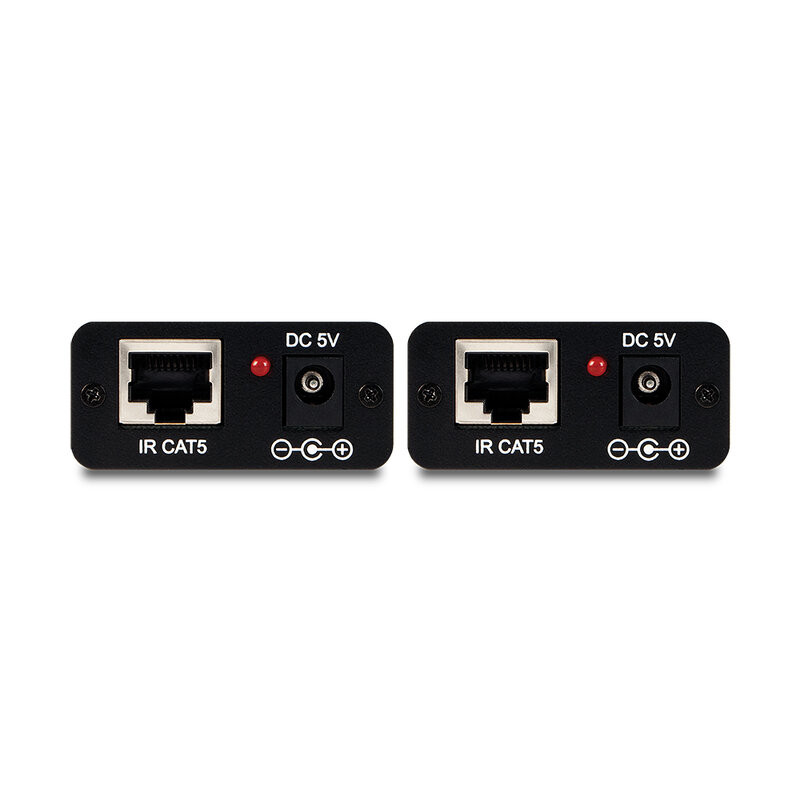

  • (PU-IR12) 1 × RJ45 [1 × IR propriety data]
  • (PU-IR03) 3 × 3.5 mm stereo mini-jack (3 × infrared emitter)PSU:
• PSU: 5 V_DC 1.2 A
• Dimensions (W × H × D):
  • (PU-IR03): 62 × 23 × 50 mm
  • (PU-IR12): 62 × 23 × 50 mm
• Weight: 160 g
