CYP - PU-USB2-KIT

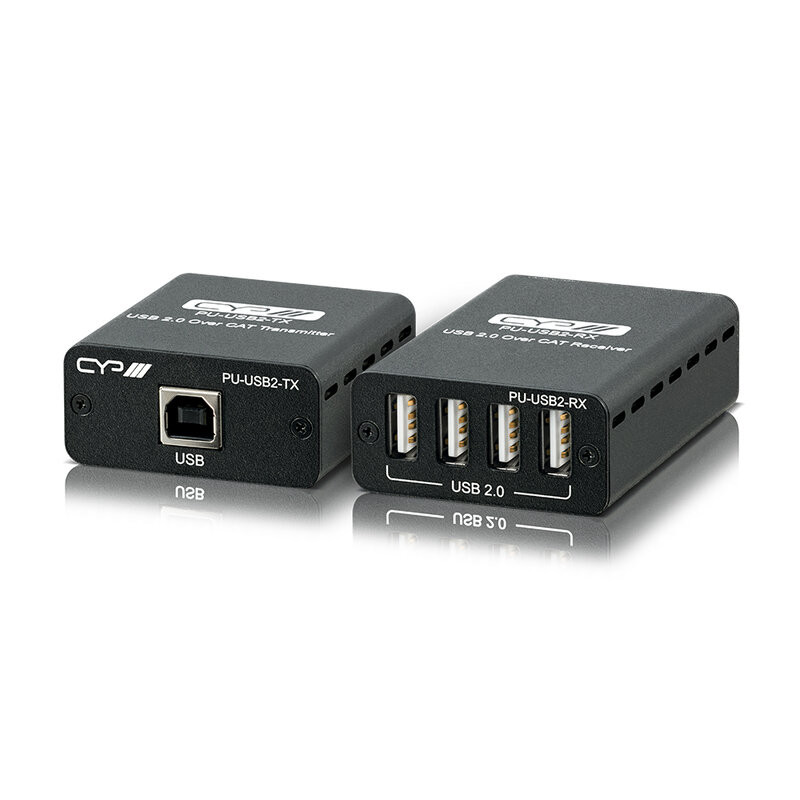

PU-USB2-KIT is a USB 2.0 extender kit, consisting of a transmitter and a receiver, designed to extend USB signals via a single Cat.2 cable up to 50 meters. The system enables high-quality, uncompressed USB 2.0 data transmission with multi-application streams.

It offers a configuration with 1 host port and 4 device ports, all integrated into a compact form factor. The transmitter can be powered directly by the connected host, such as a computer or laptop. The receiver provides a total of 2 A distributed across the four USB ports.

The kit is suitable for extending USB peripherals in AV, IT, and conference room installations that require reliable connections over relatively long distances.

Main features

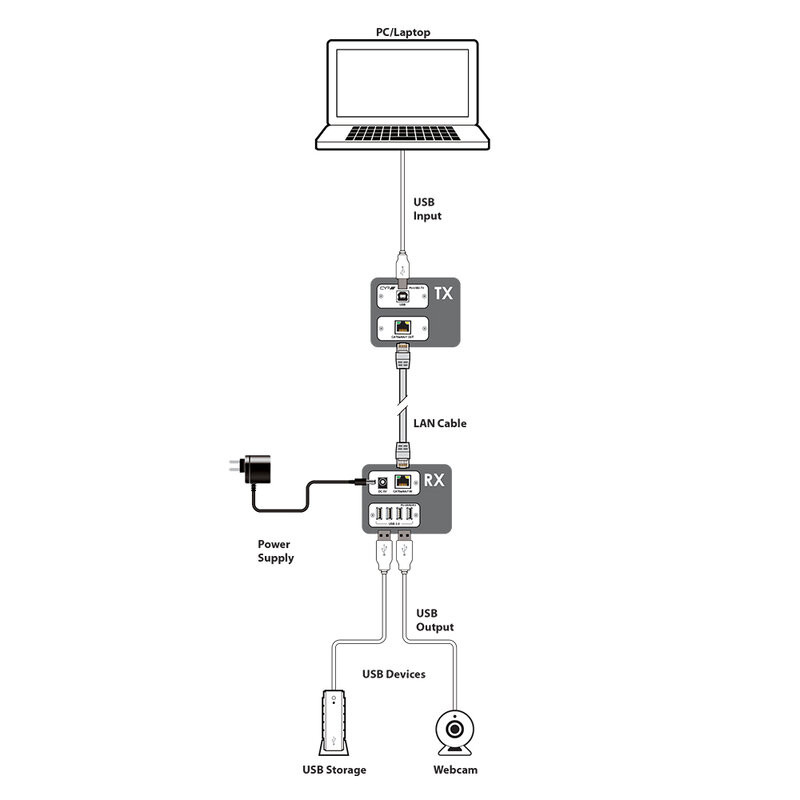

• Supports point-to-point USB transmission up to 50 m via CAT cable
• Supports USB 2.0, multi-streaming, and multiple USB 2.0 device ports
• 1 host port > 4 device ports
• Each port can be used to connect a USB device
• Multiple USB devices can be operated simultaneously
• The transmitter is powered by the connected host, such as a computer or laptop
• Total 2 A for 4 USB ports
• Low electromagnetic emissions and robust noise immunity

User benefits

• USB 2.0 extension up to 50 meters via a single CAT cable
• Simultaneous management of multiple USB devices
• Powered directly from the host device without an external power supply for the transmitter
• Compatibility with standard USB peripherals for AV and IT applications

Areas of use

• Conference rooms and meeting rooms
• Remote workstations with USB peripherals
• AV installations with low and medium-speed USB devices
• IT and industrial applications requiring USB extension

Technical characteristics

TX

• Inputs:

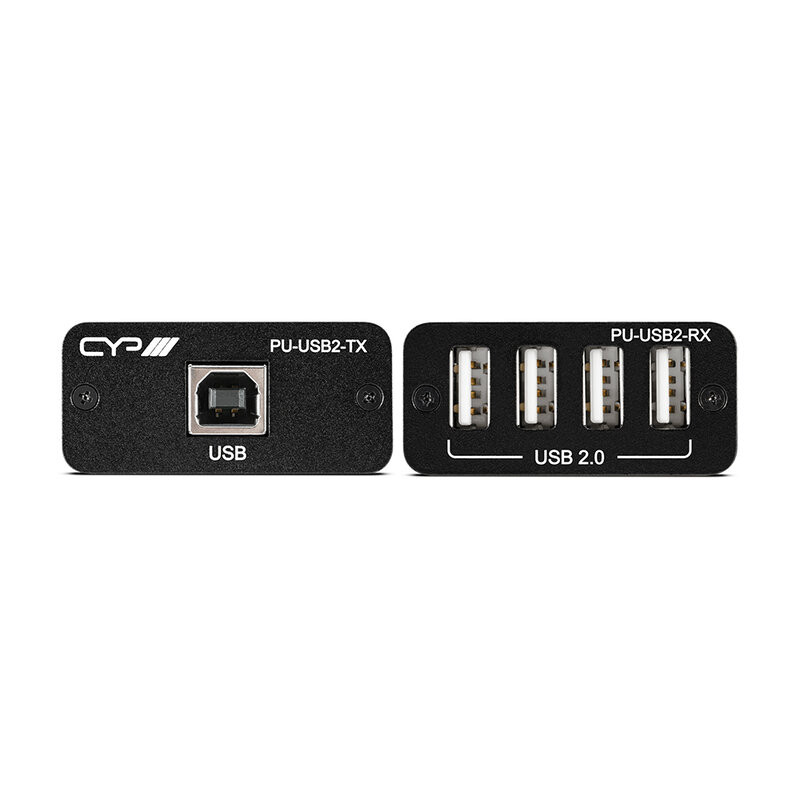

  • 1 × USB Type B (USB proprietary data)
• Outputs:

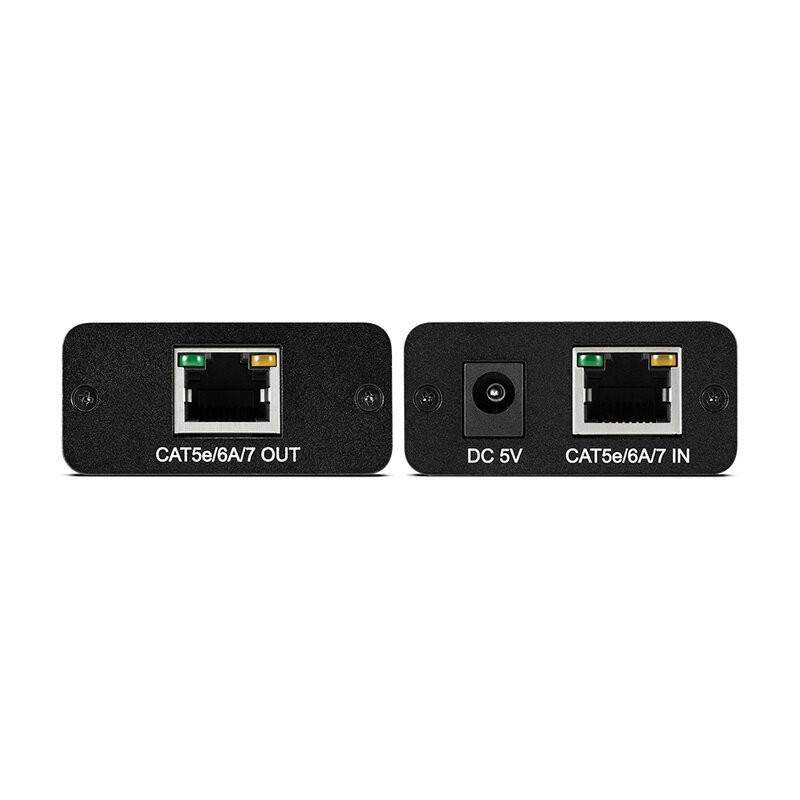

  • 1 × RJ45 (USB & proprietary data)
• PSU: USB powered
• Dimensions (W × H × D): 50 × 25 × 52 mm
• Weight: 60 g

RX

• Inputs:

  • 1 × RJ45 (USB & proprietary data)
• Outputs:

  • 4 × USB Type A (USB & proprietary data)
• PSU: 5 V_DC 3 A
• Dimensions (W × H × D): 50 × 25 × 72 mm
• Weight: 80 g
