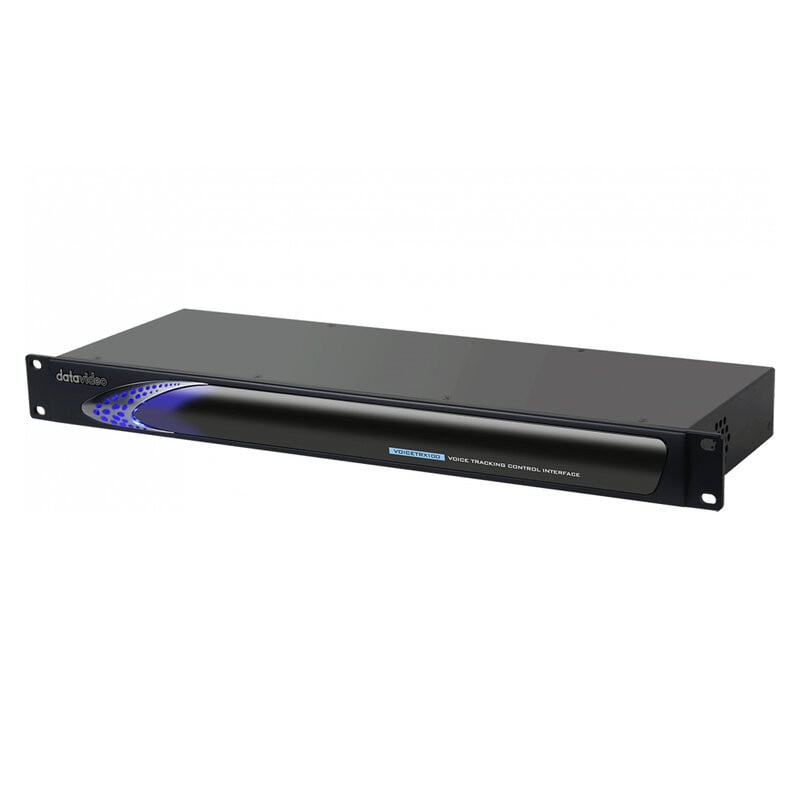

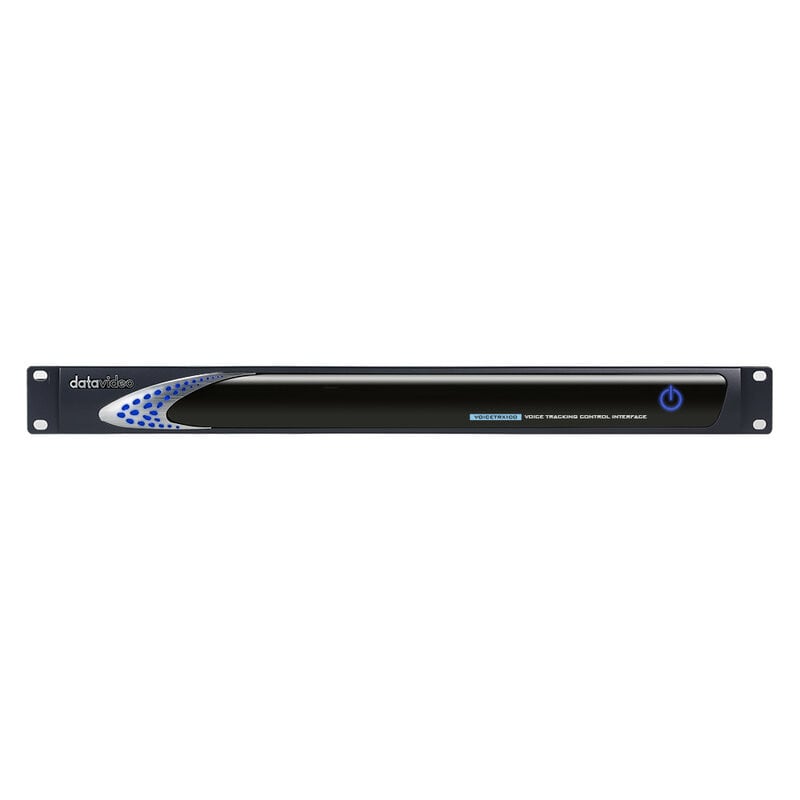

Datavideo - VoiceTRX100

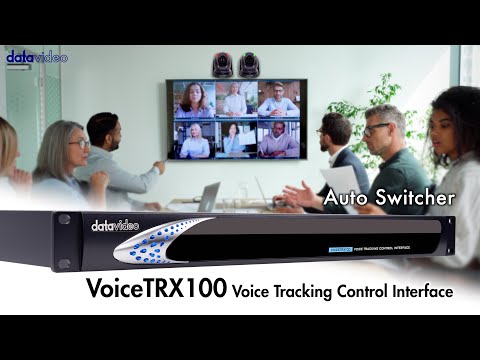

VoiceTRX100 is a voice tracking control interface designed to automate video production; it allows you to automatically activate professional PTZ cameras and Datavideo video switchers based on the position of the active speaker, ensuring smooth transitions and a production quality similar to that of television. The system is able to perform clean frame changes and integrate graphics with the names of the speakers, improving the viewing experience for the audience. An ideal solution for those who want an automated and professional video production system, capable of improving the quality of broadcasts and simplifying the management of conferences by eliminating the need for a dedicated video operator.

It supports a wide range of switchers and cameras of the same brand, making it suitable for different applications and budgets, from small meeting rooms to large conferences. Control is via an intuitive web interface, which allows configuration and management of the device. It uses the DVIP protocol for communication and has an RJ-45 port for network connection, with support for DHCP and static IP. It also supports IEEE 802.3at PoE+ power, simplifying installation and reducing the need for additional cabling.

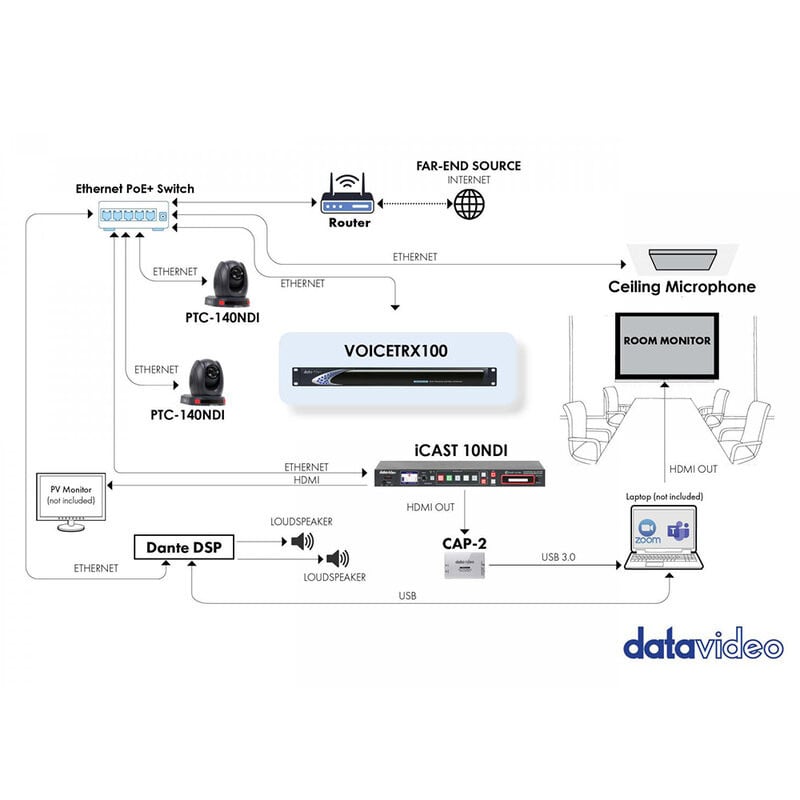

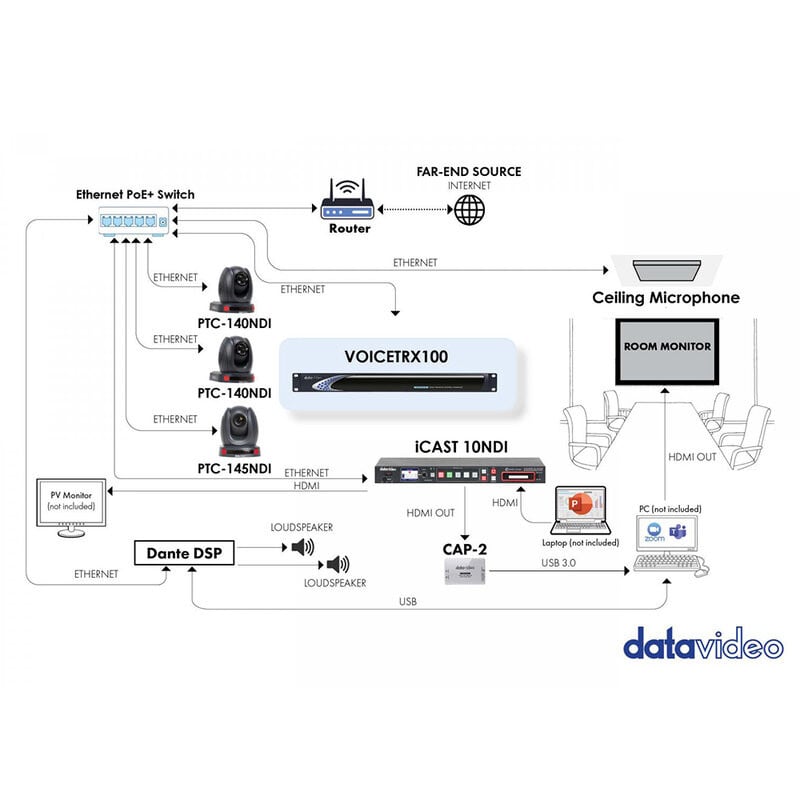

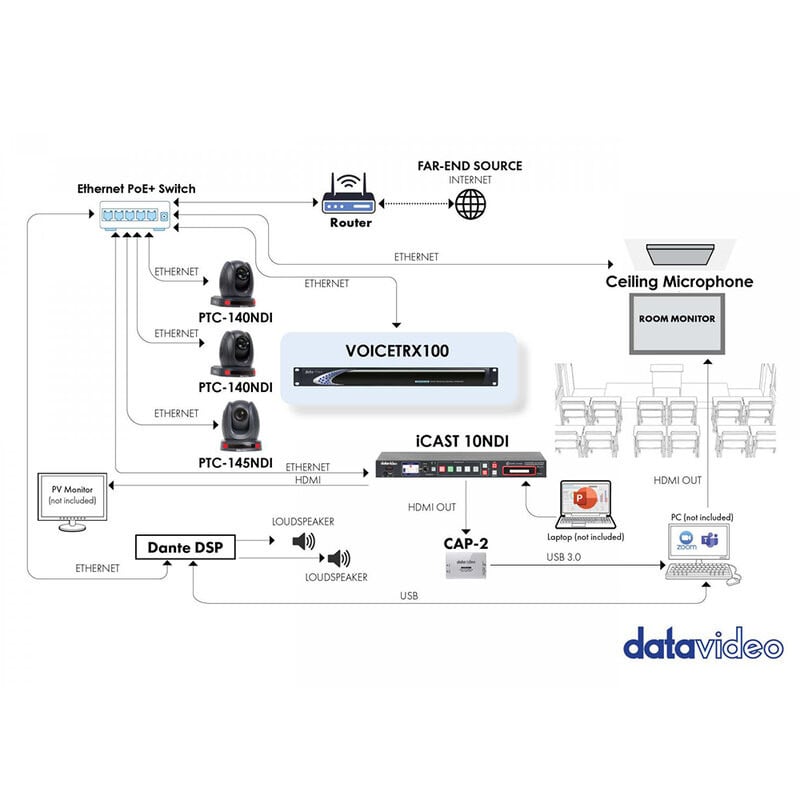

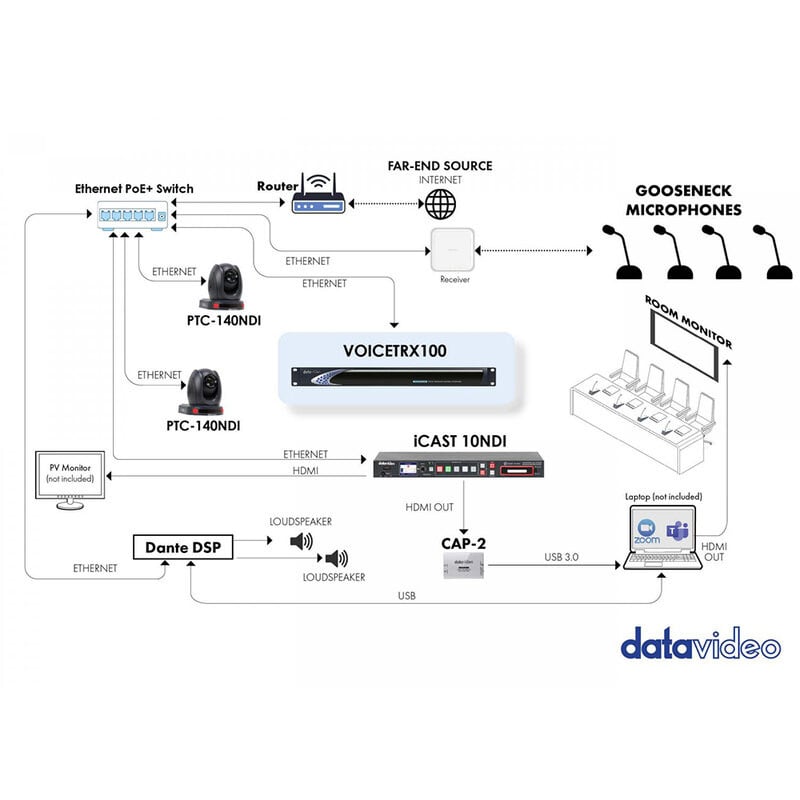

On the video side, the VoiceTRX100 offers two HDMI 2.0 outputs with resolutions up to 3840 x 2160p at 60 fps. It is compatible with switchers such as the iCast 10NDI and KMU-100+, and supports microphones from renowned brands such as Audio-Technica, Shure and Sennheiser.

User benefits

• Eliminates the need for a dedicated videographer
• Ensures professional transitions between shots
• Advanced speech recognition
• Supports various types of microphones from popular brands
• Two HDMI 2.0 outputs with resolutions up to 3840 x 2160p @ 60 fps

Areas of use

• Conferences
• Corporate meetings
• Classrooms
• City councils

Technical characteristics

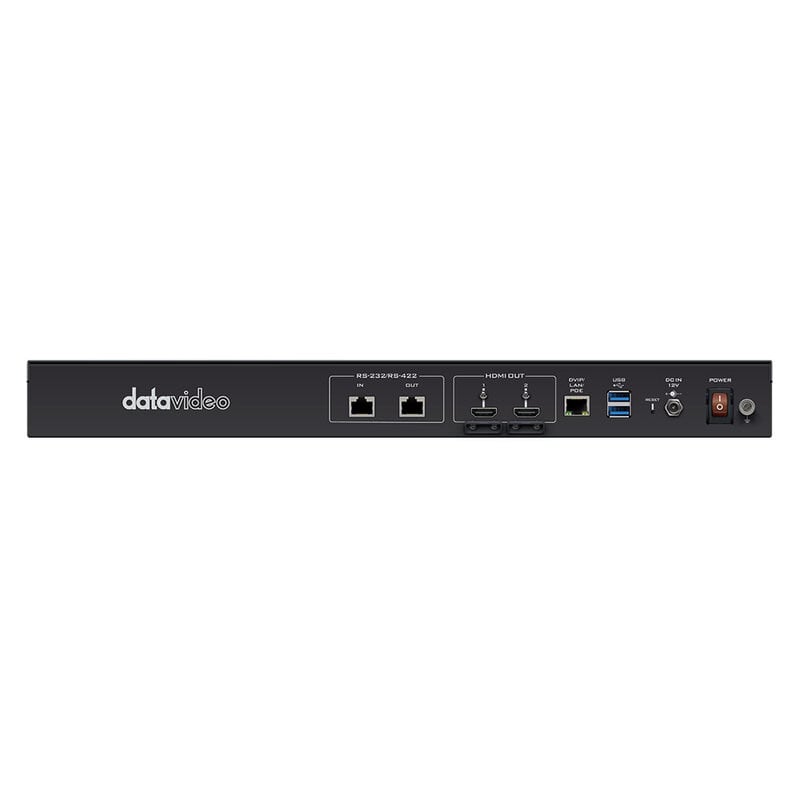

• Video output: 2 x HDMI 2.0
• Supported video output resolution: up to 3840 x 2160p @ 60
• Control: web browser UI for configuration and control
• DVIP commands
• Protocol: DVIP
• Network feature:
  • 1 x RJ-45 F. (10/100/1000M Ethernet)
  • DHCP / static IP
• POE: IEEE 802.3at, PoE+
• F/W update: automatic firmware upgrade
• Supported video switchers:
  • iCast 10NDI

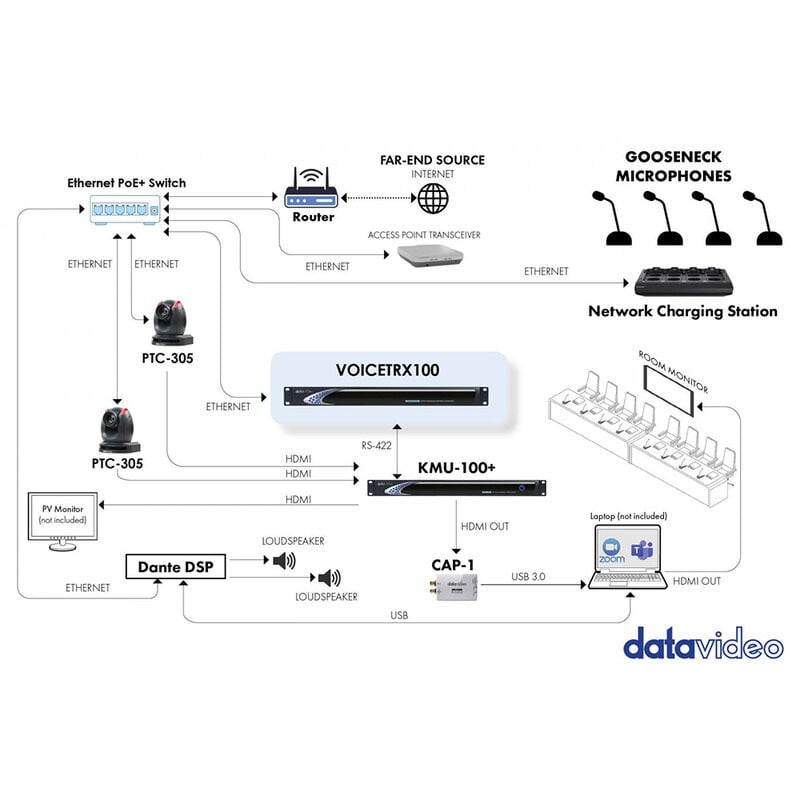

  • KMU-100+
• Supported microphones:
  • Audio-Technica ATND1061
  • Shure MXW Microflex
  • Shure MXA-910
  • Shure MXA-920
  • Sennheiser TCCM
  • Sennheiser TCC2
• Power:
  • Input 100 - 240 V_AC switching adaptor
  • Output 12 V_DC 1 A
