SKU: M04030109

PIXELHUE - Q8_Typical Package_PB21_CE (Flight Case)

Seamless presentation switcher designed for real-time 4K video processing, fully modular, pre-configured with 2 input cards + 1 output card on board, 8K ready
90,835.00 €
- 40%

54,558.00 €

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
Condition: New

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN Instruction manual (9.37MB)

NO DESC

Documentation

EN Instruction manual (9.37MB)

NO DESC

Documentation

Product Details

The Q8 presentation switcher offers incredible real-time 4K video processing power with inputs and outputs ready to support native 8K resolution. Completely modular, it has 6 input slots and 4 output slots.

In this version it comes pre-configured with 2 input cards (Q8_HDMI2.0+DP1.2+12G-SDI Input Card or Q8_ST2110_4xSFP 25G Input Card_I) and 1 output card (Q8_HDMI2.0+12G-SDI+Fiber Output Card).

Like the P10 and P20, the Q8 has two modes of operation: switcher or splicer. In switcher mode it can support 32 x 4K layers, while in splicer mode up to 64 x 4K layers. With the Link function, it is possible to share all input and output signals.

Thanks to its VPU function, the Q8 gives you the flexibility to organize the outputs as you wish and you will never have difficulty allocating output card resources.
The presence of the Dante interface allows it to also manage 64 x 64 audio channels, so combined with a console such as the U5 or U5 Pro of the same brand it becomes the ideal switcher for managing large live events with video, audio and lights.

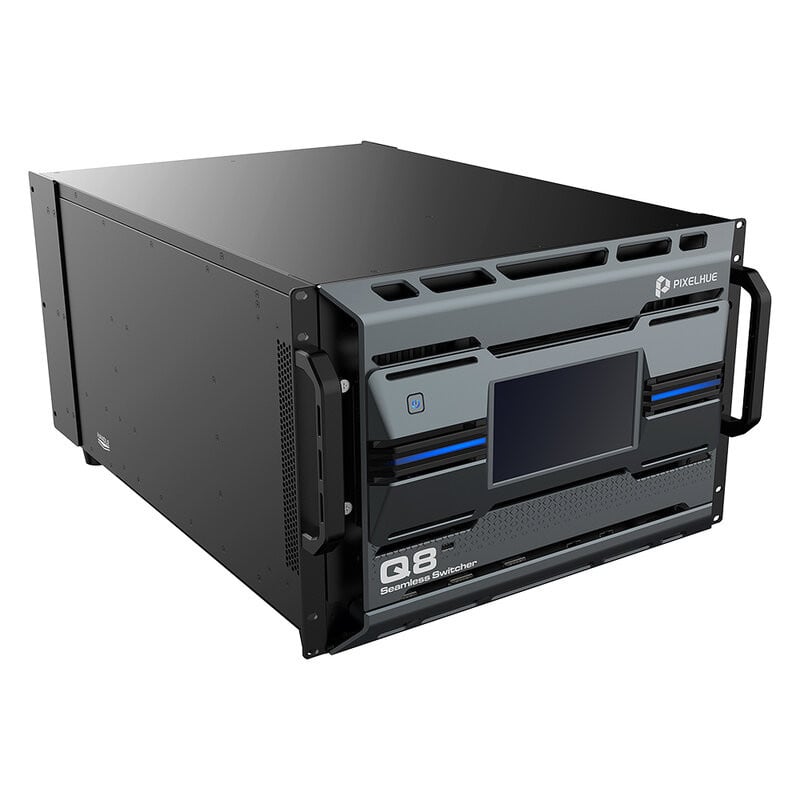

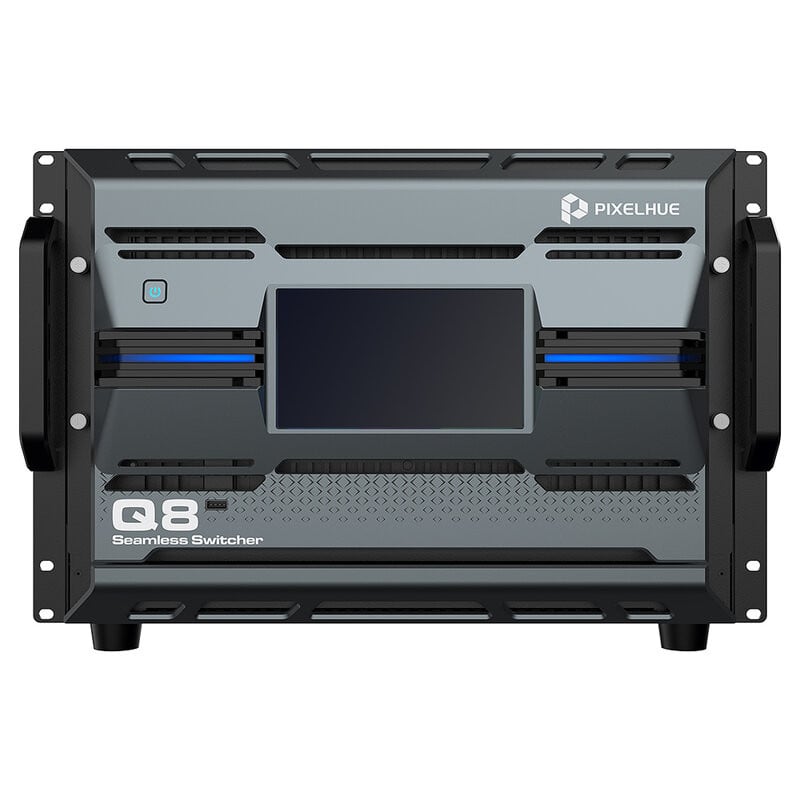

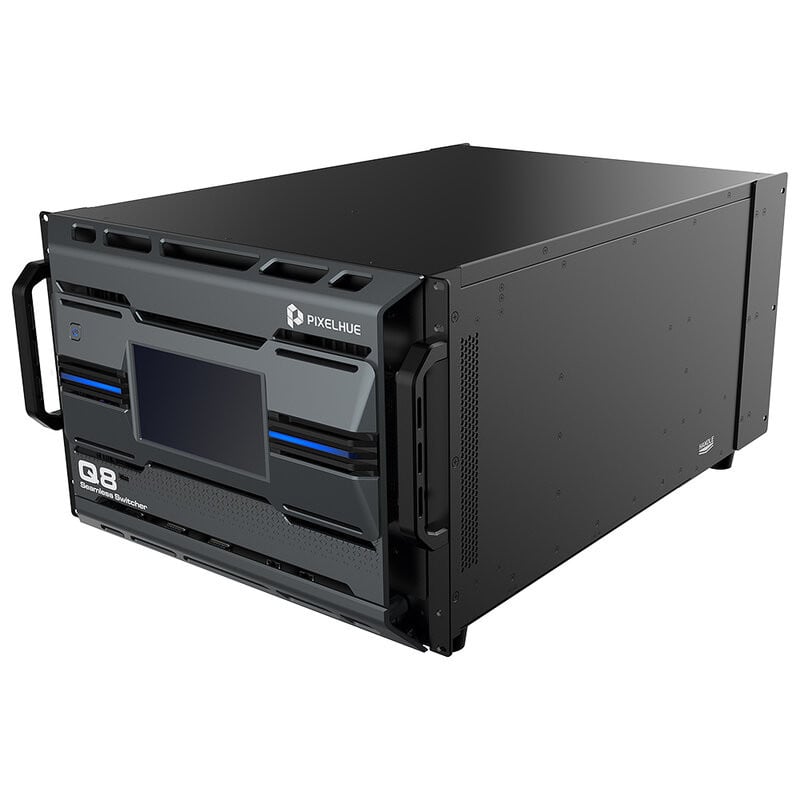

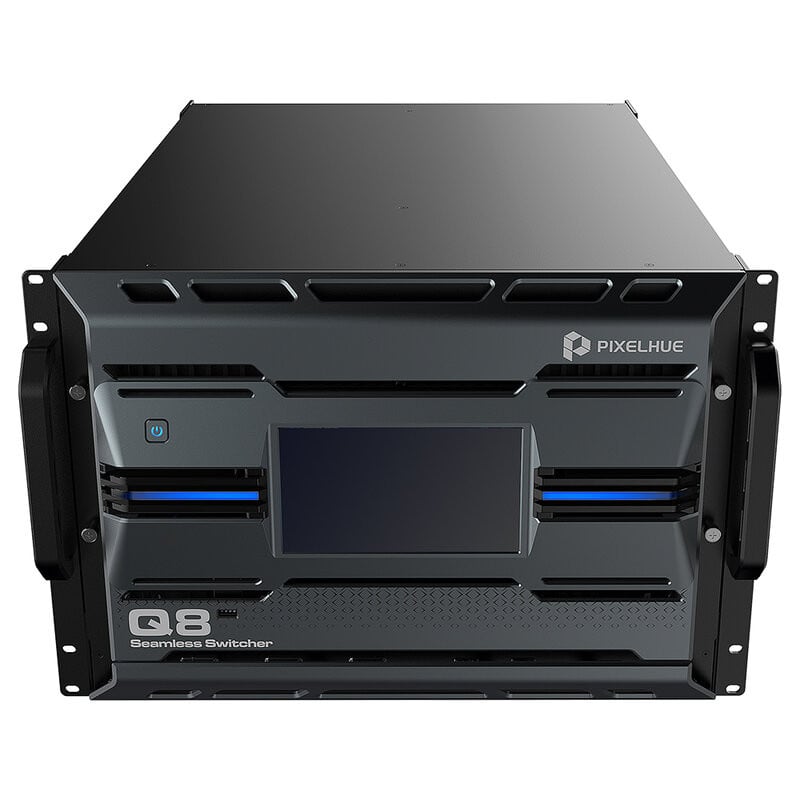

Control of the switcher is also possible thanks to an LCD touch display located in the center of the front panel.

Technical characteristics

  • 2 x input cards (Q8_HDMI2.0+DP1.2+12G-SDI Input Card or Q8_ST2110_4xSFP 25G Input Card_I)
  • 1 x output card (Q8_HDMI2.0+12G-SDI+Fiber Output Card)

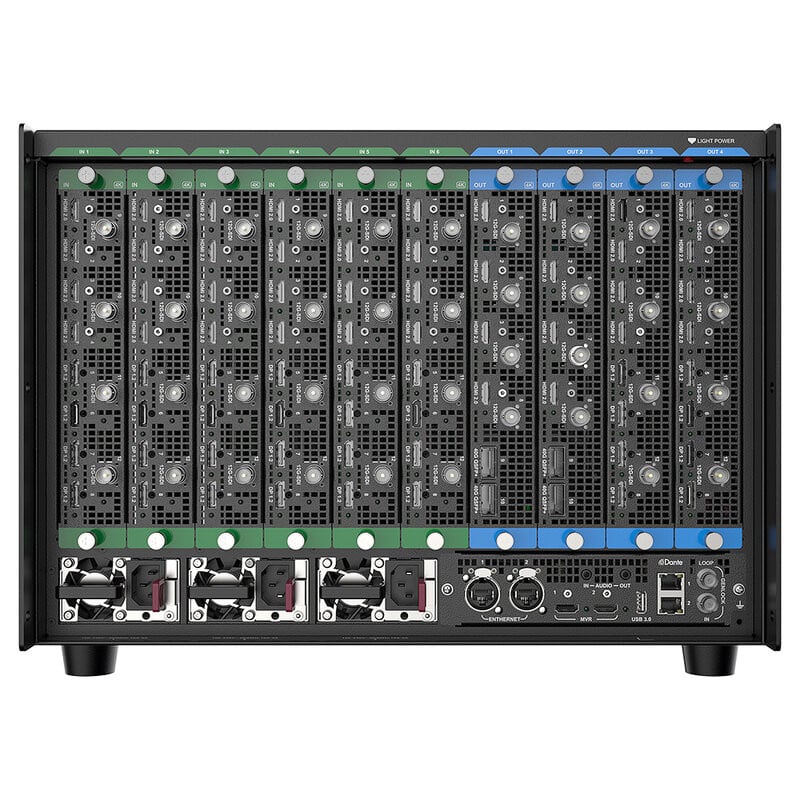

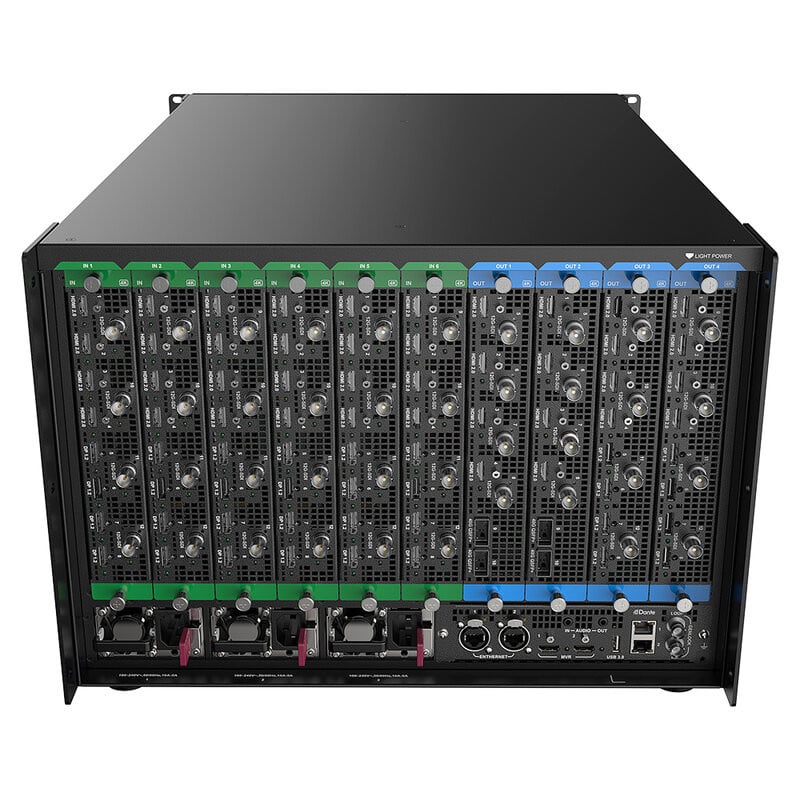

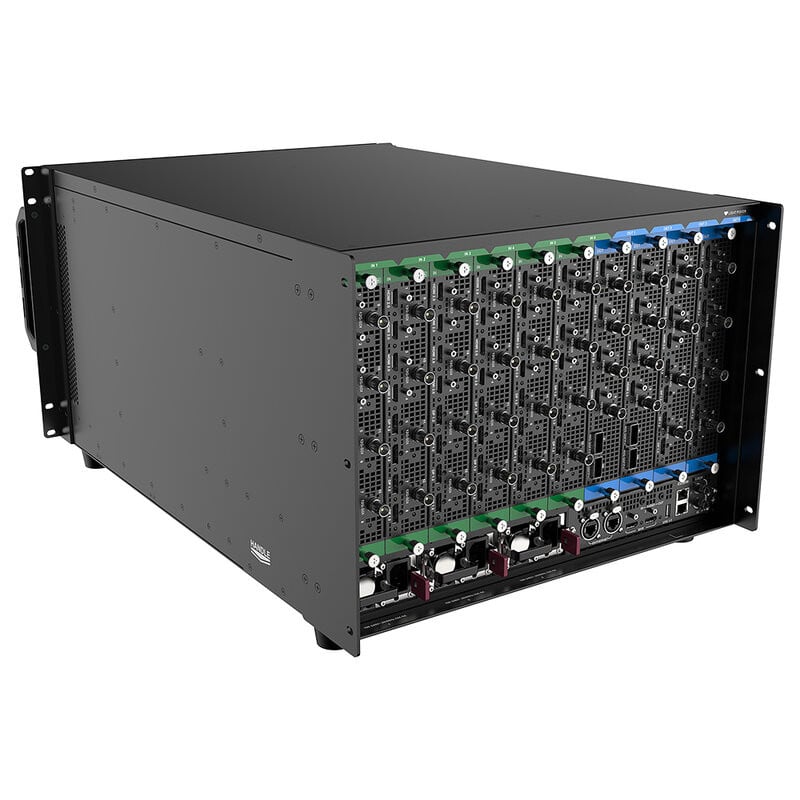

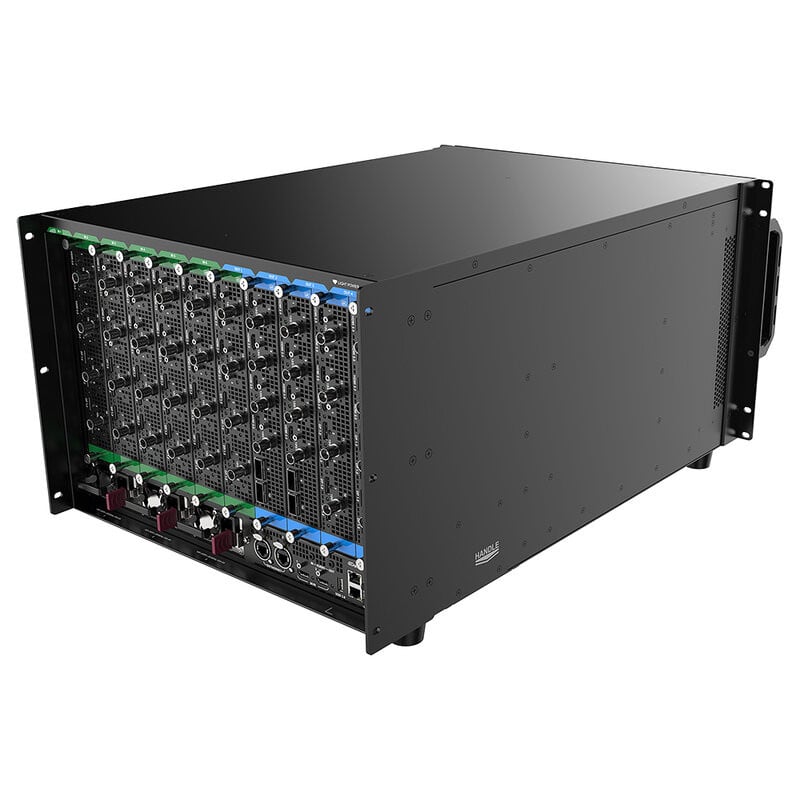

  • 6 x input cards in its largest configuration with up to 72 x 4K input connectors and up to 48 x 4K concurrent inputs; 8 x 4K concurrent inputs on each input card
  • 4 x output cards in its largest configuration with up to 48 x 4K output connectors and up to 16 x 4K concurrent outputs; 12 x 4K concurrent outputs, or 8 x 4K + optical copying outputs (for long-distance video transmission) on each output card
  • A maximum of 32 x 4K mixing layers (true seamless transitions) in switcher mode or doubled layers in splicer mode are supported
  • Multiple different connectors on each input or output card, such as HDMI 2.0, DP 1.2 and 12G-SDI
  • Built-in VPU function allows free layer resources of one output card to be used by another output card
  • Switcher and splicer working modes
  • Two Q8 devices linkable for input sharing resources and uniform output mosaic and management
  • 1 x 4K or 4 x Full HD NDI signal inputs
  • 48 kHz 64 x 64 Dante audio networking hardware and support (2023)
  • Output connector 90° rotation for the needs of LCD screen splicing for different shapes
  • Very easy to control via event controller, web GUI, front panel and Stream Deck
  • Dynamic range conversion between SDR, HDR10 and HLG
  • 7" touchscreen on the front panel, support for real-time device status monitoring
  • Device backup and input backup, seamless switching from primary to backup
  • Flight case
  • Packaging size: 53 x 41 x 101 cm
  • Weight: 83 kg
