DJPower - Smoke Ring Machine

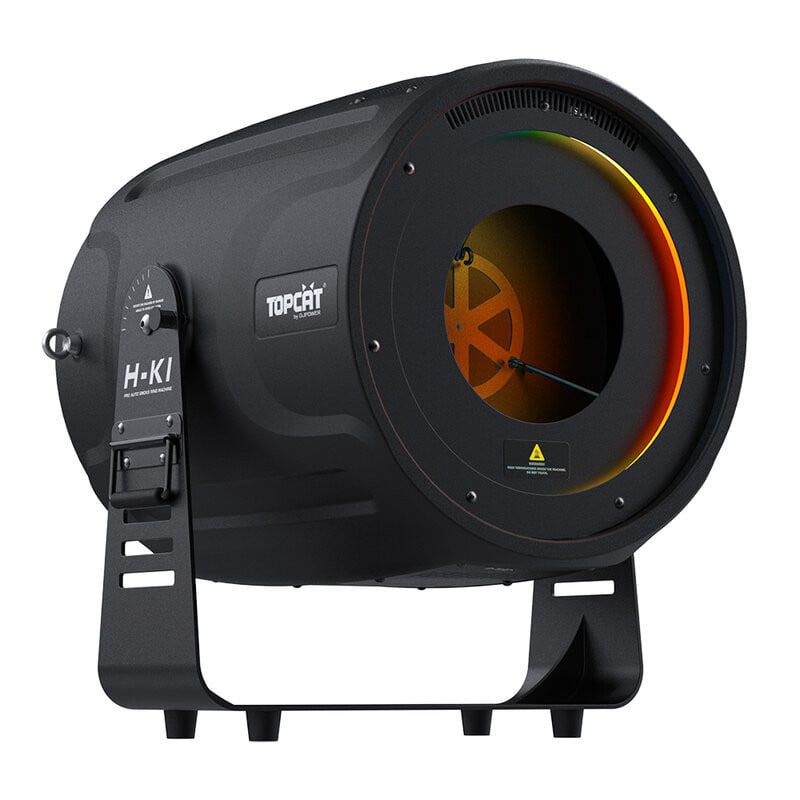

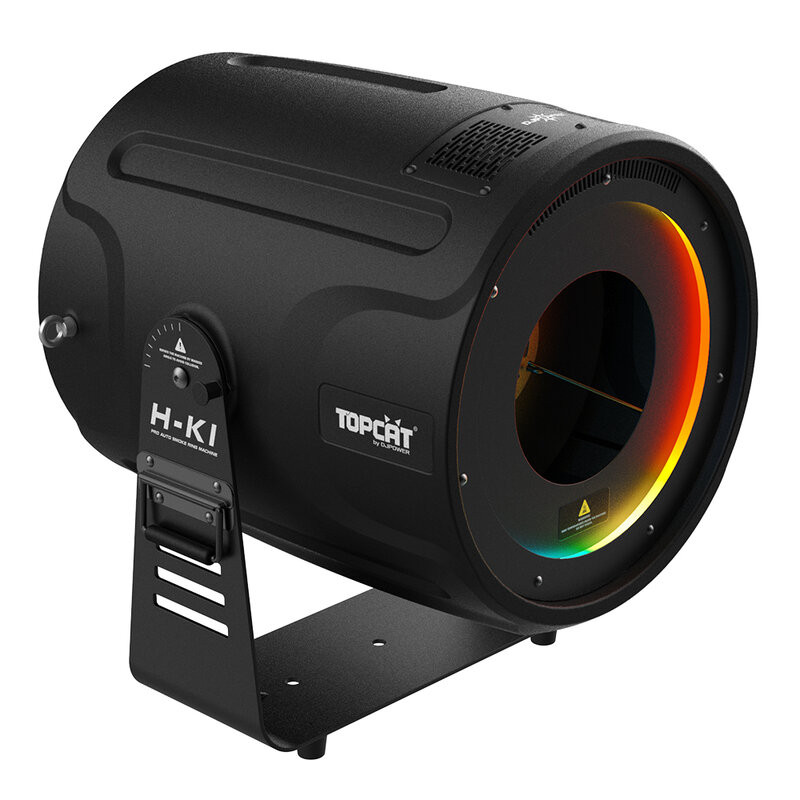

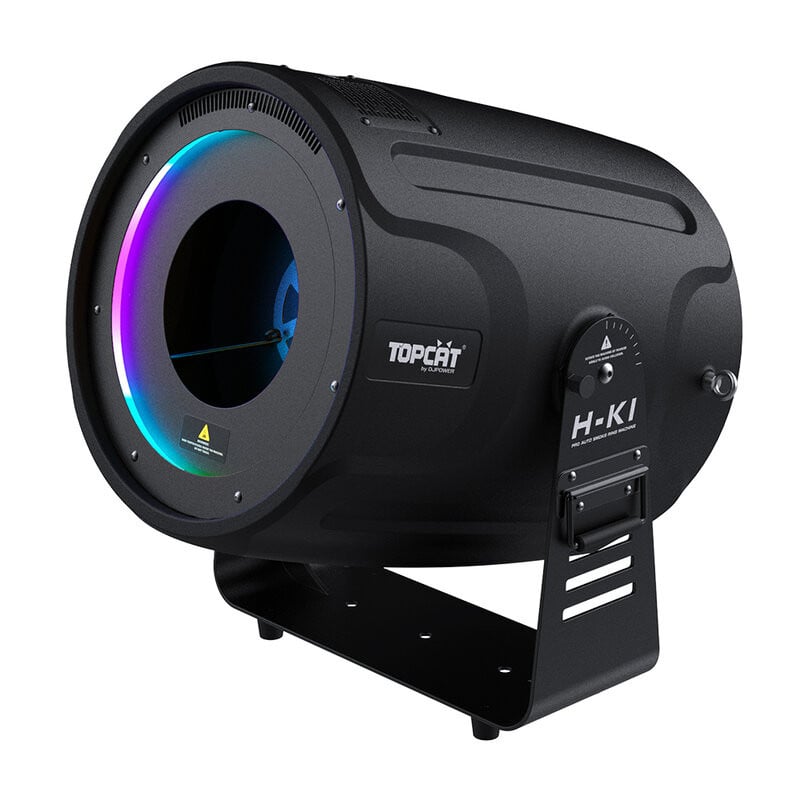

The H‑K1 is the first effects machine developed by DJ Power capable of producing smoke rings, featuring patented technology.

The high-strength composite body ensures lightness, strength, and durability, while the vortex launch system and high-power fan generate clear, dense, and long-range smoke rings, up to approximately 10 meters.

The built-in RGB LED ring allows the rings to be colored, creating dynamic, mysterious, and spectacular visual effects. The H‑K1 is designed for productions that require strong visual impact.

User benefits

• High-strength composite body, lightweight and durable
• Vortex launch system for long-distance smoke rings
• Rapid heating thanks to the high-efficiency heating system

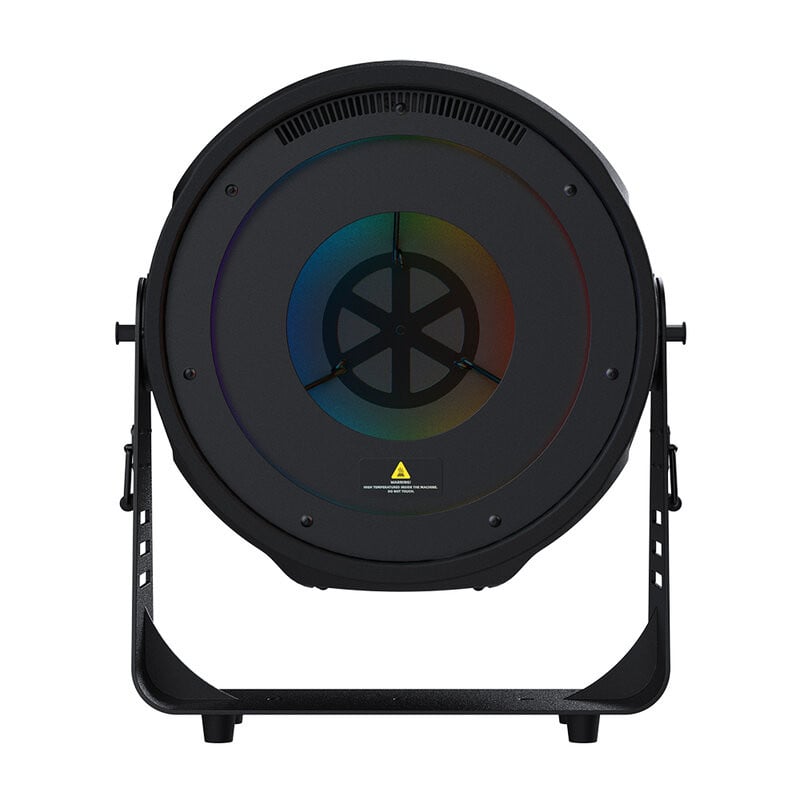

• Integrated RGB LED ring for colorful and scenic effects
• Unique effect, highly visible even in large spaces

Areas of use

• Shows
• Artistic performances
• Club, festival
• Cultural tourism projects

Technical characteristics

• Input voltage & rate: 220 - 240 V_AC 50/60 Hz
• Current limiter specifications: 8 A 250 V
• Total power consumption: 1100 W
• Heat up time: appr. 1 min 50 s
• Fluid tank capacity: 2 L
• Adjustable output: yes
• Max output distance (no wind): appr. 10 m
• Max fluid consumption rate: appr. 133 min/L
• Continuous output: yes
• Placement: horizontal, no inclined
• Placement: sidelong (do not cover the heat dissipation holes)

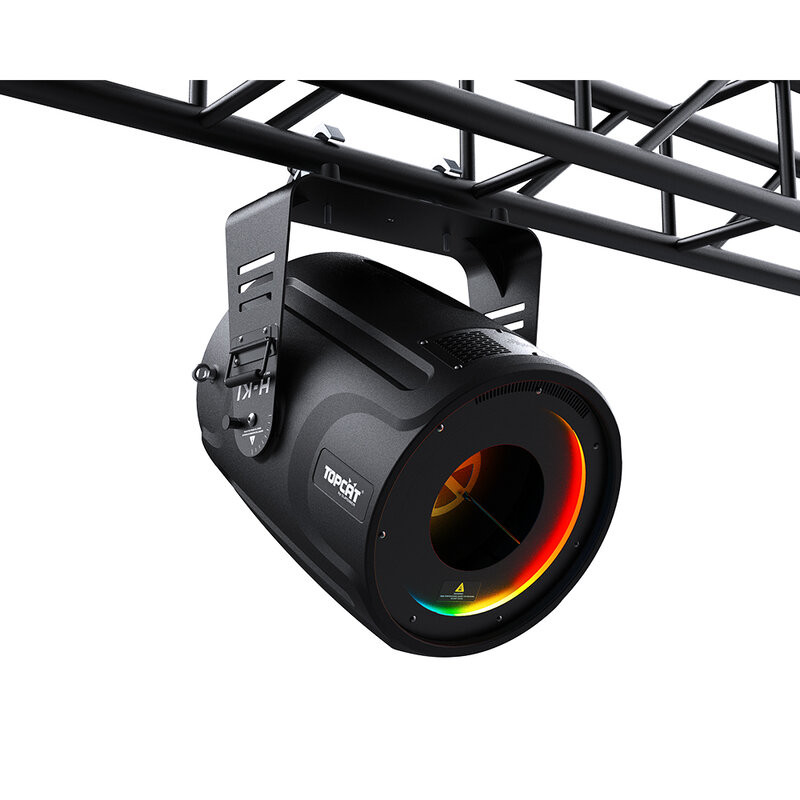

• Placement: hang upside down

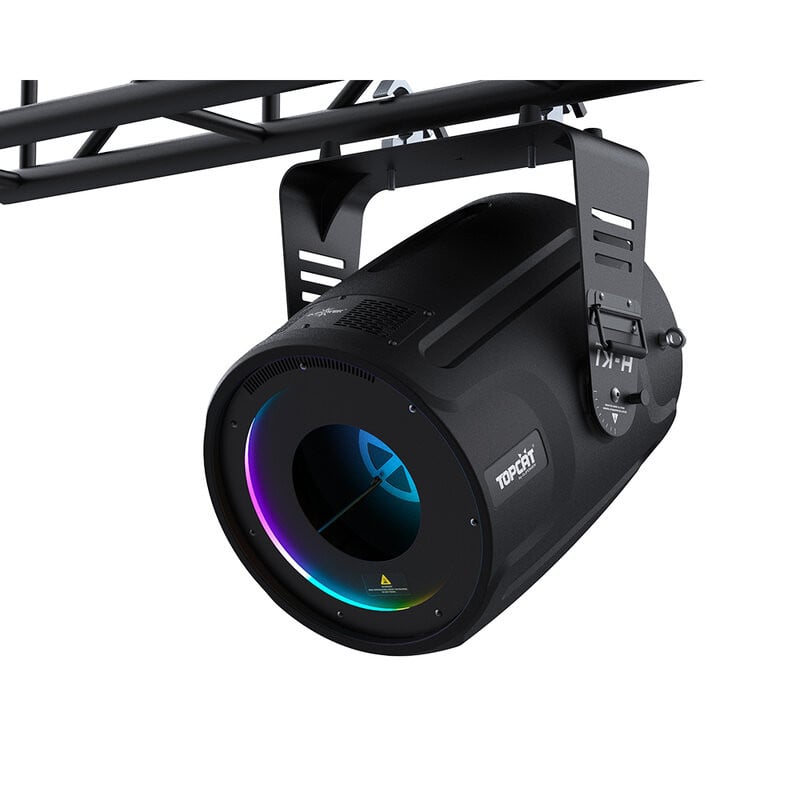

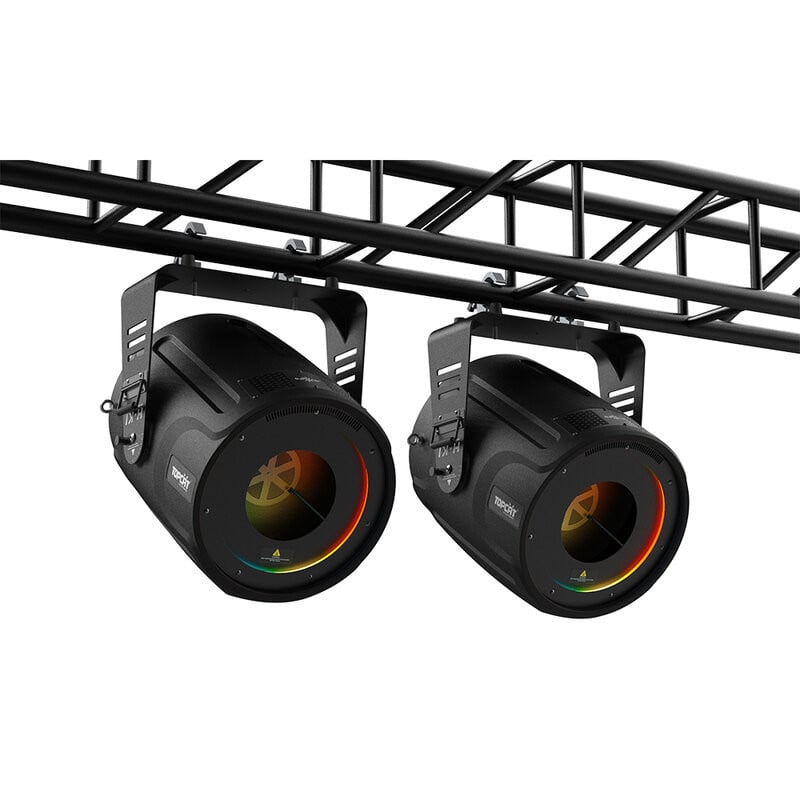

• Rigging & trussing: yes

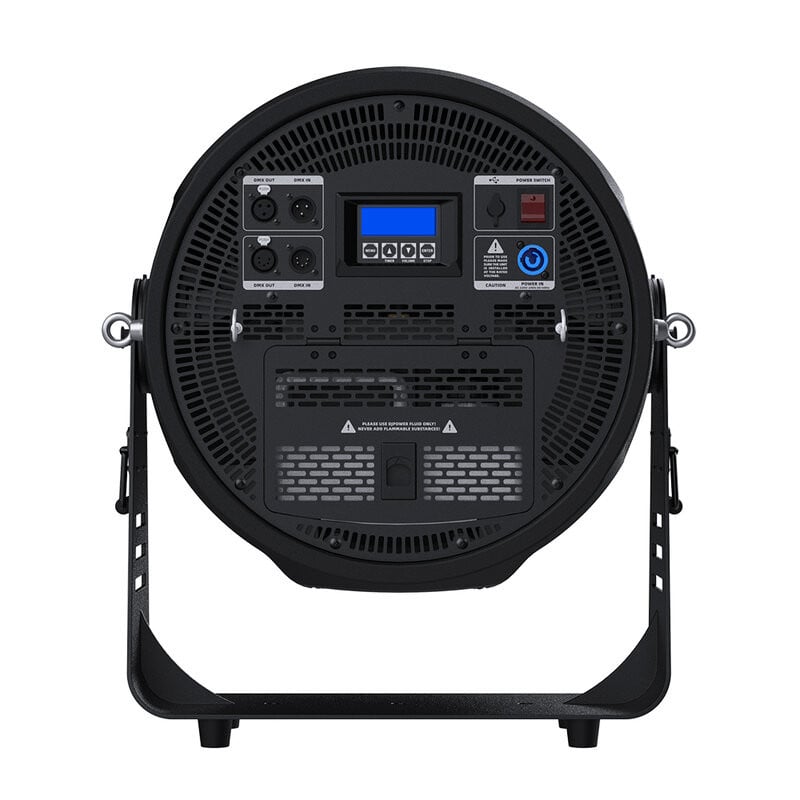

• On-device manual control: yes
• Wireless control: yes
• Wired control: yes
• Control protocol: DMX512
• DMX channel range: 3
• Consumable: PRO-C
• Dimensions: 49 × 50 × 56.2 cm
• Weight: 20.5 kg
