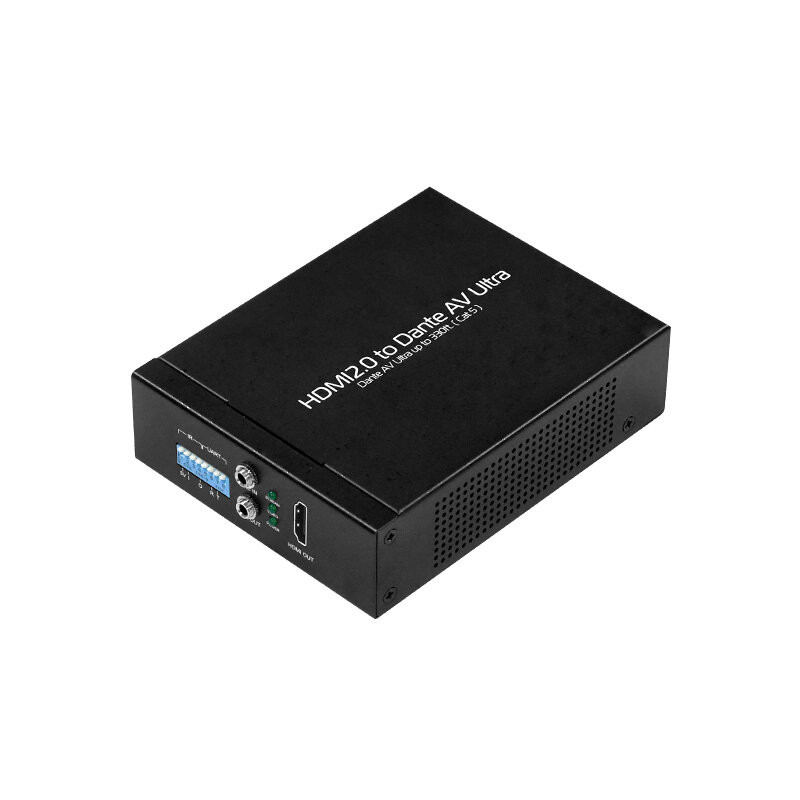

EGO Display - AVMaster-4KUltra-E

4K encoder that allows you to convert / encode HDMI 2.0 signals into signals compatible with the Dante AV Ultra protocol. This device is therefore designed to transmit high-resolution video (4K) and high-quality audio over IP networks, using the Dante AV Ultra protocol, known for its low latency and precise synchronization between audio and video. Dante AV Ultra integrates the industry standard Dante Audio into AV-over-IP products, allowing users to route audio and video independently wherever they are needed.

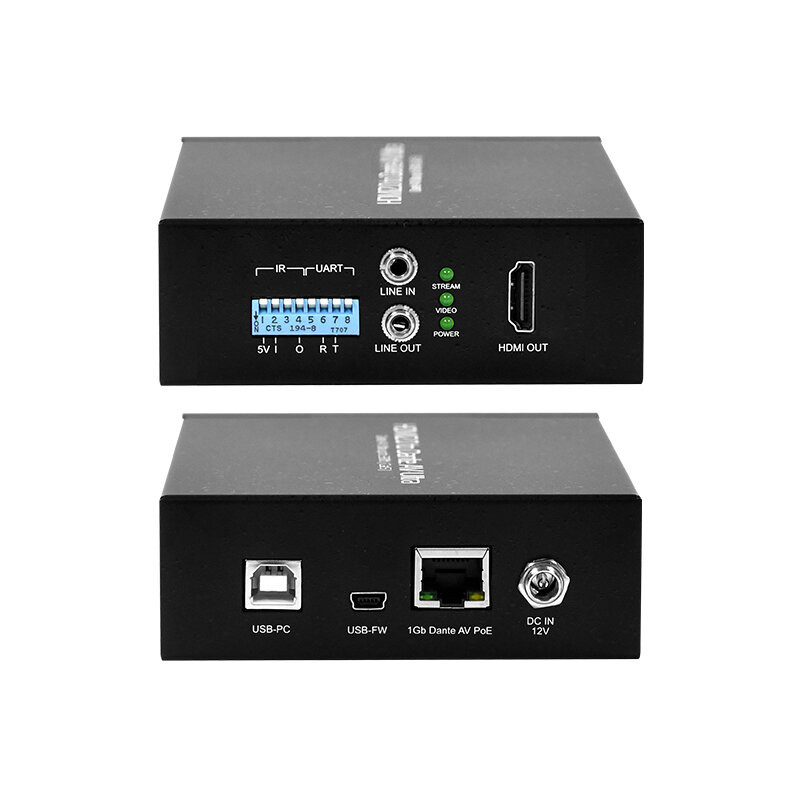

Equipped with an HDMI 2.0 video input and video output via RJ-45 for Dante AV Ultra, this encoder supports high-definition video up to 4K 60 4:4:4 with a very low latency of only 8 ms and lossless compression and audio streams up to 8 channels, 24 bit, 32 - 192 kHz. Also present is input and output for analog audio L / R on 3.5 mm mini-jack. High-precision video and audio synchronization is handled by Dante Controller software, making it ideal for permanent video/audio installations, concerts and sporting events, large exhibition halls and schools.

All Dante AV Ultra series products are compatible with the same SDK (Software Development Kit), so developers can use the same set of tools and software libraries to program and integrate the encoder, regardless of the processor architecture used (X86 or ARM). API integration via DANTE DIRECTOR software.

Instead of connecting a keyboard and mouse to the device or controlling it via RS232 / 485, the EGO Display solution provides a web-based user interface to control the entire system. There is still a USB-PC port and a second one for firmware updates.

Power is via an external 12 V_DC 2 A power supply, but also supports PoE.

Main features

• Up to 4K 60 4:4:4 resolution
• Minimal signal compression, no difference visible to the naked eye
• 8 ms latency
• 10 Gb switch required for multiple signals
• Web-based user interface
• Fully managed by Dante Controller
• PoE power or external power supply

User benefits

• Max. 4K resolution
• Seamless integration into a Dante AV network, with all the benefits that this brings
• Ability to route audio and video independently where needed
• Lossless compression and low latency
• API integration via DANTE DIRECTOR software

Areas of use

• Permanent video / audio installations
• Concerts and sporting events
• Large exhibition halls
• Education
• Corporate (video conferences and corporate presentations)
• Places of worship

Technical characteristics

Video

Network

Misc

Power
