EGO Display - EasyFLEX-P2.5corner45right

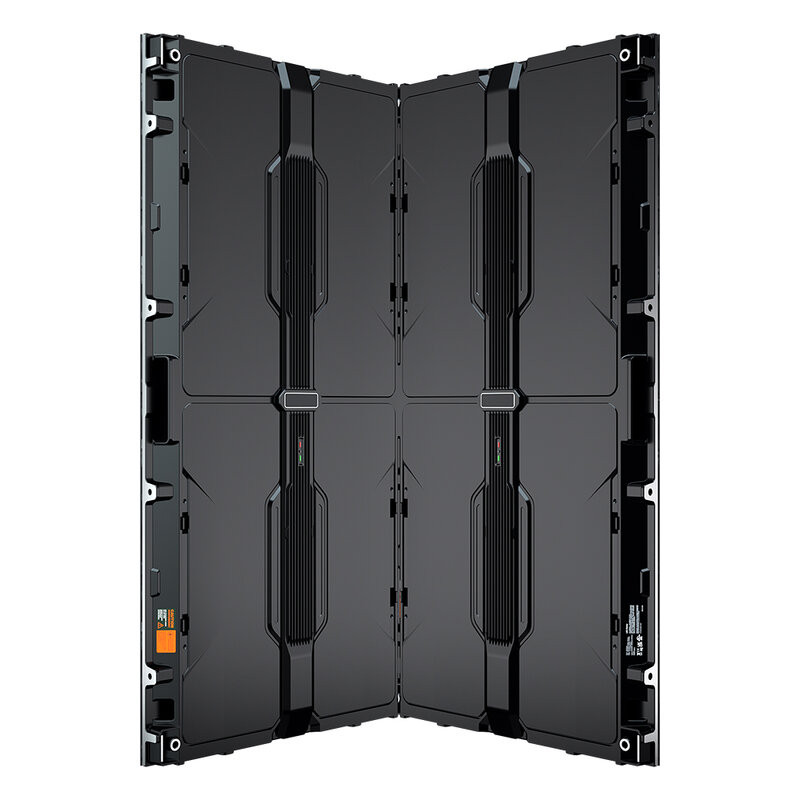

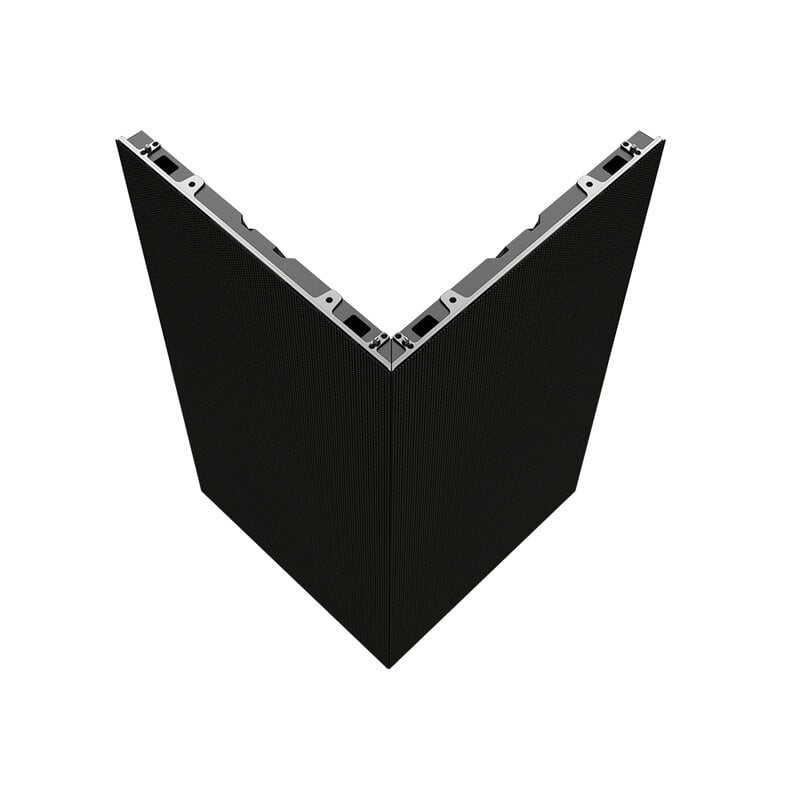

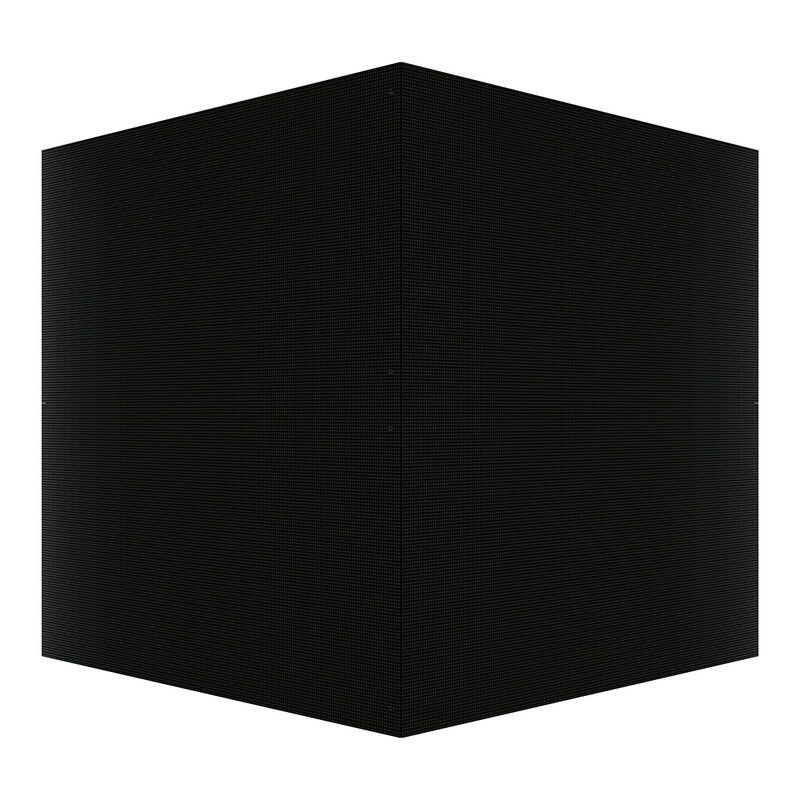

EasyFLEX P2.5-45R is an innovative P2.5 LED panel designed for professional and commercial environments. The cabinet of this particular version has a 45° right corner so that it can be joined with a similar panel to form a right angle.

Its main peculiarity is the system of cabinets and modules that can be rotated at will, allowing a flexible configuration without chromatic alterations, adapting to different installation needs, horizontal or vertical. The structure integrates a rigid connection between the modules and a compact design with a combined receiver board and HUB. The Plug-in power system simplifies installation and maintenance, while the possibility of assembly with 90° angles, as in this case, allows great versatility in configurations.

The display supports front maintenance, facilitating rapid interventions and reducing downtime. Dust protection guarantees greater durability over time, maintaining optimal performance even in demanding environments. Perfect for conference rooms, control centers and broadcasts, EasyFLEX P2.5-45R combines aesthetics and functionality to offer a reliable and cutting-edge solution.

User benefits

• Allows you to create a 90° angle
• Rotatable modules and cabinets for flexible configuration (up to 20 mixed splicing sizes)
• Rigid connection between modules for improved signal stability, quick disassembly
• No cables inside the cabinet
• Compact design with combined receiver board and HUB
• Plug-in power supply system
• Simple front and rear maintenance
• Dust protection for longer life
• Semi-outdoor high-brightness option (up to 3500 nits)

Areas of use

• Shopping malls
• Airports
• Subways
• Exhibitions
• Broadcasting

Technical characteristics

• Pixel pitch: 2.5 mm
• LED Type: 3-in-1 SMD
• Cabinet resolution (W x H): 200 x 400
• Maintenance: full front maintenance
• Protection: IP30
• Cabinet material: die-casting aluminum
• White balance brightness: 800 cd/m²
• Viewing angle (H / V): 160° / 160°
• Contrast ratio: 5000:1
• Max. power consumption: 450 W/m²
• Typical power consumption: 150 W/m²
• Processing depth: 14 bit
• Refresh rate: ≥ 3840Hz
• Standard mounting configuration: fixed / floor-mounted / hanging
• Corner shape
• Input voltage: 100 - 240 V_AC
• Operating temperature / humidity: -10 to 45 ℃ / 10 to 80% RH
• Storage temperature / humidity: -20 to 55 ℃ / 10 to 85% RH
• Cabinet dimensions: 500 x 1000 mm
• Weight: 9.7 kg
