EGO Display - EasyHP-P1.8

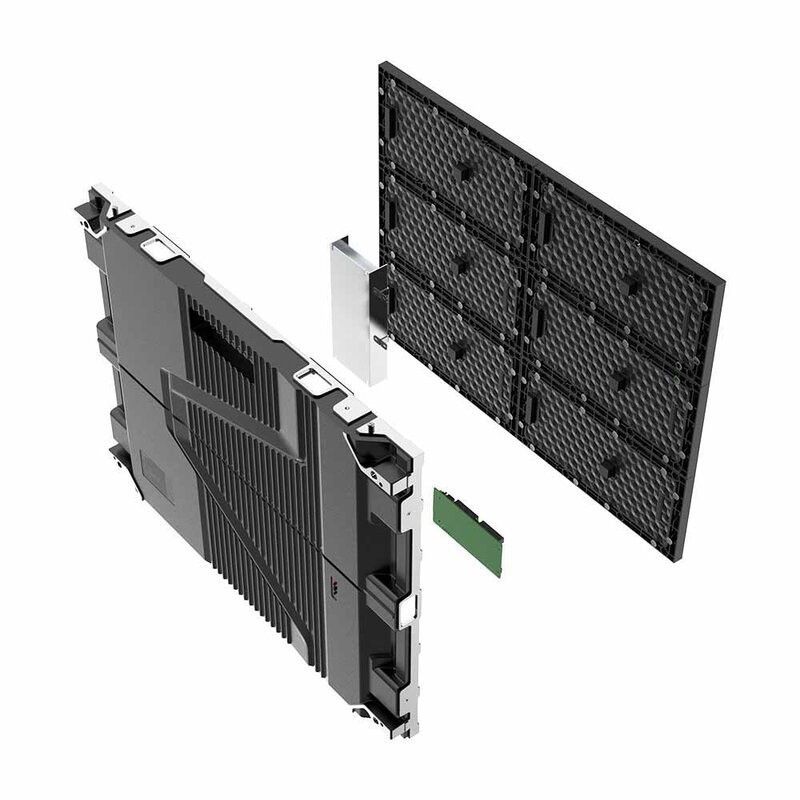

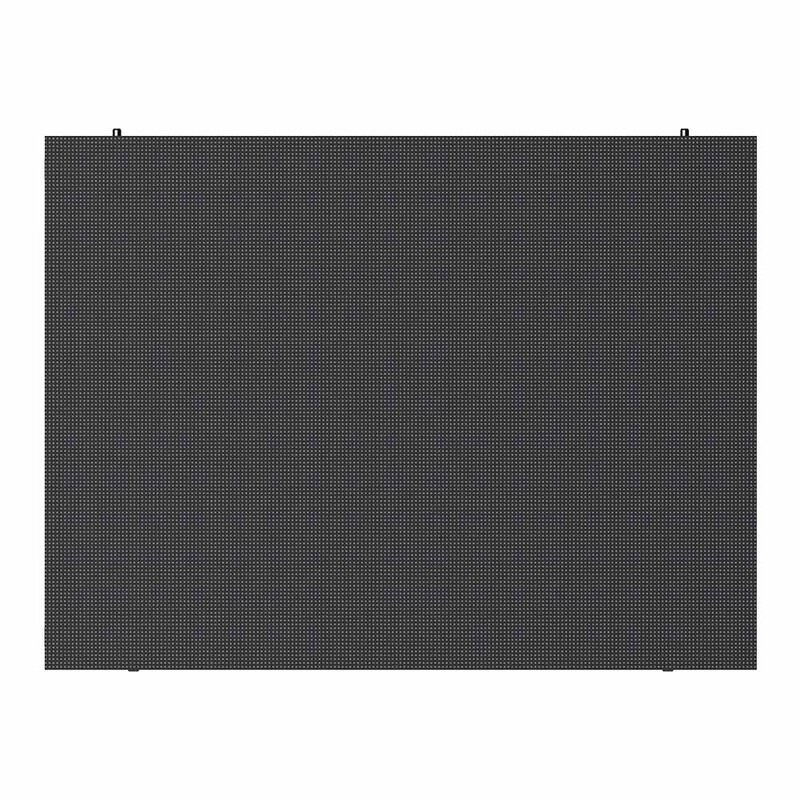

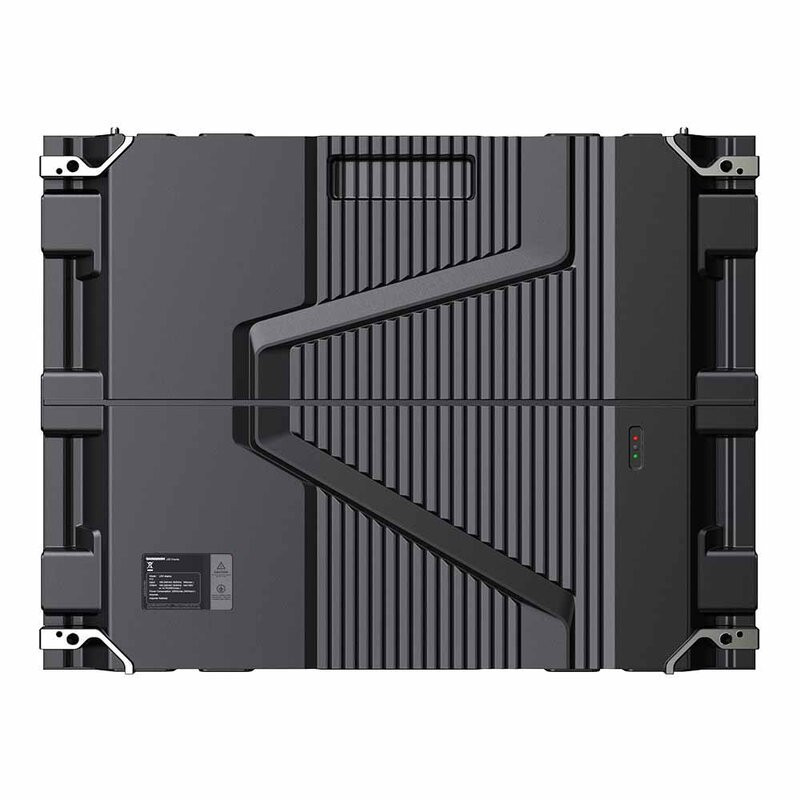

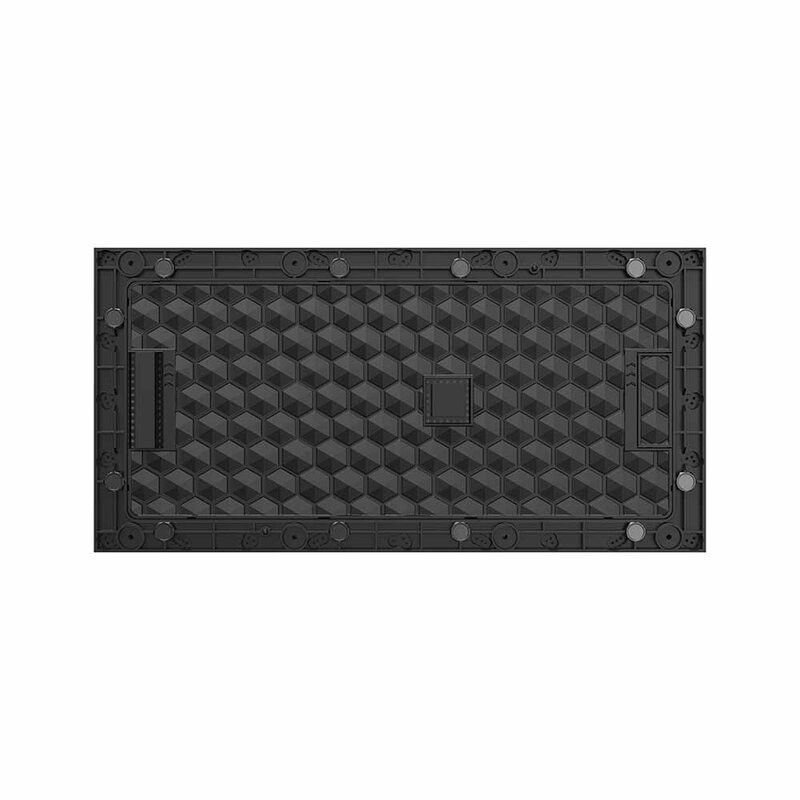

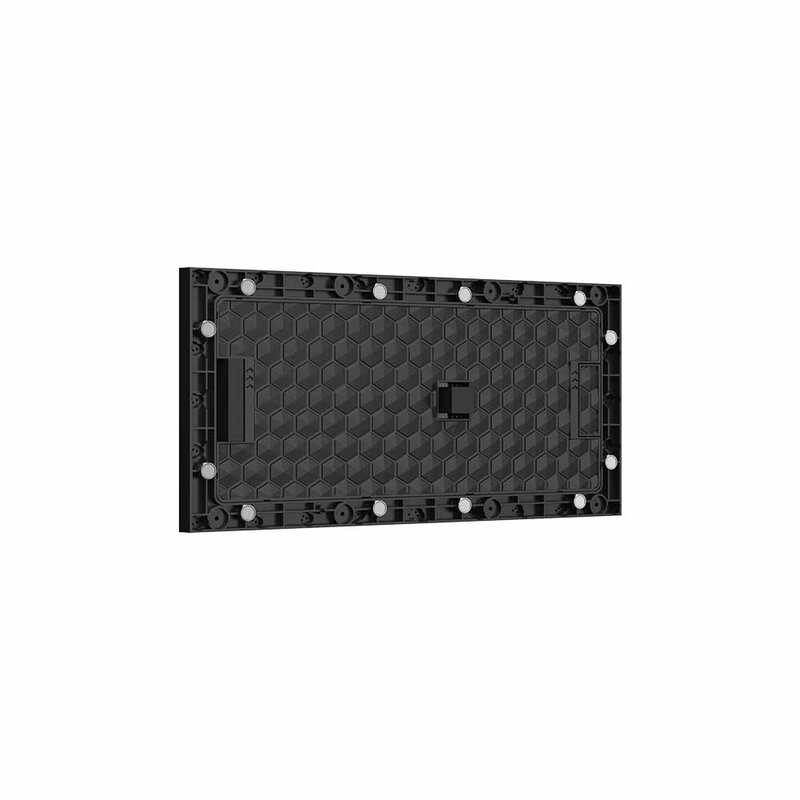

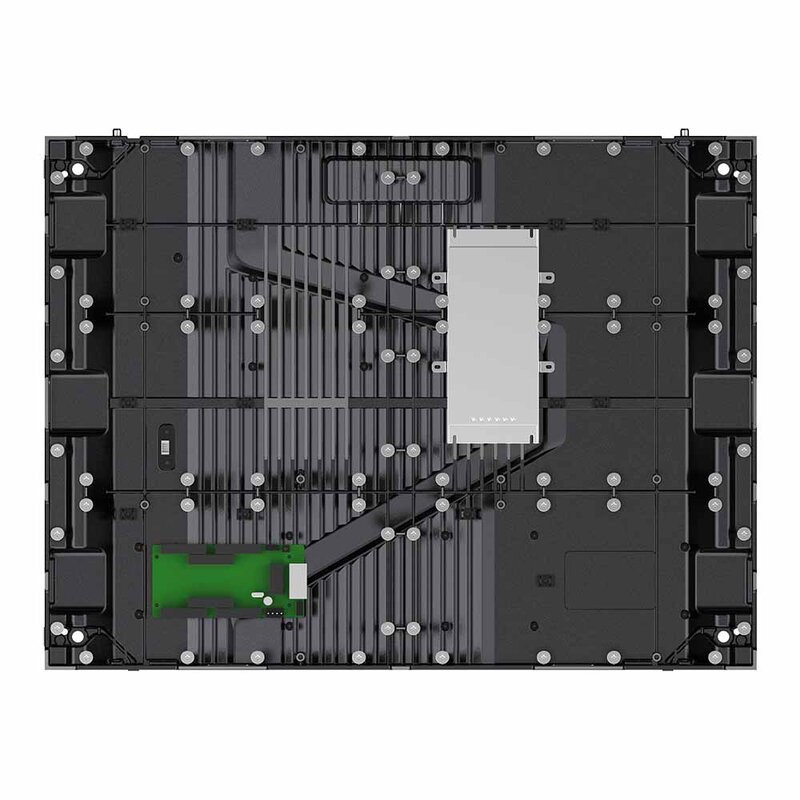

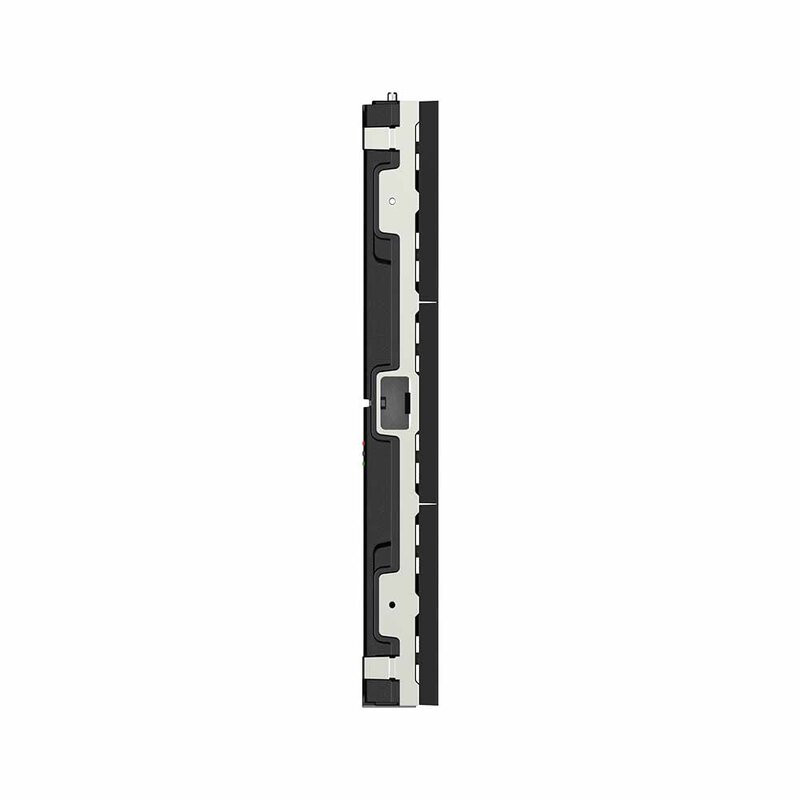

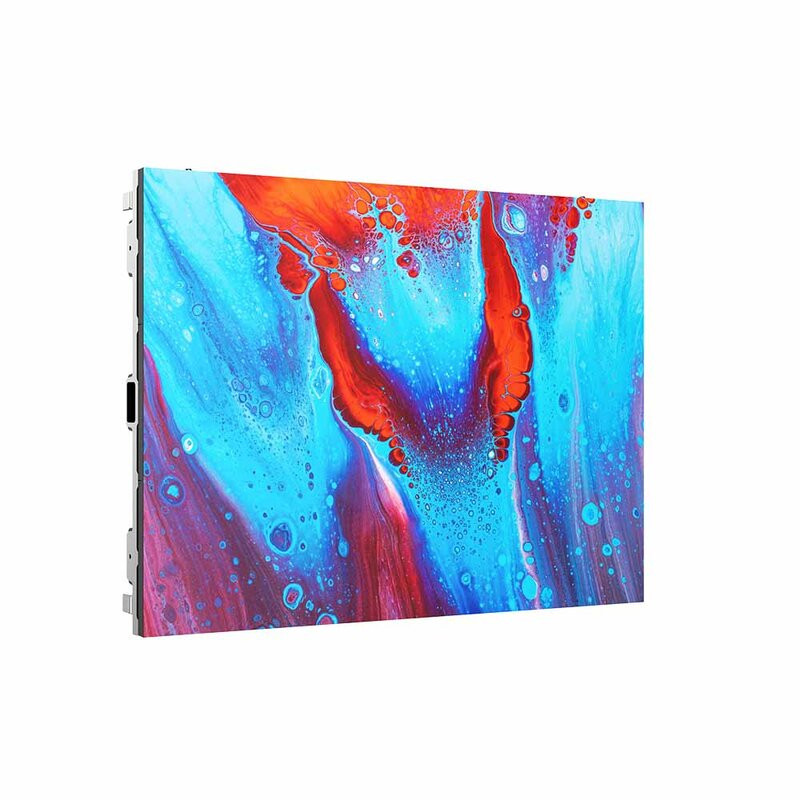

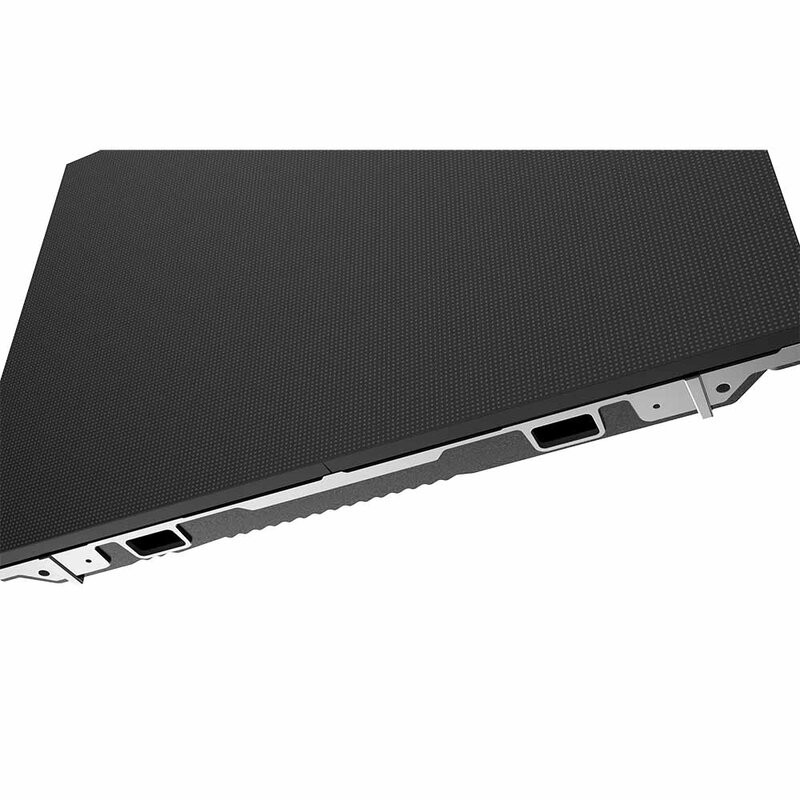

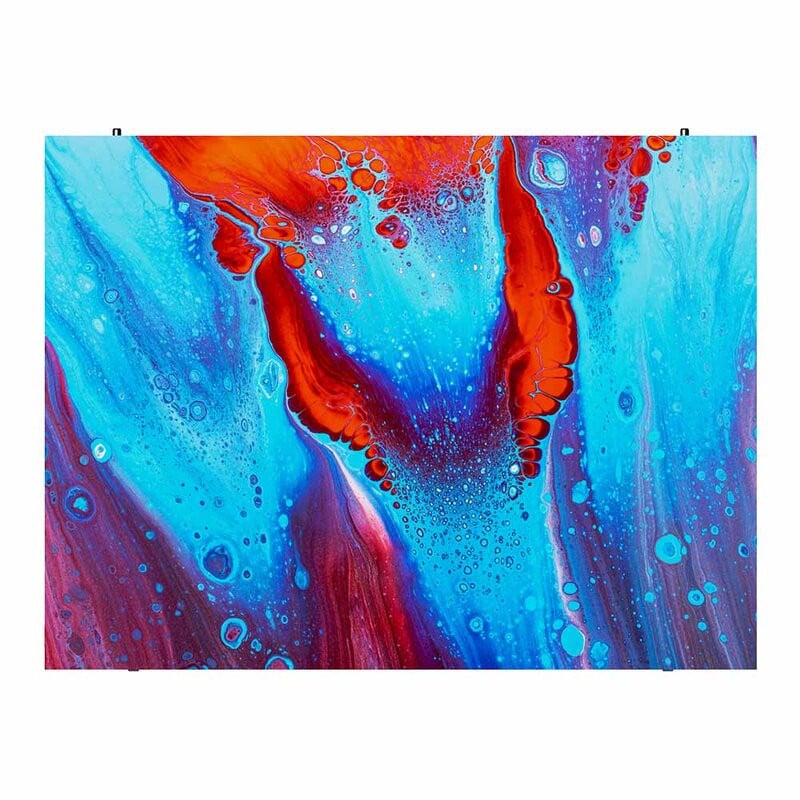

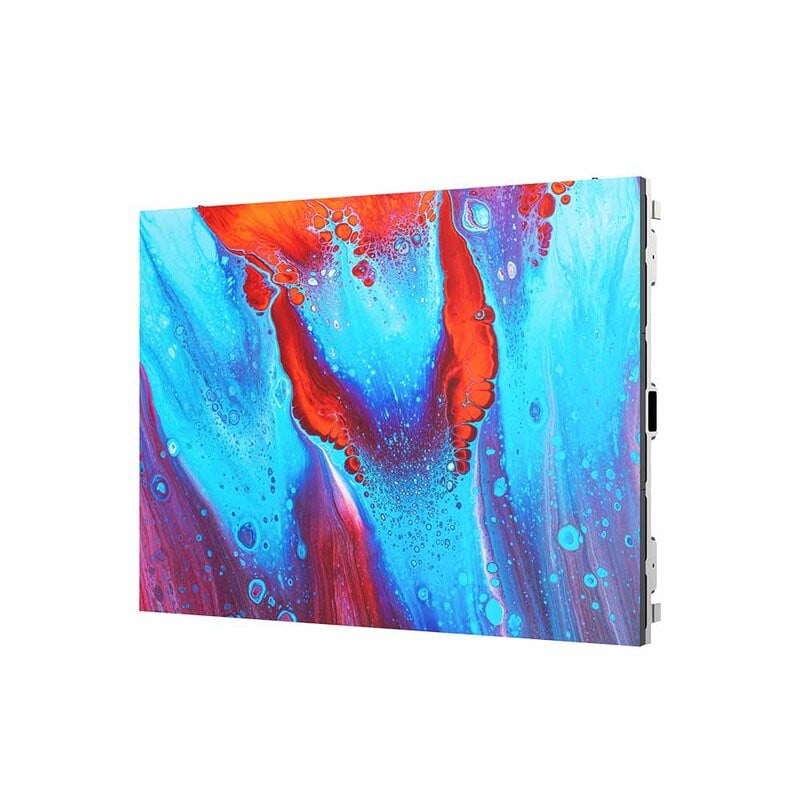

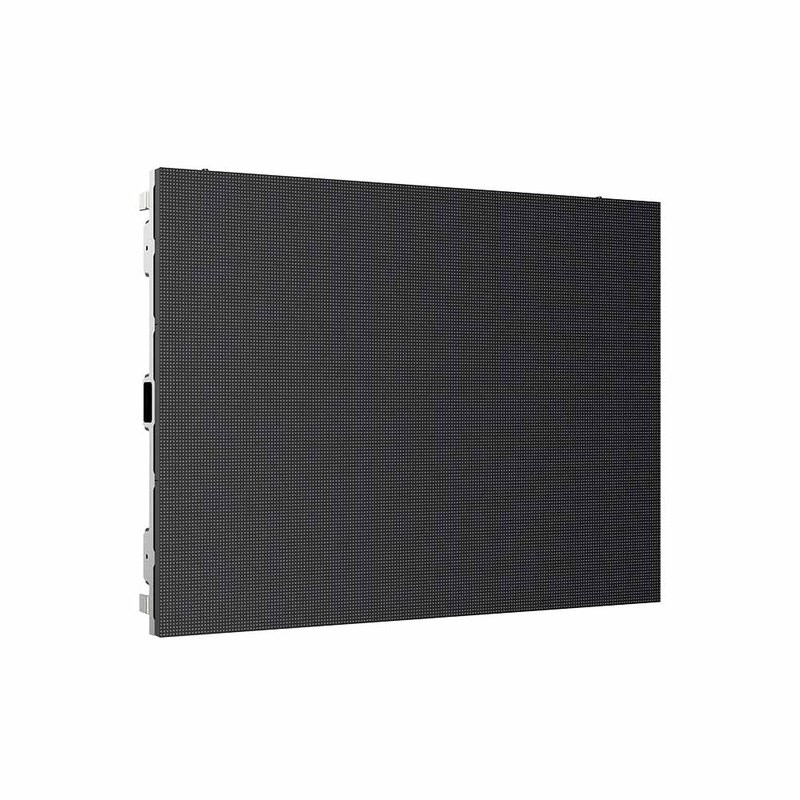

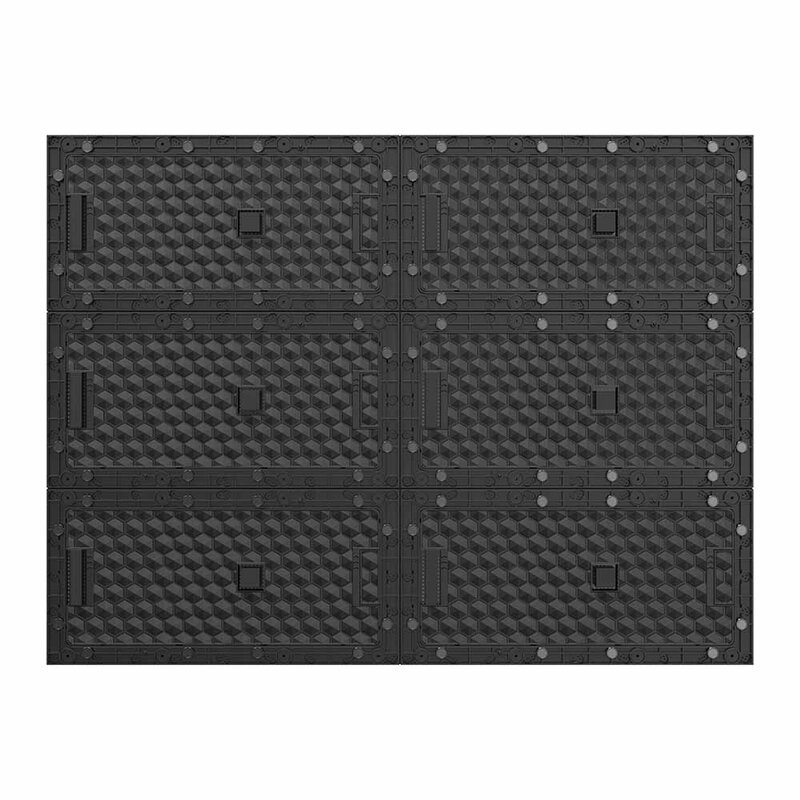

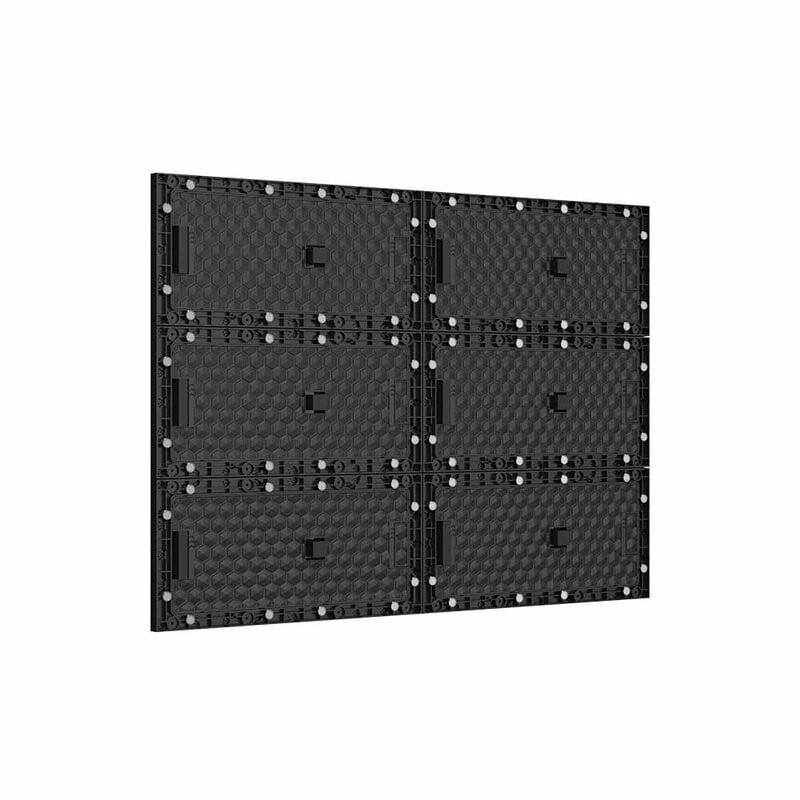

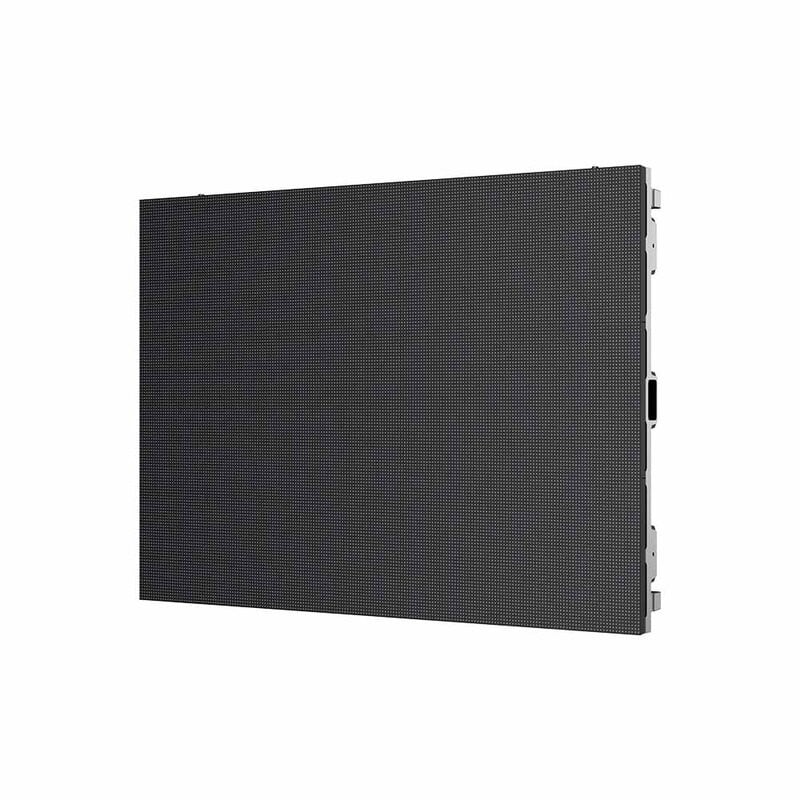

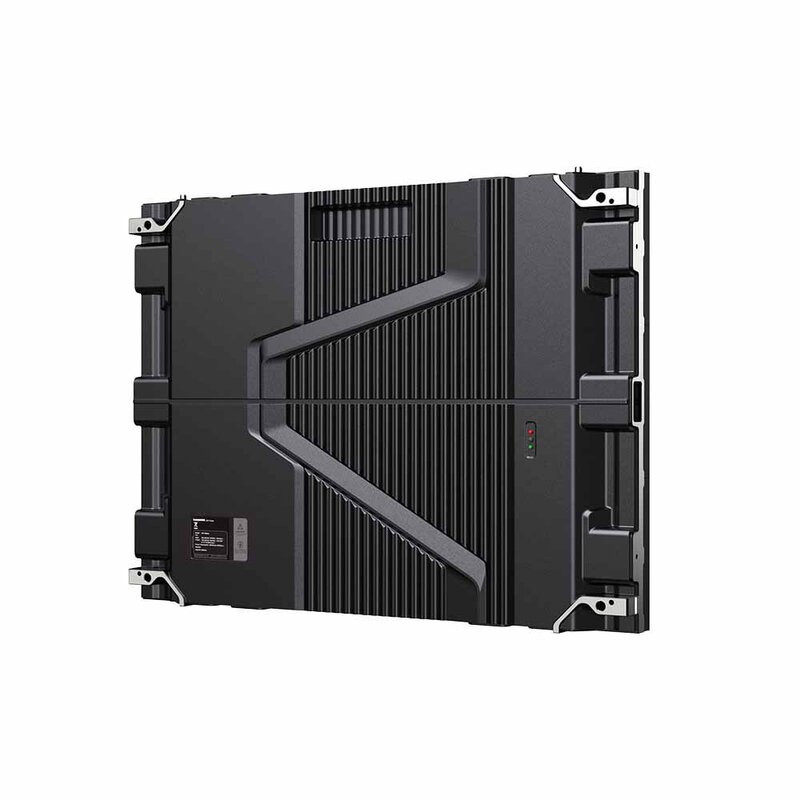

The EASYHP-P1.8 is an indoor LED panel with a 1.86 mm pitch (IP30 front protection rating) that offers a balance between visual quality and versatility, with a resolution of 344 x 258 pixels per cabinet. The cabinet measures 640 x 480 x 61.5 mm and weighs 7.8 kg, making it relatively light for its size and easy to install. It features six modules without physical evidence, which are easier to align because they allow the magnets to slide slightly over the metal.

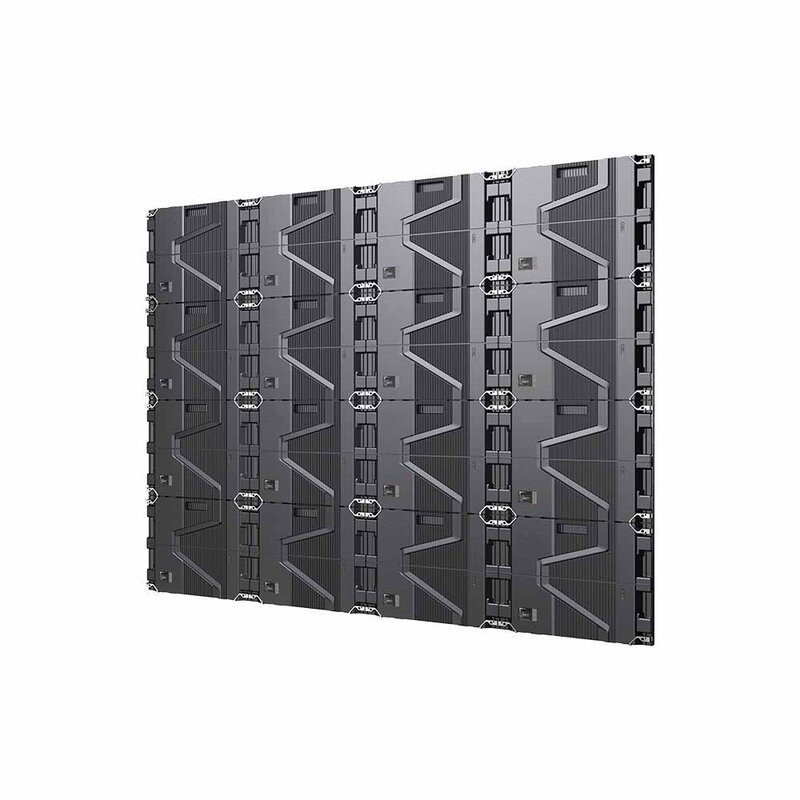

The aspect ratio is a native 4:3, but when scaled to larger sizes, it's easy to achieve a 16:9 ratio: for example, with six horizontal x four vertical modules.

The EASYHP-P1.8 uses 1515 SMD LEDs, with a maximum brightness of 600 nits and a contrast ratio of 5000:1, ensuring vivid colors. The 12 - 14 bit grayscale and 4200 Hz refresh rate contribute to excellent visual fluidity, reducing flickering and improving image quality.

Energy efficiency is another strong point, with a maximum consumption of 420 W/m2 and an average of 140 W/m2, supported by an advanced heat dissipation system. This unique energy conservation technology reduces power consumption by 30%, improving system stability and longevity.

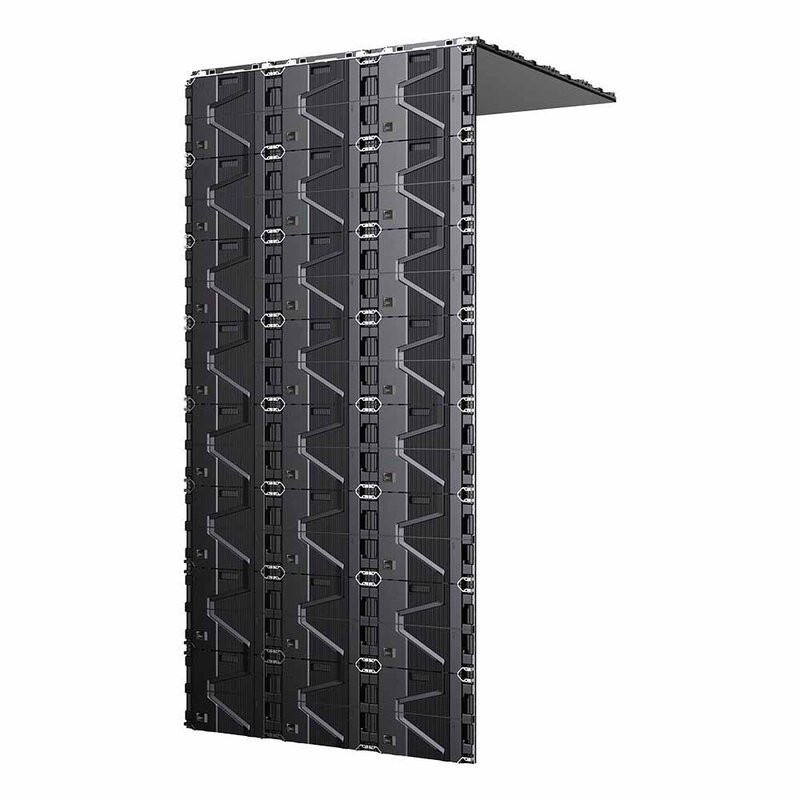

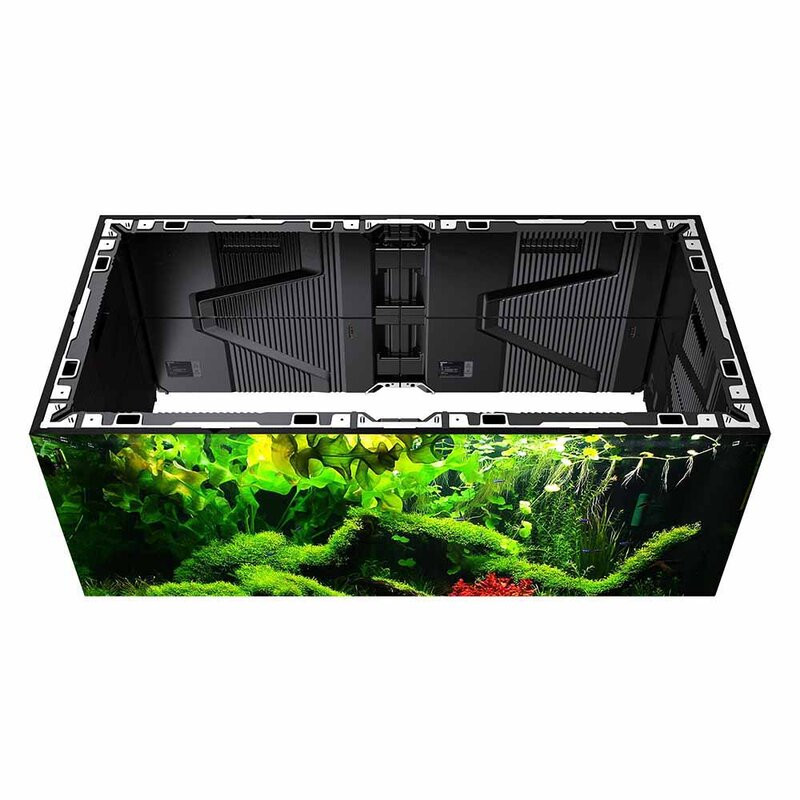

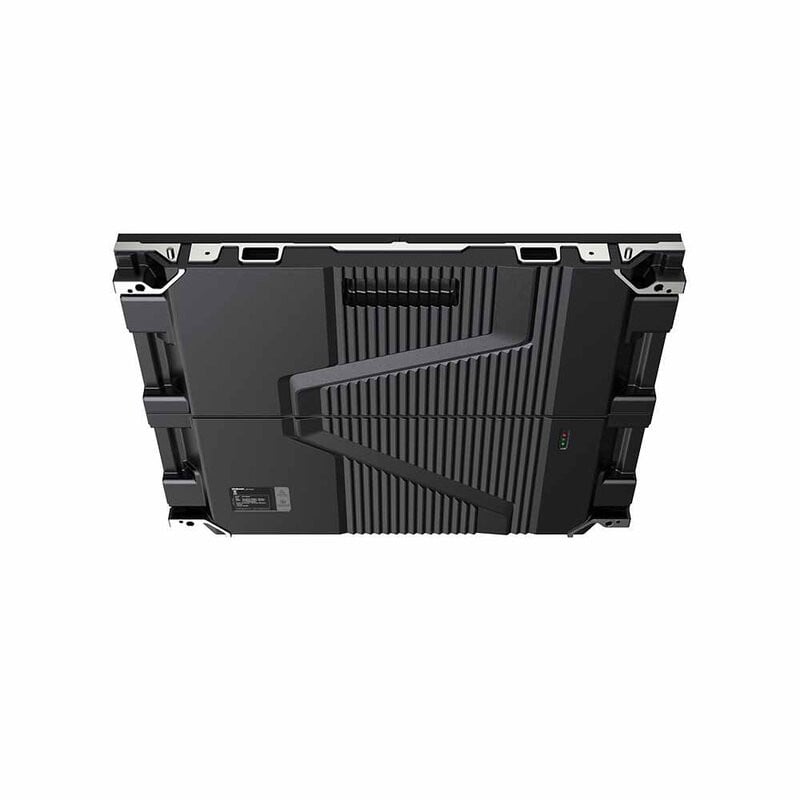

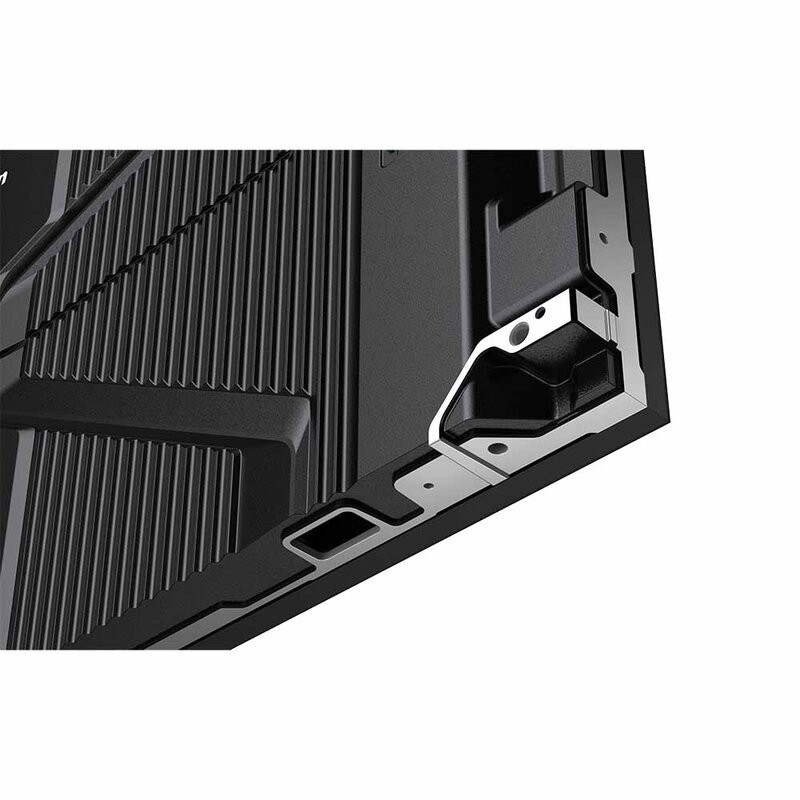

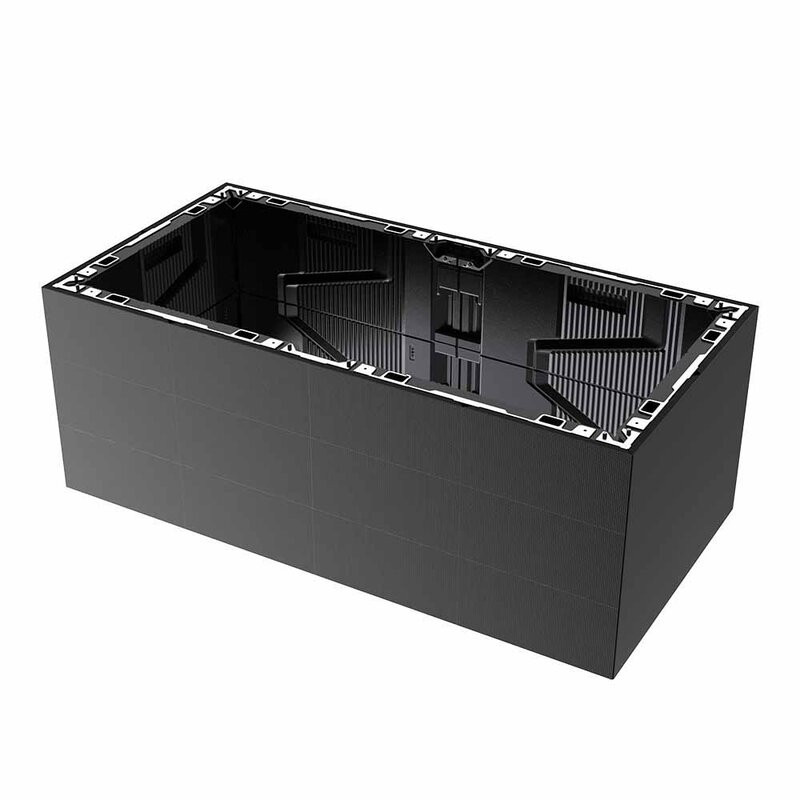

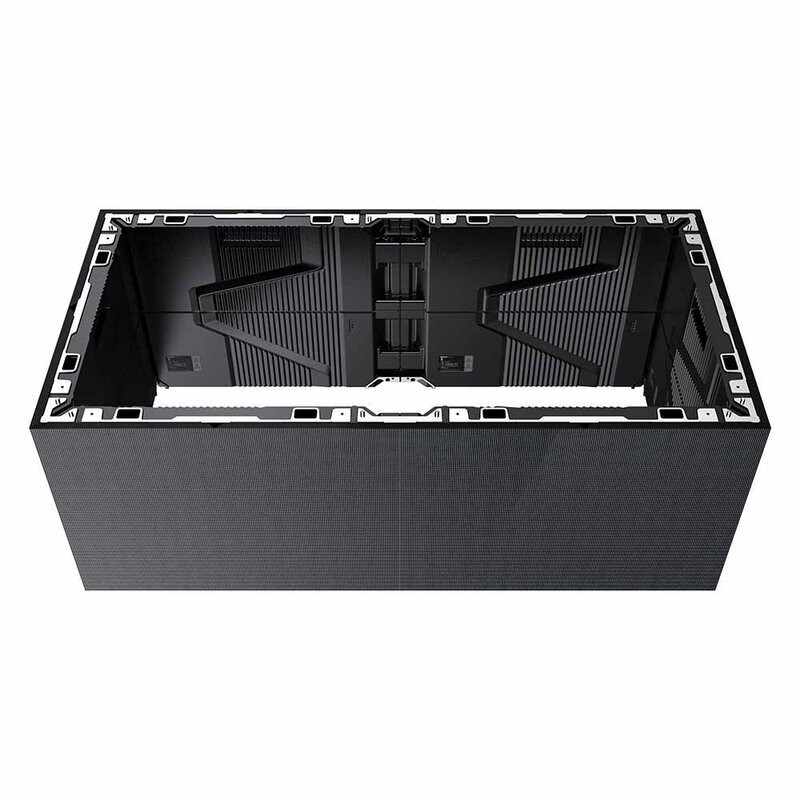

The freestanding aluminum frame, or rear-mounted on a flat wall, simplifies installation, as it can be mounted in various configurations, with adjustments to ensure a perfectly flat surface. All mechanical parts are included.

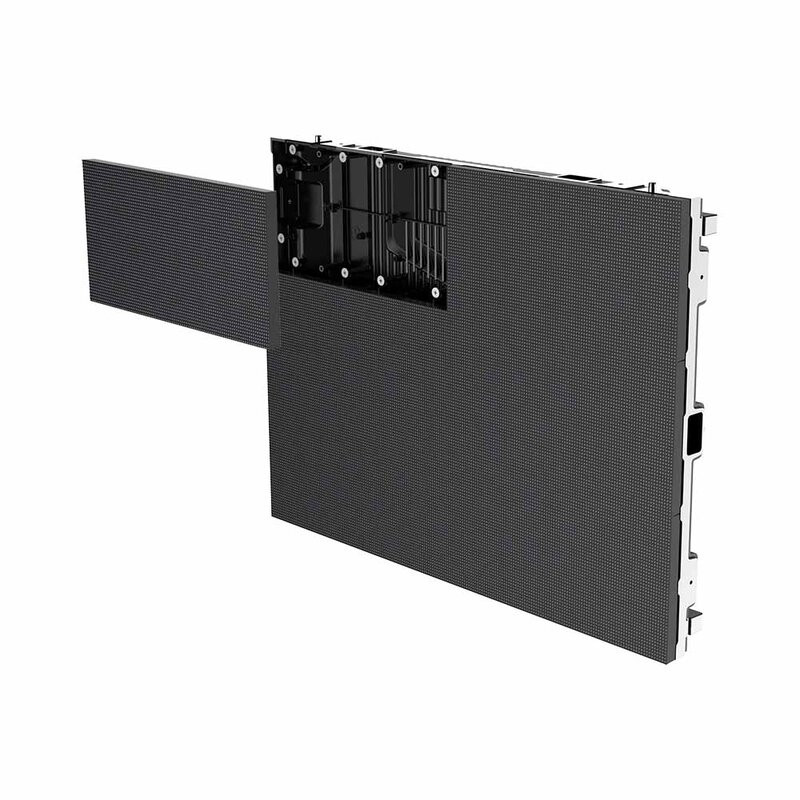

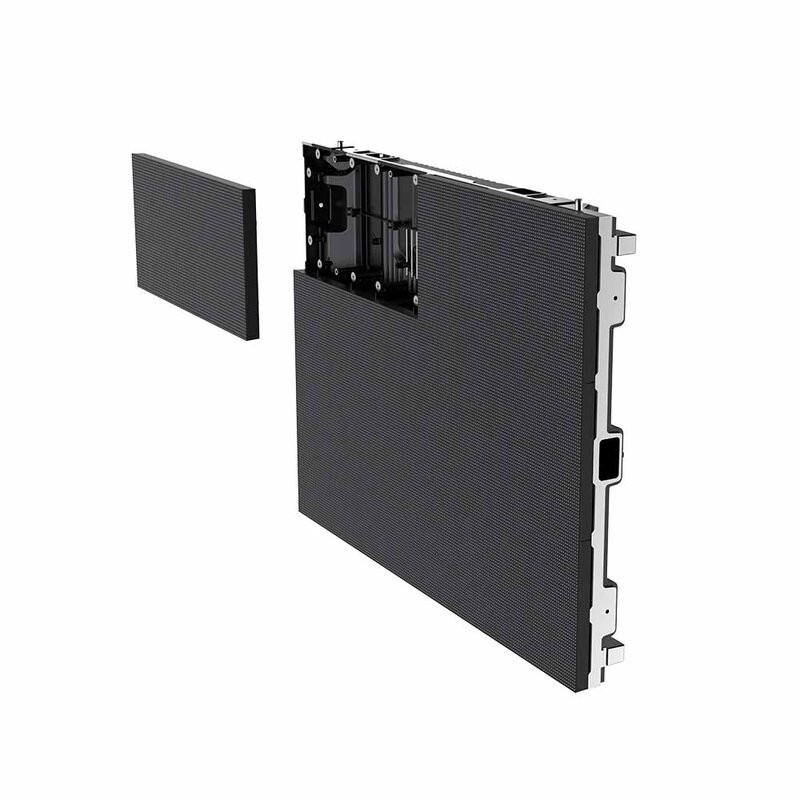

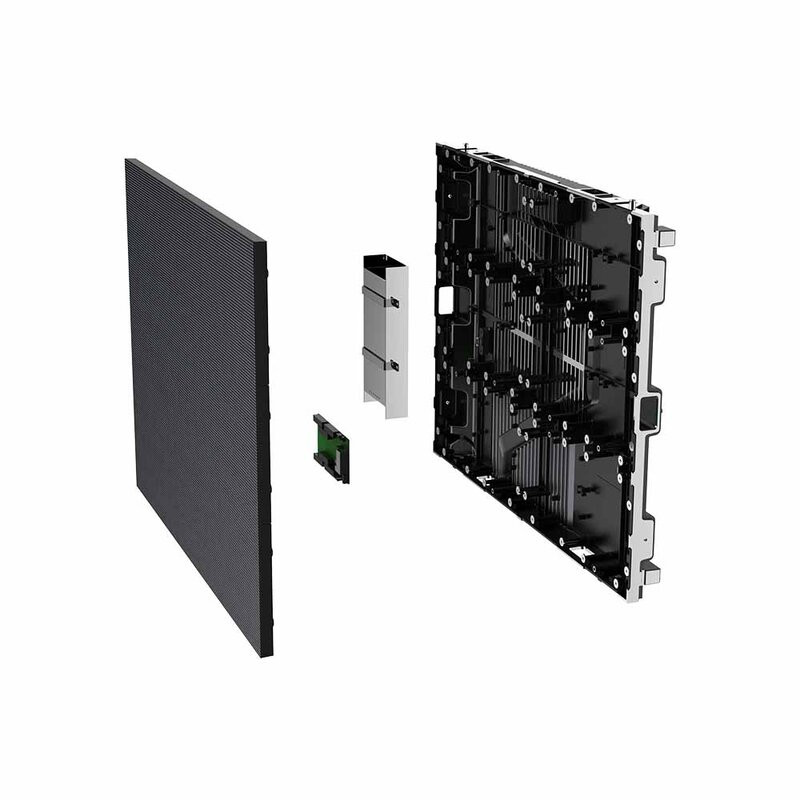

Maintenance is frontal.

The EASYHP-P1.8 is ideal for commercial and professional applications requiring a display with excellent visual performance, reliability, and simplified maintenance.

User benefits

• Visual quality
• High refresh rate of 4200 Hz for smooth, flicker-free viewing
• Energy efficiency, with 30% less consumption than similar LED panels
• Flatness adjustment to ensure a perfectly flat surface
• Average lifespan of 100,000 hours
• Exceptional value for money, so much so that the final quote can be compared, for the same image size, to a price comparable to that of a screen and video projector

Areas of use

• Retail spaces (shops and showrooms)
• Indoor commercial applications
• Corporate environments (meeting rooms)
• Television studios, thanks to its high refresh rate
• Trade fairs and conferences
• Permanent installations in museums, etc.

Technical characteristics

• Pixel pitch: 1.86 mm
• LED Type: SMD1515
• Cabinet resolution (W x H): 344 x 258  pixels
• Maintenance: full front maintenance
• Protection: IP30

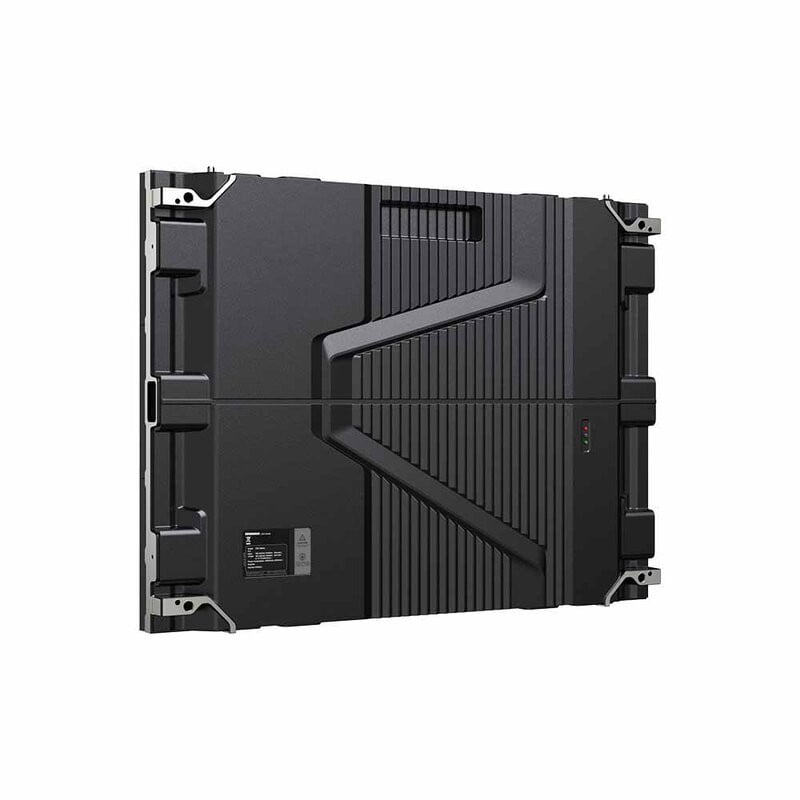

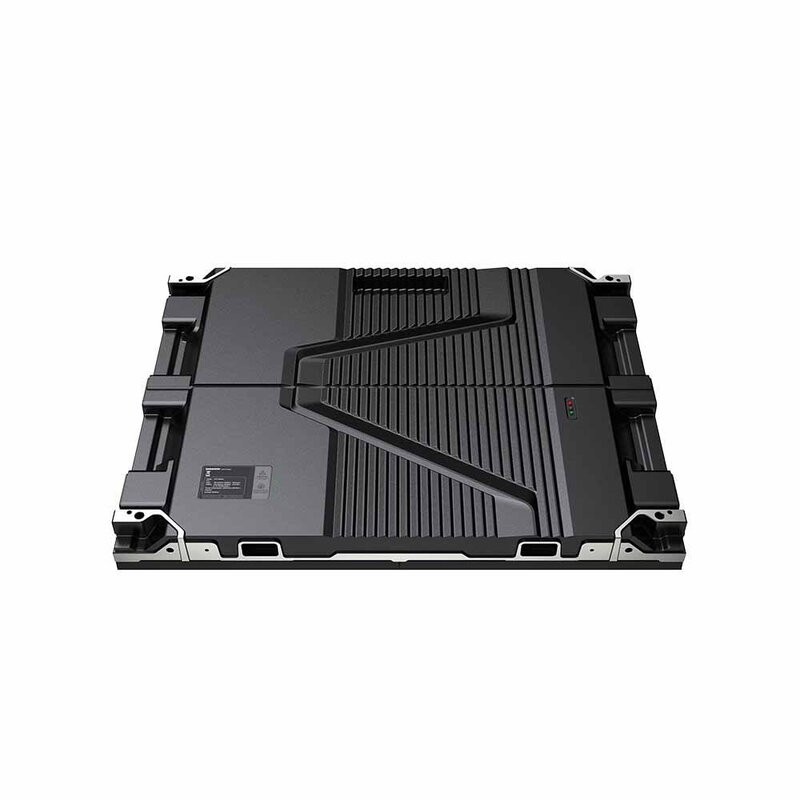

• Cabinet material: die-casting aluminum
• White balance brightness: 600 cd/m²
• Viewing angle (H / V): 160° / 140°
• Contrast ratio: 5000:1
• Max. power consumption: 420 W/m²
• Typical power consumption: 140 W/m²
• Frame changing frequency: 60 Hz
• Driving mode: constant current drive / 32 scan
• Processing depth: 12 - 14 bit
• Refresh rate: 4200 Hz
• Estimated lifetime: 100,000 hours

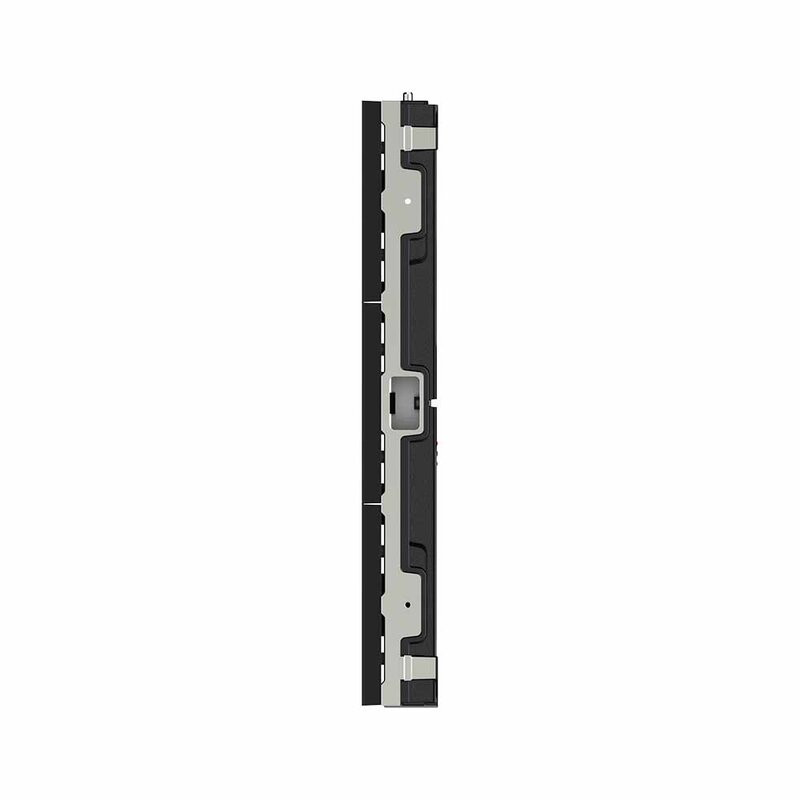

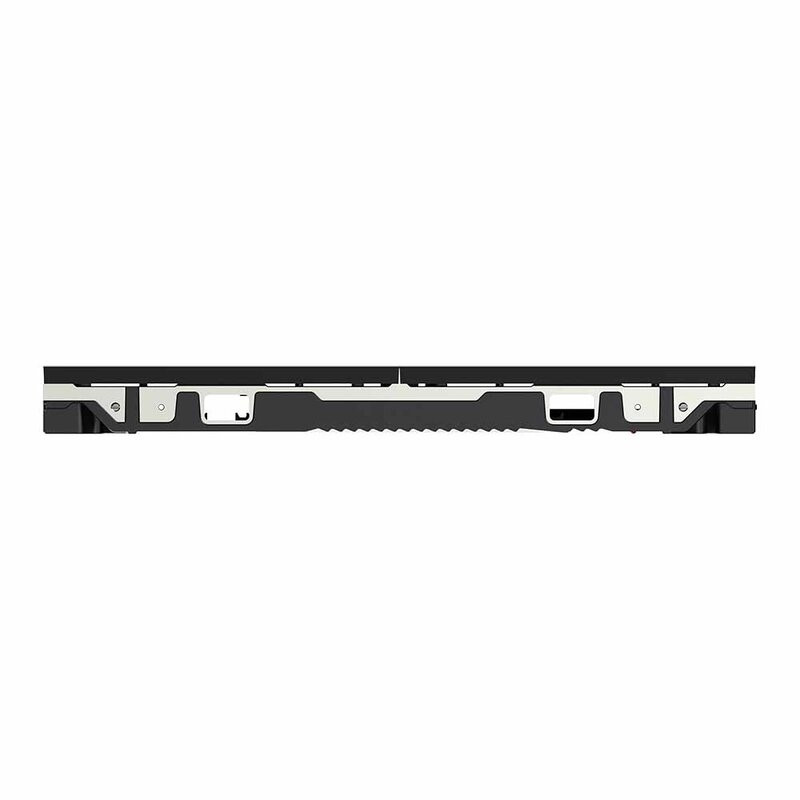

• Cabinet dimensions: 640 x 480 x 61.5 mm
• Weight: 7.8 kg
