SKU: P2.84SMD-U

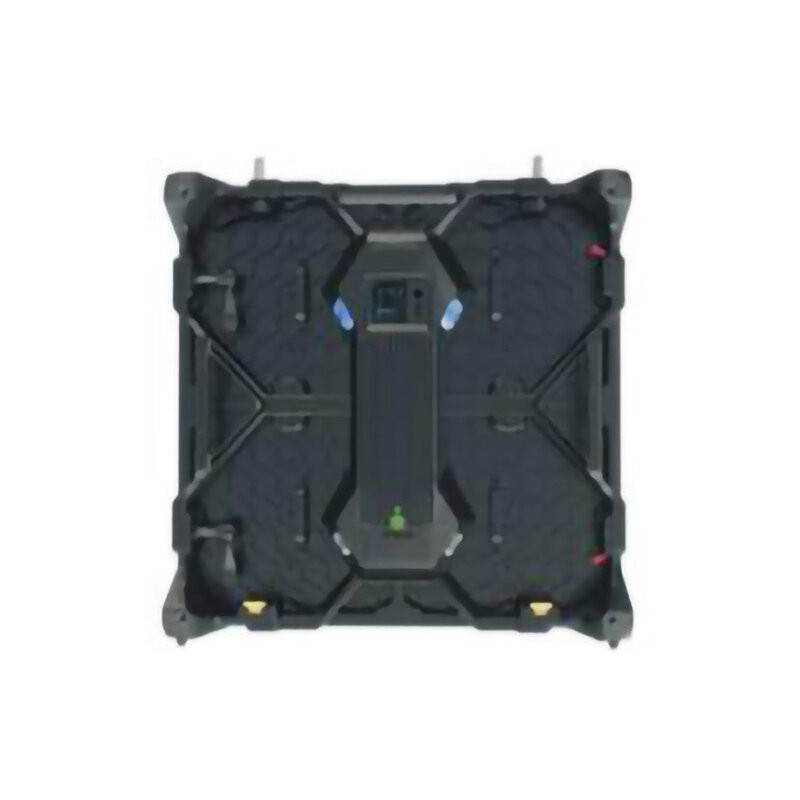

EGO Display - P2.84SMD-U

Indoor, IC MB15153, SMD2020, ≥1200 nit, ≥2700 Hz, 500 x 500 mm, 8.8 kg

277.50 €

Pay in 4 interest-free payments of 69.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
277.50 €

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



Product Details

P2.84 LED display with 500 x 500 mm cabinet, SMD2020 LED, MB15153 IC for indoor use (1200 nits).

The size of the single module is 250 x 250 mm, with a resolution of 88 x 88 pixels, while the cabinet resolution is 176 x 176 pixels. The contrast is 2000: 1 and the viewing angle is 140° both horizontally and vertically. The pitch of 2.84 mm suggests a minimum viewing distance of about 2 m. The brightness is adjustable from 0 to 100%.

The synchronization method is with PC and the control distance is 100 m with CAT cable, 500 m with multi-mode fiber and 15 km with single-mode fiber.

Technical characteristics

Module specification

  • Pixel pitch: 2.84 mm
  • Pixel configuration: 1R1G1B
  • Type of LED: SMD2020
  • Module size: 250 x 250 mm
  • Module resolution: 88 x 88 pixel

Cabinet specification

  • Pixel density: 123,904 dots/m2
  • Size of cabinet: 500 x 500 x 100 mm
  • Cabinet resolution: 176 x 176
  • Module quantity per cabinet: 4 pcs.
  • Cabinet weight: 8.8 kg

Screen parameters

  • Brightness: 1500 nit
  • Driving mode: 1/22 scan
  • Brightness after calibration: ≥ 1200 cd/m2
  • Contrast: 2000:1
  • View angle (H x V): 140° x 140°
  • Minimum view distance: 2 m
  • Gray scale: ≥ 13 bit
  • Max power consumption: 210 W/pc.
  • Average power consumption: 70 W/pc.
  • Work voltage: 90 - 260 VAC
  • Frame frequency: up to 75 Hz
  • Driver IC: MB15153
  • Refresh rate: ≥ 2700 Hz
  • Brightness adjustment: 0 - 100%
  • Gamma Correction (0 - 5.0)
  • Color temperature: 6500 - 9000 K
  • Control mode: synchronization with PC
  • Control distance: UTP CATSE 100 m, multi-mode fiber 500 m, single mode fiber 15 km
  • Stock temperature: -40 to 85 °C
  • Operating temperature: -30 to 50 °C
  • Operating humidity: 10 - 90% RH
  • Life span: 100,000 h
  • MTBF: 5000 h
  • IP rating (front / rear): IP31 / IP31
  • Flatness of the screen: ≤ 1 mm
  • Dot out of control rate: 0.00001
