SKU: EASYHP-P2.5
EGO Display - EasyHP-P2.5
Indoor, SMD2121, 600 nit, 5000:1, 4200 Hz, 640 x 480 mm, 7.8 kg high-performance LED panel, exceptional stability, energy-efficient design, adjustments for optimal flatness
Prime
fast delivery is available for this product.
This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
455.00 €
Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 500 x 1000 mm, 10 kg high-performance LED panel, flexible design, right angle splicing for option
725.50 €
Right-angle display indoor, IC ICN2153, SMD1515, full black LEDs, copper wire, 800 - 1000 nit, ≤3840 Hz, 125 x 500 mm, 1.8 kg
636.00 €
Indoor, front service, 1200 nit, 3840 Hz, 500 × 500 mm, 9 kg
449.00 €
Indoor, front service, IC DP3265, SMD1515, full black LED, copper wire, 1200 nit, ≤3840 Hz, 500 x 500 mm, 5.7 kg
197.00 €
B-STOCK Indoor, IC MB15153, SMD2020, ≥1200 nit, ≥2700 Hz, 500 x 500 mm, 8.8 kg
Product Details

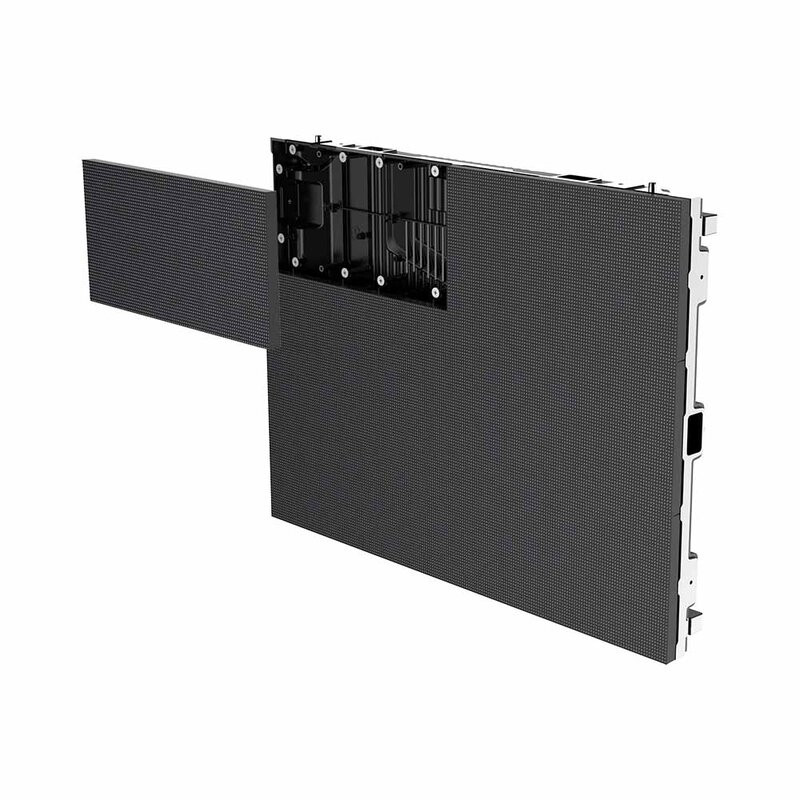

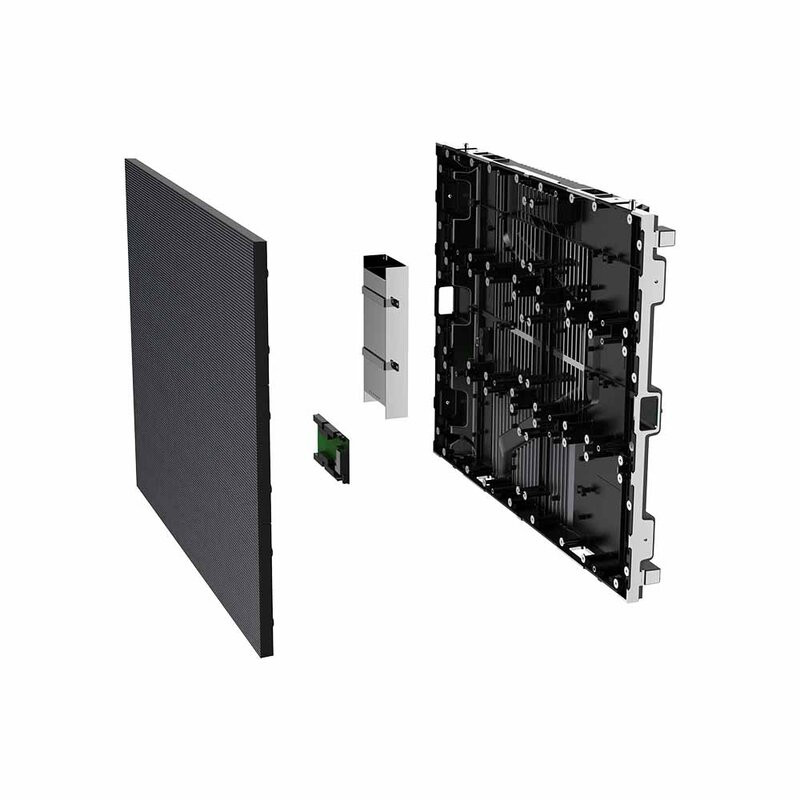

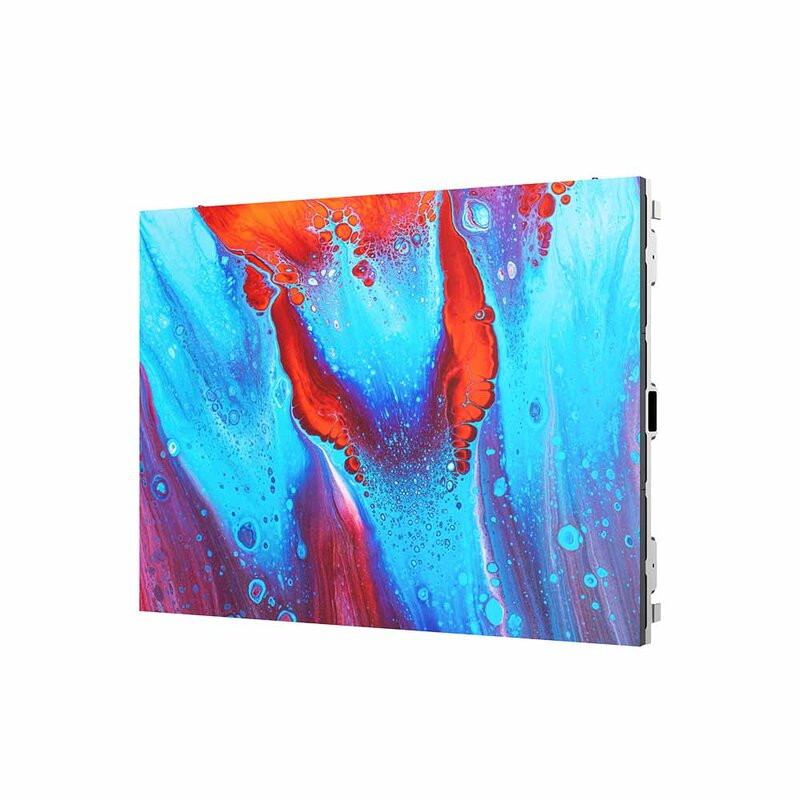

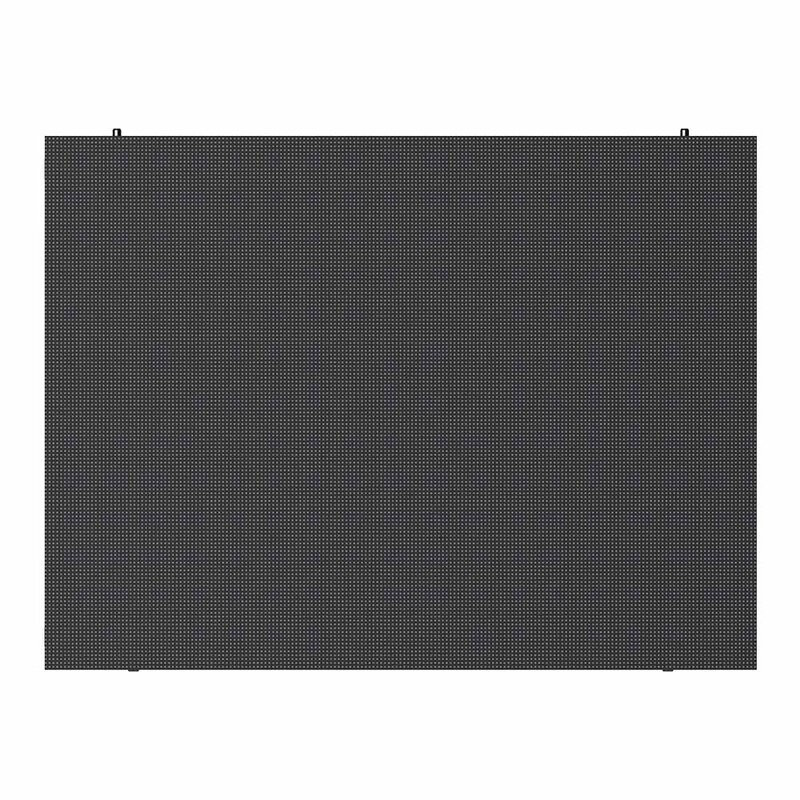

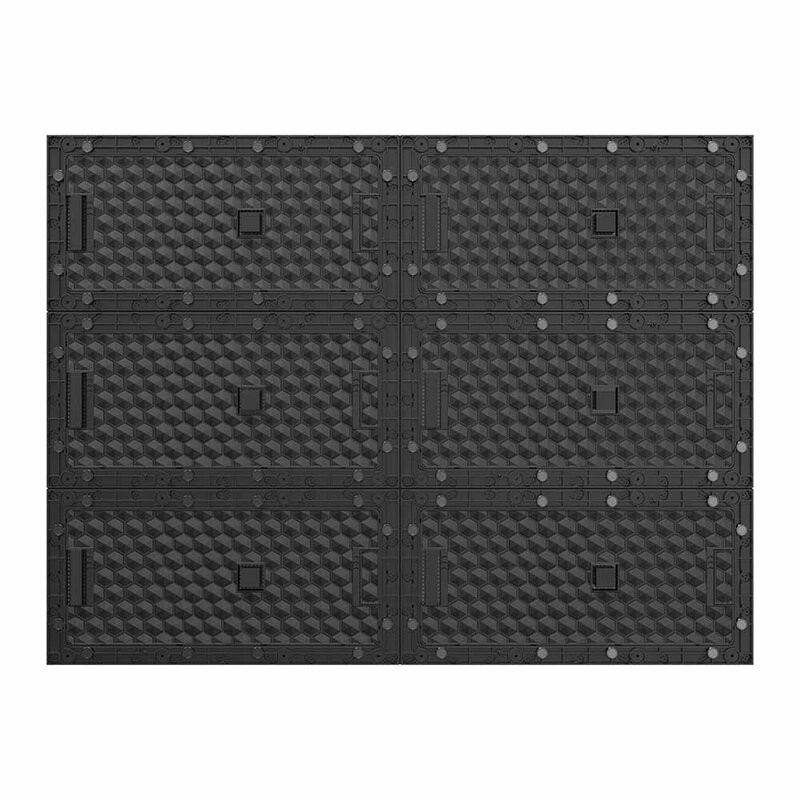

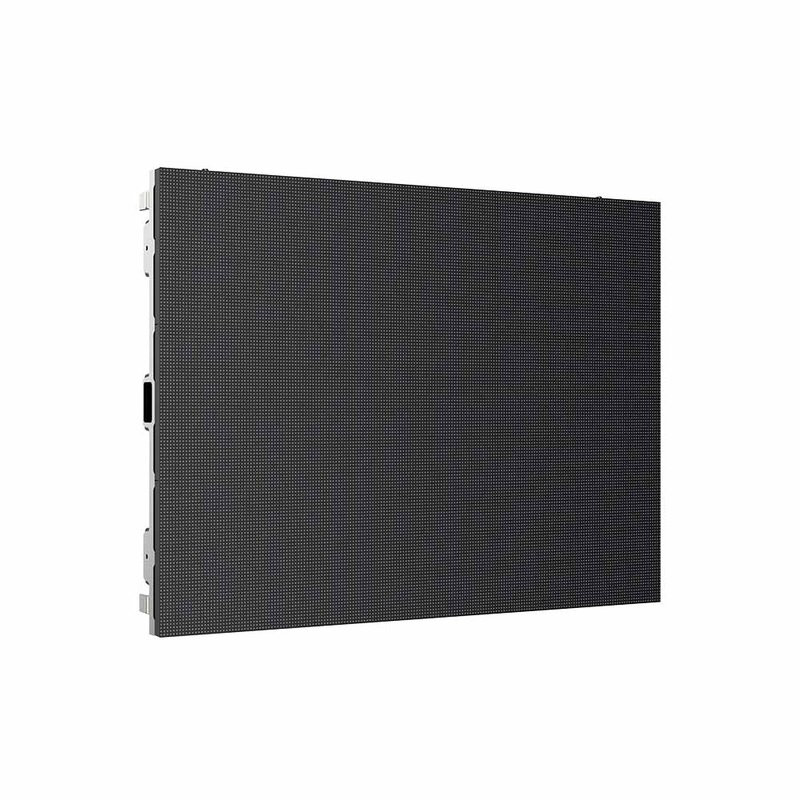

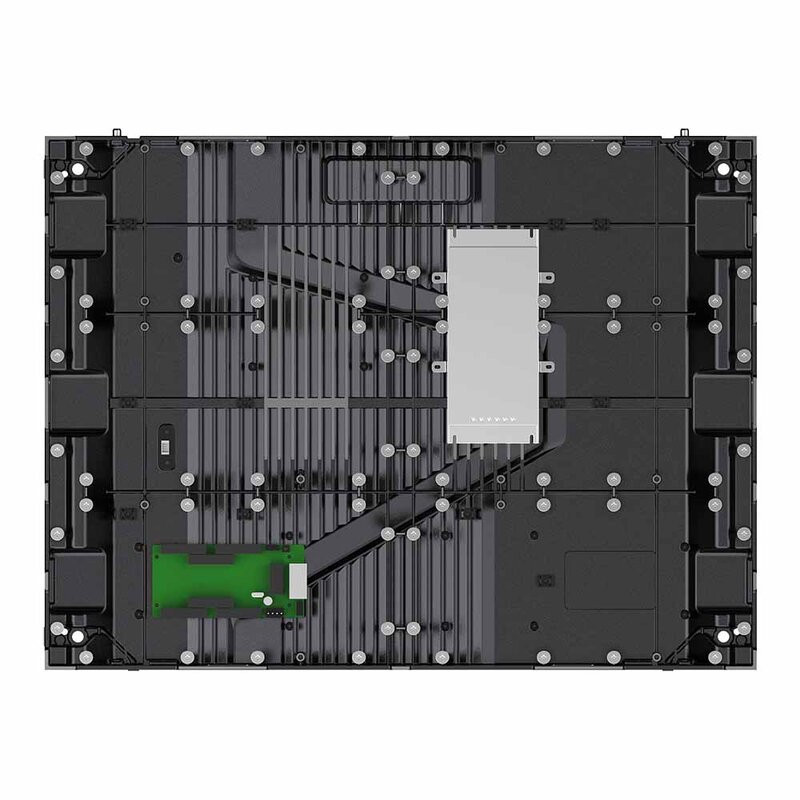

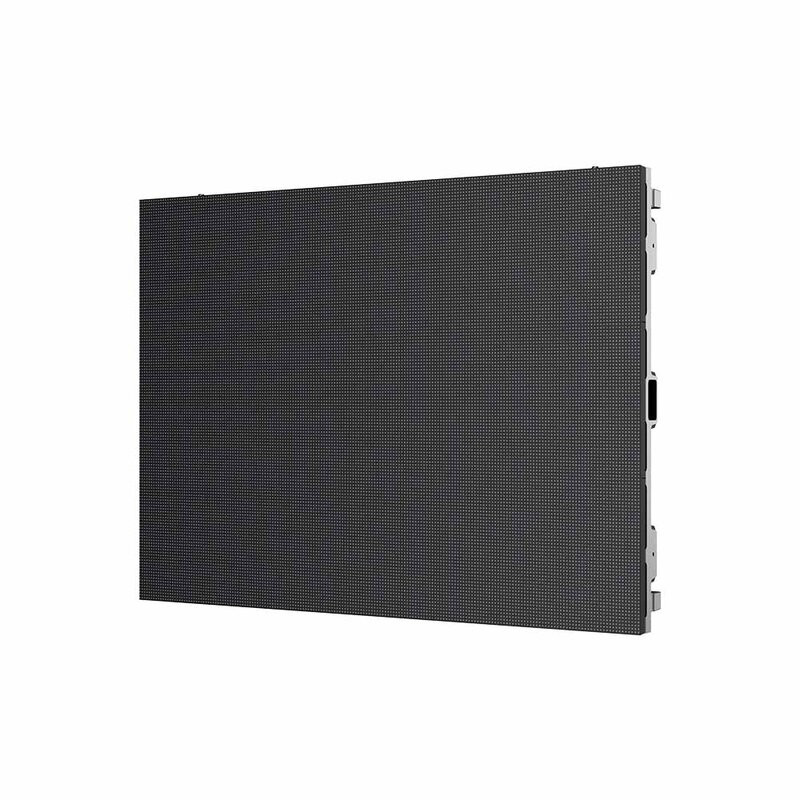

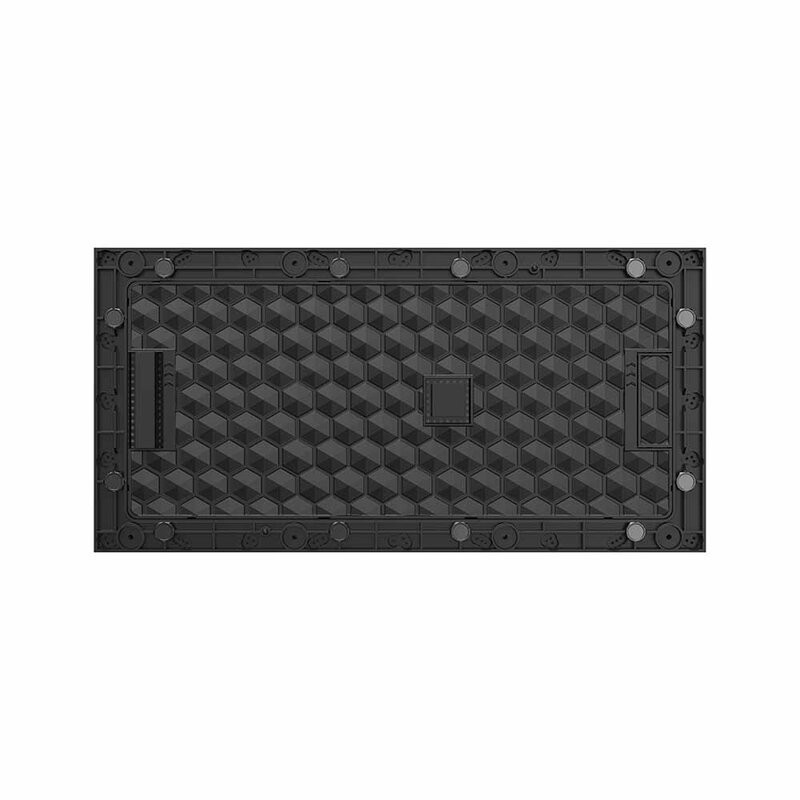

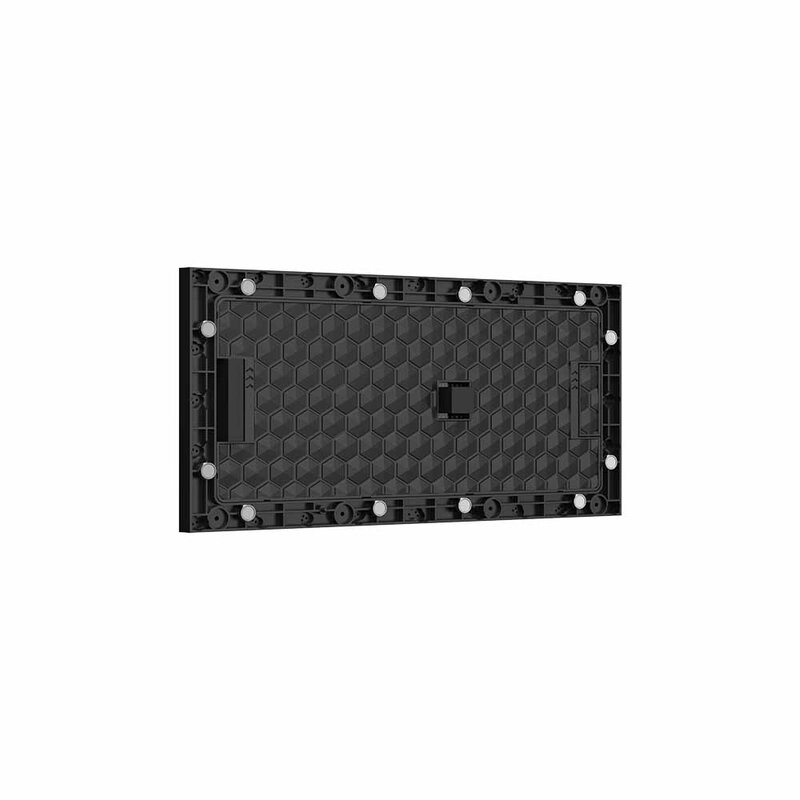

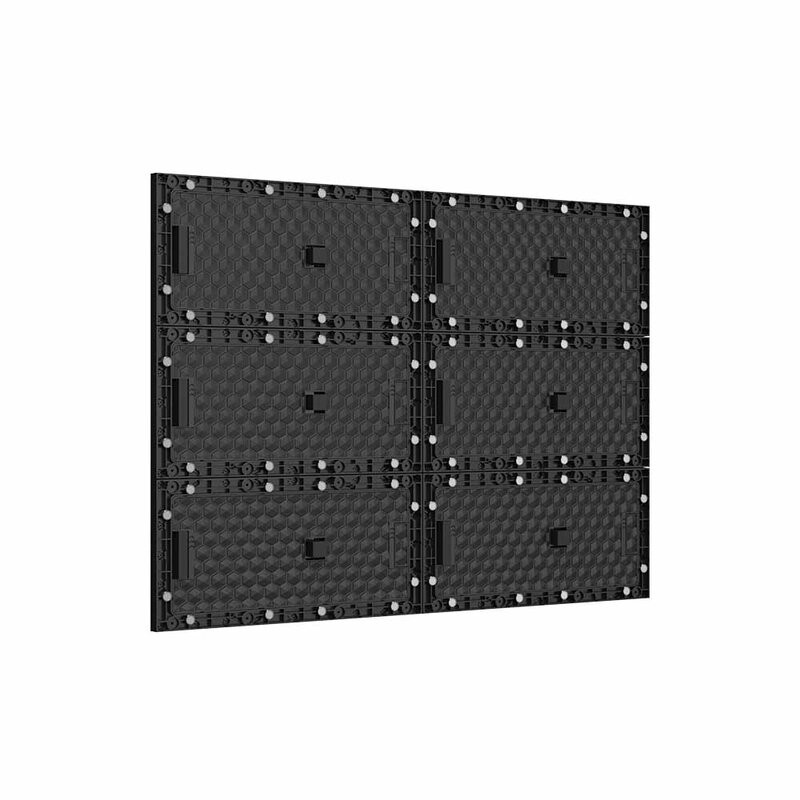

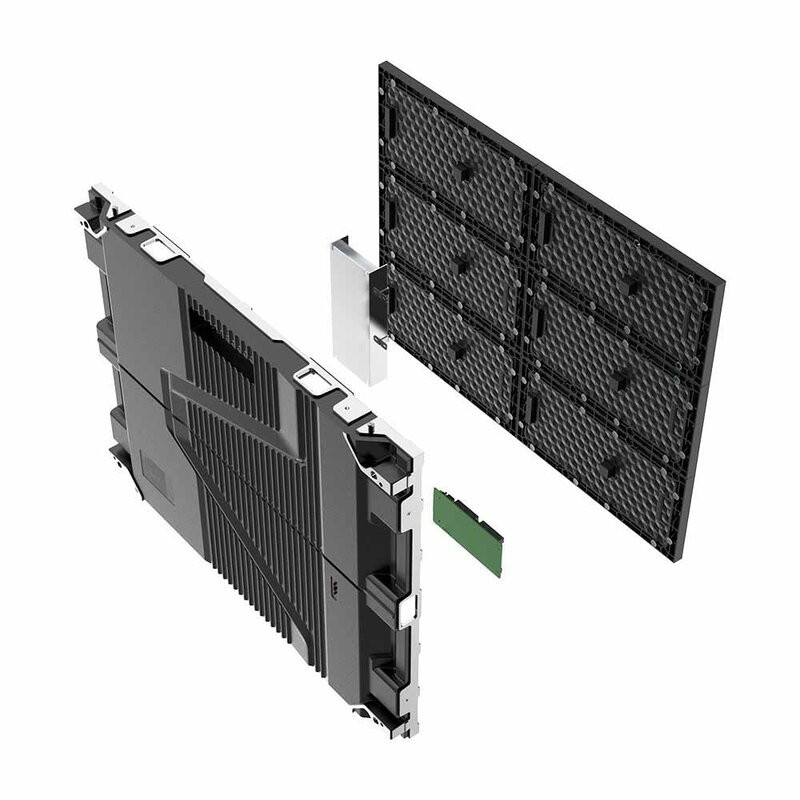

The EASYHP-P2.5 is an indoor 2.5 mm pitch LED panel (IP30 rated for front protection) that offers a balance of visual quality and versatility, with a resolution of 256 x 192 pixels per cabinet and a pixel density of 160,000 pixels per square meter. The cabinet measures 640 x 480 x 61.5 mm and weighs 7.8 kg, making it relatively light for its size and easy to install. It features six modules mounted with non-contact magnets, which greatly aid module alignment by allowing the magnets to slide slightly over the metal.

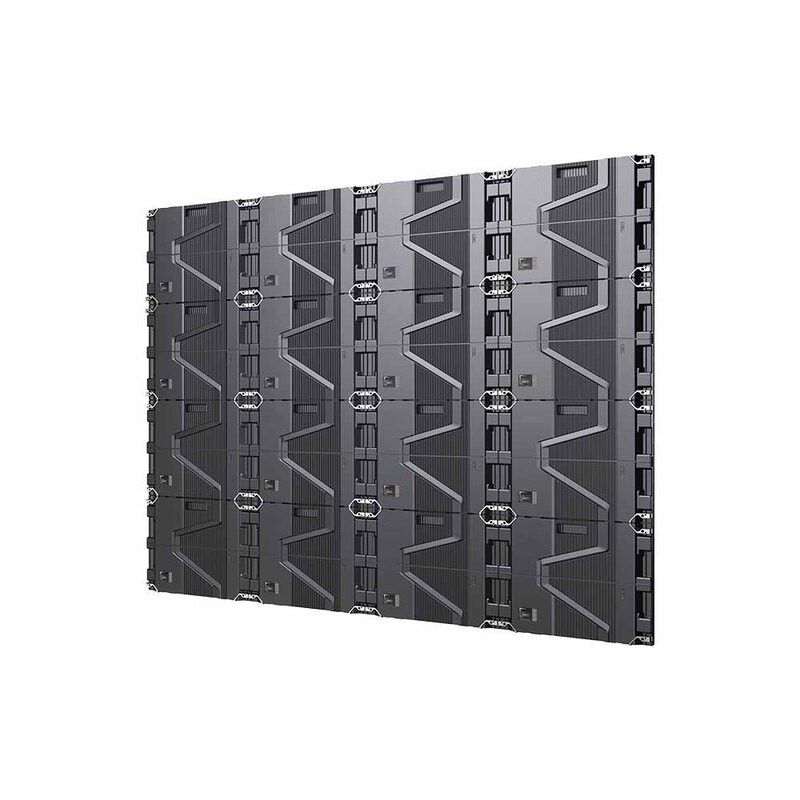

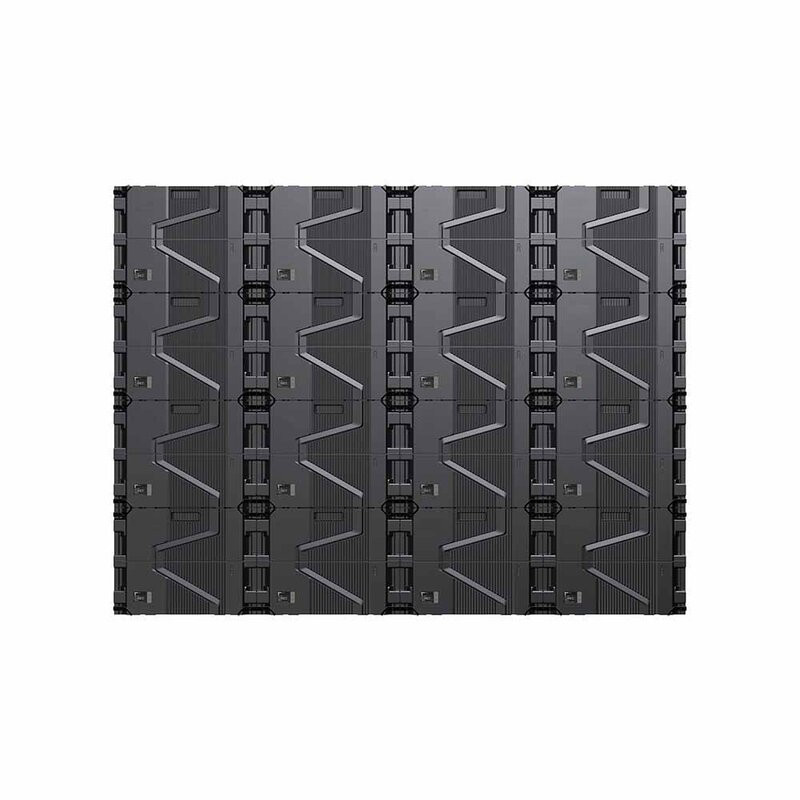

The aspect ratio is a native 4:3, but when scaled to usable screen sizes, it's easy to achieve a 16:9 aspect ratio. For example, with six horizontal x four vertical modules, you get a perfect 16:9 aspect ratio.

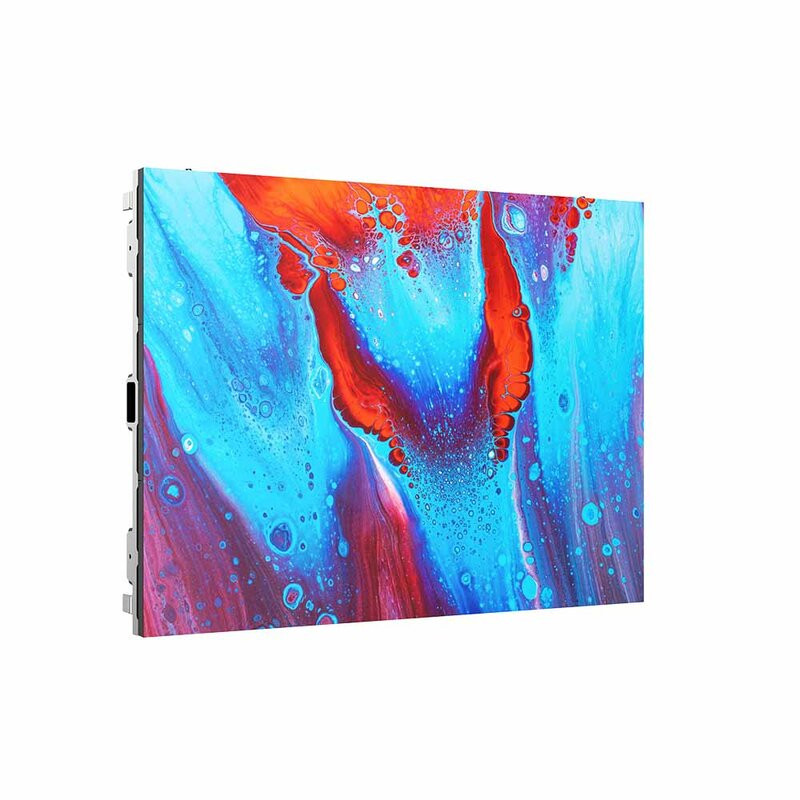

The EASYHP-P2.5 uses SMD 2121 LEDs, with a maximum brightness of 600 nits and a contrast ratio of 5000:1, ensuring vivid colors. The 14-bit grayscale and 4200Hz refresh rate contribute to excellent visual fluidity, reducing flickering and improving image quality.
Energy efficiency is another strong point, with a maximum consumption of 110W per panel and an average of 33W, supported by an advanced heat dissipation system. This unique energy-saving technology reduces power consumption by 30%, improving system stability and longevity.

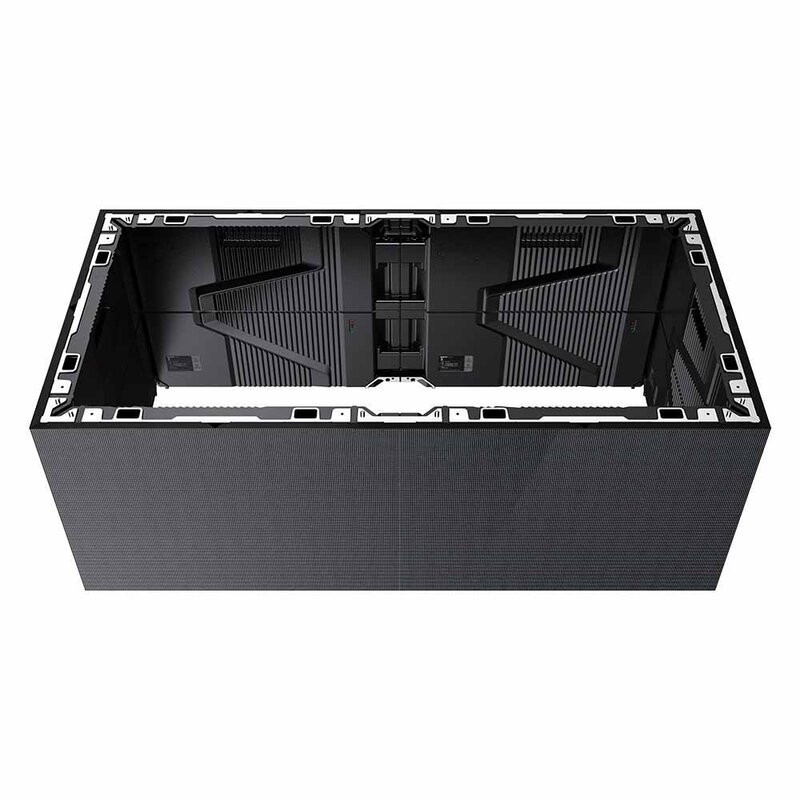

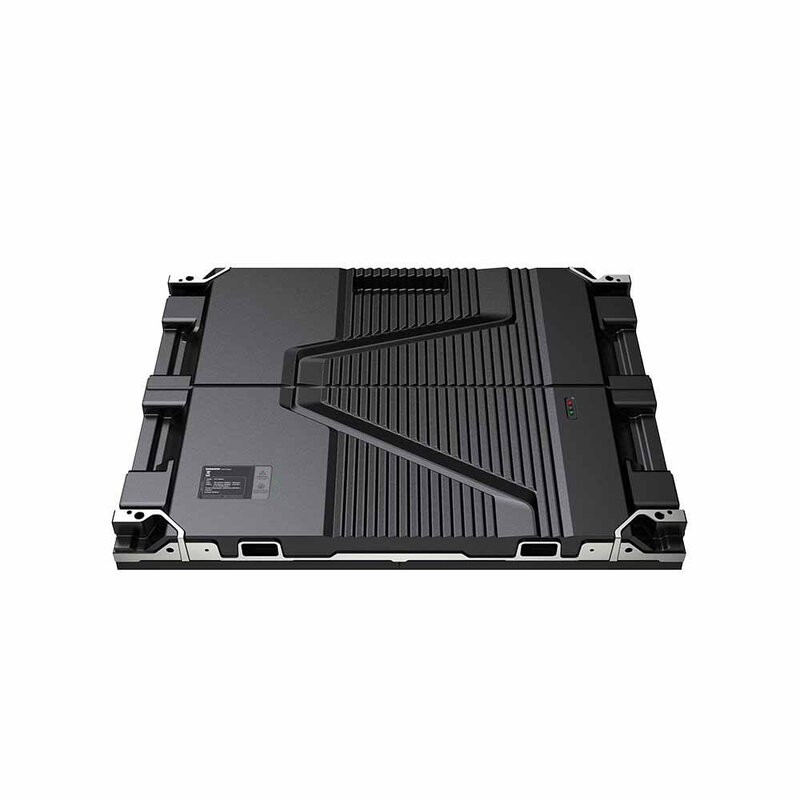

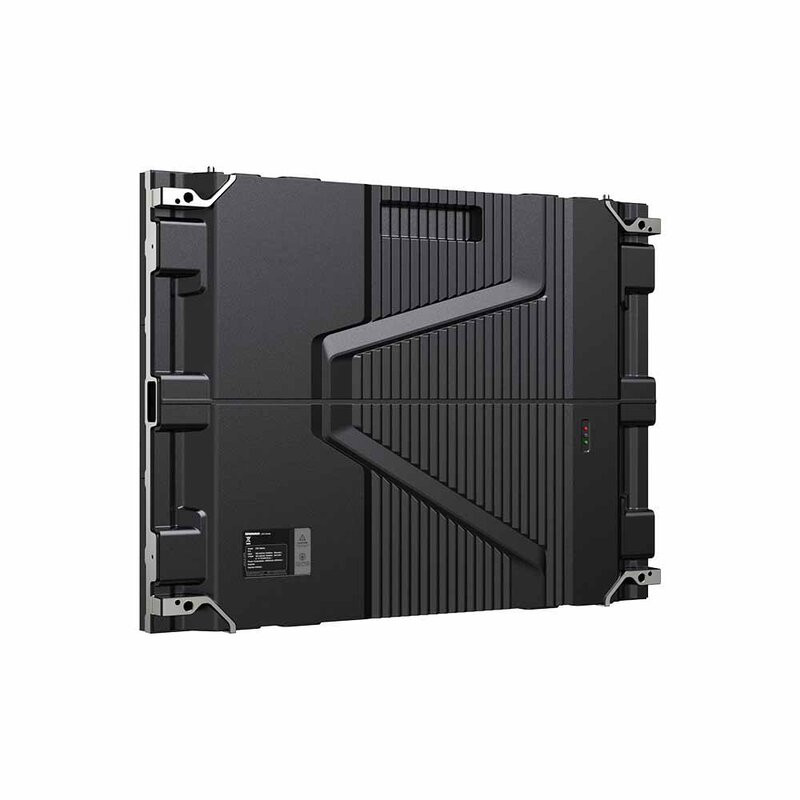

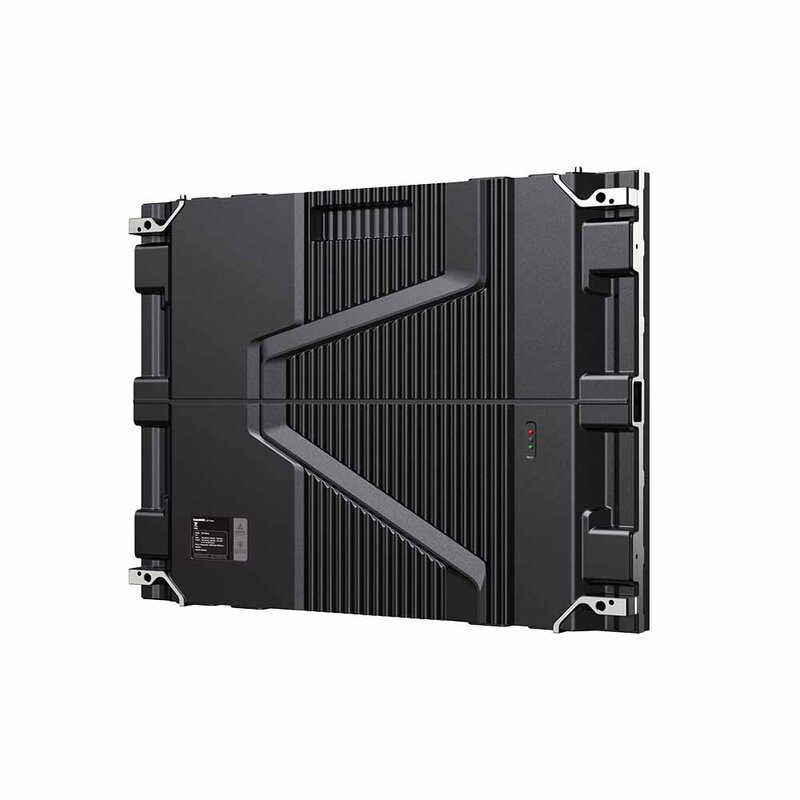

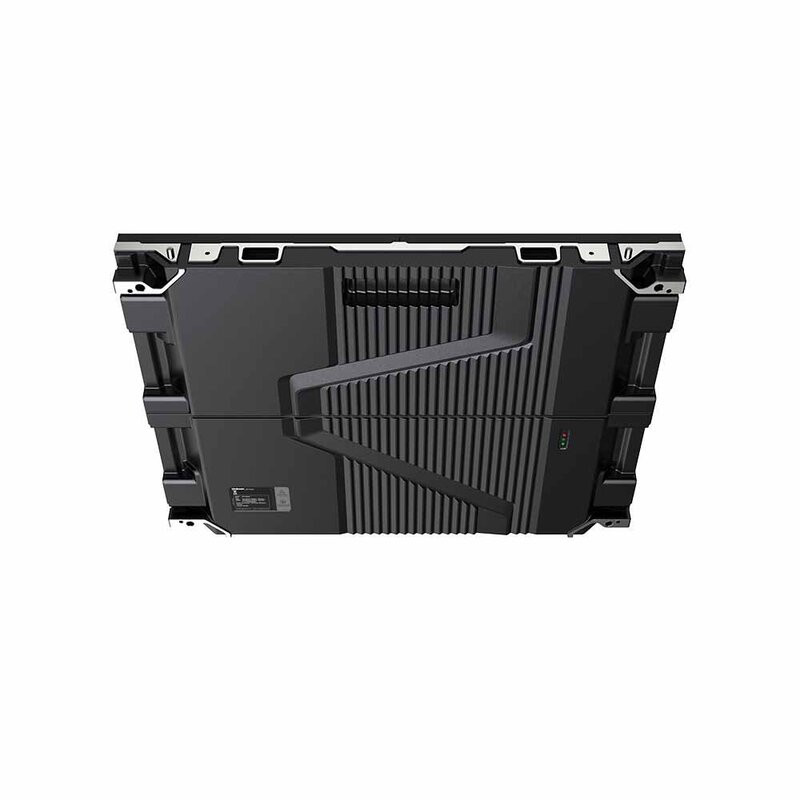

The freestanding aluminum frame, or rear-mounted on a flat wall, simplifies installation, as it can be mounted in various configurations, with adjustments to ensure a perfectly flat surface. All hardware is included.

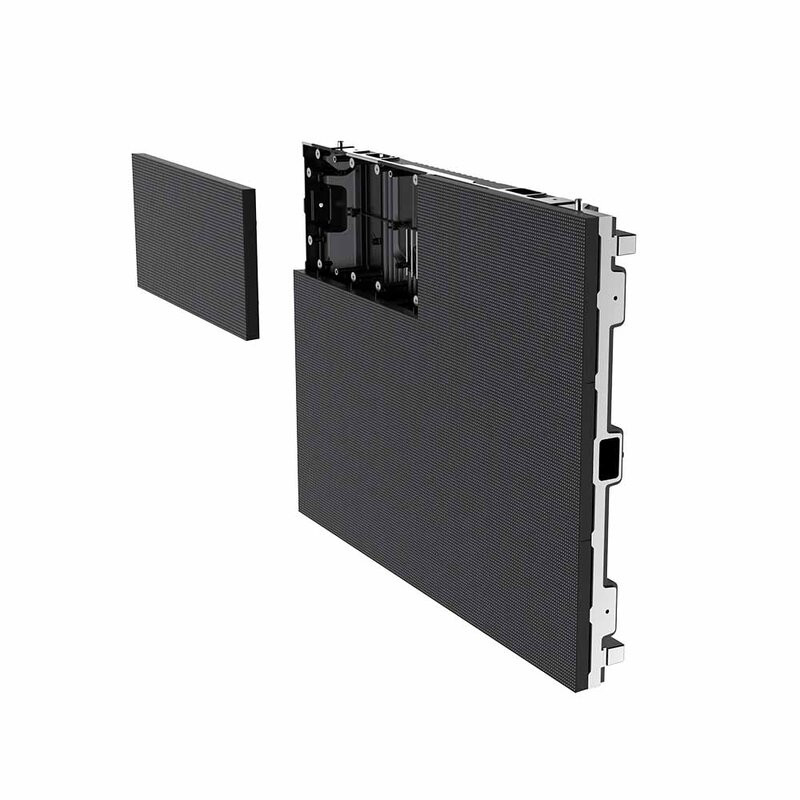

Maintenance is front.
The EASYHP-P2.5 is ideal for commercial and professional applications requiring a display with excellent visual performance, reliability, and simplified maintenance.
User benefits
- Visual quality
- High refresh rate of 4200 Hz for smooth, flicker-free viewing
- Energy efficiency, with 30% less consumption than similar LED panels
- Flatness adjustment to ensure a perfectly flat surface
- Average lifespan of 100,000 hours
- Exceptional value for money, so much so that the final quote can be compared, for the same image size, to a price comparable to that of a screen and video projector
Areas of use
- Retail spaces (shops and showrooms)
- Indoor commercial applications
- Corporate environments (meeting rooms)
- Television studios, thanks to its high refresh rate
- Trade fairs and conferences
- Permanent installations in museums, etc.
Technical characteristics
- Pixel pitch: 2.5 mm
- LED Type: SMD2121
- Cabinet resolution (W x H): 256 x 192 pixels
- Maintenance: full front maintenance
- Protection: IP30
- Cabinet material: die-casting aluminum
- White balance brightness: 600 cd/m2
- Viewing angle (H / V): 160° / 140°
- Contrast ratio: 5000:1
- Max. power consumption: 356 W/m2
- Typical power consumption: 107 W/m2
- Frame changing frequency: 60 Hz
- Driving mode: constant current drive / 32 scan
- Processing depth: 12 - 14 bit
- Refresh rate: 4200 Hz
- Estimated lifetime: 100,000 hours

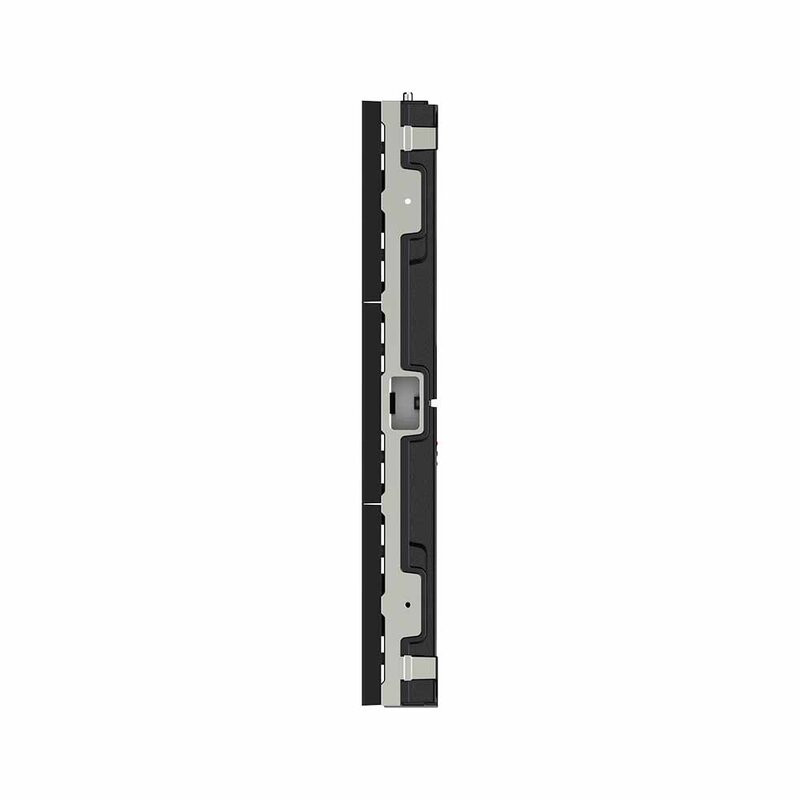

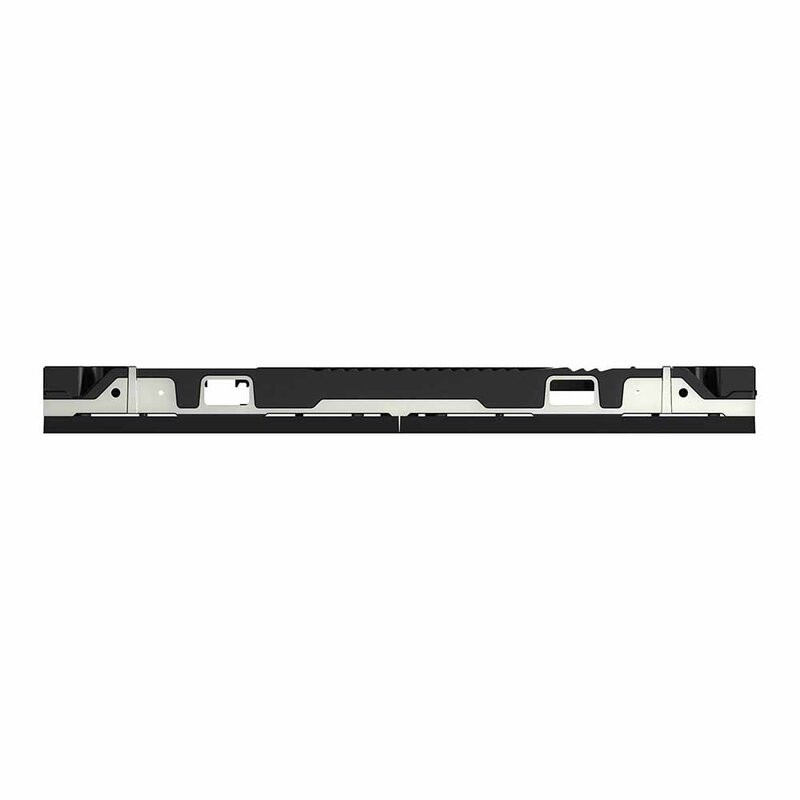

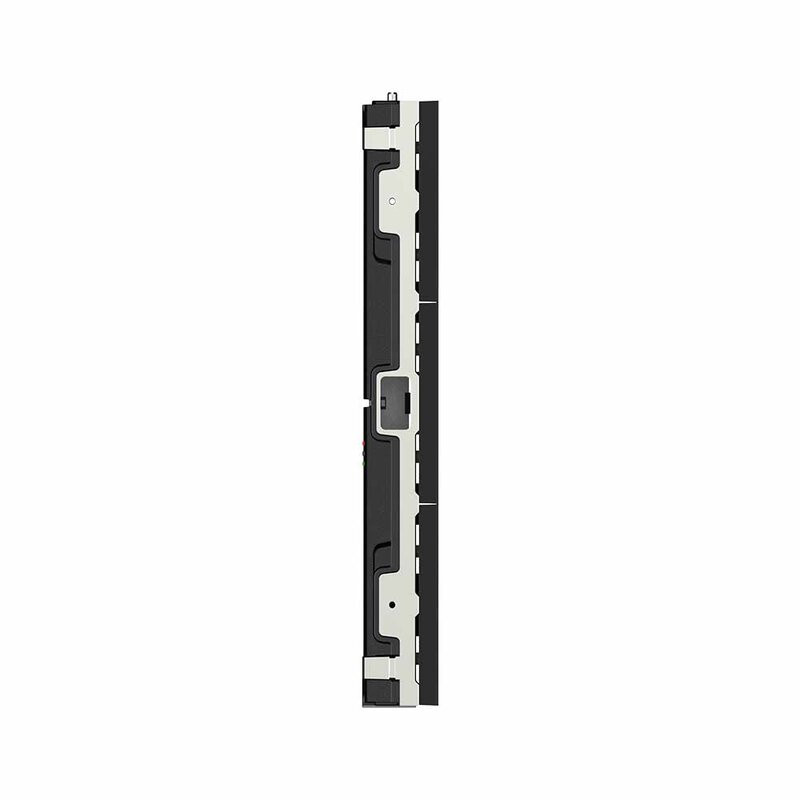

- Cabinet dimensions: 640 x 480 x 61.5 mm
- Weight: 7.8 kg
