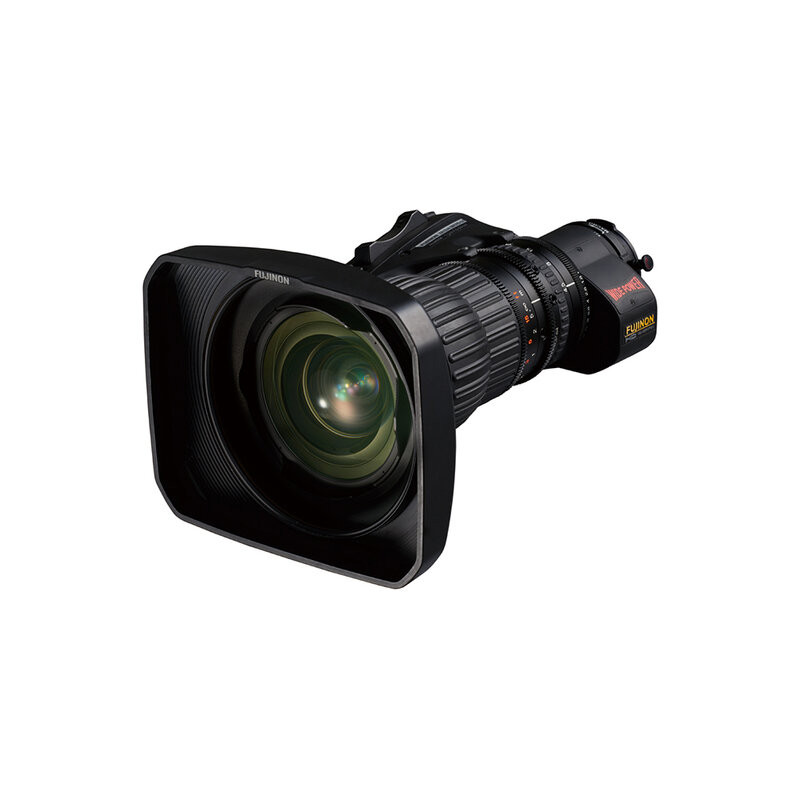

Fujifilm - ZA12x4.5BRD-S10

The Fujinon ZA12x4.5BRD-S10 is a 2/3" High Definition Select series lens with B4 mount, designed for broadcast cameras and ideal for professional HD productions. Thanks to its robust construction and excellent performance, it represents a safe investment for those who require the highest image quality.

With a 12x zoom ratio, this lens offers great versatility, adapting to a variety of situations. The maximum aperture of f/1.8 at 4.5 mm and f/2.4 at 54 mm ensures excellent performance even in low light conditions, allowing you to obtain bright and detailed images.

One of the distinctive features of the ZA12x4.5BRD-S10 is the servo focus, which allows precise motorized focusing. This assisted system is perfect for dynamic shooting, where speed and precision are essential. The servo zoom is also present.

User benefits

• High optical quality thanks to precisely designed lenses, which reduce chromatic aberration and improve color rendition
• Reliable performance and durable
• HT-EBC (High Transmittance Electron Beam Coating) to maximize light transmission and reduce reflections
• Inner focusing mechanism
• Servo focus for precise motorized focusing

Areas of use

• Documentary production
• TV programs

Technical characteristics

• Focal length: 4.5 - 54 mm
• Zoom ratio: 12x
• Maximum relative aperture (F-No.):
  • 1/1.8 (4.5 - 41 mm)
  • 1/2.4 (54 mm)
• Minimum object distance (M.O.D) from the front lens element: 0.3 m
• Object dimensions at M.O.D (16:9 aspect ratio):

  • 4.5 mm: 757 x 425 mm
  • 54 mm: 79 x 33 mm
• Angular field of view (16:9 aspect ratio):

  • 4.5 mm: 93.6° x 61.8°
  • 54 mm: 10.1° x 5.7°
• Filter thread: M 127 x 0.75 (filter attaches to the lens hood)
• Approximate size: Φ 9.5 x 23.75 cm (Φ x length)
• Weight: 1.88 kg (without lens hood)
