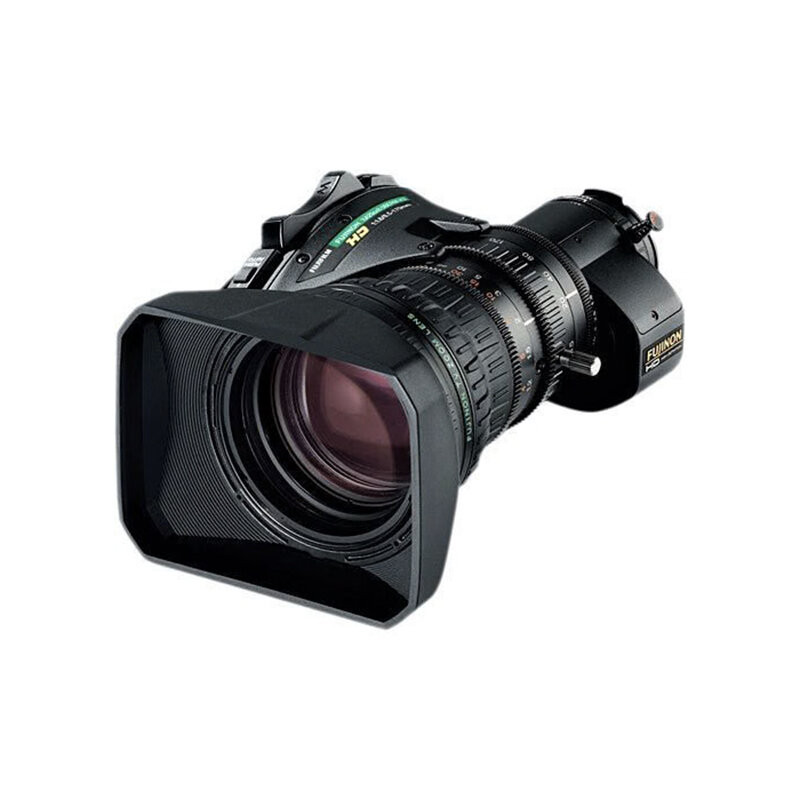

Fujifilm - ZA22x7.6BRD-S10

The Fujinon ZA22x7.6BRD-S10 is a 2/3" High Definition Select series lens with B4 mount, designed for broadcast cameras and ideal for professional HD productions. Thanks to its robust construction and excellent performance, it represents a safe investment for those who require the highest image quality.

With a large zoom ratio of 22x, this lens offers great versatility, adapting to multiple situations. The maximum aperture of f/1.8 at 7.6 mm and f/2.5 at 167 mm guarantees excellent performance even in low light conditions, allowing you to obtain bright and detailed images.

One of the distinctive features of the ZA22x7.6BRD-S10 is the servo focus, which allows for precise motorized focusing; this assisted system is perfect for dynamic shooting, where speed and precision are essential. The servo zoom is also present.

User benefits

• High optical quality thanks to precision-designed lenses, which reduce chromatic aberration and improve color rendition
• Reliable and long-lasting performance
• HT-EBC (High Transmittance Electron Beam Coating) to maximize light transmission and reduce reflections
• Inner focusing mechanism
• Servo focus for precise motorized focusing

Areas of use

• Sports shooting
• Documentary production
• TV programs

Technical characteristics

• Focal length: 7.6 - 167 mm
• Zoom ratio: 22x
• Maximum relative aperture (F-No.):
  • 1/1.8 (7.6 - 120 mm)
  • 1/2.5 (167 mm)
• Minimum object distance (M.O.D) from the front lens element: 0.8 m
• Object dimensions at M.O.D (16:9 aspect ratio):

  • 7.6 mm: 915 x 514 mm
  • 167 mm: 43 x 24 mm
• Angular field of view (16:9 aspect ratio):

  • 7.6 mm: 64.5° x 39°
  • 167 mm: 3.3° x 1.8°
• Filter thread: M 95 x 1 / M107 x 1 (filter attaches to the lens hood)
• Approximate size: Φ 10 x 22.04 cm (Φ x length)
• Weight: 1.8 kg (without lens hood)
