Laserworld - CS-3000 micro

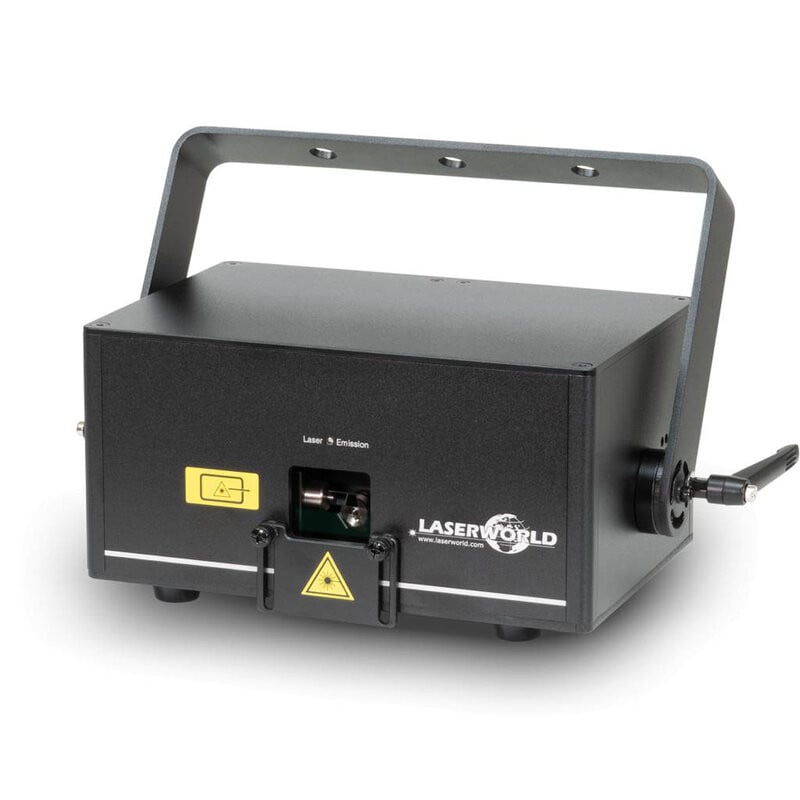

The CS-3000 micro is a compact 2500 mW analog RGB laser system designed for semi-professional applications requiring powerful effects, vibrant colors and high versatility.

The diode laser sources — 500 mW / 638 nm (red), 700 mW / 520 nm (green), and 1,800 mW / 450 nm (blue) — ensure intense color rendering and an extremely sharp beam, with specifications of approximately 5 mm in diameter and 1.2 mrad divergence.

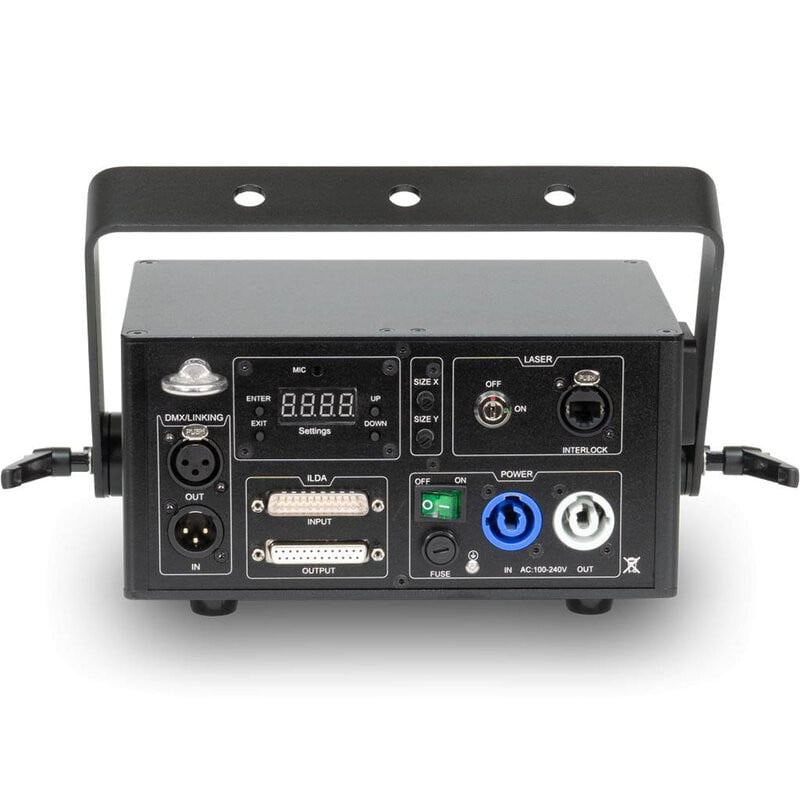

The system can project effects such as beams, waves, tunnels, geometric patterns, and even basic graphics thanks to its 25 kpps @ 8° scanners with a maximum scanning angle of 30°. Pattern size adjustment is possible via two dedicated controls on the rear panel, while microphone sensitivity for sound-to-light mode is managed via the integrated display.

The CS-3000 micro can be controlled via ILDA, DMX, sound-to-light, automatic, and Master/Slave, offering extensive flexibility for both fixed installations and mobile use. Integration with the external ShowNET interface also provides access to professional software such as Showeditor and Showcontroller, significantly expanding creative possibilities.

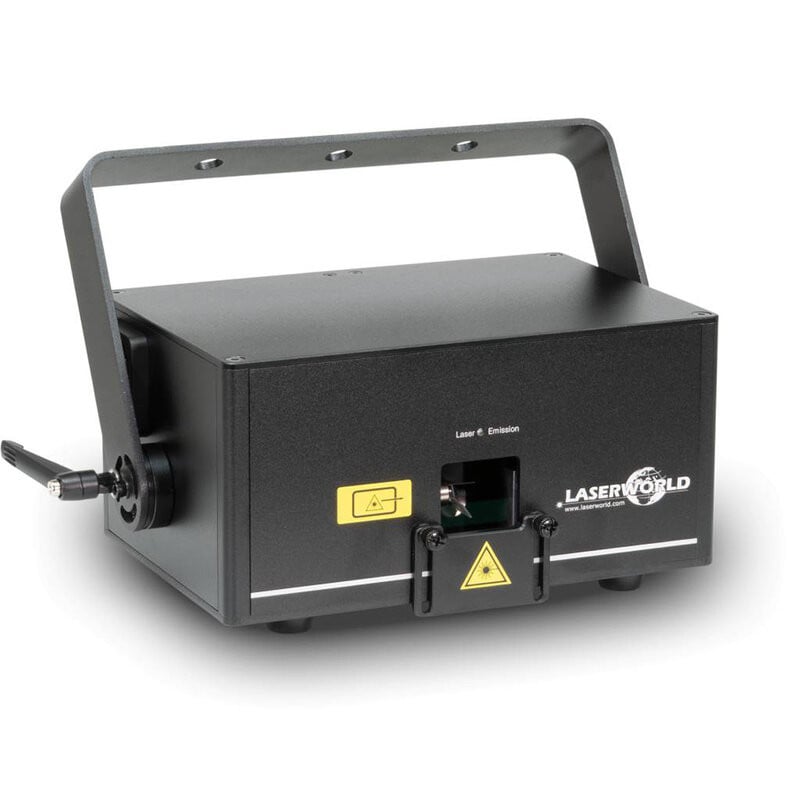

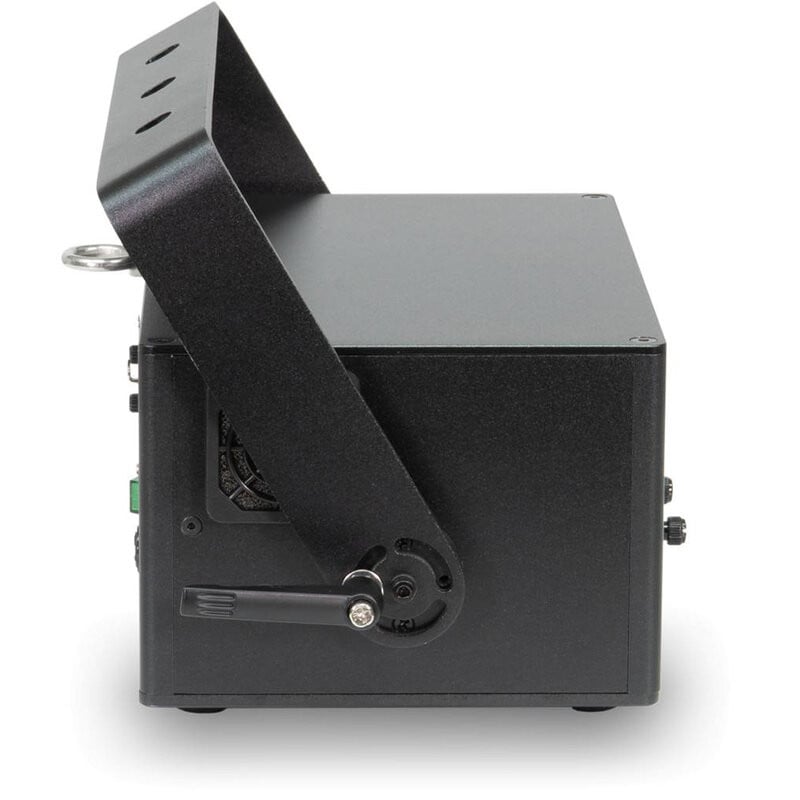

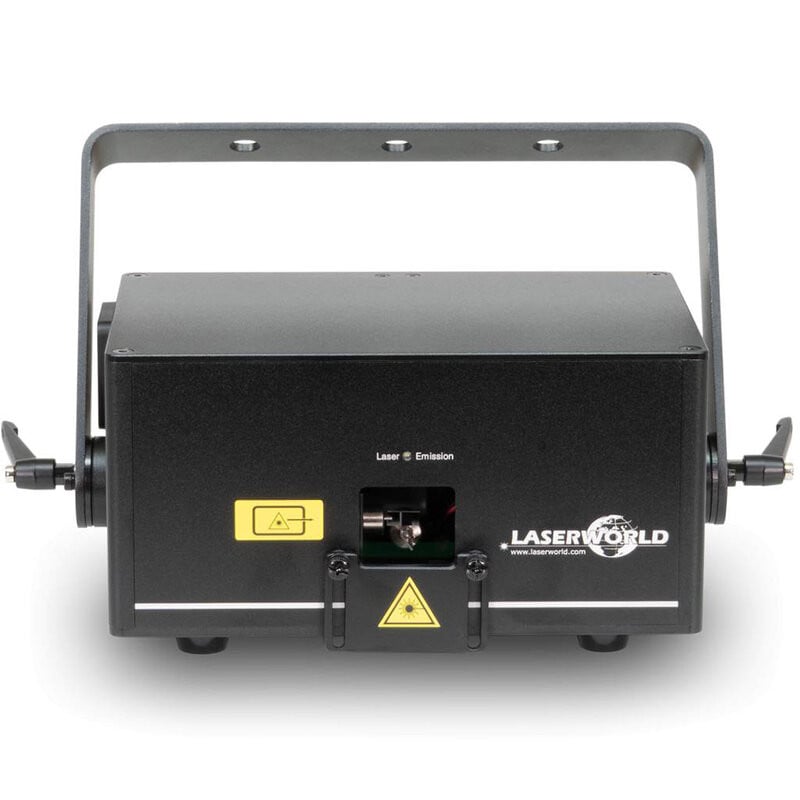

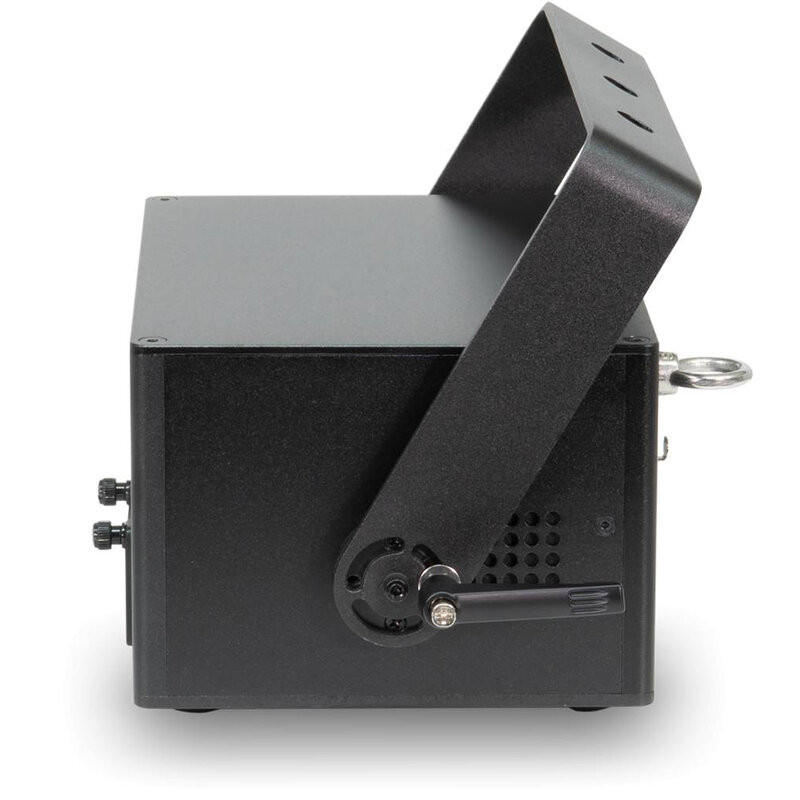

The sturdy bracket allows for versatile positioning.

User benefits

• Compact, lightweight, and easy to install
• 2500 mW analog RGB system with vibrant colors
• 25 kpps scanner for smooth effects
• Wide range of operating modes (ILDA, DMX, Auto, S2L, Master/Slave)
• Over 130 built-in patterns recallable via DMX
• Compatible with ShowNET

Areas of use

• Mobile DJs and wedding DJs
• Indoor events and private parties
• Small and medium-sized bars and clubs
• Permanent installations in small spaces
• Corporate events

Technical characteristics

• Guaranteed power at aperture: 2500 mW
• Red output: 500 mW / 638 nm
• Green output: 700 mW / 520 nm
• Blue output: 1800 mW / 450 nm
• Beam specifications: approx. 5 mm / 1.2 mrad
• Scanner: 25 kpps @ 8°
• Max. scan angle: 30°
• Laser source: diode
• Laser class: 4

• Operation modes: ILDA, DMX, sound‑to‑light, automatic, Master/Slave
• Basic patterns: approx. 130 (layers, tunnels, fences, waves, etc.)

• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 40 W

• Dimensions (L x W x H): 20 x 16.5 x 14.1 cm
• Weight: 3.0 kg
• What's in the box:
  • Laserworld CS‑3000 micro
  • Power cable
  • Interlock connector
  • Key
  • Manual
