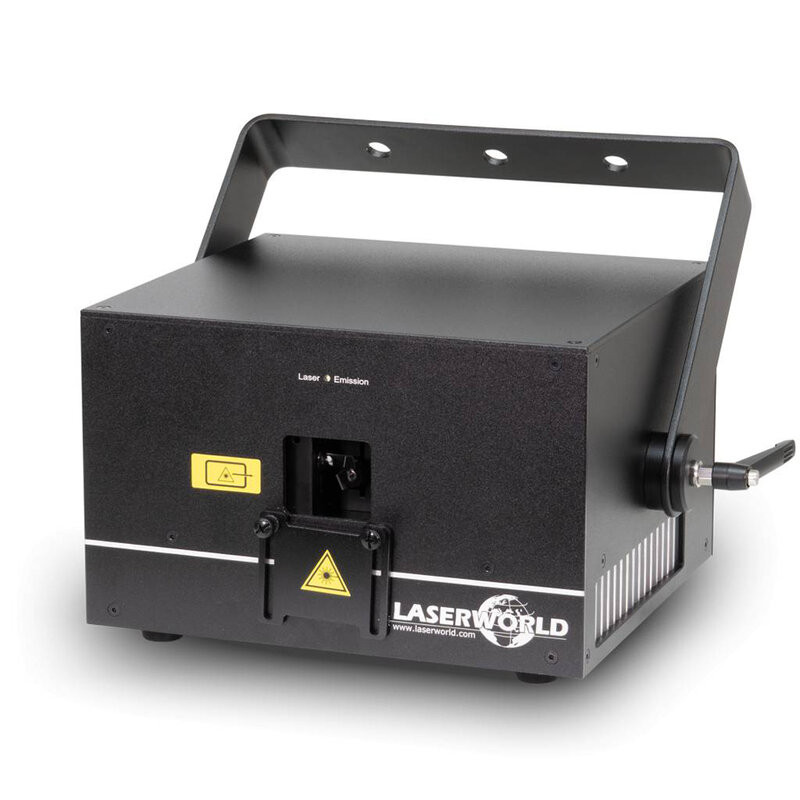

Laserworld - CS-6000 micro

The CS‑6000 micro is a 5800 mW analog RGB laser designed for semi-professional applications requiring powerful lighting effects, vibrant colors, and high versatility.

Thanks to its diode sources (950 mW red, 1500 mW green, 4000 mW blue) and analog modulation, it offers smooth color mixing and extremely sharp beams with a divergence of approximately 1.2 mrad.

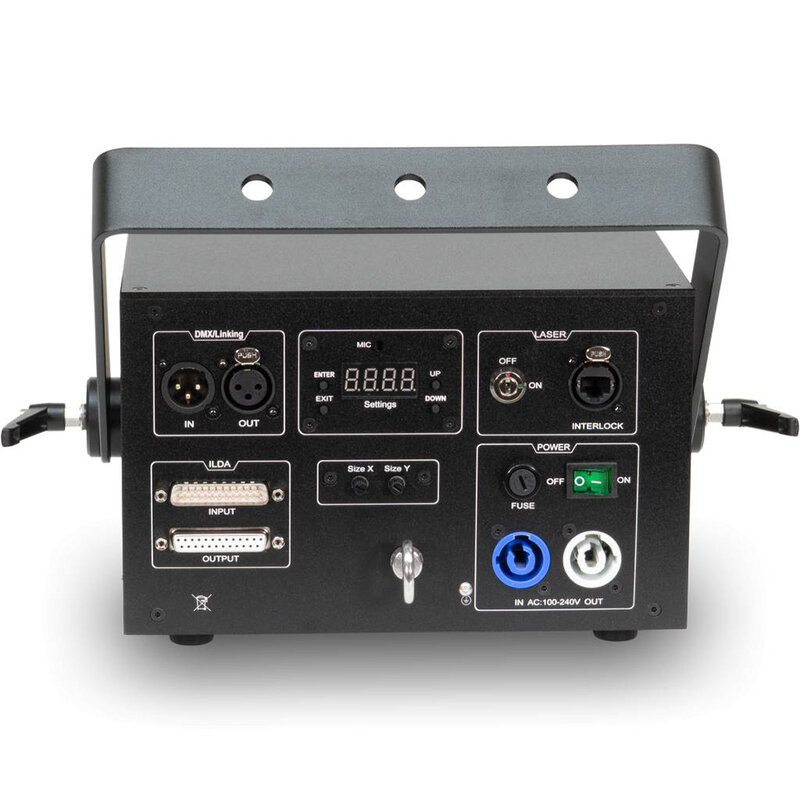

The system integrates 30 kpps @ 8° scanners with a maximum angle of 50°, allowing for the projection of effects such as tunnels, waves, layers, and dynamic patterns, as well as simple graphics. It features approximately 130 internal patterns that can be recalled automatically, via sound-to-light, or via DMX, with the option of adjusting the size and audio sensitivity directly from the rear panel.

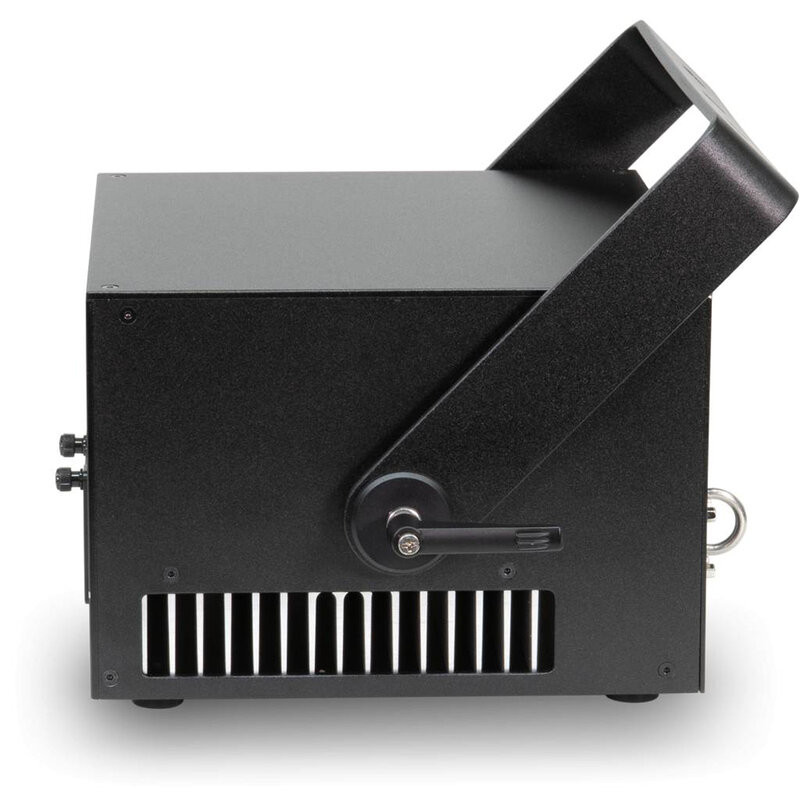

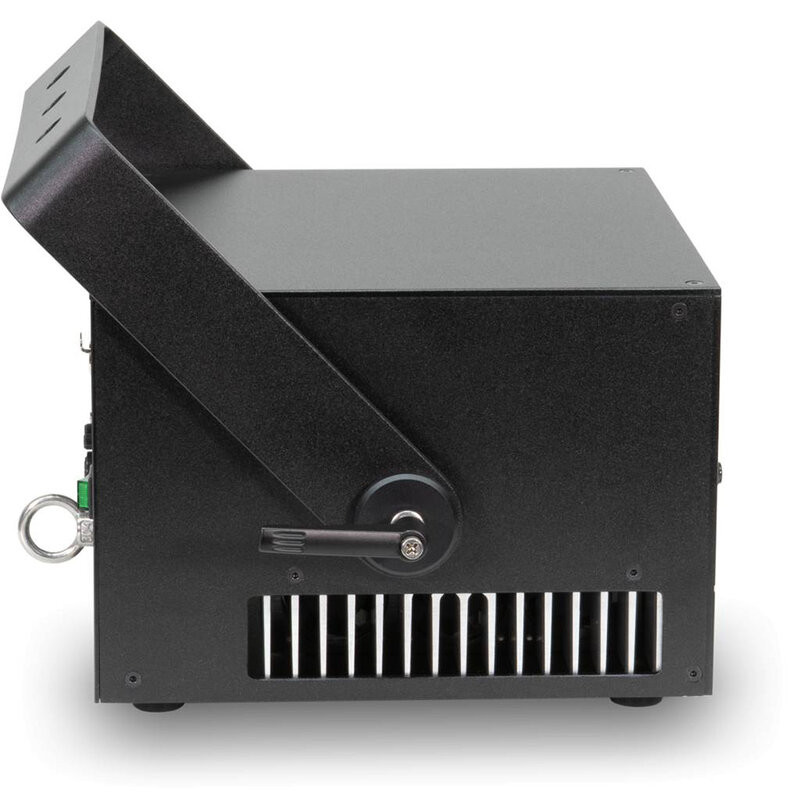

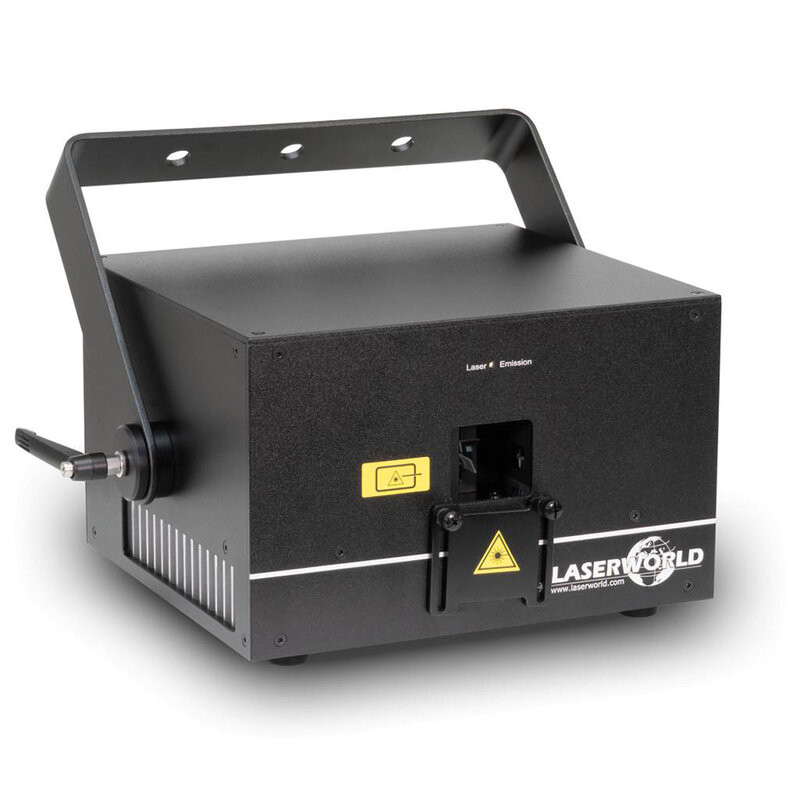

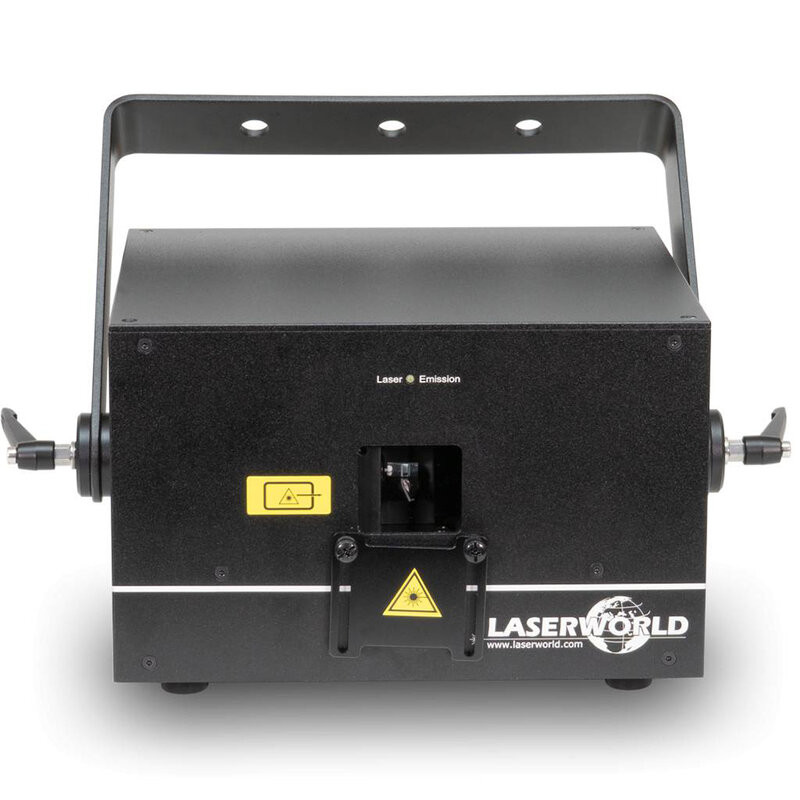

For advanced control, the projector includes an ILDA interface and can be integrated with the external ShowNET interface to use professional software such as Showeditor and Showcontroller. The design is compact and lightweight, with an adjustable bracket.

User benefits

• 5800 mW power with brilliant colors and analog modulation
• Highly defined beams with low divergence (1.2 mrad)
• 130 ready-to-use patterns
• ShowNET compatible
• Compact and lightweight design

Areas of use

• Permanent installations in clubs and venues
• Mobile DJs
• Temporary indoor events
• Parties
• Basic laser shows with simple graphics

Technical characteristics

• Guaranteed power at aperture: 5800 mW
• Red source: 950 mW / 638 nm
• Green source: 1500 mW / 520 nm
• Blue source: 4000 mW / 450 nm
• Beam specifications: ca. 5 mm / 1.2 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source type: diode
• Laser Class: 4
• Operation modes: ILDA, DMX, sound‑to‑light, auto, Master/Slave
• Basic patterns: approx. 130 (layers, tunnels, fences, waves, etc.)
• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 50 W
• Dimensions (L × W × H): 23 x 21 x 14.2 cm
• Weight: 5.0 kg
• What's in the box:
  • CS‑6000 micro
  • Power cable
  • Manual
  • Interlock, key
