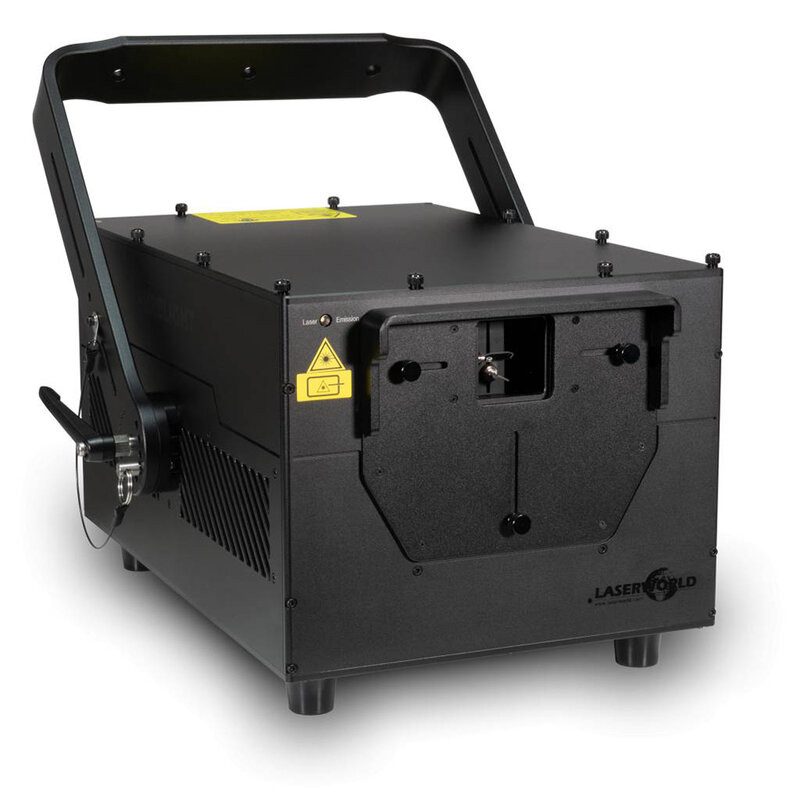

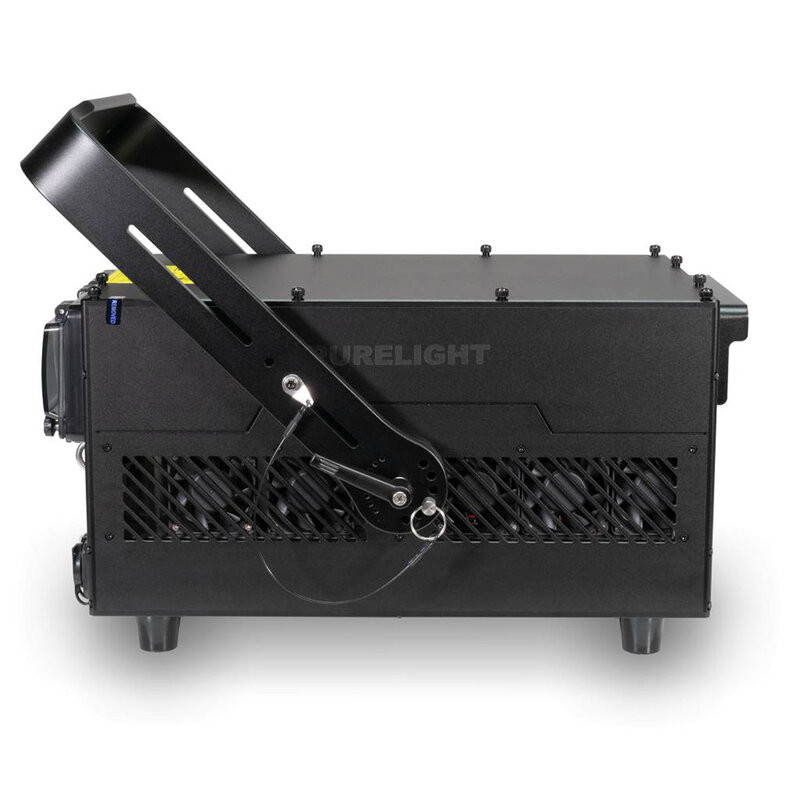

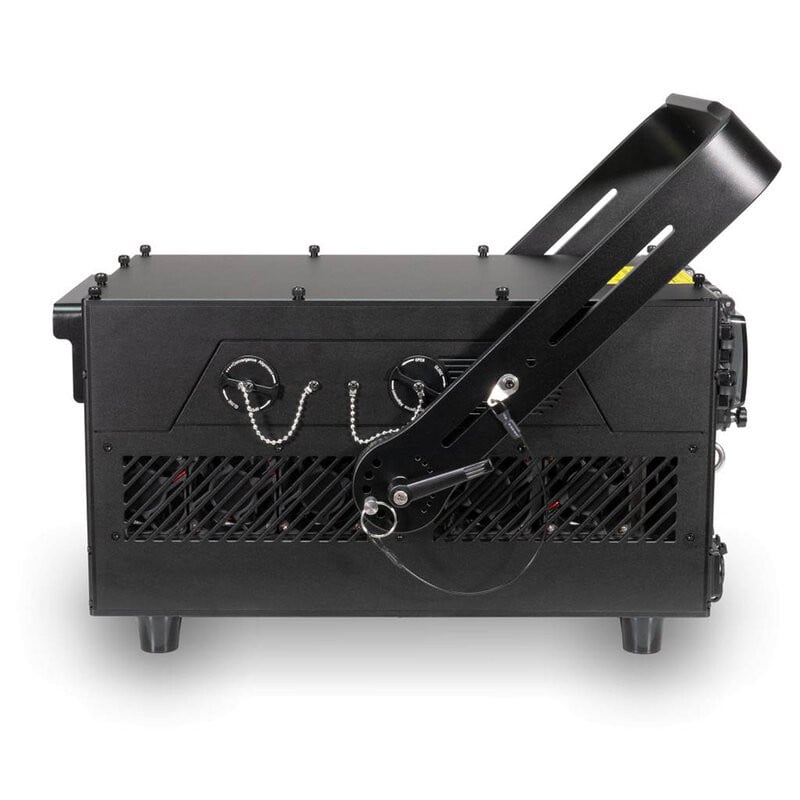

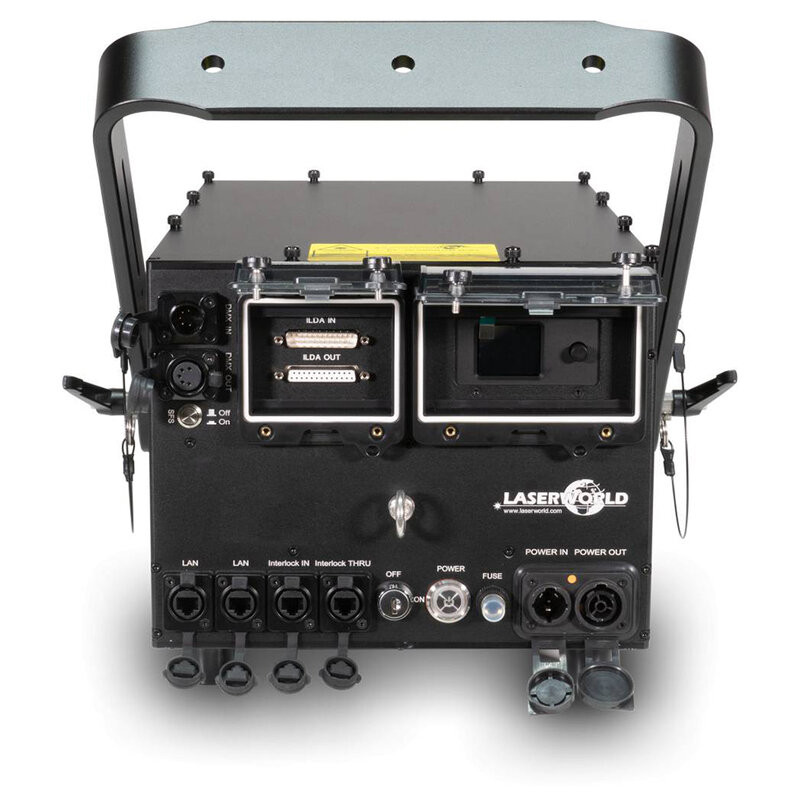

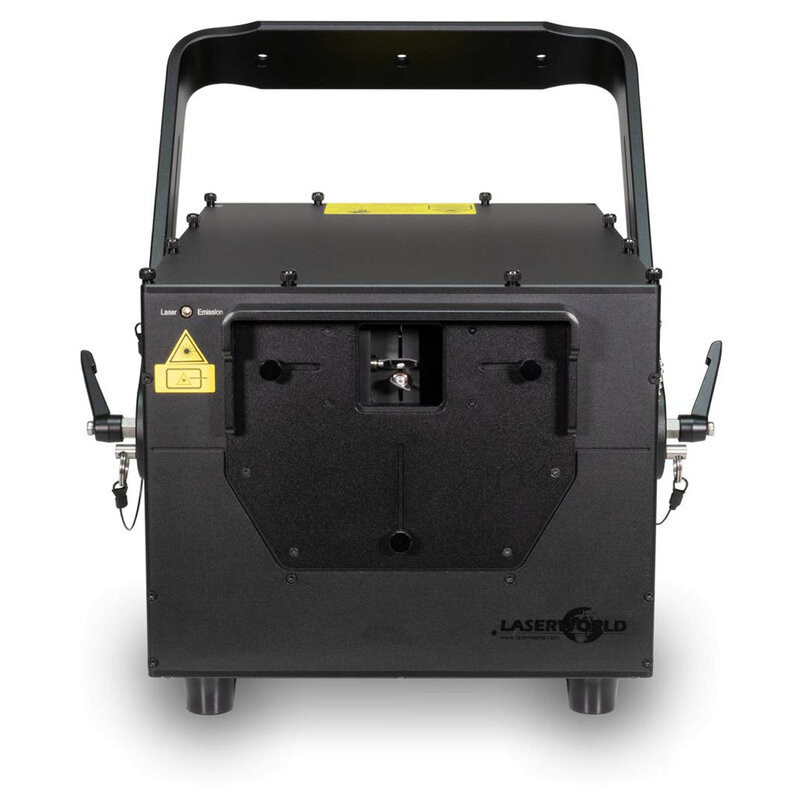

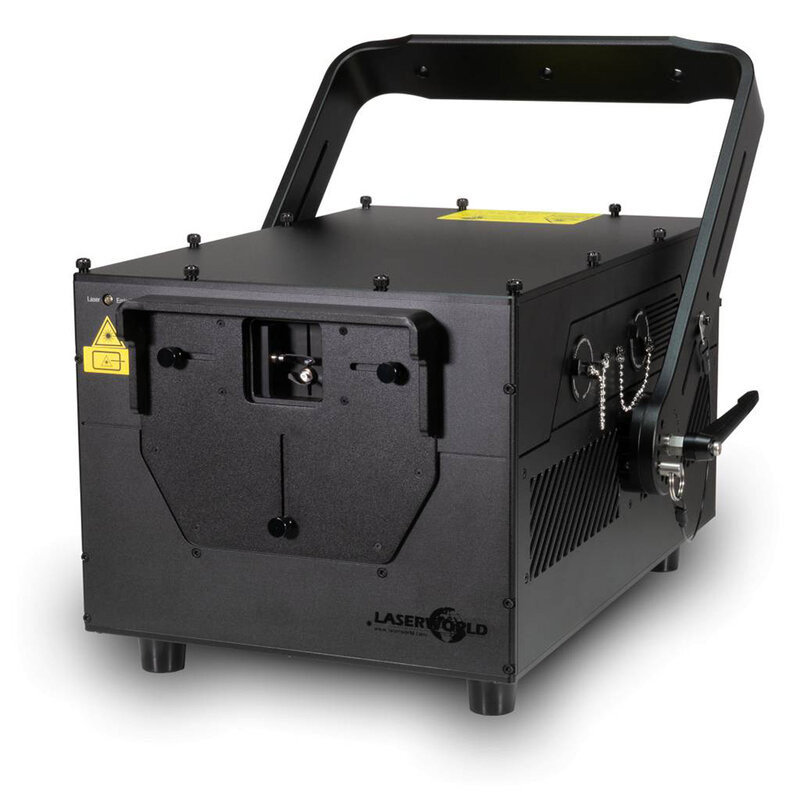

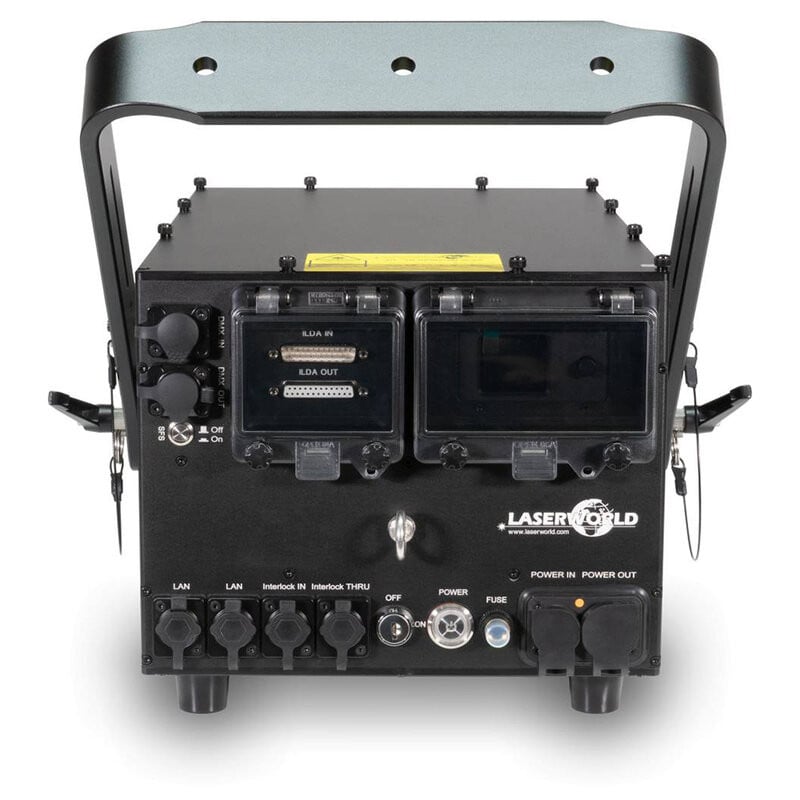

Laserworld - PL-70

The PL‑70 is a 70,000 mW Purelight series professional RGB laser system based on RSL2 technology, developed to achieve a sharper beam and improved optical quality in a compact package for the high laser power.

With its IP65 rating, the PL‑70 is ideal for permanent outdoor installations, tours, and productions requiring maximum reliability even in harsh environmental conditions.

The system uses high-performance 30 kpps @ 8° scanners with a maximum scanning angle of 50°, making it suitable for projecting graphics, logos, text, and complex effects. The beam has specifications of approximately 10 mm / 1.1 mrad, ensuring high visibility and precision even over long distances.

Each unit integrates the ShowNET mainboard, which allows control via DMX, Art‑Net, LAN, ILDA, ILDA‑Streaming, automatic mode, and Master/Slave. The internal memory allows you to recall preset patterns or custom content loaded in ILDA format. The device also includes a built-in display for quick configuration of operating modes.

The PL-70 comes with a waterproof flight case and a full license for the Showeditor software, offering a professional workflow for creating and managing complex laser shows.

User benefits

• RSL2 technology for superior optical quality
• Rugged chassis
• Extremely high RGB output of 70,000 mW
• 10 mm sharp beam with low divergence (1.1 mrad)
• IP65 rating for outdoor use
• ShowNET mainboard with DMX, Art-Net, LAN, ILDA, and ILDA-Streaming control
• Internal memory for preset patterns and custom content
• Includes waterproof flight case and full Showeditor license

Areas of use

• Permanent outdoor installations
• Clubs and large venues
• Touring and productions requiring ultra-high-power lasers
• Graphic projections, logos, and custom content
• Corporate events and multimedia shows
• Large-scale outdoor shows

Technical characteristics

• Guaranteed power at aperture: 70,000 mW
• Red output: 23,000 mW / 638 nm
• Green output: 28,000 mW / 520 nm
• Blue output: 28,000 mW / 450 nm
• Beam specifications: ca. 10 mm / 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

• Operation modes: ILDA, DMX, Art‑Net, LAN, ILDA streaming, integrated SD card, stand‑alone
• Basic patterns: over 120 (level, tunnel, grid, waves, etc.)

• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 800 W

• Dimensions (L x W x H): 48 x 36 x 29 cm
• Weight: 50 kg

• What's in the box:
  • Laserworld PL‑70
  • Waterproof flightcase
  • Power cable
  • Manual
  • Interlock
  • Key
  • Full version Showeditor software license
