Laserworld - PL-70 FB4

The PL‑70 FB4 is a 70,000 mW Purelight series professional RGB laser system based on RSL2 technology, developed to achieve a sharper beam and improved optical quality in a compact package for the high laser power.

With its IP65 rating, the PL‑70 FB4 is ideal for permanent outdoor installations, tours, and productions requiring maximum reliability even in harsh environmental conditions.

The system uses high-performance 30 kpps @ 8° scanners with a maximum scanning angle of 50°, making it suitable for projecting graphics, logos, text, and complex effects. The beam has specifications of approximately 10 mm / 1.1 mrad, ensuring high visibility and precision even over long distances.

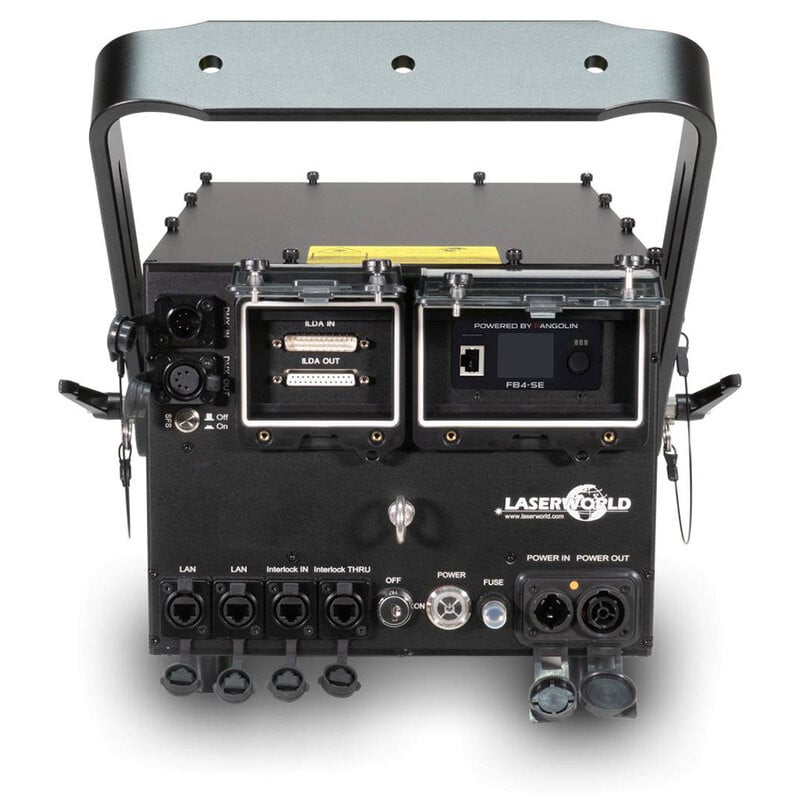

The FB4 version integrates the Pangolin FB4 mainboard, which enables professional control via DMX, Art-Net, sACN, LAN, automatic and Master/Slave modes, as well as direct playback from an SD card. The FB4 also allows the use of the Pangolin QuickShow software, included in the package, for advanced laser show creation and management. The device includes a built-in display for quick configuration of operating modes.

The PL-70 FB4 comes with a waterproof flight case and a full license for the QuickShow software, offering a professional workflow for programming and controlling laser shows.

User benefits

• RSL2 technology for superior optical quality
• Rugged chassis designed for intensive use
• Extremely high RGB power of 70,000 mW!
• 10 mm sharp beam with low divergence (1.1 mrad)
• IP65 rating for outdoor use
• Pangolin FB4 motherboard with DMX control, Art-Net, sACN, LAN, and SD card playback
• Full compatibility with Pangolin QuickShow (license included)
• Includes waterproof flight case for transport and protection

Areas of use

• Permanent outdoor installations
• Clubs and large venues
• Touring and productions requiring ultra-high-power lasers
• Graphic projections, logos, and customized content
• Corporate events and multimedia shows
• Large-scale outdoor shows

Technical characteristics

• Guaranteed power at aperture: 70,000 mW
• Red output: 23,000 mW / 638 nm
• Green output: 28,000 mW / 520 nm
• Blue output: 28,000 mW / 450 nm
• Beam specifications: ca. 10 mm / 1.1 mrad
• Scanner: 30 kpps @ 8°
• Max. scan angle: 50°
• Laser source: diode
• Laser Class: 4

• Operation modes: FB4, ILDA, DMX
• Basic patterns: available for download

• Power supply: 85 – 250 V_AC 50/60 Hz
• Power consumption: 800 W

• Dimensions (L x W x H): 48 x 36 x 29 cm
• Weight: 50 kg

• What's in the box:
  • Laserworld PL‑70 FB4
  • Waterproof flightcase
  • Power cable
  • Manual
  • Interlock
  • Key
  • Pangolin QuickShow software (included)
